Repair a Craftsman lawn mower by matching the symptom to the failing component: a mower that won’t start almost always needs a fresh spark plug, clean air filter, or unclogged carburetor; one that runs rough needs the fuel system inspected; a self-propelled model that won’t drive needs the drive belt or transmission cable checked; and an uneven cut points to a dull or bent blade or an unlevel deck. Work through each symptom section below—starting with the cheapest and most accessible fix—before moving to component-level repairs.
What You Need Before You Start
Before tackling any repair, gather the right tools and verify your mower type. Disconnect the spark plug wire before touching the blade, belt, or underside of the deck. This prevents accidental engine start and is the single most important safety step.

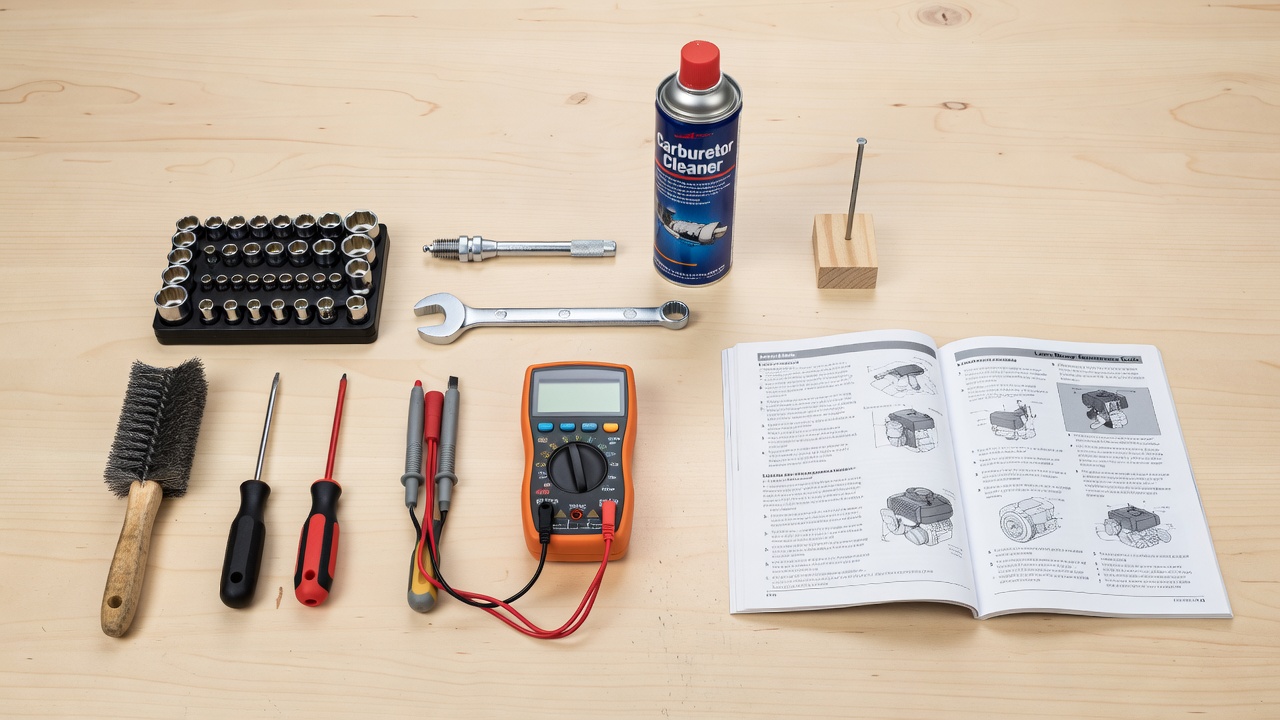

Essential tools: socket set, spark plug wrench (typically 5/8-inch), screwdrivers, carburetor cleaner, wire brush, multimeter (for electrical diagnosis), and a blade balancer or nail for checking blade alignment.
Locate your model number on the frame or engine housing, usually stamped near the serial number plate. Write it down; it determines which OEM or compatible parts you need and whether your mower was manufactured by Craftsman (pre-2018 Sears-era) or by Husqvarna under the Craftsman brand (post-2018). Husqvarna-made units often have parts cross-referenced to Husqvarna catalogs, which can expand your sourcing options.
Stock common wear parts: spark plug, air filter, fuel filter, and oil of the correct grade for your engine (consult your manual for viscosity). Having these on hand prevents project delays.
Craftsman Mower Won’t Start: Step-by-Step Diagnosis
A mower that won’t start accounts for the majority of repair calls. Work through these checks in order before assuming engine failure.
1. Inspect and replace the spark plug. Remove the spark plug wire by twisting gently and pulling the boot back. Unscrew the spark plug with your spark plug wrench. A black, oily, or heavily carbon-coated plug indicates a running problem; a white-hot plug (visible damage or electrode erosion) points to ignition failure. Replace with a fresh spark plug of the correct type per your manual. Reinstall and reconnect the wire firmly until it clicks.
2. Check the air filter. Locate the air filter housing (usually a plastic bowl near the carburetor). Remove it and inspect the foam or paper filter. If clogged with grass or dirt, clean foam filters by tapping gently and rinsing with warm soapy water; replace paper filters if torn or heavily soiled. A clogged filter starves the engine of air and prevents starting.
3. Assess fuel quality. Fuel older than 30 days—especially ethanol-blended gasoline—can gum up the carburetor jets and prevent fuel flow. If you’re unsure when the gas was added, drain the tank into a safe container. Fill with fresh fuel from a recent fill-up at a busy station (higher turnover means fresher gas). If the tank smells sour or looks cloudy, drain and replace it entirely.
4. Test the primer bulb. If your mower has a manual primer bulb (usually a rubber ball near the carburetor), squeeze it 3–5 times before pulling the start cord. A firm, responsive bulb indicates good fuel circulation; one that feels soft or won’t hold pressure suggests a leak or puncture in the fuel line. Listen for fuel trickling into the carburetor when you prime.
5. Clean or rebuild the carburetor. The carburetor regulates the fuel-to-air ratio. Over time, stale fuel leaves varnish on the internal jets, blocking fuel passage. Spray carburetor cleaner into the small passages visible on the carb exterior. If that doesn’t work, remove the carburetor (typically 2–4 bolts) and soak it in carburetor cleaner, then use a soft brass brush to clear the main jet and idle jet. For deeper clogs, use a carburetor rebuild kit and follow the kit instructions for gasket replacement and jet reinstallation.
6. Replace the fuel filter. An inline fuel filter (if equipped) sits between the tank and carburetor. If fuel flow is weak or the mower cranks but won’t fire, a clogged fuel filter may be at fault. Replace it by loosening the hose clamps, pulling off the old filter, and sliding on the new one, ensuring it points in the direction of fuel flow (arrow on the filter body).
7. Check ignition coil gap (for push mowers with solid-state ignition). If the mower has an ignition coil mounted on the engine block near the flywheel, the air gap between the coil and the flywheel magnet can drift and prevent spark. Consult your manual for the correct gap specification, and use a feeler gauge to measure it. If it exceeds spec, loosen the coil bolts, adjust the position, and retighten.
Riding mower specific: Before troubleshooting, ensure the safety seat switch is engaged (sit on the seat), the blade control is in the off position, and the battery terminals are clean and tight. A corroded or loose battery terminal will prevent the starter solenoid from engaging, causing only a click sound when you turn the key.
Craftsman Mower Runs Rough, Surges, or Dies Under Load
A mower that starts but runs erratically or stalls when cutting thick grass points to fuel starvation or improper air-fuel mixture.
Clean the carburetor jets. Lean running (too much air, not enough fuel) is the most common cause. Spray carburetor cleaner directly into the small holes visible on the carb body; these are the fuel jets. Pay special attention to the main jet (often the largest visible hole) and the idle jet. Run the cleaner through until it sprays clear from the other side of the carburetor.
Drain stale fuel and refill. Ethanol-blended gasoline oxidizes quickly, especially in warm storage. Drain the tank and carburetor bowl (if accessible) and refill with fresh fuel. For seasonal mowers, add a fuel stabilizer to winter gas to prevent varnish buildup.
Inspect the air filter again. A partially clogged air filter can cause the mixture to run rich (too much fuel), leading to black smoke, fouled spark plugs, and stalling. Clean or replace it.
Check oil level. Low oil triggers a safety shutoff on many modern mowers that forces the engine to kill under load. Top off the oil to the full mark on the dipstick. Use the oil grade specified in your manual (consult the owner’s manual or engine manufacturer label, which typically list SAE 30 or equivalent for warm-weather use).
Craftsman Self-Propelled Mower Won’t Drive
A self-propelled mower that won’t move forward but runs normally almost always has a failed drive belt or broken drive cable.
Inspect the drive belt. Locate the drive belt under the mower deck (consult your manual for the exact routing). Spin the wheels by hand; if they turn freely, the belt is broken or slipped off. Check for visible cracks, fraying, or chunks missing from the belt. A worn belt may look smooth and glazed. Replace it by removing the fasteners holding the belt pulleys, sliding off the old belt, and routing the new belt around the pulleys in the correct sequence (your manual will show a belt routing diagram). Ensure the belt sits flush in the pulley grooves.
Adjust or replace the drive cable. If the belt is intact but you feel resistance when the drive bail is engaged, the drive cable may be loose or broken. The cable runs from a lever or bail you hold during mowing to a belt tensioner or pulley. Loosen the cable adjuster nut at the frame and pull the cable tighter until the wheels turn when you squeeze the bail. If the cable is frayed or broken, replace it with a new one and re-secure.
Check transmission or hydrostatic pump (riding mowers). On riding mowers, failure to move forward with the engine running suggests a worn hydrostatic transmission or a broken belt. Check the transmission fluid level on the side of the transmission housing (consult your manual for the correct level). Top it off if low. If the wheels still don’t turn, the transmission is likely worn internally and requires professional service or replacement.
Craftsman Mower Cutting Unevenly or Leaving Strips of Uncut Grass
Uneven cutting is almost always caused by a dull, bent, or imbalanced blade, or a deck that is not level side-to-side or front-to-back.
Remove and inspect the blade. With the spark plug wire disconnected, tip the mower on its side (carb side up to prevent oil entering the air filter). Mark the blade with paint or tape on the top side so you can reorient it correctly. Unbolt the blade (typically one or two bolts through the center hub). Lay it on a flat surface and check for bends by sighting along the edge or using a straightedge. A bent blade must be replaced, not bent back (re-straightening weakens the metal).
Sharpen a dull blade. Use a metal file or angle grinder with a cutting wheel to sharpen the leading edge (the side that cuts). Maintain the original blade angle (typically 30–35 degrees, though your manual may specify). The goal is to restore a sharp edge; do not remove excess metal. After sharpening, check blade balance by hanging it on a nail through the center hole. A balanced blade hangs level; one that dips to one side is too heavy on that end and requires a tiny bit more metal removal from the heavy side.
Level the deck. Place the mower on level ground and measure the distance from the bottom of the deck to the ground on both sides and front-to-back (or check the height of the wheels at each corner). The deck should be slightly lower in front (by roughly 1/8 to 1/4 inch) than at the rear for optimal cutting. Raise or lower the front and rear wheel adjusters to achieve this pitch. Many Craftsman mowers have adjustment bolts on the wheel brackets; loosen the bolt on the wheel you want to adjust, slide the bracket up or down, and retighten.
Clean the deck underside. Clumps of grass, dirt, or leaves stuck under the deck restrict blade movement and cause uneven cutting. Tip the mower sideways (carb up) and scrape out debris with a wooden block or putty knife. Do not use your hands.
Craftsman Riding Mower and Zero-Turn Specific Repairs
Riding mower repairs differ from push mower work due to electrical systems, blade engagement clutches, and transmission complexity.
Blades won’t engage. If the PTO (power take-off) switch on the dashboard clicks or engages but the blades don’t spin, the PTO clutch or blade deck belt has failed. Check the blade deck belt by lifting the mower hood and looking under the top cover. Replace it if cracked or frayed, using the belt routing diagram in your manual. If the belt is intact, the clutch electromagnet may be burned out, requiring a replacement clutch assembly (professional service recommended).
Safety interlock switches. Riding mowers have multiple safety switches that cut power if you leave the seat, forget to engage the brake, or move the shift lever to neutral during blade operation. If the blades won’t engage at all, verify that you’re seated firmly, the brake is released, and the shift lever is in a forward or reverse position (never neutral). If the switches are stuck or damaged, they can prevent blade engagement even when conditions are met; consult your manual for switch location and testing with a multimeter.
Battery and charging issues. If the engine cranks slowly or won’t crank, the battery may be dead or corroded. Clean the battery terminals with a wire brush, tighten the cable connections, and charge the battery with a 12-volt charger (follow the charger instructions for the correct charging rate and duration). If the battery still won’t hold a charge, it has likely failed and needs replacement.
Craftsman Battery and Electric Mower Troubleshooting
Cordless Craftsman mowers (V20 and 60V lines) offer a different repair workflow than gas models.
Battery won’t charge or holds charge for only minutes. First, clean the battery contacts and charger contacts with a dry cloth or soft brush. Ensure the charger is plugged into a working outlet (test with a lamp or phone charger to confirm). If the battery still doesn’t charge, it has likely reached end of life and requires replacement. Most Craftsman batteries are warrantied for a limited period; check your paperwork or the Craftsman website for warranty status.
Motor won’t engage or cuts out under load. Ensure the battery is fully charged by leaving it on the charger for the full recommended time (usually 30 minutes to 1 hour, depending on the model). If the motor still cuts out, the battery may be failing or the motor may have a loose connection. Remove and reinstall the battery firmly until it clicks. If that doesn’t help, the motor or internal electronics may be faulty; contact Craftsman customer support for a warranty replacement.
Reset the mower. Some electric Craftsman models have a firmware reset procedure if the mower behaves erratically or won’t power on. Check your manual or the Craftsman support website for a reset sequence, which typically involves pressing the power button in a specific pattern or leaving the battery installed with the charger disconnected for several minutes.
Preventive Maintenance to Avoid Future Repairs
The easiest repair is the one you prevent. Follow this annual schedule:
Before the mowing season: Drain the old oil and refill with fresh oil of the correct grade. Replace the spark plug. Clean or replace the air filter. Sharpen the blade and check its balance. Inspect the drive belt for cracks or wear. Top off the fuel tank with fresh gas (or replace stored fuel if it’s been sitting over winter). Run the mower for 10 minutes to warm the engine.
During the season: Clean the deck underside after mowing wet grass. Check oil level every 5–10 hours of use. Inspect the spark plug and air filter monthly.
End of season: Drain the fuel tank or add fuel stabilizer and run the mower until it stalls (this leaves treated fuel in the carburetor to prevent varnish). Change the oil one final time. Store the mower in a dry location. For gas mowers, disconnect the spark plug wire to prevent accidental starting during off-season.
By staying on top of these simple checks, you’ll keep your Craftsman mower running smoothly for years and avoid most of the common failures covered in this guide.
