To repair a lawn mower carburetor, disconnect the spark plug wire and fuel line, then remove the air filter housing and detach the carburetor from the engine intake. Disassemble by removing the bowl, float, needle valve, and jets. Spray all passages and jets with carburetor cleaner and clear blockages with a thin wire or compressed air. Inspect the gasket, float, and needle valve—replace worn or damaged parts using a rebuild kit matched to your engine brand. Reassemble in reverse order with a new bowl gasket, then reinstall and reconnect all linkages. If the throttle plate, choke plate, or carburetor body is cracked, replace the entire unit.
How Do You Know Your Lawn Mower Carburetor Needs Repair?
Before disassembling your mower, identify whether the carburetor is actually the problem. A malfunctioning carburetor typically shows one of these signs:
- Hard to start or won’t start: Clogged jets or a stuck needle valve prevent fuel flow to the engine.
- Starts then dies: Often caused by a dirty pilot jet that supplies fuel at idle.
- Black smoke or rough idle: A fuel-rich condition from a stuck float or worn needle valve.
- Surging or hunting at idle: Varnish deposits restrict fuel delivery inconsistently.
- Visible fuel leaking from the bowl: A cracked bowl, loose bowl nut, or pinched gasket.
If your spark plug is fouled (wet and black) or your fuel filter is clogged, those may be the root cause instead. Always check the spark plug and fuel filter first—they’re easier to replace and often the real culprit. Drain old fuel and test with fresh gasoline before concluding the carburetor is faulty.

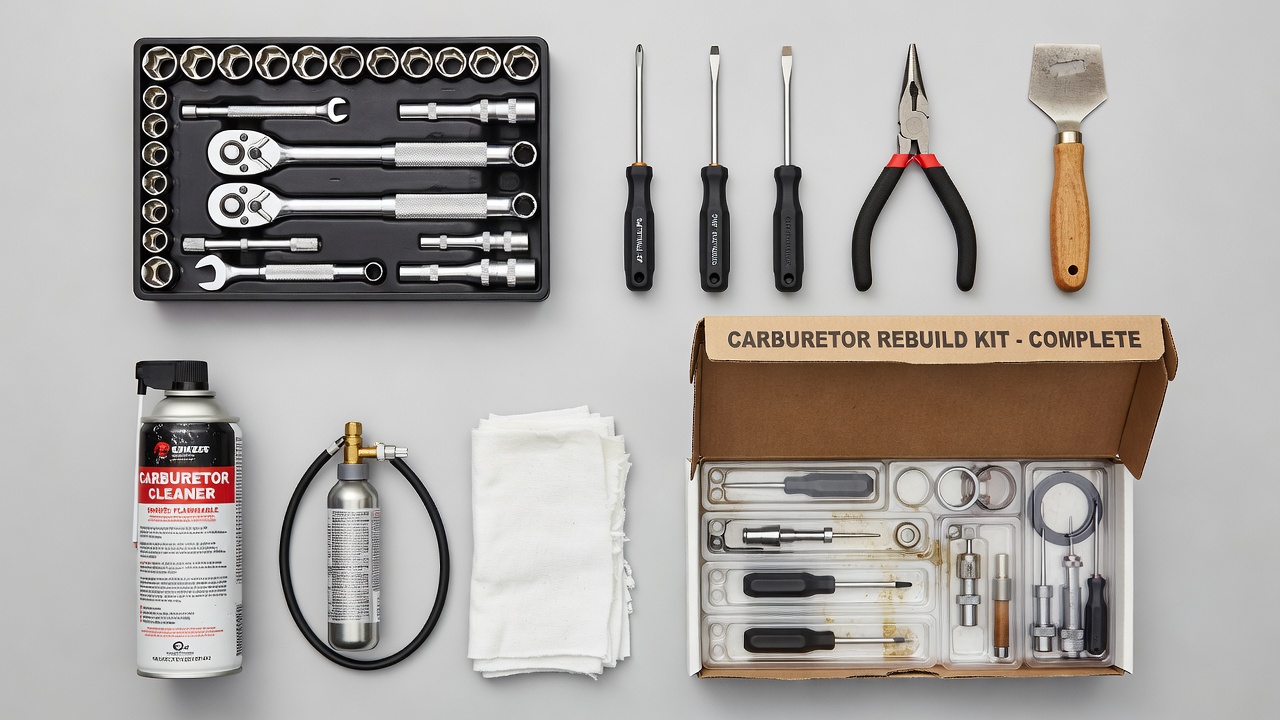

What Tools and Parts Do You Need?
Gather these items before you begin:
- Socket wrench set (typically 8mm to 13mm for walk-behind mowers)
- Screwdriver set (both Phillips and flathead)
- Needle-nose pliers
- Small flathead screwdriver or carburetor scraper for jet removal
- Carburetor cleaner spray (aerosol type for ease)
- Compressed air source (optional but helpful)
- Clean rags or paper towels
- Gasket scraper or old credit card
- Carburetor rebuild kit matched to your engine brand and model
Rebuild kits for Briggs & Stratton, Honda GCV, Tecumseh, and Kohler engines typically cost $15–$40 and include a new bowl gasket, needle valve, seat, float pin, and O-rings. Match the kit to your specific engine model number (found on the engine shroud or in your owner’s manual) to ensure correct parts.
How to Safely Remove the Carburetor
Safety first: Disconnect the spark plug wire to prevent accidental engine start. Move the fuel shutoff lever to the off position if your mower has one; if not, clamp the rubber fuel line with a hose clamp or clothespin to stop fuel flow.
Next, locate and remove the air filter housing—typically held by a few bolts or clips. Set it aside. Note how the throttle and choke linkages connect to the carburetor (take a photo if helpful). Disconnect the primer bulb line if present. Unbolt the carburetor from the engine intake manifold, usually two or three bolts. Gently work the carburetor free and place it on a clean workbench. Plug the intake opening with a clean rag to prevent debris from entering the engine.
How to Disassemble and Clean
Most small engine carburetors follow this sequence. Start by removing the bowl nut at the bottom using the appropriate wrench—turn slowly to avoid stripping. Carefully lower and remove the carburetor bowl. Pour any old fuel and deposits into a container and dispose of properly.
Next, remove the float by gently lifting the float pin (a small rod that holds it in place). Remove the needle valve by unscrewing the seat with a small screwdriver or valve wrench if required. Take out the main jet and pilot jet—these are usually small brass pieces that screw out from the carburetor body or bowl.
Spray all internal passages, jets, and ports with carburetor cleaner. Use a thin wire or needle to gently clear any blockages in the jets. Do not force the wire—jets are delicate and easily damaged. Compressed air can help dislodge stubborn varnish, but only use dry compressed air to avoid introducing moisture.
Repeat cleaning until no debris or varnish residue appears on the parts or spray. Dry everything thoroughly with a clean rag. Clogged jets are the leading cause of lawn mower starting and running problems, and cleaning them often restores full function.
Inspect and Replace Worn Components
While disassembled, inspect three critical parts:
Needle valve: Look at the tip under light. A healthy needle has a smooth, tapered point. If it shows grooves, flattening, or scarring, it cannot seal properly and must be replaced. A worn needle causes flooding and a fuel-rich condition.
Float: Shake it gently. If you hear or feel liquid sloshing inside, the float has absorbed fuel and can no longer float correctly. Replace it using the kit. Also check the float hinge for cracks—a cracked float is unrepairable.
Bowl gasket: The rubber ring under the bowl often hardens and cracks from age and ethanol-blend fuel exposure. Always install a fresh gasket from your rebuild kit—reusing old gaskets is the most common source of carburetor leaks after reassembly.
Install the new gasket, needle valve seat, and needle valve according to your rebuild kit instructions. Tighten the needle valve seat snugly but do not over-torque—gentle finger-tight plus a quarter turn is usually correct.
How to Reassemble and Reinstall
Reassemble in reverse order of disassembly. Insert the main jet and pilot jet, then install the needle valve and seat. Place the float back onto its hinge pin and ensure it moves freely. Lay the new gasket flat on the bowl seat, then thread the bowl nut hand-tight first—this prevents the gasket from twisting. Gently snug the nut with a wrench, just firm enough that the bowl does not rotate or leak. Over-tightening cracks the bowl or strips the threads.
Reinstall the carburetor on the engine intake, hand-tightening the mounting bolts first to align everything, then snugging them with a wrench. Reconnect the throttle and choke linkages in their original positions—take your photo as reference. Reattach the primer bulb line and air filter housing.
Before starting the engine, reconnect the spark plug wire and turn the fuel shutoff to the on position (or remove the fuel line clamp). Start the engine and let it warm up. If it runs roughly, do not operate it for long—stop and recheck your work. Common reassembly mistakes include a pinched bowl gasket (causes immediate leaks) or misrouted throttle springs (causes the engine to not idle or rev properly).
When to Replace Instead of Repair
Do not attempt to rebuild a carburetor if:
- The carburetor body is visibly cracked or split.
- The bowl threads are stripped or damaged (the bowl nut spins without tightening).
- The throttle plate or choke plate is cracked or stuck permanently.
- The cost of a rebuild kit plus your time approaches the cost of a replacement carburetor.
Replacement carburetors for common walk-behind mower engines typically cost $50–$120. If your mower is valuable and the carburetor is simply clogged, rebuilding saves money. If the carburetor is damaged or your mower is very old, replacement may be more practical.
Riding Mower Carburetors: A Brief Note
Riding mower carburetors, often found on Kohler and larger Briggs & Stratton engines, follow the same cleaning principles but are more complex. Access typically requires removing the mower hood, and some designs include a fuel pump or dual fuel circuits. If you have a riding mower, consult your equipment manual or consider professional service for this task.
Prevent Carburetor Problems in the Future
Use a fuel stabilizer during off-season storage to prevent varnish buildup and gum deposits. Ethanol-blend gasoline can degrade rubber gaskets and needle valve seats, especially during prolonged storage. Many mower owners drain the carburetor bowl completely before winter storage or run the mower until it empties the carburetor naturally.
If you store your mower for more than a month, either add stabilizer to fresh fuel before storage or drain all fuel from the carburetor and fuel tank. This simple step eliminates the most common cause of spring start problems and extends carburetor life significantly.
