Signs Your Lawn Mower Carburetor Needs Replacing (Not Just Cleaning)
Before pulling any parts, confirm the carburetor is the actual failure point. Unnecessary carburetor replacement wastes money and time when a $5 cleaning or a different repair would resolve the issue.

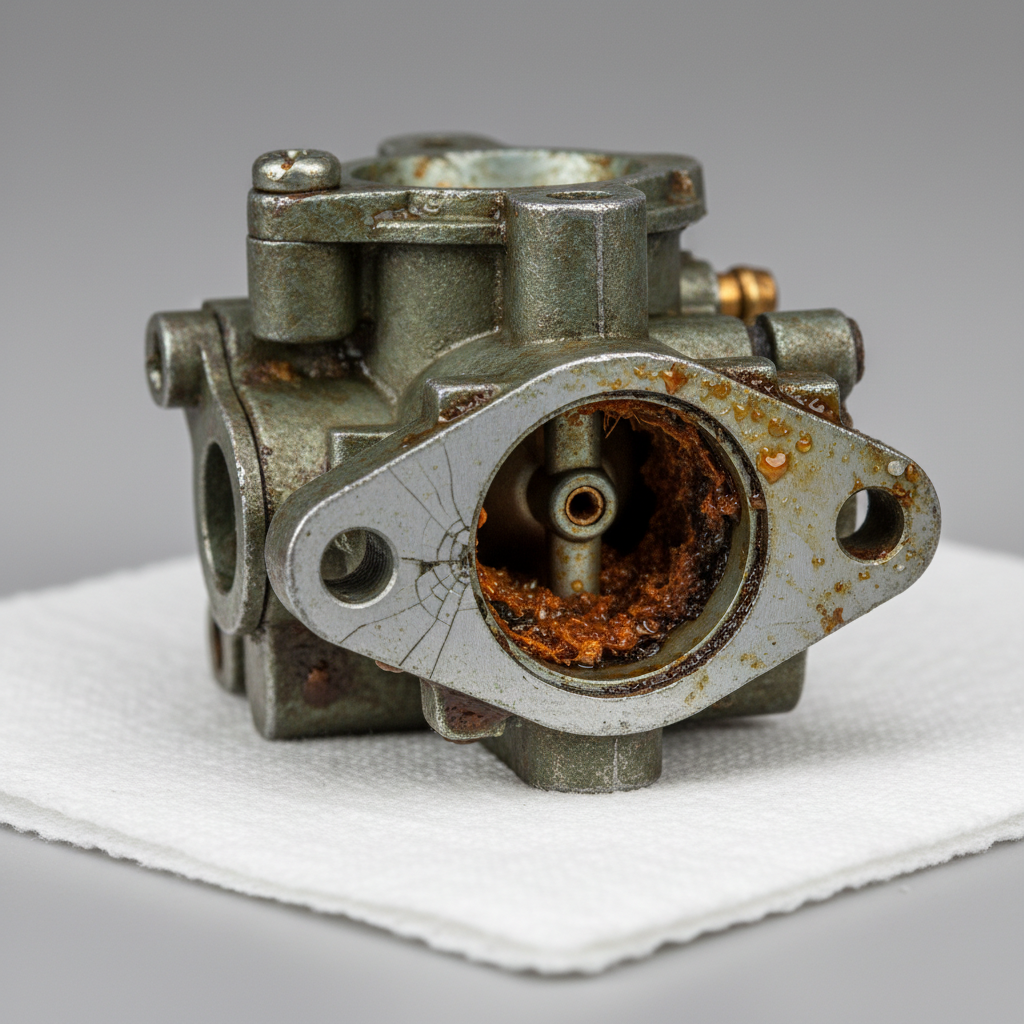

Symptoms That Point to Carburetor Failure
- Engine won’t start despite a fresh spark plug and good compression — stale fuel or ethanol-blend fuel deposits are a leading cause of carburetor failure in small engines, as ethanol absorbs water and leaves gummy varnish residue that blocks internal passages.
- Engine starts but immediately stalls — the idle circuit is blocked or the needle valve is stuck, preventing sustained fuel delivery.
- Black smoke or heavy fuel smell — the carburetor is flooding the engine, often caused by a stuck float or deteriorated needle seat.
- Engine runs rough or surges at full throttle — air-fuel mixture is inconsistent, typically from a partially clogged main jet.
- Visible fuel leaking from the carburetor bowl — the bowl gasket or inlet needle has failed.
Replace vs. Rebuild vs. Clean: Decision Box
| Condition | Recommended Action | Typical Cost |
|---|---|---|
| Gummy deposits, jets passable with solvent | Clean (carburetor cleaner spray + compressed air) | $5–$10 |
| Worn needle, float, or gaskets; body intact | Rebuild with a carburetor rebuild kit | $8–$20 |
| Cracked body, stripped threads, corroded bowl, repeated failure after cleaning | Full carburetor replacement | $10–$80 |
If the carburetor body is physically damaged, threads are stripped, or the unit has failed repeatedly after cleaning, replacement is the correct path. For an intact carburetor with soft internal component wear, a rebuild kit is the more economical fix and targets a distinct repair task — this guide focuses on full replacement.
Tools and Parts You Need Before You Start
Gather everything before disassembly. Mid-repair parts runs extend job time and increase reassembly errors.
Tools
- Flathead and Phillips screwdrivers
- Socket set with 3/8-inch drive (typically 8 mm, 10 mm, 1/4-inch sockets depending on engine brand)
- Needle-nose pliers (for linkage rods and spring clips)
- Fuel line clamp pliers or locking pliers
- Clean shop rags
- Small container or drain pan (fuel catchment)
- Carburetor cleaner spray (for port cleaning during install)
- Torque wrench (optional but recommended — see brand-specific specs below)
Parts
- Replacement carburetor — matched to engine model number (stamped on the engine block, not the mower deck)
- Carburetor gasket — replace this every time; reusing a compressed gasket causes air leaks that make the new carburetor run lean
- Fuel line — inspect and replace if cracked or hardened (typically $3–$8 per foot)
- Fuel filter — inexpensive insurance; replace if the mower has not had one recently
OEM vs. Aftermarket Carburetor
OEM carburetors are manufactured to the engine maker’s exact tolerances and are the correct choice for engines still under warranty or for commercial-use mowers that run heavy hours. Cost: $30–$80.
Aftermarket carburetors fit the majority of residential push mower applications and carry significantly lower cost ($10–$40), but jet sizing and casting quality vary by supplier. Source aftermarket parts from reputable small-engine parts retailers and confirm the part number cross-references directly to your engine model number.
Finding the Correct Carburetor for Your Mower
Locate the engine model and type numbers on the engine block — never use the mower deck model number, which identifies the frame, not the engine. Enter those numbers on the engine manufacturer’s parts lookup or a reputable parts retailer. Carburetor bolt patterns, fuel inlet orientation, and choke linkage routing are model-specific; an incorrect carburetor will not seat properly or will run with wrong air-fuel calibration.
How to Replace a Carburetor on a Push Lawn Mower (Step-by-Step)
This procedure covers walk-behind push mowers with single-cylinder engines — the highest-volume use case. Estimated time: 30–60 minutes.
- Disconnect the spark plug wire. Pull the rubber boot off the spark plug tip and tuck it away from the plug. This prevents accidental engine start during disassembly — do not skip this step.
- Shut off the fuel valve. Most push mowers have an inline fuel shutoff valve on the fuel line between the tank and carburetor. Turn it to the closed (perpendicular) position. If no valve is present, use locking pliers to clamp the fuel line before disconnecting it.
- Remove the air filter housing. Unscrew the air filter cover, remove the foam or paper filter element, then remove the housing bolts or clips securing the housing to the carburetor inlet. Set the filter aside — inspect it and replace if clogged.
- Photograph the linkage routing before disconnecting anything. Use your phone to capture the throttle linkage, choke linkage, and any return springs from multiple angles. These photos are the reassembly reference — linkage rods routed incorrectly are the most common post-installation error.
- Disconnect the throttle linkage and choke linkage. Use needle-nose pliers to unhook the thin metal rods from their carburetor pivot holes. Note which rod connects to which port — throttle and choke linkages are not interchangeable. Slide spring clips off with pliers; do not stretch them.
- Disconnect the primer bulb line (if present). Some carburetors have a small rubber hose connecting the primer bulb to the carburetor body. Pull it straight off the barbed fitting. If the primer bulb itself is mounted on the carburetor, it will come off with the unit.
- Disconnect the fuel line. Position a rag under the connection to catch residual fuel. Slide the clamp back with pliers, then twist and pull the fuel line off the carburetor inlet fitting. Allow fuel to drain into a container.
- Remove the carburetor mounting bolts. Two bolts typically secure the carburetor to the engine intake manifold or mounting flange. Remove them and retain the bolts — verify the new carburetor uses the same bolt pattern before discarding. Pull the carburetor straight off the mounting studs or flange.
- Remove and discard the old gasket. Peel the old carburetor gasket off the mounting surface. Scrape residual gasket material from the engine-side mating surface using a flat scraper — loose gasket material causes air leaks under the new installation. Clean the surface with carburetor cleaner spray.
- Install the new gasket and mount the new carburetor. Place the new gasket flat against the engine mounting surface, aligning the bolt holes and inlet opening. Slide the new carburetor onto the mounting studs or up to the flange. Thread the mounting bolts by hand first, then tighten. Carburetor mounting bolt torque by brand is listed in the Engine-Brand Variations section below — do not overtighten, as the casting is aluminum and threads strip easily.
- Reconnect the fuel line. Push the fuel line firmly onto the carburetor inlet barb until it seats past the raised ridge. Slide the clamp back over the barb. Open the fuel shutoff valve and check for drips before proceeding.
- Reconnect the throttle linkage, choke linkage, and primer bulb line. Use your reference photos from Step 4. Hook the metal rods back into their respective pivot holes and seat the spring clips. Reconnect the primer bulb hose.
- Reinstall the air filter housing and filter. Seat the housing against the carburetor inlet, thread the bolts or clips, and insert the filter element. Install the cover.
- Reconnect the spark plug wire. Push the rubber boot firmly onto the spark plug tip until it clicks or seats fully.
- Start the engine and verify operation. Prime the carburetor per the engine manufacturer’s procedure (typically 3–5 presses of the primer bulb, or choke to the full-choke position). Pull the starter cord. The engine should start within 2–3 pulls. Allow it to warm up for 2 minutes, then verify smooth idle and responsive throttle. Check for fuel leaks at the carburetor connections before returning the mower to service.
Riding Mower and Zero-Turn Carburetor Replacement: Key Differences
The sequence of steps above applies to riding mowers, but access points and safety requirements differ.
Safety Steps Specific to Riding Mowers
- Engage the parking brake and remove the ignition key before any work.
- Disconnect the negative battery terminal to prevent accidental engagement of the electric starter.
- Lower or remove the mower deck for clearance on some models.
Access Differences
On most riding mowers, the carburetor sits under the engine hood on a side-mounted or rear-mounted engine. Remove the hood panel and any engine shrouding to access the air filter housing. The fuel shutoff valve is typically located at the base of the fuel tank rather than inline on the fuel line — confirm its location before disconnecting any lines.
V-Twin Engines and Zero-Turn Mowers
Many riding mowers and virtually all zero-turn mowers use V-twin engines (common on Briggs & Stratton, Kohler, and Kawasaki platforms). V-twin engines have one carburetor per cylinder bank — two carburetors total. If one carburetor fails, replace both simultaneously; mismatched carburetor wear between cylinders causes uneven fuel delivery and persistent rough running. Budget and part-sourcing accordingly. The procedure for each carburetor mirrors the push mower steps above, performed twice.
Engine-Brand Variations: Briggs & Stratton, Kohler, Kawasaki, and Honda
These four brands cover the substantial majority of residential lawn mower engines sold in the United States. Each has model-specific carburetor configurations that affect disassembly routing.
Briggs & Stratton
- Choke linkage routes through a slotted bracket on the air filter housing — the housing must be fully removed before the linkage can be freed.
- Primer bulb is typically mounted directly on the carburetor body and comes off with the unit on most single-cylinder models.
- Mounting bolt torque: consult the specific engine series service manual. Briggs & Stratton publishes free downloadable service manuals by engine model at their official support site — do not apply generic torque values.
- Model and type numbers are stamped on a metal tag on the engine block near the valve cover.
Honda
- Honda GCV and GXV series carburetors use a bowl-type design with a single drain screw on the float bowl — drain the bowl before removing the carburetor to minimize fuel spillage.
- Choke and throttle linkages on Honda engines are spring-loaded and clip directly to the carburetor lever arms; needle-nose pliers are required to compress and seat the clips on reinstallation.
- The fuel shutoff valve on Honda engines is typically integrated into the fuel tank petcock, located on the underside of the tank — rotate to the OFF position before disconnecting the fuel line.
- OEM Honda carburetors carry a higher cost premium than competing brands; quality aftermarket options are widely available for GCV160 and GCV190 series.
Kohler
- Kohler Command and Courage series single-cylinder engines use a side-draft carburetor with a separate choke plate assembly. The choke shaft can slide out during removal — hold it in place or note its orientation before pulling the carburetor off the mounting flange.
- Kohler V-twin engines (ECV, KT series) each have individual carburetors with independent fuel inlet lines fed from a single fuel pump — label each fuel line before disconnecting to avoid cross-connection on reassembly.
- Mounting bolt torque specifications are published in Kohler’s service manuals, available through Kohler’s official dealer and service portal.
Kawasaki
- Kawasaki FR, FS, and FX series engines are common on zero-turn and commercial walk-behind platforms. The fuel shutoff valve is located on the fuel tank outlet fitting — rotate to the horizontal (closed) position.
- Kawasaki V-twin carburetors (FX series) are accessed from the side of the engine after removing the engine side panels. Each carburetor has its own air filter housing mounted directly to its inlet.
- Kawasaki carburetors use a pilot screw (idle mixture screw) that is factory-set and covered with a limiter cap — do not remove the limiter cap or adjust the pilot screw unless performing a full carb calibration per the service manual.
Troubleshooting After Carburetor Replacement: Mower Still Won’t Start or Runs Rough
Post-replacement problems almost always trace to one of five installation errors. Diagnose systematically before assuming the new carburetor is defective.
Engine Won’t Start After Replacement
- Air leak from gasket misalignment — remove the carburetor and inspect the gasket. A misaligned or torn gasket allows unmetered air into the intake, causing a lean no-start condition. Replace the gasket and ensure it seats flush on both mating surfaces before reinstalling.
- Fuel line not fully seated — a fuel line that missed the barb or is kinked prevents fuel delivery. Confirm the line is on the barb past the raised ridge and the clamp is over the barb, not behind it.
- Fuel shutoff valve left closed — confirm the valve is in the open (parallel to line) position.
- Choke linkage routed incorrectly — if the choke plate does not close to the full-choke position, cold starts will fail. Verify linkage routing against your reference photos from Step 4.
Engine Starts But Runs Rough or Surges
- Idle adjustment screw not set correctly — the new carburetor’s idle screw may be set at a factory position that does not match your engine’s requirements. Warm the engine for 3 minutes, then turn the idle screw clockwise in 1/4-turn increments until the engine runs smoothly at low idle. Consult the engine service manual for the baseline turn count from lightly seated.
- Throttle linkage cross-connected with choke linkage — the engine will surge or refuse to throttle up. Refer to your reference photos and swap the rods to their correct ports.
- Debris in the new carburetor — aftermarket carburetors occasionally ship with machining debris in the jets. Remove the bowl, blow compressed air through the jets, reinstall.
How to Confirm the Replacement Was Successful
The repair is complete when the engine: starts within 3 pull-cord attempts using normal choke procedure, idles smoothly without surging for a minimum of 5 minutes, responds immediately when the throttle is advanced, and shows no fuel leaks at the carburetor bowl, fuel line connection, or mounting flange during operation.
Frequently Asked Questions
Do I have to replace the carburetor gasket when installing a new carburetor?
Yes. A used gasket is already compressed to the shape of the old carburetor’s mating surface and will not seal correctly against the new unit’s flange. An air leak from a reused gasket causes lean running, rough idle, and potential engine damage. New carburetors typically include a gasket — confirm before purchasing separately.
How do I find the correct replacement carburetor for my mower?
Locate the engine model number, type number, and code stamped on the engine block — not on the mower deck or frame. Enter those numbers into the engine manufacturer’s official parts lookup or a reputable small-engine parts supplier. Never order by mower brand alone; two mowers from the same brand can use entirely different engine platforms with incompatible carburetors.
Can I replace a lawn mower carburetor without draining the fuel tank?
Close the fuel shutoff valve (or clamp the fuel line) before disconnecting the fuel line from the carburetor. This isolates the tank and prevents tank drainage. Have rags and a small container ready to catch the residual fuel held in the fuel line and carburetor bowl — typically less than half a cup on push mower engines.
How long does a replacement lawn mower carburetor last?
A properly installed carburetor on a residential push mower can last 5–10 years or longer under normal use. Premature failure is most commonly caused by running the engine on stale fuel or ethanol-blend fuel left in the system during off-season storage. Draining the carburetor or running the engine dry before storage, and using a fuel stabilizer when storing fuel, are the most effective ways to extend carburetor service life.
