How to Replace a Lawn Mower Belt: Deck Belt and Drive Belt Guide

When your lawn mower stops cutting cleanly or refuses to move forward, a worn or broken belt is often the culprit. Replacing a lawn mower belt is a straightforward DIY repair that most homeowners can complete in 30–60 minutes, saving you the cost of a technician service call.

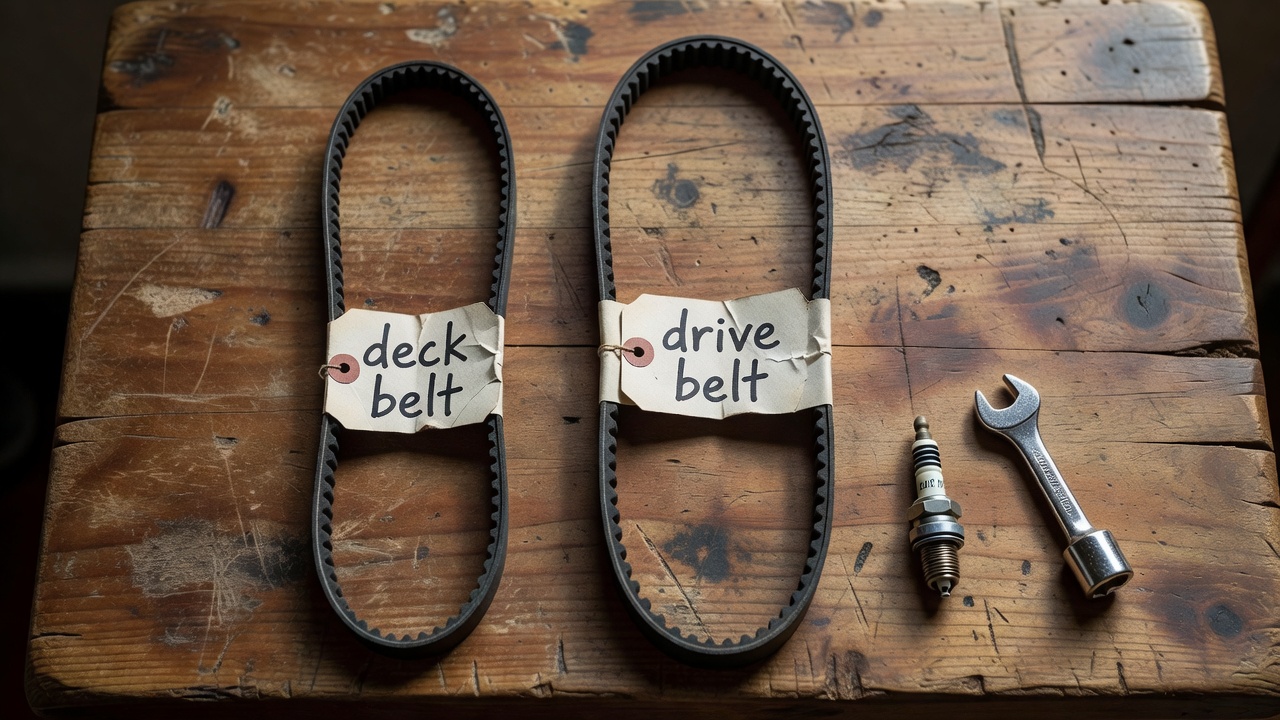

Which Belt Does Your Mower Need?

Before diving into the replacement process, you need to identify which belt has failed. Lawn mowers use two distinct belt types, and each serves a different function:

• Deck Belt (Blade Belt): Connects the engine’s crankshaft pulley to the blade spindle pulleys. When this belt fails, your blades stop spinning and the grass won’t get cut.
• Drive Belt (Traction Belt): Transfers power from the engine to the transmission or wheels. A failed drive belt means your mower won’t move forward or backward.

How to diagnose: If the engine runs but the blades don’t engage, you need a deck belt. If the mower won’t drive but the engine idles normally, you need a drive belt. Some riding mowers use separate belts for each function, so inspect both if you’re unsure.

Safety First: Preparing for Belt Replacement

Every lawn mower belt replacement begins with proper safety preparation. Failure to follow these steps can result in accidental engine startup or injury from moving components.

Essential Safety Steps

1. Disconnect the spark plug wire — This prevents the engine from accidentally starting while you’re working near the blades or belt system. Pull the rubber boot off the spark plug and secure it away from the terminal.
2. Let the engine cool completely — Working near a hot engine risks burns. Wait at least 30 minutes after the last use.
3. Engage the parking brake — This locks the wheels in place, preventing accidental rolling.
4. Remove the key from the ignition — An extra precaution against electrical engagement.

Tools You’ll Need

Gather these tools before starting:

• Socket wrench set (typically 3/8″ and 1/2″ drives)
• Torque wrench (for reassembly to proper specs)
• Screwdrivers (flathead and Phillips)
• Belt keeper tool or small pry bar
• Work gloves (protect hands from sharp edges)
• Shop towel or rag
• Camera or smartphone (to photograph the old belt routing)

Finding the Correct Replacement Belt

Critical: Using the wrong belt size causes premature failure, poor performance, or damage to pulleys. To find the correct part:

1. Locate your mower’s model number — usually on a sticker under the seat (riding mowers) or on the deck housing (walk-behind mowers).
2. Note the engine model number as well, since some manufacturers use different belt specs for the same chassis with different engines.
3. Cross-reference with the belt routing diagram sticker on your deck housing, which shows the correct belt part number.
4. Order an OEM (Original Equipment Manufacturer) replacement belt for the best fit and durability.

If the diagram sticker is worn or missing, consult your owner’s manual or the manufacturer’s parts website using your model numbers.

How to Replace a Lawn Mower Deck Belt (Step-by-Step)

The deck belt connects to the blade pulleys and idler pulley to spin your cutting blades. Here’s how to replace it on both riding and walk-behind mowers.

Step 1: Access the Mower Deck

For riding mowers:

• Park on a level surface and lower the mower deck to its lowest cutting position.
• Remove the negative battery cable if your mower has an electric deck lift.
• Locate the deck height adjustment pins and remove them to release tension on the deck.
• Depending on your model, either lower the deck fully or remove it entirely by disconnecting the deck belt from the primary pulley and sliding it out from under the mower.

For walk-behind mowers:

• Turn the mower on its side (air filter side up) to access the underside, or use a mower lift to raise it.
• Remove the blade retention bolt using a socket wrench. Use a wooden block to prevent the blade from spinning.
• Remove the blade and note its orientation for reinstallation.

Step 2: Photograph the Old Belt Routing

Before removing anything, take multiple photos of the belt path around each pulley. This visual reference ensures you route the new belt correctly. Pay special attention to:

• Which side of each pulley the belt runs on
• The position of belt keepers and tensioner arms
• Any guides or shields that hold the belt in place

Step 3: Release Belt Tension and Remove the Old Belt

1. Locate the spring-loaded idler pulley — this provides tension on the deck belt.
2. Using your belt keeper tool or pry bar, push the idler arm toward the spring to release tension.
3. Slip the belt off the idler pulley first, then remove it from the blade spindles and the main drive pulley.
4. Inspect the old belt for signs of wear: cracking, glazing, fraying, or missing chunks. This helps confirm the diagnosis and prepare for the new belt’s expected lifespan.

Step 4: Route the New Deck Belt

1. Reference your photos and the routing diagram on the deck housing.
2. Start by wrapping the belt around the main drive pulley (connected to the engine crankshaft).
3. Route the belt to the blade spindles, threading it through any belt keepers.
4. Finally, wrap the belt around the idler pulley.
5. Release the idler tension to let the belt seat fully into the pulley grooves.

Important: The belt must sit fully inside the pulley grooves — a belt riding on the edge of a pulley will fail quickly and may damage the pulley surface.

Step 5: Reassemble and Test

1. Reinstall the blade (if removed) with the cutting edge facing the correct direction — most blades have a stamped directional arrow.
2. Torque the blade bolt to the manufacturer’s specification (typically 35–75 ft-lbs for riding mowers).
3. Reinstall the deck (if removed) and reconnect all linkages.
4. Reconnect the spark plug wire.
5. Start the engine at low throttle and engage the blades briefly. Listen for squealing (loose belt) or grinding (misalignment).
6. Allow the belt to run for 30 seconds, then disengage and inspect for proper seating.

How to Replace a Lawn Mower Drive Belt (Step-by-Step)

The drive belt transfers engine power to your mower’s wheels. Replacing it involves accessing the transmission area, which is typically beneath the mower frame or on the right side of riding mowers.

Step 1: Gain Access to the Drive Belt System

For riding mowers:

• Park on a flat, level surface and engage the parking brake.
• Raise the seat or remove the foot pan to access the transmission and belt area.
• Some models require removing the right rear wheel or a belt guard cover.
• Photograph the belt routing before touching anything.

For walk-behind mowers:

• Remove the recoil cover on the side of the engine.
• Some self-propelled mowers have a dedicated belt compartment accessible without full disassembly.

Step 2: Release Tension on the Drive Belt

Drive belts use either a spring-loaded tensioner or a moveable engine pulley to maintain tension. To release:

1. Locate the belt keeper rod (a metal bar that holds the belt in place) and remove the pin or bolt holding it.
2. If your mower has a spring-loaded idler, use a belt keeper tool to rotate the idler away from the belt.
3. For models with an adjustable engine pulley, loosen the pulley bolts slightly to create slack.

Step 3: Remove the Old Drive Belt

1. Slide the belt off the crankshaft pulley (the smaller pulley mounted to the engine crankshaft).
2. Remove the belt from the transmission pulley (the larger pulley connected to the transaxle).
3. Note the exact routing path, including any guide pulleys or keepers.
4. Inspect the old belt for glazing (shiny surface indicates slippage), cracks, or separated layers.

Step 4: Install the New Drive Belt

1. Wrap the new belt around the transmission pulley first (larger pulley).
2. Route the belt along the path shown in your photos, threading it around any intermediate pulleys.
3. Stretch the belt over the crankshaft pulley.
4. Ensure the belt sits deep in all pulley grooves.
5. Reinstall belt keeper rods and secure all pins and bolts.

Step 5: Test the Drive System

1. Reconnect the spark plug wire.
2. Start the engine at idle.
3. Engage the drive lever or shift into gear slowly.
4. The mower should begin moving smoothly without squealing or hesitation.
5. If the mower creeps forward when the engine is idling, adjust the drive clutch or belt tension.

Belt Routing: Brand-Specific Variations

Belt routing differs significantly between manufacturers and even between models from the same brand. Understanding these variations prevents installation errors.

Where to Find Your Routing Diagram

• Sticker on deck housing — Most mowers have a diagram printed directly on the metal deck or under the seat. If it’s faded, photograph a similar model online for reference.
• Owner’s manual — The parts and maintenance section includes belt routing illustrations.
• Manufacturer’s website — Search for your model number + “belt routing diagram” to find an official PDF.
• Parts suppliers — Sites like PartsTree or Jack’s Small Engines have exploded views showing belt paths.

Common Routing Differences

Pro tip: If your mower’s diagram is destroyed, search online for your exact model number followed by “belt diagram.” Most major brands have community forums where users share diagrams for older equipment.

Testing Your Mower After Belt Replacement

Proper testing confirms you’ve completed the job correctly and identifies issues before they cause damage or safety hazards.

Signs of a Correctly Installed Belt

• Quiet operation — no squealing, chirping, or grinding
• Blades spin at full rpm when engaged
• Mower drives smoothly at variable speeds (drive belt)
• No belt slippage visible under load
• Belt stays seated in pulley grooves during operation

Warning Signs to Watch For

• Squealing under load — Belt is loose, misaligned, or the wrong size
• Belt climbing out of pulley groove — Misalignment or damaged pulley
• Excessive heat on the belt — Too much tension or wrong belt installed
• Blade rpm drops noticeably when cutting thick grass — Deck belt slipping
• Mower doesn’t reach full speed — Drive belt slipping

If any of these symptoms occur, shut down the engine immediately, reconnect safety measures, and re-inspect the routing and tension.

Common Mistakes and When to Call a Technician

Even experienced DIYers make errors during belt replacement. Here’s how to avoid the most frequent issues:

Most Common Belt Replacement Mistakes

1. Wrong belt size — Always verify the OEM part number. Universal belts may fit loosely and slip.
2. Skipping belt keeper reassembly — Keepers prevent the belt from flying off during operation. Never omit them.
3. Incorrect routing direction — Some belts have a ribbed side that must face a specific direction. Check your diagram.
4. Over-torquing blade bolts — Stripped threads on aluminum blade spindles require expensive replacement.
5. Not releasing tension fully before removal — Forcing a belt off damages pulley edges.
6. Reusing worn hardware — Replace rusted or stripped bolts and pins while you have everything apart.

When to Call a Professional

While most belt replacements are DIY-friendly, these situations warrant professional service:

• Transmission or transaxle damage — If the pulley system itself is cracked or the transmission is leaking, the repair exceeds belt replacement scope.
• Electrical issues with PTO clutch — Electric blade engagement systems may require diagnostic equipment.
• Hydraulic belt systems on zero-turn mowers — These often involve specialized tensioners and routing that’s difficult to replicate without service documentation.
• Engine-side pulley removal — Some designs require engine removal or significant disassembly to access the crankshaft pulley.

A professional technician typically charges $75–150 per hour for belt replacement work. If your mower is worth the investment and you lack the tools or confidence for complex disassembly, scheduling service makes economic sense.

Frequently Asked Questions

How long does a lawn mower belt typically last?

Most OEM lawn mower belts last 200–400 hours of operation, or roughly 2–4 years with typical residential use. However, belts exposed to grass clippings, debris, and moisture degrade faster. Inspect your belts annually and replace at the first sign of cracking, glazing, or fraying.

Can I use a universal replacement belt instead of an OEM part?

Universal belts are available, but OEM replacements are recommended for proper fit and longevity. Universal belts may have slight length variations that affect tension, and the rib or groove pattern might not match your pulleys exactly. If using a universal belt, verify the length matches your old belt exactly and check that the rib configuration (V-ribbed vs. V-flat) matches your pulley system.

What’s the difference between a deck belt and a drive belt?

A deck belt (also called a blade belt) spins the cutting blades — it’s only engaged when you activate the blade drive. A drive belt (traction belt) transfers engine power to the wheels for forward motion — it’s engaged whenever the mower moves. Some riding mowers have separate belts for each function; others use a single belt system. Always diagnose which belt is failing before purchasing replacement parts.

Why does my new belt squeal after installation?

Belt squealing immediately after installation usually indicates insufficient tension, misalignment, or the belt not seating fully in the pulley grooves. Check that the idler pulley is applying proper pressure and that the belt path matches your routing diagram exactly. A new belt may also squeal until it “breaks in” and conforms to the pulleys — this typically resolves within a few minutes of operation. Persistent squealing warrants inspection for misalignment or incorrect belt size.

Summary

Replacing a lawn mower belt — whether a deck belt or drive belt — is a manageable DIY repair that restores your mower’s performance without professional service costs. The key steps are: disconnect the spark plug for safety, identify which belt has failed, photograph the old routing, install the correct OEM replacement following the manufacturer’s diagram, and test thoroughly before regular use. With proper installation and annual inspection, your new belt should provide 2–4 years of reliable service.
