Quick Answer: How to Replace a Briggs & Stratton Pull Cord
Disconnect the spark plug wire, remove the recoil starter housing (3–4 bolts), extract the broken cord from the pulley and handle, thread a new cord through the pulley hole and grip, knot both ends securely, preload the recoil spring by rotating the pulley 4–6 turns before feeding the cord through, then bolt the housing back on. Match the replacement rope to your engine model number—most Briggs & Stratton recoil starters use a 3.5 mm diameter starter rope.

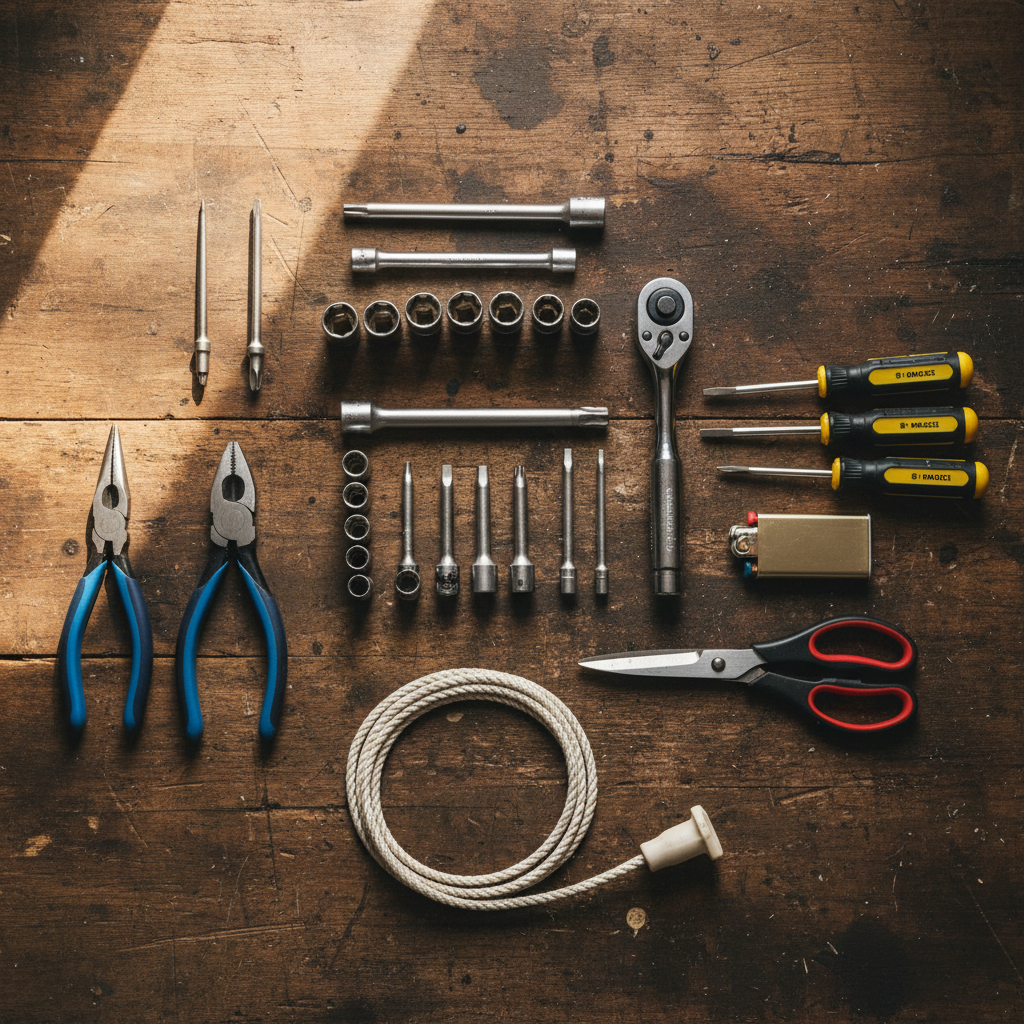

What You Need Before You Start (Tools & Replacement Parts)
Tools Required
- Socket set (typically 5/16 in. or 3/8 in. for housing bolts)
- Flathead and Phillips screwdrivers
- Needle-nose pliers (to pull the old cord knot from the pulley)
- Scissors or a utility knife (to trim the new rope cleanly)
- Lighter or matches (to melt-seal the cut end of a nylon rope and prevent fraying)
- Clamp or locking pliers (to hold pulley tension during cord threading)
Replacement Parts
- Starter rope: Most Briggs & Stratton recoil starters use a 3.5 mm diameter cord. Rope is sold by the foot—measure the old cord before discarding it, or use approximately 90–100 cm (36–39 in.) as a starting point for walk-behind mower engines.
- Replacement pull handle/grip (if the old one is cracked or melted)
- OEM vs. aftermarket cord: Briggs & Stratton OEM starter rope is available through authorized dealers and carries exact diameter and tensile specifications for your engine series. Aftermarket nylon rope from a hardware store works for most repairs provided the diameter matches—verify against your engine’s parts catalog before purchasing.
Finding Your Briggs & Stratton Model Number
The model, type, and code numbers are stamped directly on the engine block, typically near the valve cover or on the blower housing. Locate these before buying parts. Enter them at the Briggs & Stratton parts lookup tool (briggsandstratton.com) to confirm the correct starter rope part number for your specific engine series—such as the 450E, 500E, or 675EX.
Safety First: Disconnect the Spark Plug Wire
Before touching any part of the engine, pull the spark plug wire off the spark plug and tuck it away from the plug terminal. This prevents accidental engine firing while your hands are inside the starter housing. Do not skip this step.
How to Remove the Old Pull Cord and Starter Housing
Step 1 — Remove the Recoil Starter Housing
The recoil starter housing sits on top of (or beside) the engine and is secured by 3 to 4 bolts, depending on the engine series. Use the appropriate socket to remove them. Lift the housing away from the engine carefully—the recoil spring inside holds tension even on a broken cord, so keep the housing face-up and avoid jarring it.
Step 2 — Release Remaining Spring Tension Safely
Before removing the pulley or cord, release any stored spring tension. Pull any remaining cord out fully by hand, then allow the pulley to unwind slowly under control. Do not allow the recoil spring to snap loose suddenly. A released recoil spring can eject from the housing with significant force and cause lacerations. Keep the housing resting flat on your work surface, face-up, throughout disassembly.
Step 3 — Remove the Old Cord from the Pulley
Once tension is released, locate the knot anchor point in the pulley—usually a small slot or hole on the inner face of the pulley drum. Use needle-nose pliers to grip and pull the knotted end free. Feed the old rope back through the housing guide hole and out through the pull handle. Inspect the pulley and recoil spring at this stage: if the spring is dislodged, cracked, or has lost its coil shape, replace the full recoil starter assembly rather than only the cord.
Inspecting the Recoil Spring and Starter Pawl
While the housing is open, check the starter pawl (also called the ratchet or dog)—the small metal tab that engages the engine flywheel on each pull. If the pawl is worn, bent, or missing, the mower will not crank even with a perfect new cord. Replace the pawl if damaged. Also confirm the recoil spring is seated correctly in its housing cup before proceeding.
How to Install the New Pull Cord and Set the Correct Tension
This section covers the most error-prone part of the repair: setting spring preload. Getting the tension wrong is the primary reason new cords fail to retract fully.
Step 1 — Preload the Recoil Spring (Wind the Pulley)
Before threading the new rope, you must preload the recoil spring so it has enough stored energy to retract the cord after each pull.
- Hold the starter housing face-up on your work surface.
- Block the rope guide hole with your thumb or a clamp to prevent the pulley from unwinding during this step.
- Rotate the pulley by hand in the winding direction (typically counterclockwise when viewed from the front/top of the housing—check your engine’s service manual for confirmation) 4 to 6 full turns. The correct number of turns varies by engine series; consult the service manual for your specific model (e.g., Briggs & Stratton Series 450E, 500E, 675EX) to confirm the preload specification.
- Align the pulley’s rope slot with the housing’s guide hole.
- Use a clamp or locking pliers on the pulley to hold the tension in place while you thread the cord.
Step 2 — Thread the New Cord Through the Housing and Pulley
- Cut the new rope to match the length of the old cord, or to approximately 90–100 cm for a standard walk-behind mower. Melt-seal the cut end with a lighter to prevent fraying.
- Feed the sealed end of the rope through the guide hole in the housing from the outside, then through the slot in the pulley.
- Tie a secure knot in the pulley end of the rope. A figure-eight knot is preferred over a simple overhand knot—it is less likely to slip under repeated pull loads. Pull the knot tight and seat it firmly in the pulley’s anchor slot.
Step 3 — Attach the Pull Handle
- Thread the free end of the rope through the pull handle/grip.
- Tie another figure-eight knot (or overhand knot, depending on handle design) to secure the rope inside the handle cavity.
- Pull the knot firmly into the handle recess so it seats flush and cannot pull through during use.
Step 4 — Release the Pulley and Check Retraction
Remove the clamp from the pulley and allow the spring tension to slowly retract the cord. The handle should pull smoothly toward the housing and seat against it without slack. If the cord retracts too aggressively (handle slams into housing) or not at all, see the troubleshooting notes in the next section.
Reassembly, Testing, and Common Mistakes to Avoid
Reattaching the Starter Housing
- Position the housing back over the engine, aligning the bolt holes.
- Thread the bolts in by hand first to avoid cross-threading, then tighten with a socket wrench to snug—do not overtighten on aluminum housings.
- Reconnect the spark plug wire.
- Perform 3–4 slow test pulls before attempting a full engine start. The cord should extend smoothly and retract fully each time.
Common Mistakes and How to Fix Them
| Problem | Likely Cause | Fix |
|---|---|---|
| Cord does not retract after replacement | Insufficient spring preload—too few pulley turns wound before threading | Remove cord, re-wind pulley 1–2 additional turns, re-thread |
| Cord retracts but handle slams hard | Excessive spring preload—too many turns wound | Remove cord, release one pulley turn, re-thread |
| Knot pulls through the pulley slot | Overhand knot used instead of figure-eight; rope diameter too small | Re-knot with a figure-eight; confirm rope is 3.5 mm diameter |
| Cord too short—cannot reach full extension | Replacement rope cut too short | Measure old rope before discarding; use 90–100 cm minimum |
| Mower still won’t start after cord replacement | Cord repair is complete but engine has a separate fault (spark, fuel, compression) | Pull cord is not the ignition system—check spark plug, air filter, and fuel |
| Recoil spring ejects during disassembly | Spring tension not released before pulley removal | Recoil spring can be re-wound into the housing cup using pliers—work slowly, keep housing face-up |
How Long Should a Replacement Pull Cord Last?
A properly installed nylon starter rope on a Briggs & Stratton engine should last several seasons under normal residential use. Cord wear accelerates when the engine is hard to start (requiring many pulls per session), when the rope rubs on a misaligned housing guide, or when an incorrect-diameter rope is used. OEM Briggs & Stratton replacement rope is manufactured to the exact tensile and diameter specification for your engine and will generally outlast generic hardware-store nylon cord.
Side-Mount vs. Top-Mount Recoil Starters: Does It Change the Process?
Most walk-behind Briggs & Stratton lawn mower engines use a top-mount recoil starter—the housing sits directly on top of the engine and pulls upward. The process described above applies to this configuration.
Some horizontal-shaft engines (commonly used on riding mowers, generators, and pressure washers) use a side-mount recoil starter, where the housing is bolted to the side of the engine block and the cord pulls horizontally. The cord replacement process is mechanically identical—remove the housing, release tension, replace the rope, set preload, reinstall—but the housing bolt locations and access angles differ. Horizontal-shaft engines may require removing additional shrouding or covers to access the starter housing bolts.
Vertical-Shaft vs. Horizontal-Shaft Engines
- Vertical-shaft engines (blade mounted directly to crankshaft below the engine): standard walk-behind mowers. Top-mount recoil is the norm. The procedure in this guide applies directly.
- Horizontal-shaft engines (crankshaft exits from the side): riding mowers, tillers, generators. Side-mount or front-mount recoil. The cord replacement steps are the same; access and bolt count may vary by model.
Are Recoil Starter Parts Interchangeable Across Briggs & Stratton Engine Series?
Starter rope diameter (3.5 mm) is consistent across most Briggs & Stratton consumer engine series, but the full recoil starter assembly is not universally interchangeable. Housing bolt patterns, pulley diameters, and spring dimensions vary between engine families. Always source replacement assemblies using your engine’s model, type, and code numbers from the official Briggs & Stratton parts catalog or an authorized dealer to ensure fitment.
Frequently Asked Questions
How do I know if I need to replace just the cord or the entire recoil starter assembly?
Replace only the cord if the rope is broken or frayed but the pulley turns freely, the recoil spring is intact and seated, and the starter pawl is undamaged. Replace the entire recoil starter assembly if the spring is cracked, dislodged beyond re-seating, the pulley is cracked, or the pawl is missing. A complete assembly is often only marginally more expensive than individual components and is faster to install.
What size pull cord does a Briggs & Stratton lawn mower use?
Most Briggs & Stratton recoil starters use a 3.5 mm diameter starter rope. Confirm the exact specification for your engine by entering your model and type number into the Briggs & Stratton parts lookup at briggsandstratton.com before purchasing. Using an undersized rope increases knot slip risk; an oversized rope may bind in the housing guide hole.
How many turns do I wind the pulley when replacing a Briggs & Stratton pull cord?
The standard starting point is 4 to 6 full turns of preload on the recoil spring before threading the new cord. The precise number varies by engine series—check the service manual for your specific model. If the cord retracts sluggishly after reassembly, add one turn at a time until retraction is crisp. If the handle slams back forcefully, reduce by one turn.
Can I replace a Briggs & Stratton pull cord without removing the engine from the mower?
Yes. The recoil starter housing bolts directly to the top or side of the engine and is accessible with the engine in place on the mower deck. You do not need to remove the engine. Disconnect the spark plug wire, clear access to the housing bolts, and proceed with the steps above. On some riding mower configurations, the hood or engine cover must be raised or removed first to reach the housing bolts.
