Quick Answer: How to Replace a Riding Lawn Mower Belt
Set the parking brake, disconnect the spark plug wire, then remove the mower deck (deck belt) or the drive cover panel (ground drive belt). Photograph the old belt routing, slide the worn belt off every pulley, thread the new OEM-spec belt along the exact same path shown in your owner’s manual diagram, confirm it sits fully in every pulley groove and clears all guards, reattach all guards and hardware, reconnect the spark plug wire, and run the mower under light load to verify no slipping or vibration.
Pros
- Powerful 80V brushless motor delivers 32HP gas-equivalent performance with quiet fume-free operation and no engine maintenance.
- Complete kit includes four 6.0Ah batteries and 600W charger for substantial runtime up to 1.5 acres.
- SmartCut technology and 42-inch heavy-duty steel deck ensure consistent cuts without bogging in tough conditions.
- Versatile towing up to 350 lbs and optional cargo hauling plus comfort features like high-back seat and LED lights.
- Strong 4-year limited warranty and full compatibility with the Greenworks 80V tool ecosystem.
Cons
- Rear utility cargo bed for 200 lb hauling is sold separately and not included in the kit.
- Runtime of up to 1.5 acres varies with conditions and may require recharging or battery swaps on larger properties.
- As a fully cordless model continuous operation depends on battery levels unlike gas engines with unlimited runtime.
The Greenworks 80V 42" CrossoverT Cordless Riding Lawn Tractor is a ready-to-mow zero-emission tractor designed for homeowners managing medium to large lawns. It features a reinforced 42-inch stamped steel deck of 12-gauge construction along with premium comfort elements such as a high-back padded seat with foldable armrests. The overall build emphasizes durability and user convenience right out of the box with the included battery and charger set.
Performance centers on the 80V TruBrushless motor that provides 32HP gas-equivalent power with instant torque and quiet fume-free operation. SmartCut technology senses grass conditions and automatically adjusts power to maintain a consistent cut even in tall thick or wet areas. The four 6.0Ah batteries support runtime for up to 1.5 acres depending on conditions while dual LED headlights and a 7-position deck height range from 1.5" to 4.5" add practicality. Front and rear attachments further allow towing up to 350 lbs for added yard utility.
Key considerations include that the rear utility storage bin capable of hauling 200 lbs is sold separately so full cargo functionality requires an extra purchase. Runtime remains condition-dependent and may fall short for properties significantly larger than 1.5 acres without using the 600W charger or swapping batteries. The cordless design prioritizes ease and low maintenance but trades off the continuous runtime of traditional gas models.
This tractor delivers strong value for eco-conscious owners of residential properties who want gas-like power without the emissions noise or upkeep. It suits those who already use or plan to expand into the Greenworks 80V family of tools and who appreciate the 4-year limited warranty. Users with exceptionally large or commercial-scale lawns should evaluate battery logistics carefully before purchase.
Pros
- Delivers strong 21 horsepower equivalent power comparable to gas riding mowers.
- Provides up to 1.5 acres of runtime on a full charge with the six included batteries.
- Features low-maintenance dual brushless motors without belts for greater durability.
- Offers versatile 12-position cutting height adjustment from 1.5 to 4.5 inches.
- Includes digital controls for blade settings, drive speeds, and cruise control.
Cons
- Limited to 1.5 acres of cutting per charge without purchasing additional batteries for bigger lawns.
- Requires recharging time for the six 56V batteries after each use session.
- Relies solely on battery power with no hybrid or gas backup option for extended operation.
The EGO Power+ TR4204 is a cordless electric riding lawn mower built as a modern tractor alternative for residential use. It features a robust 42-inch stamped steel deck and arrives ready to go with six 56V 6.0Ah batteries plus a charger, creating an immediate impression of convenience and solid construction free from gas engine complexity.
Performance shines through its equivalent 21 horsepower output and top speed of 6 MPH, allowing efficient coverage of up to 1.5 acres on a single charge. Dual brushless cutting motors operate without belts for added durability and less upkeep, while the digital display lets users select three blade settings, three drive speeds, and cruise control. The 12 adjustable heights ranging from 1.5 to 4.5 inches combined with anti-scalp wheels deliver precise results across varied terrain.
Drawbacks center on battery dependency, as larger properties beyond 1.5 acres require extra batteries and recharging intervals can interrupt workflow. The fully electric design eliminates fuel storage needs but demands access to power sources between sessions.
This mower suits homeowners with medium to large yards who value quiet, emission-free operation and reduced maintenance. Those seeking expandable battery capacity for bigger areas will find the EGO Power+ TR4204 a strong long-term investment in cordless lawn care.
Pros
- High-efficiency brushless motors maximize power output and durability over traditional motors
- Up to 2 acres runtime with three included 10.0 Ah batteries supports substantial mowing sessions
- Zero-emission operation with gas-equivalent 20 HP power for quieter environmentally friendly use
- Six-port auto-switchover battery system provides flexible extended runtime options
- Durable 42-inch steel deck plus included mulch and towing kits add immediate functionality
Cons
- Runtime is limited to approximately 70 minutes or 2 acres which may require recharging for larger properties
- Fully battery-dependent design means performance relies on charge levels and spare battery availability
- 42-inch deck size may require more passes on expansive lawns compared to wider commercial models
The PRORUN PZT60V42 is a fully electric 60V zero-turn riding lawn mower built for residential and light commercial use. Its primary design centers on a robust 42-inch 14-gauge stamped steel twin blade deck powered by direct-drive brushless motors, giving an immediate impression of solid construction and modern battery-focused engineering. The mower arrives complete with three 10.0 Ah batteries, a charger, mulch kit, and towing kit for ready-to-work versatility.
In performance terms, four high-efficiency brushless motors deliver power equivalent to a 20 HP gas engine while producing zero emissions. The system supports up to 2.0 acres or 70 minutes of runtime, and six battery ports with auto switchover intelligently manage all PRORUN 60V battery sizes for continuous operation. A washout port on the steel deck further simplifies post-mow maintenance during real-world sessions.
Potential drawbacks include the finite 70-minute runtime window which can limit coverage on larger properties without spare batteries or recharge breaks. As a fully electric model, it also depends entirely on battery charge levels rather than continuous fuel refills, and the 42-inch deck width may demand extra passes compared with wider traditional options.
Overall the PRORUN PZT60V42 offers strong value for homeowners and small-property managers who want gas-like cutting power without emissions or noise. Those with medium-sized lawns seeking quiet efficient zero-turn performance and included accessories will benefit most from this electric mower.
Pros
- Strong 24HP FR730 engine power for demanding cutting conditions
- Wide 54-inch FAB deck reduces total mowing time
- Zero turn design delivers excellent maneuverability
- Fabricated deck supports durable everyday operation
Cons
- Sparse details beyond engine and deck leave other features unspecified
- Gas-powered FR730 engine needs regular fuel and maintenance
- Large 54-inch deck size may feel oversized on compact properties
The Husqvarna Z254F is a zero turn mower from the established Husqvarna brand in the riding lawn mowers category. It centers on a solid build that pairs a 24HP 726cc FR730 engine with a 54-inch FAB deck for straightforward residential grass care.
Performance stems directly from the listed specifications. The FR730 engine delivers the horsepower needed for steady operation across typical lawns while the wide FAB deck completes passes efficiently. Zero turn handling improves control in real yard layouts based on the model design.
Considerations arise from the limited data available. Secondary elements such as comfort features fuel capacity or extras receive no mention and the gas engine format involves routine upkeep. The large deck suits open areas better than confined spaces.
The Husqvarna Z254F provides the most value for owners of medium or large properties who want reliable engine power and a broad cutting width. Users with smaller lots or those seeking extensive accessory options should weigh the core specs carefully before purchase.

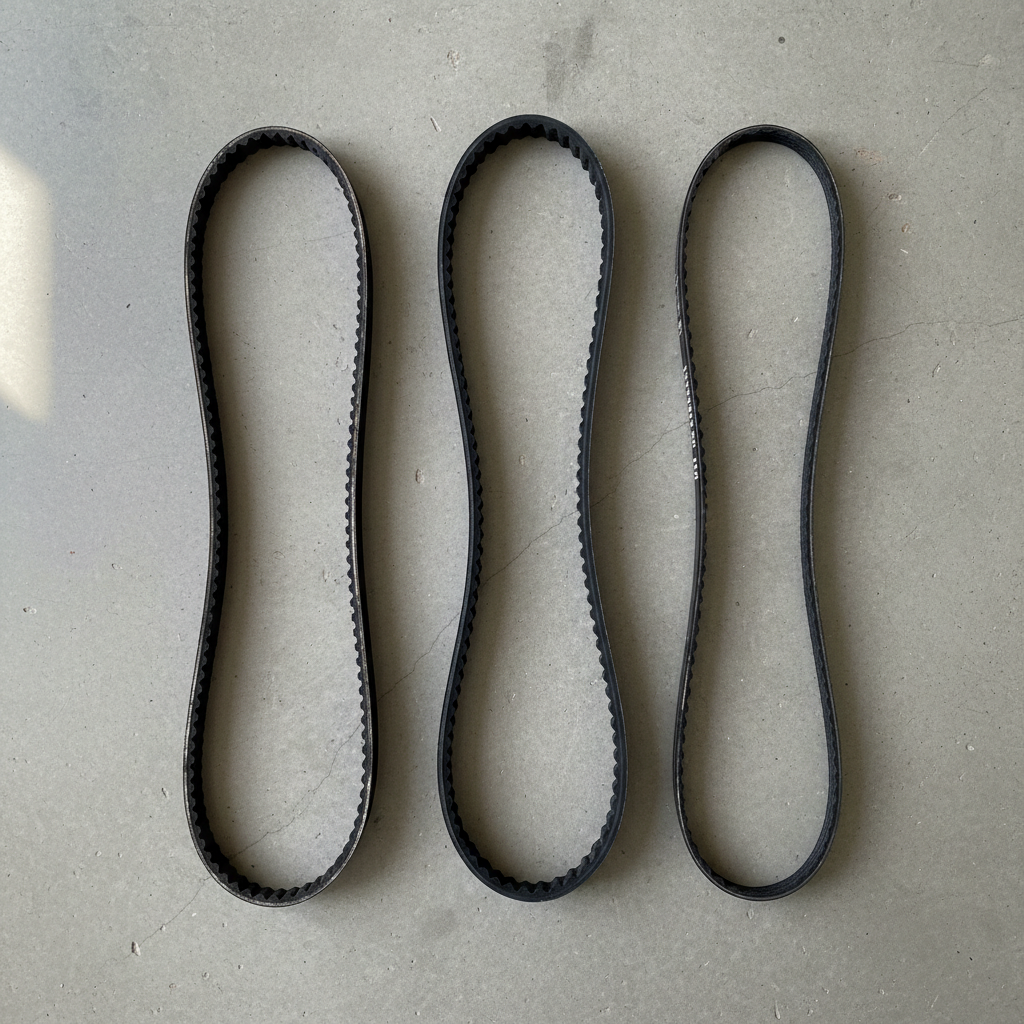

Deck Belt vs. Drive Belt vs. Transmission Belt: Which Belt Do You Actually Need?
Riding mowers use two or three belts with completely different locations and jobs. Replacing the wrong one wastes time and money. Identify the failed belt by its symptoms before ordering a part.
| Belt Name | Also Called | Location | Function | Failure Symptoms |
|---|---|---|---|---|
| Deck belt | Blade drive belt | Under the mower deck, spanning the mandrel housing pulleys | Transfers engine power to the blade spindles so blades spin | Blades stop spinning; deck vibrates; burning rubber smell; belt visible broken or frayed |
| Ground drive belt | Motion drive belt | Between the engine pulley and the transaxle or transmission input pulley | Moves the mower forward and backward | Mower won’t propel; sluggish movement; slips out of gear on hills; squealing under load |
| Transmission belt | Hydrostatic drive belt (hydrostatic models) | Between engine crankshaft pulley and hydrostatic pump pulley | Drives the hydrostatic pump on variable-speed models | Loss of ground speed control; mower moves but speed is erratic or absent |
Rule of thumb: If the mower moves but won’t cut, start with the deck belt. If the mower won’t move but the engine runs fine, start with the ground drive belt. For troubleshooting and reliability insights, consult our in-depth jbl partybox club 120 vs sony srs xv500 report.
Safety First: What to Do Before You Touch Any Belt
These steps are non-negotiable for both procedures. Skip none of them. For troubleshooting and reliability insights, consult our in-depth jbl partybox club 120 vs sony srs xv500 report.
- Engage the parking brake. Prevents the mower from rolling on any slope.
- Disconnect the spark plug wire. Pull the rubber boot off the spark plug tip and tuck it away from the plug. This prevents accidental engine start while your hands are near pulleys and blades — the single most important safety step.
- Let the engine cool completely. Exhaust components stay hot enough to cause burns for 20–30 minutes after shutdown.
- Do not drain fuel for a standard belt swap — fuel drainage is unnecessary unless you need to tip the mower. Work on a flat, level surface instead.
- Wear heavy work gloves. Deck belt edges and pulley flanges have sharp burrs on worn units.
Tools needed: Readers comparing setup options can review our technical analysis on z890 vs x870e motherboard.
- Socket set and ratchet (typically 3/8 in. and 1/2 in. drive)
- Flathead and Phillips screwdrivers
- Needle-nose pliers (for belt keepers and retaining clips)
- Smartphone or camera (photograph belt routing before removal)
- Owner’s manual open to the belt routing diagram page
- Replacement belt (correct OEM part number — see belt selection section below)
- Penetrating oil (for rusted deck attachment bolts)
How to Replace the Deck Belt (Blade Drive Belt) on a Riding Lawn Mower
The deck belt is the most commonly replaced belt. This procedure covers the generic sequence; consult the brand-specific notes section and your owner’s manual diagram for exact pulley layout on your model.
Step 1 — Complete All Safety Steps
Parking brake on. Spark plug wire disconnected. Engine cold. Readers comparing setup options can review our technical analysis on z890 vs x870e motherboard.
Step 2 — Set the Blade Engagement Lever to Disengaged and Lower the Deck to Its Lowest Position
Lowering the deck creates slack in the belt and gives you maximum clearance for removal.
Step 3 — Photograph the Existing Belt Routing
Take three to four photos from different angles before touching the belt. The routing diagram in your owner’s manual is authoritative, but photos of the actual routing on your unit confirm how the belt exits the engine pulley and wraps the idler. Reference both during reinstallation. For complementary field maintenance guidelines, examine our breakdown of marshall stanmore iii vs harman kardon onyx studio 8.
Step 4 — Remove the Mower Deck
- Disconnect any deck lift linkage pins or hairpin clips attaching the deck to the lift arms — typically two to four connection points depending on model.
- Remove the front deck hanger bracket pin or strap if present.
- Slide the deck out from under the left or right side of the mower (most models slide to the left).
- Set the deck on a flat surface where you can work around all sides.
On some models (notably certain Craftsman and MTD units), the belt can be accessed and replaced without fully removing the deck by reaching through the discharge chute opening. Check your manual — full removal is easier and reduces routing errors for first-timers.
Step 5 — Remove the Old Deck Belt
- Locate the idler pulley — it sits on a spring-loaded or fixed arm and is the tension-relief point for the system.
- Use needle-nose pliers to unhook the idler spring (if spring-loaded) or push the idler arm toward the belt to create slack.
- Slip the belt off the idler pulley first, then off each mandrel housing pulley in sequence.
- Note the position of any belt keepers (also called belt guides) — these are small metal tabs bolted near the pulleys that hold the belt in its groove. They do not rotate. Do not bend or remove them unless replacing them.
- Slide the belt off the engine PTO (power take-off) pulley and fully remove it from the deck.
Inspect the old belt: cracks across the inner surface, glazed or shiny sidewalls, frayed edges, or a stretched appearance all indicate a worn belt. Also inspect every pulley for wobble (failed spindle bearing) and every belt keeper for bending — both cause premature belt failure. To evaluate matched hardware tolerances, consult our detailed overview of dyson v8 cyclone vs bissell featherweight stick.
Step 6 — Thread the New Deck Belt
- Route the new belt around the engine PTO pulley first (outermost pulley, closest to the engine).
- Following the routing diagram exactly, thread the belt around each mandrel housing pulley. On a standard 42-inch twin-blade deck there are two mandrel pulleys; a 54-inch deck typically has three.
- Ensure the belt sits fully inside the pulley groove — not riding up on a flange — at every mandrel pulley before proceeding.
- Route the belt under or over any belt keepers as the diagram specifies. Belt keepers should be within 1/8 inch of the belt surface without touching it when the belt is tensioned.
- Last, hook the belt onto the idler pulley and re-engage the idler spring.
Step 7 — Verify Seating Before Reinstalling the Deck
Rotate each mandrel pulley by hand one full turn and watch the belt track. It must stay centered in every groove. Tug the belt between pulleys — properly tensioned, it should deflect no more than about 1/2 inch under firm finger pressure (consult your manual for the exact spec; tension varies by model).
Step 8 — Reinstall the Deck, Reconnect Spark Plug Wire, and Test
Slide the deck back under the mower, reconnect all lift linkage pins, and reattach any guards or shields removed during access. Reconnect the spark plug wire. Start the engine, let it idle for 60 seconds, then engage the blades at low throttle for 30 seconds before running at full throttle. Listen for squealing, watch for vibration, and shut down immediately if either occurs. When planning workspace deployment, consider the engineering criteria outlined in our bissell crosswave hydrosteam vs shark stainforce guide.
How to Replace the Ground Drive Belt (Motion Drive Belt) on a Riding Lawn Mower
The ground drive belt runs between the engine crankshaft pulley and the transaxle input pulley. It is located above the deck area, typically accessed by removing a belt cover or belly pan on the mower frame — the deck does not need to come off on most models.
Step 1 — Safety Steps and Deck Lowering
Parking brake on, spark plug wire off, engine cold. Lower the deck if needed for clearance to the drive belt cover.
Step 2 — Remove the Drive Belt Cover or Access Panel
Most riding mowers have a stamped steel or plastic cover over the drive belt, secured by two to six bolts or snap clips. Remove it and set aside all hardware. On some gear-drive models (Craftsman, MTD), you may need to remove the battery or battery tray for full access.
Step 3 — Photograph the Routing and Remove the Old Drive Belt
- Note whether the belt passes through a fixed guide bracket between the engine pulley and the transaxle pulley — this guide is critical to reroute correctly.
- Relieve tension by pushing the motion-drive idler arm (if present) or by simply working the belt off the smaller pulley first.
- Slide the belt off the engine crankshaft pulley, then off the transaxle input pulley.
Step 4 — Inspect the Transaxle Pulley and Idler
Spin the transaxle input pulley by hand. It should rotate smoothly with no grinding. A rough or seized transaxle bearing is a separate repair; installing a new belt on a seized pulley destroys the belt immediately.
Step 5 — Install the New Drive Belt
- Loop the new belt over the transaxle input pulley first.
- Route through any fixed guide bracket in the correct orientation (the belt must not twist).
- Stretch the belt up and over the engine crankshaft pulley.
- Engage the idler arm or tensioner to apply spring tension.
- Confirm the belt sits in both pulley grooves and passes cleanly through the guide bracket without rubbing the bracket walls.
Step 6 — Check Tension, Reassemble, and Test
Drive belt tension is typically set by the idler spring — no manual adjustment is needed if the spring is in good condition. A weak or stretched idler spring that fails to tension the belt properly causes slipping under load; replace the spring at the same time as the belt if it looks corroded or stretched. Reinstall the cover, reconnect the spark plug wire, start the mower, and test forward and reverse motion on flat ground before using on a slope.
Hydrostatic vs. gear-drive note: On hydrostatic mowers (infinitely variable ground speed), the drive belt connects the engine to the hydrostatic pump — not a manual transaxle. The routing is similar, but the pump pulley is smaller and sits higher. Consult the model-specific diagram. Gear-drive mowers use a shift-lever-operated transaxle; the belt replacement procedure is mechanically simpler.
Choosing the Right Replacement Belt: OEM vs. Aftermarket, Sizing, and Part Numbers
How to Find Your Correct Belt Part Number
- Locate your mower’s model number and serial number — found on a decal under the seat, on the frame near the engine, or on the back of the mower deck. Record both numbers exactly.
- Enter them at the manufacturer’s parts lookup (e.g., Husqvarna Parts, John Deere Parts, Craftsman Parts Direct) to retrieve the OEM belt part number for your specific model year and deck width.
- Alternatively, open your owner’s manual to the parts diagram section — the belt part number is listed there.
OEM vs. Aftermarket Belts
OEM belts are manufactured to the exact length, width, angle, and compound specified for your mower’s pulley geometry. Aftermarket belts from reputable brands (Gates, Stens, Oregon) can be acceptable substitutes when they match the OEM cross-reference number precisely. Generic V-belts from a hardware store cut to approximate size are not acceptable — mower deck belts use a specific Kevlar-reinforced raw-edge V-belt construction (sometimes called a cogged belt) that a standard industrial V-belt does not replicate. Using the wrong belt type causes rapid wear, slipping, and premature breakage.
A belt that is too long will not tension properly and slips. A belt that is too short overstresses the idler bearing and snaps prematurely. Width mismatches cause the belt to ride incorrectly in the pulley groove, generating heat and wear.
Brand-Specific Belt Routing Notes
Husqvarna
Most Husqvarna decks use a spring-loaded idler arm that must be pushed toward the belt to create slack for removal and installation. The idler spring hooks onto a specific tab on the deck frame — confirm the spring is fully seated on that tab after installation or the belt will lose tension under load. Husqvarna’s belt routing diagram is printed on a decal attached to the top of the mower deck on most models — check there before opening the manual.
John Deere
John Deere decks on many popular models (100 Series, X300 Series) use keeper tabs — small fixed guides that the belt must pass under or over in a specific direction. Missing a keeper tab is the most common routing error on John Deere decks and causes the belt to throw off immediately under blade engagement. Route under every keeper before tensioning the idler. John Deere OEM belts are color-coded by series; confirm the color matches the original when buying from a dealer.
Craftsman
Craftsman riding mowers (manufactured by MTD or Husqvarna depending on year) commonly allow deck belt replacement without full deck removal by reaching through the discharge opening. The belt guide bracket position near the engine PTO pulley is adjustable on many Craftsman models — do not reposition it during belt replacement; leave it where it sits unless it is visibly bent.
Cub Cadet
Cub Cadet XT1 and XT2 series decks route the belt through a center mandrel pulley on three-blade decks in a figure-eight-adjacent path — photograph this carefully before removal because the crossover point looks counterintuitive. The idler on Cub Cadet decks is often dual-function (flat on one side, grooved on the other); install the new belt on the correct face.
MTD (Troy-Bilt, Yard Machines, White Outdoor)
MTD-platform mowers use interchangeable decks across multiple brand names. The belt routing diagram is typically stamped or printed on the deck shell. MTD uses a fixed idler bracket on entry-level models (no spring) — tension is set by the bracket position, which is adjusted with a single bolt. Confirm the bracket position matches the original before running the mower.
Troubleshooting: Why Does My Riding Mower Belt Keep Coming Off or Breaking?
A correctly installed belt on a healthy mower should last 3–5 years or approximately 100–200 hours of operation under normal residential use. Repeated failure indicates an underlying mechanical problem — not just a bad belt.
- Worn idler pulley bearing: A failing bearing causes the idler to wobble, which throws the belt off-track. Test by spinning the idler by hand — any roughness, grinding, or wobble means replace the idler pulley assembly, not just the belt.
- Bent or missing belt keeper / belt guide: Belt keepers hold the belt in the pulley groove when the system decelerates. A bent keeper (from hitting debris) allows the belt to jump the pulley. Inspect every keeper and straighten or replace any that are bent more than 1/8 inch out of position.
- Incorrect routing: A belt routed over a keeper instead of under it (or vice versa) tracks incorrectly and ejects under load. Re-check the routing diagram against your installation.
- Pulley misalignment: A cracked mandrel housing, a bent spindle, or a loose engine mount shifts pulley alignment and causes uneven belt wear and ejection. Inspect spindles for play by grabbing each blade boss and pushing up and down — more than minimal play indicates a worn spindle bearing.
- Wrong belt size: A belt slightly too long runs loose enough to slip off the idler. Always verify the OEM part number match, not just nominal length and width.
- Debris accumulation under deck: Packed grass clippings interfere with belt and pulley movement. Clean the underside of the deck after every third to fourth mow.
Frequently Asked Questions About How To Replace Riding Lawn Mower Belt
How much does it cost to replace a riding lawn mower belt?
A DIY belt replacement costs $15–$60 for the belt depending on brand and deck width; OEM belts from dealer parts counters run toward the higher end, quality aftermarket belts toward the lower end. Professional replacement at a service shop typically runs $80–$200 total including parts and labor, based on typical small-engine shop labor rates of $60–$100 per hour and 30–60 minutes of labor time for a standard deck belt swap.
How long does it take to replace a riding mower belt?
A first-time DIYer should plan 60–90 minutes for a deck belt replacement, including deck removal and reinstallation. An experienced home mechanic familiar with their specific model can complete the same job in 30–45 minutes. Ground drive belt replacement is often faster — 30–60 minutes — because deck removal is not required on most models.
How often should I replace the belt on a riding lawn mower?
Most mower manufacturers recommend inspecting the deck belt annually and replacing it every 3–5 years or every 100–200 hours of operation, whichever comes first. Replace immediately if you see cracking, fraying, glazing, or any sign of structural damage regardless of age. Consult your owner’s manual maintenance schedule for the interval specific to your model.
Can I replace a riding lawn mower belt myself without a mechanic?
Yes — deck belt and ground drive belt replacement are among the most beginner-accessible riding mower repairs. The procedure requires only basic hand tools, one to two hours, and the ability to follow a routing diagram. The critical steps are disconnecting the spark plug wire before starting and photographing the old belt routing before removal. Riders who are uncomfortable working near engine components or who cannot safely lift and slide the deck should use a service technician.
Should I replace both the deck belt and drive belt at the same time?
Not automatically — each belt should be replaced based on its own condition and service life, not simply because the other failed. However, if one belt has failed after five or more years of use and both belts have the same age and operating hours, replacing both during the same service visit saves a second labor session. Inspect the second belt carefully before deciding.
