Quick Answer: How to Replace Starter String Lawn Mower
A starter string, also called a pull cord or recoil starter cord, is the nylon rope you pull to manually crank your lawn mower’s engine. The cord connects to a spring-loaded pulley inside the recoil starter housing. When you pull the cord, it winds around the pulley, which rotates the engine’s crankshaft through a clutch mechanism. As you release the cord, the spring automatically rewinds it back into the housing.
Pros
- Direct replacement for Husqvarna 917.384507 pull starter
- Built with all-new components rather than refurbished parts
- Designed to meet OEM specifications
Cons
- Compatible only with Husqvarna 5521CM and specified part number
- Mounting hardware is not included
Pros
- Long 100ft length supports repeated repairs and custom installations.
- High-strength polyester construction is designed for durability and low stretch.
- Broad small-engine use case makes it practical for many outdoor tools.
- Flexible feel improves handling compared with stiffer starter cords.
Cons
- It is a bulk rope, so you must measure, cut, and install it yourself.
- Compatibility is not universal, so exact fit should still be checked against your equipment specs.
- No included starter assembly or repair kit is listed, only the rope itself.
Overview: The Alrhipvm Pull Cord Rope is a bulk recoil starter rope for small-engine repairs. It comes as a 100ft roll in a 5/32 inch (4mm) diameter, which makes it a practical option for users who want to cut custom lengths instead of buying pre-cut replacements.
Performance: The rope uses 16-strand polyester construction, which is meant to improve wear resistance and reduce stretch during repeated pulls. Its flexible feel should make it easier to handle on equipment such as lawn mowers, generators, chainsaws, trimmers, edgers, and brush cutters.
Drawbacks & Considerations: Because this is a DIY bulk roll, buyers need to measure and install the rope themselves. Compatibility is broad, but not guaranteed for every model, so checking the required diameter and length for your machine is still important.
Verdict: This starter rope is a strong fit for homeowners, repair users, and maintenance shoppers who need a durable cut-to-length replacement for common small engines. It offers useful flexibility and value for repeated repairs, as long as you are comfortable doing the installation yourself.
Pros
- Long 12 m spool allows multiple repairs from a single roll.
- Nylon 66 and solid braid construction are suited to repeated starter use.
- Processed rope end can simplify threading through small recoil starter openings.
- Compatible with a wide range of small engines and outdoor power tools.
Cons
- Compatibility is broad rather than exact, so users should verify 3 mm fit before cutting.
- It is a generic replacement cord, so fit may vary by recoil starter design.
- The listing does not provide a specific OEM part number or full accessory kit details.
Overview: The YGQ 3mm Pull Cord Starter Rope is a 12 m recoil starter line for small engines and outdoor power equipment. It uses Nylon 66 material and a solid braided construction, which gives it a practical, work-ready feel for routine repairs.
Performance: The specially processed rope end is designed to pass through small starter holes more easily, which can make installation less frustrating. With a 3 mm inner diameter and long cut-to-fit length, it is built for use on chainsaws, trimmers, leaf blowers, brush cutters, push mowers, and similar two-cycle engines.
Drawbacks: This is a universal-style replacement rope, so buyers need to confirm that the 3 mm size matches their recoil starter before cutting. The listing also focuses on the rope itself, so users should expect to reuse or source any tool-specific starter hardware as needed.
Verdict: This product is a sensible option for DIY users and repair shops that need a versatile starter cord for many small-engine machines. It is best suited to buyers who want a long, cut-to-length replacement rope and are comfortable checking compatibility before installation.
Pros
- Long 10 m length supports several repairs or spare cuts.
- Compatible with many small-engine recoil starter applications.
- Durable braided construction is intended for repeated use.
Cons
- Handle and starter assembly are not included, so this is not a complete replacement kit.
- 3mm diameter may not fit every recoil starter, so size verification is necessary before buying.
- The listing provides no detailed fit guide, so compatibility depends on measuring your old cord and reel opening.
Overview: The LETAYAR 3mm x 10m White Recoil Starter Rope is a rope-only replacement designed for small-engine pull start repairs. It is intended for users who need to refresh a worn or broken starter cord without replacing the entire recoil assembly.
Performance & Key Features: The braided high-tensile fiber construction is meant to handle repeated pulling and outdoor use. With 10 meters of cord, it offers enough material for multiple repairs or custom-length installs, and the 3mm diameter works with many larger hand-pull starter reels.
- Compatible with lawn mowers, chainsaws, trimmers, generators, edgers, blowers, and pressure washers
- Rope-only format for replacing just the worn cord
- Easy to cut to size for different repair needs
Drawbacks & Considerations: This product does not include a handle or starter assembly, so buyers need existing hardware or separate parts. It is also important to compare the old rope diameter and starter reel hole before ordering, since 3mm will not suit every machine.
Verdict: This is a practical choice for DIY small-engine repairs when you only need a replacement recoil cord. It offers good length and broad application potential, but the best results will come from verifying compatibility first.
Over time, starter cords fray, break, or become difficult to pull due to wear. A damaged cord won’t engage the engine properly, leaving you unable to start your mower. Most homeowners can replace just the cord if the spring and pulley remain functional, a straightforward repair that costs $15-30 in materials.
However, if you notice the cord won’t rewind, the pulley appears cracked, or the spring seems weak, the entire starter assembly may need replacement. This typically costs $40-120 depending on your mower model but is necessary when internal components fail.
Signs Your Starter Cord Needs Replacement
- The cord frays, has visible damage, or won’t pull smoothly
- The cord doesn’t retract fully into the housing
- You need excessive force to pull the cord
- The cord snaps while pulling
- The handle is missing or deteriorated
Tools and Materials You’ll Need
Before beginning, gather these items to ensure a smooth repair:
Tools
- Screwdriver set (Phillips and flat-head) – for removing housing cover screws
- Pliers or needle-nose pliers – for gripping and manipulating cord
- Socket wrench or hex key set (optional) – some housings use different fasteners
- Work gloves – to protect hands from sharp edges and recoil spring tension
Materials
- Replacement starter cord – nylon cord in 2.5mm, 3mm, or 4mm diameter (check your manual for specs; most push mowers use 3mm)
- Starter handle (optional) – if the old handle is damaged or missing
- Needle or small wire – to help thread cord through tight spaces
Finding the Correct Cord Size: Check your lawn mower’s manual or the starter housing itself, which often displays the cord diameter. Home improvement stores and online retailers sell universal starter cord kits ($10-25) with multiple diameters and handle attachments. Local small engine repair shops can also provide the exact specification for your model.
Safety Precautions Before Starting
Working on a lawn mower engine requires careful attention to safety. Follow these steps before you begin: To evaluate matched hardware tolerances, consult our detailed overview of z890 vs x870e motherboard.
Essential Safety Steps
- Disconnect the spark plug wire – Pull the wire connector off the spark plug to prevent accidental engine ignition. This is non-negotiable; a spinning blade or engine could cause severe injury.
- Allow the engine to cool – Wait at least 30 minutes after last use if the mower was running. The engine and housing will be hot enough to cause burns.
- Drain or siphon the fuel tank – If replacing the housing requires removing it from the engine, consider draining fuel to reduce spill risk and fire hazard.
- Work on a flat surface – Use a clean workbench or level ground. Ensure the mower won’t roll or shift during disassembly.
- Wear gloves and eye protection – Recoil springs are under tension and can snap suddenly. Gloves and safety glasses protect against splinters and spring release.
- Keep the manual nearby – Manufacturer instructions specific to your model are invaluable if you encounter unfamiliar fasteners or housing design.
Step-by-Step: Removing the Old Starter Cord
Step 1: Locate and Access the Recoil Starter Housing
The recoil starter housing is typically mounted on top of or to the side of the engine block. On push mowers, it’s often visible near the top center of the engine. On riding mowers, it may be on the side or accessed from above. Look for a cylindrical or rectangular metal or plastic cover with a rope or handle protruding from it.
Once located, examine how it attaches. Most housings are held by 3-5 screws. Note their locations; you’ll reinstall them in the same order. When planning workspace deployment, consider the engineering criteria outlined in our marshall stanmore iii vs harman kardon onyx studio 8 guide.
Step 2: Remove the Housing Cover
Using the appropriate screwdriver, carefully remove all fasteners holding the housing cover. Place them in a small container so they don’t get lost. Gently lift the housing cover away from the engine. Be cautious, the recoil spring inside may still have tension and could cause the cover to shift suddenly.

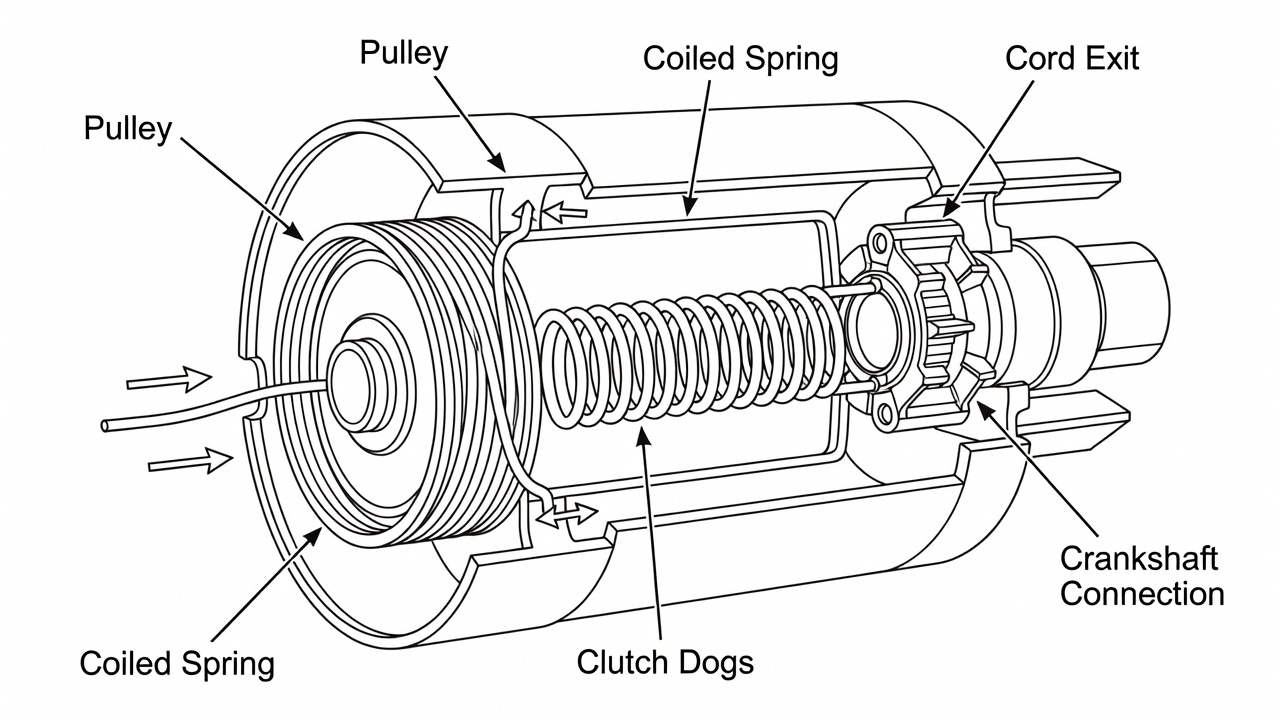

Step 3: Assess the Recoil Spring and Pulley
With the housing open, examine the internal components. You should see a round pulley (the spool the cord wraps around) and a coiled spring attached to it. If the spring appears broken or the pulley is cracked, stop here and replace the entire starter assembly. Proceeding with only a cord replacement won’t solve the problem. For additional operational safety benchmarks, see our published testing notes on dyson v8 cyclone vs bissell featherweight stick.
If the spring and pulley look intact, continue with cord removal.
Step 4: Release Spring Tension Safely
The recoil spring holds the pulley under tension. Before removing the old cord, you may need to release some of this tension to prevent the pulley from spinning unexpectedly. Some designs have a small pin or hole you can use to lock the pulley in place. Consult your manual if available. If no locking mechanism exists, hold the pulley gently with one hand while working with the other. To compare alternative configurations, check our hands-on review of bissell crosswave hydrosteam vs shark stainforce.
Step 5: Remove the Old Cord
Locate where the old cord is tied to the pulley, typically through a hole in the spool. The cord may be knotted, glued, or both. Using pliers or a needle-nose tool, gently work the knot loose or cut it if necessary. Slowly unwind the old cord from the pulley, letting it come free. Remove any remaining pieces of cord or adhesive from the pulley hole.
Step-by-Step: Installing the New Starter Cord
Step 6: Thread the New Cord Through the Housing
Cut a length of new starter cord approximately 8-10 feet long (check your manual for exact length). Seal the cut end by briefly melting it with a lighter or match to prevent fraying. Allow it to cool.
Feed one end of the new cord through the hole in the pulley. Pull it through completely so the cord is centered on the spool. If the hole is tight, use a needle or thin wire as a guide to help thread the cord through.
Step 7: Secure the Cord to the Pulley
Tie a secure knot at the end of the cord inside the pulley to prevent it from slipping back through. A double overhand knot (rabbit ears knot) works well. Make sure the knot is tight and won’t come loose under pulling force. Some people add a small amount of adhesive-backed tape or threadlocker to reinforce the knot.
Step 8: Wind the Cord on the Pulley
Gently rotate the pulley by hand, allowing the new cord to wrap around it. Most designs wrap in a single layer, with the cord neatly coiling around the spool. Continue winding until only 18-24 inches of cord remains free, this is the length you’ll pull to start the mower. The exact length depends on your handle and the opening in the housing; check your manual or compare to photos of the original setup.
Step 9: Attach the Handle to the Cord End
At the free end of the cord, tie another secure knot to prevent unraveling. Feed this end through the handle grip (if reusing the old handle) or the new handle if you’re replacing it. Tie a final knot large enough that the handle won’t slip off the cord. Many handles have a built-in barrel or cap that secures the cord end; follow the design of your specific handle.
Test the handle for comfort and security. It should not rotate on the cord or move side to side.
Reassembly and Testing
Step 10: Verify Spring Tension and Pulley Function
Before closing the housing, manually pull the cord handle to ensure it moves smoothly and the pulley rotates. The cord should pull with moderate resistance (not too easy, not too hard). Release the handle and watch as the spring automatically rewinds the cord. If the cord doesn’t retract fully or rewinds slowly, check that the spring is properly seated and the pulley rotates freely.
Make several test pulls to confirm smooth operation. The cord should never jam or bind.
Step 11: Reassemble the Housing Cover
Once you’re satisfied with cord function, carefully position the housing cover back over the pulley and spring. Align the screw holes with those on the engine block. Reinstall the screws in the same order you removed them, tightening them evenly to avoid warping the cover. Don’t overtighten; screws should be snug but not forced.
Step 12: Final Safety Check
Verify that the spark plug wire is still disconnected. Give the cord handle a few final test pulls to ensure everything is working. The cord should retract fully and pull smoothly with no binding or resistance spikes.
Step 13: Reconnect and Test Start
Reconnect the spark plug wire by pushing the connector firmly onto the spark plug. Fill the fuel tank (if you drained it earlier) and add fresh gasoline if necessary. Move the engine to a safe outdoor location, engage the choke, and attempt a few pulls to start the engine. Listen for the normal sound of the engine turning over. If the engine catches and starts, the replacement was successful. If not, see the troubleshooting tips below.
Variations by Mower Type
Push Mowers
Push mowers have the recoil starter mounted directly on the engine block, typically on top. The housing is easily accessible from above. Most push mowers use 3mm-diameter cord. Replacement is straightforward and takes 30-40 minutes for most models.
Riding Mowers
Riding mowers often have the recoil starter on the side of the engine, sometimes partially obscured by guards or covers. You may need to remove engine guards first to access the housing. Check your manual for the correct sequence. Cord specifications vary; consult your model documentation.
Small Engine Equipment
Pressure washers, generators, and tillers use similar recoil starters but may have different housing designs or cord diameters (often 2.5mm or 4mm). The basic replacement process is identical; only the specific dimensions and fasteners differ.
When to Replace the Entire Starter Assembly
Signs You Need a Full Replacement
- The recoil spring is visibly broken, cracked, or detached
- The pulley is cracked or the spool is damaged
- The cord rewinds slowly or not at all despite proper cord installation
- The housing cover is cracked or won’t seal properly
- The clutch mechanism that engages the engine won’t hold
Cost and Availability
A complete starter assembly replacement costs $40-120 depending on your mower brand and model. OEM (original equipment manufacturer) assemblies are more reliable but pricier. Aftermarket replacements are often available at lower cost. Order by your mower’s exact model number, which is usually found on a sticker on the engine block or frame.
Installation involves the same disassembly steps but takes slightly longer because you’re replacing the entire housing rather than just the cord. Many small engine repair shops offer this service for $60-100 in labor if you prefer professional help.
Troubleshooting Common Issues
Cord Doesn’t Retract
The spring may not be properly seated or the pulley may be binding. Open the housing again, check that the spring is coiled correctly, and ensure the pulley rotates freely without resistance. Clean away any debris or old cord fibers.
Cord Pulls Hard or Won’t Move
You may have wound the cord too tightly or the pulley is misaligned. Open the housing, unwind a few inches of cord, and check that the pulley spins freely. Rewind more loosely and try again.
Engine Won’t Start After Replacement
A new cord doesn’t guarantee engine start. Verify the spark plug is firing (reconnect the wire firmly), check fuel freshness and flow, and ensure the engine choke is properly set. If the pull mechanism works but the engine doesn’t catch, the issue likely isn’t the cord.
Cord Frays or Breaks Quickly
You may have purchased the wrong cord diameter or material. Lawn mower cords must be nylon, not cotton or synthetic alternatives. Verify the diameter matches your manual specification and order from a reputable small engine parts supplier.
Frequently Asked Questions About Replace Starter String On Lawn Mower
How much does a replacement starter cord cost?
A replacement starter cord typically costs $10-30, depending on length, diameter, and whether it includes a handle. Universal starter cord kits with multiple sizes and handles range from $15-25. The cord material itself (nylon) is inexpensive; most of the cost is markup and packaging.
Can I use any nylon rope as a starter cord?
No. Lawn mower starter cords are made from specific nylon formulations that withstand repeated pulling and recoiling without fraying or stretching. General-purpose nylon rope is not durable enough and will wear out quickly. Always purchase cord specifically labeled for small engine starters or from a parts supplier that specializes in lawn equipment.
How long does it take to replace a starter cord?
For someone with basic mechanical skills, replacement takes 30-45 minutes, including disassembly, cord installation, and reassembly. First-time repairs may take up to an hour if you’re unfamiliar with your mower’s design or encounter stuck fasteners. A professional small engine repair shop can typically complete the job in 30 minutes or less.
Do I need to replace the entire starter assembly if only the cord is broken?
No, unless the spring or pulley is damaged. A broken cord alone is easily fixed with a replacement cord and handle. Only replace the full assembly if internal components are visibly cracked, the cord won’t retract, or the spring is non-functional. This distinction can save you $40-100.
Where can I buy replacement starter cord?
Replacement cords are available at home improvement stores (Home Depot, Lowe’s), online retailers (Amazon, eBay), local small engine repair shops, and lawn equipment dealers. Universal kits work for most push mowers, but verify the diameter matches your manual. For specific mower models, order OEM parts from the manufacturer or authorized dealers for guaranteed compatibility.
Related Maintenance and Operating Guides
To keep your equipment running at peak operating efficiency, explore our related technical walkthroughs and maintenance tutorials:
- Consult our detailed breakdown on lawn mower.
Starter String Replacement Process
Replacing the starter string involves removing the cover, releasing spring tension, and threading the new rope. Keeping the spring under control during the job prevents painful snap-back injuries. Background on protecting yourself around spring-loaded parts comes from American National Standards Institute (ANSI).
