How Do You Replace Weed Trimmer Line? (Complete Step-by-Step Guide)

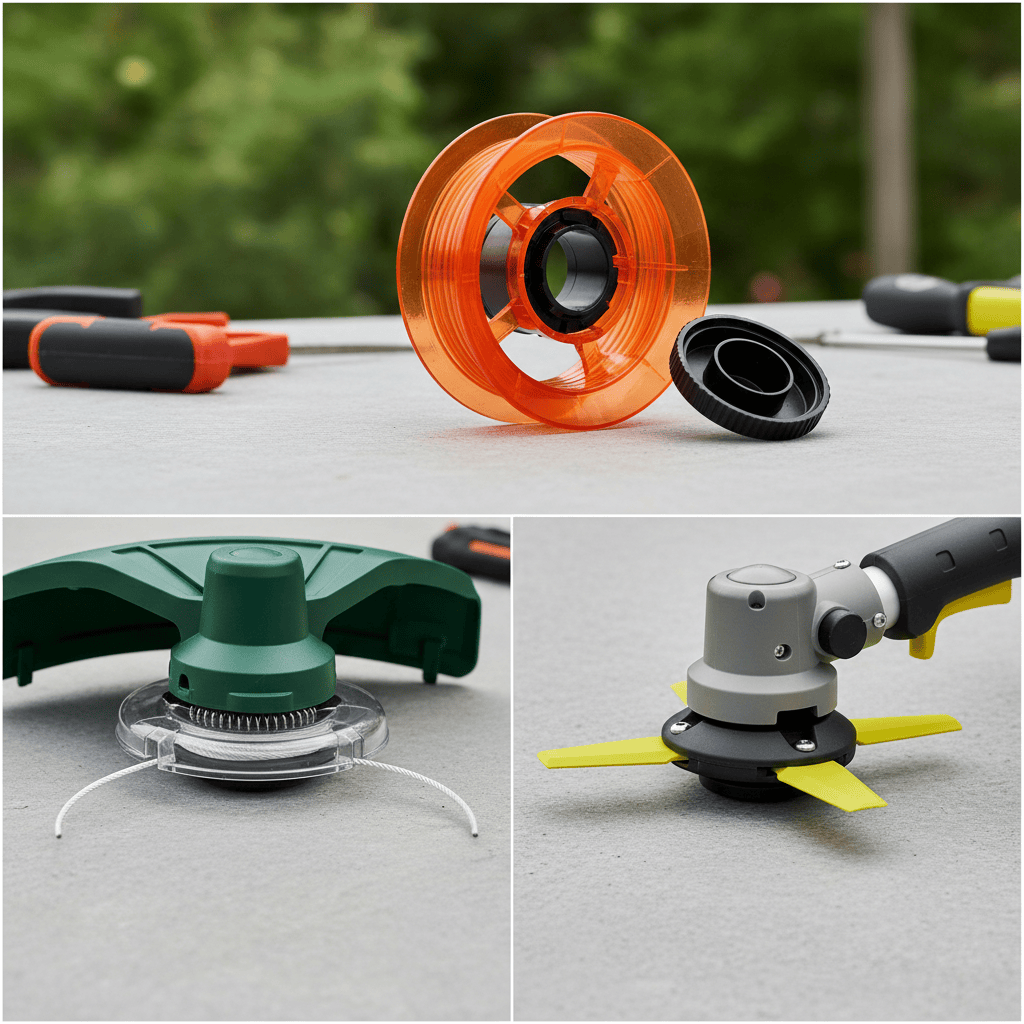

Understanding Your Trimmer Type

Before you begin replacing your weed trimmer line, identify which of the three main trimmer types you own. This determines the specific replacement procedure you’ll follow.

Bump-feed automatic trimmers automatically advance new line as the existing line wears down. When you tap the trimmer head on the ground during use, a mechanism feeds a measured amount of fresh line. This system requires less hands-on management during regular use but still needs periodic line replacement when the spool runs empty.

Manual-wind trimmers require you to hand-wind line onto the spool and manually feed it through the eyelets. These models demand more precision during replacement but offer simplicity and reliability. Many professionals prefer them because they provide complete control over line tension and length.

Cordless and gas-powered trimmers use the same basic line replacement process as their corded electric counterparts. The primary difference lies in power source, not the trimmer head mechanics. Both types feature either bump-feed or manual-wind systems, so the replacement steps remain consistent once you identify which feeding system your model uses.

Before You Start: Safety and Preparation

Proper preparation prevents accidents and ensures successful line replacement.

Safety first: Always disconnect the trimmer from its power source before beginning work. For electric models, unplug the cord. For cordless trimmers, remove the battery. For gas-powered units, ensure the engine is completely off and has cooled for at least 15–20 minutes after use. Never attempt maintenance on a warm engine, as moving parts and hot surfaces create burn risks and injury hazards.

Check line compatibility: Consult your trimmer’s manual or the manufacturer’s website to identify the correct line diameter for your model. Residential trimmers typically use line diameters ranging from 0.065 inches to 0.130 inches. Using the wrong diameter can cause feeding problems, overload the engine, or damage the trimmer head. Also verify the maximum spool capacity in terms of line length—standard residential models hold between 15 and 30 feet of line per spool.

Gather materials: You’ll need replacement line (the correct type and diameter for your trimmer), possibly a small flathead screwdriver or wrench depending on your trimmer head design, and a clean workspace. Having a cloth or small brush nearby helps remove debris from the spool and trimmer head cavity.

Accessing the Trimmer Head

The trimmer head houses the spool and line mechanism. Accessing it is the first physical step in the replacement process.

Locate the head cap: The trimmer head sits at the end of the trimmer shaft, below the cutting line. Most residential models feature a retaining cap or knob that screws onto or clips into place. This cap holds the spool and line in position.

Remove the cap: For screw-on caps, rotate counterclockwise by hand or with a wrench until it loosens and comes free. For clip-style caps, you may need to press tabs or use a flathead screwdriver to gently pry the cap off. If the cap is stuck, apply a penetrating oil and wait a few minutes before attempting removal again. Avoid excessive force, which can crack plastic components.

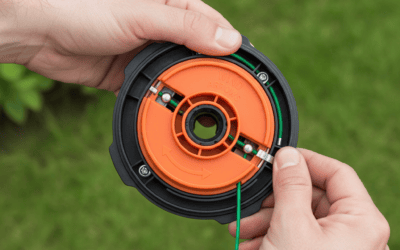

Inspect the spool: Once the cap is removed, you’ll see the spool—a plastic bobbin that holds the line. Note the directional arrows molded into the spool; these indicate the correct winding direction for line installation. Take a photo or mental note of their location, as you’ll reference them when winding new line.

Removing Spent Line and Cleaning the Spool

Before installing new line, clear out any remaining old line and prepare the spool surface.

Remove old line: Pull away any line still wrapped around the spool. If the line is stubborn or tightly wound, carefully use a flathead screwdriver to lift and loosen it. Be gentle to avoid scratching the spool grooves, which guide new line during winding.

Clean the spool: Use a dry cloth or soft brush to wipe away dust, debris, and bits of old line from the spool surface and the trimmer head cavity. A clean spool ensures new line winds smoothly without catching on debris. Pay special attention to the eyelets—small holes or slots on opposite sides of the trimmer head where line passes through—and clear any blockages.

Inspect for damage: While the spool is exposed, check for cracks, warping, or wear. If the spool is damaged, line replacement alone won’t solve feeding problems; the spool itself may need replacement. Similarly, verify that the eyelets are clear and undamaged.

Loading New Line: The Winding Process

This is the most critical step. Improper winding causes tangling, poor feeding, and reduced trimmer performance.

Prepare the line: Cut a length of replacement line according to your trimmer’s specifications—typically 15 to 30 feet for residential models. Many replacement line spools are sold with pre-measured lengths, simplifying this step. If you’re cutting from bulk line, verify the correct length in your manual.

Locate the starting point: Most spools feature a small notch or slot at the base where line is inserted to anchor the starting end. Look for this feature on your spool; it prevents the line from unwinding during the winding process.

Insert the line end: Place one end of your replacement line into the starting notch or slot. Ensure it’s firmly seated so it won’t slip during winding.

Wind following directional arrows: Rotate the spool in the direction indicated by the molded arrows. Wind the line tightly but not so tight that the spool strains or becomes difficult to rotate. Aim for consistent, even pressure as you wind. Poor tension causes loose loops that tangle and unwind unexpectedly.

Wind to the proper depth: Fill the spool until you’ve wound approximately half to two-thirds of your line. Leave at least 4–6 inches of line unwound on each end. For bump-feed automatic trimmers, this extra length feeds through the eyelets and is automatically trimmed as the trimmer operates. For manual-wind models, this length allows you to thread the line through the eyelets and secure it properly.

Avoid overlapping: Wind line in neat, adjacent rows without overlapping. Overlapped line tangles and doesn’t feed smoothly. If you notice overlapping occurring, stop, unwind back to that point, and restart with better line placement.

Securing the Line and Reassembling the Head

Proper line anchoring and head reassembly are essential for safe operation.

For manual-wind trimmers: Once winding is complete, pull the line ends through the eyelets on opposite sides of the trimmer head. These are usually small holes or slots positioned roughly 180 degrees apart. Thread the line ends through these eyelets so approximately 2–3 inches of line protrudes from each side. Tie simple knots at the ends of the line to prevent them from slipping back through the eyelets during trimming.

For bump-feed automatic trimmers: Thread the line ends through the eyelets just as you would for manual models. However, do not tie knots. Instead, these line ends rest in grooves or slots in the head cap. When you reattach the cap, it holds the line ends in place. The automatic mechanism will advance and trim excess line as needed during operation.

Reattach the head cap: Align the cap with the trimmer head and screw it on clockwise (or press into place for clip-style caps) until snug. Do not overtighten, as this can crack plastic components or strip threads. Hand-tightening is usually sufficient.

Verify line protrusion: Check that line protrudes evenly from both sides of the trimmer head by approximately 2–3 inches. Uneven line length causes imbalanced cutting and vibration during operation.

Troubleshooting Common Replacement Issues

If your trimmer doesn’t perform properly after line replacement, these solutions address the most frequent problems.

Line tangles or doesn’t feed: This usually indicates improper winding or overlapped line. Remove the head cap, unwind the line completely, and rewind following the directional arrows with consistent, even tension. Verify you’re winding in the correct direction by checking the arrows again before starting.

Trimmer head won’t spin: Ensure the head cap is fully tightened and the line isn’t caught between the cap and spool. Also confirm the line isn’t wrapped around the trimmer shaft above the head. If these checks pass and the head still won’t spin, the issue may be unrelated to line replacement—check for other mechanical problems.

Line too loose or too tight: Line that’s wound too loosely unravels during use and doesn’t feed properly. Line that’s too tight strains the feeding mechanism and can break. Rewind using moderate, consistent tension that allows smooth spool rotation without excessive resistance.

Line keeps breaking during use: This may indicate you’re using the wrong line diameter or type for your trimmer. Verify compatibility with your manual. Alternatively, debris or damage inside the trimmer head may be catching the line. Clean the head cavity thoroughly and inspect the eyelets for cracks or rough edges that might snag line.

Automatic feed not advancing line: If your bump-feed trimmer isn’t automatically feeding new line despite a full spool, the feeding mechanism may be worn or broken. This requires internal repair or replacement of the trimmer head assembly, which is beyond basic line replacement.

Model-Specific Variations

Bump-feed automatic trimmers: After reassembling the head with new line, test the automatic feed by tapping the head gently on the ground while the trimmer is running at low speed. You should hear a click and feel slight resistance as line advances. If no advancement occurs, check that line ends are properly seated in the advance grooves under the head cap.

Manual-wind trimmers: After securing line with knots through the eyelets, test by hand-rotating the spool slightly to ensure line feeds smoothly. The line should advance incrementally with each rotation without bunching or tangling.

Cordless trimmers: After line replacement, reinstall the battery and test at low speed before full-speed operation. Cordless models sometimes have slightly different head designs, so verify your specific model’s manual for any unique steps.

Gas-powered trimmers: Allow the engine to fully cool before beginning line replacement. Gas trimmers generate significant heat, and working on a warm head risks burns. Otherwise, the line replacement process mirrors corded and cordless electric models.

Frequently Asked Questions

What line diameter do most residential weed trimmers use?

Most residential weed trimmers use line diameters between 0.065 and 0.130 inches, with 0.095 inches being very common for general-purpose models. Always check your trimmer’s manual or manufacturer’s website to confirm the correct diameter for your specific model. Using the wrong diameter can cause feeding problems or damage the trimmer head.

How often should I replace my trimmer line?

The frequency depends on how often you trim and the size of your lawn. For average residential use (trimming once weekly during growing season), expect to replace line every 1–2 months or as needed when the spool runs empty. Heavy commercial use may require replacement weekly. Rather than replacing on a schedule, replace line when the spool runs out or when existing line becomes too short to provide adequate cutting coverage.

Can I use a different line type or material?

Stick with the line type specified in your trimmer’s manual. Most residential trimmers use standard nylon monofilament line, but some specialty models may require twisted nylon or reinforced blends designed for cutting thick vegetation. Using incompatible line types can reduce cutting efficiency, increase vibration, or damage the trimmer. Consult your manual before substituting line materials.

What should I do if the trimmer head cap is stuck and won’t come off?

Apply a penetrating oil such as WD-40 around the cap threads and allow it to soak for 15–20 minutes. Then use a wrench or cloth for grip and carefully rotate the cap counterclockwise. Avoid excessive force, which can crack plastic components. If the cap remains stuck after soaking, the trimmer may require professional service to remove it without damage.
