To rewind a weed wacker, first disconnect the power source by unplugging electric models or removing the spark plug wire on gas models. Remove the spool from the trimmer head, clear any old or broken line, then wind new trimmer line onto the spool in the direction indicated by arrows on the spool. Leave enough line exposed to feed through the eyelets, reinsert the spool, thread the line through the eyelets, and reassemble the head. The exact method varies by spool type—bump-feed versus fixed-line—so always consult your owner’s manual for model-specific instructions.
Safety First: Preparing Your Weed Wacker
Before touching the trimmer head or spool, establish safe working conditions by disconnecting power to prevent accidental engagement.
For electric weed wackers, unplug the power cord from the outlet. If your model is cordless with a rechargeable battery, remove the battery pack from the trimmer. Removing the battery is the safest approach because it eliminates any risk of accidental activation.
For gas-powered weed wackers, allow the engine to cool for several minutes. Once cool, locate the spark plug wire—usually a rubber boot connected to the top of the spark plug. Gently twist and pull the boot straight off the spark plug. Removing the spark plug wire prevents the engine from starting while you work on the trimmer head.
Gather the tools you’ll need: needle-nose pliers (to pry off the trimmer head cover if needed), scissors or a utility knife (to cut new trimmer line), a clean cloth, and your replacement trimmer line. Most models require no other tools, though some may need a small wrench or socket. Check your manual if you’re unsure.
Secure the trimmer in a vise or have someone hold it steady while you work. This prevents it from rolling or shifting as you remove the spool.
Removing the Old Spool and Line
Most trimmer heads use one of two spool designs: bump-feed or fixed-line. Bump-feed spools are held in the head by a central bolt and are the most common on consumer models. Fixed-line spools are less common but operate similarly.
To remove a bump-feed spool, locate the central bolt on the trimmer head. Many models have a bolt with a hex head or a slot that accepts an Allen wrench or flathead screwdriver. Some designs use a simple knob that unscrews by hand. Loosen and remove this bolt by turning counterclockwise. Keep the bolt and any washers in a safe place—you’ll need them to reassemble.
Once the bolt is removed, pull the spool straight out of the trimmer head. The spool is typically a plastic cartridge that houses the line and may have a spring attached to its base. Set it on a clean surface.
If any old trimmer line remains on the spool, remove it completely. Use needle-nose pliers or your fingers to pull out any remaining line, or unwind it by hand if it’s still intact. Wipe the spool clean with a cloth to remove dirt and debris.
For fixed-line spools, the removal process is similar, but you may need to remove the entire trimmer head cover first. This cover typically clips or screws in place. Refer to your manual for the specific steps, as fixed-line designs vary more widely by manufacturer.

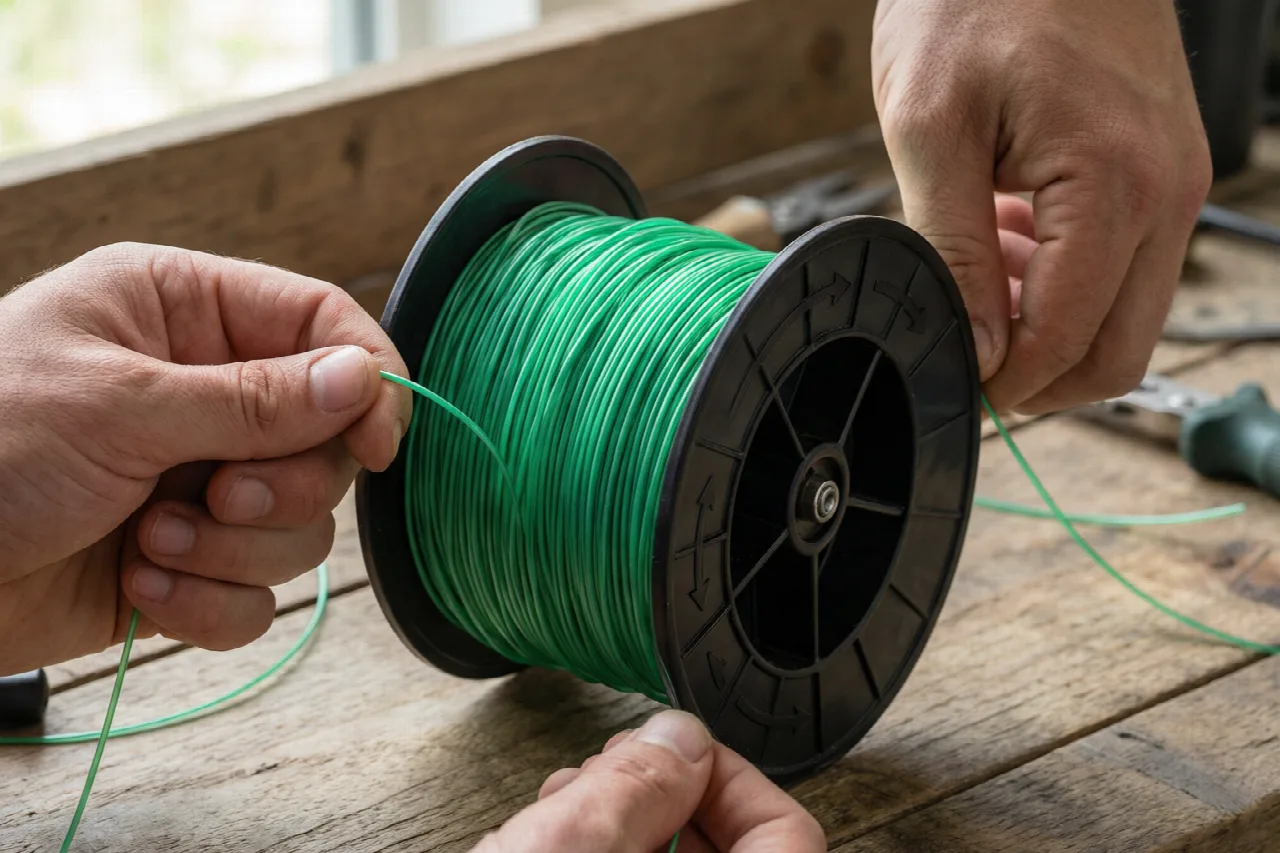

Winding New Trimmer Line Onto the Spool
Proper winding direction is critical. Look at your spool carefully—you should see arrows molded into the plastic indicating the correct winding direction. Always wind in the direction these arrows point. Winding in the wrong direction causes the line to tangle, jam, or refuse to feed.
Cut a length of new trimmer line to the size specified in your owner’s manual. Common lengths are 20 to 30 feet for residential models, though some larger spool designs accommodate more. If you’re uncertain, 25 feet is a safe starting point for most residential weed wackers. You can always add more or trim excess after testing.
Insert one end of the trimmer line into the small notch or hook on the edge of the spool—this anchor point prevents the line from unraveling. Wind the line tightly and evenly onto the spool, following the arrows’ direction. Keep tension on the line as you wind so each layer sits neatly against the previous one without overlapping or gaps. Loose winding causes tangles and feeding problems.
For bump-feed spools, wind line into a spiral groove molded into the spool’s surface. Continue winding until you’ve used your predetermined line length. Leave approximately 6 inches of line unwound and protruding from the spool so you can thread it through the eyelets later.
For fixed-line spools, follow the same procedure, but the spool may have two separate winding chambers—one for each cutting line. Check your manual to determine if you need to wind two separate lines or one continuous line through both chambers.
Reinserting the Spool and Threading the Line
Once you’ve wound the line onto the spool, you’re ready to reinsert it into the trimmer head. Align the spool with the center spindle in the trimmer head and push the spool straight in until it seats firmly. The spool should sit flush against the trimmer head.
Next, thread the protruding trimmer line through the eyelets (small openings) in the trimmer head. Most designs have two eyelets on opposite sides. Feed each end of the trimmer line through an eyelet. Pull gently on the line to ensure it’s seated in the eyelet and won’t pull back through.
Once both ends are threaded through the eyelets, reinsert and tighten the central bolt. Turn the bolt clockwise by hand until snug—do not overtighten, as this can crack the plastic. The bolt should be firm but not require excessive force.
Check that the line is loaded correctly by rotating the spool by hand. It should spin freely without resistance or the line catching. If the spool binds or feels tight, the line may be wound incorrectly or the bolt may be overtightened. Remove the bolt, check the winding, and try again.
Troubleshooting Common Rewinding Problems
If your trimmer line keeps jamming or tangling after rewinding, the most common cause is incorrect winding direction. Check the arrows on your spool and verify you wound in the correct direction. Rewinding in the wrong direction nearly always causes tangles. Another cause is overlapping line layers during winding. Ensure each wrap sits neatly next to the previous one without overlapping or gaps.
If the line won’t feed out after rewinding, first check that the line is actually threaded through both eyelets. If it is, the eyelets may be clogged with debris or dried sap. Clean them with a small brush or compressed air. If line still won’t feed, the spool may be wound too tightly or the bolt may be overtightened. Loosen the bolt slightly and try again.
If the spool won’t spin freely after reassembly, the bolt is likely overtightened, or the line is wound too loosely and is bunching up. Remove the bolt, inspect the spool, loosen the bolt by a quarter-turn, and test again. The spool should rotate with light hand pressure but not be excessively loose.
Trimmer line can also break or wear through during normal use. If you notice broken line, remove the spool and either wind more line to replace the broken section or rewind the spool completely with fresh line. Continuing to use a partially broken line reduces cutting effectiveness and can be frustrating.
Frequently Asked Questions
What type of line should I use for my weed wacker? Check your owner’s manual for the recommended line diameter, typically measured in fractions of an inch (0.065 inches, 0.080 inches, etc.). Using the correct diameter ensures optimal cutting performance and prevents damage to the spool or engine. Thicker line cuts thicker vegetation but demands more engine power; thinner line is ideal for light grass and weeds.
How often should I rewind the spool? Rewind the spool whenever you run out of trimmer line or notice significant line wear or breakage. This typically happens every few uses during active mowing season, though frequency depends on your vegetation type and trimmer usage.
Can I use a pre-wound spool instead of winding manually? Yes, many manufacturers offer pre-wound replacement spools. These are convenient and eliminate winding altogether. However, they are often more expensive than buying bulk trimmer line and winding it yourself. Check your owner’s manual to verify that pre-wound spools are compatible with your specific trimmer model.
