Direct Answer: How to Rewire an Electric Weed Eater
Rewiring a weed eater requires disconnecting all power sources, carefully disassembling the housing to access the motor and switch components, removing the old wiring, and installing new wires of the appropriate gauge. The process takes 30-60 minutes for most corded or cordless electric models and requires basic tools like screwdrivers, wire strippers, and electrical tape. Always unplug corded models or remove batteries from cordless units before beginning any work to prevent electrical shock.
Understanding the Rewiring Process for an Electric Weed Eater

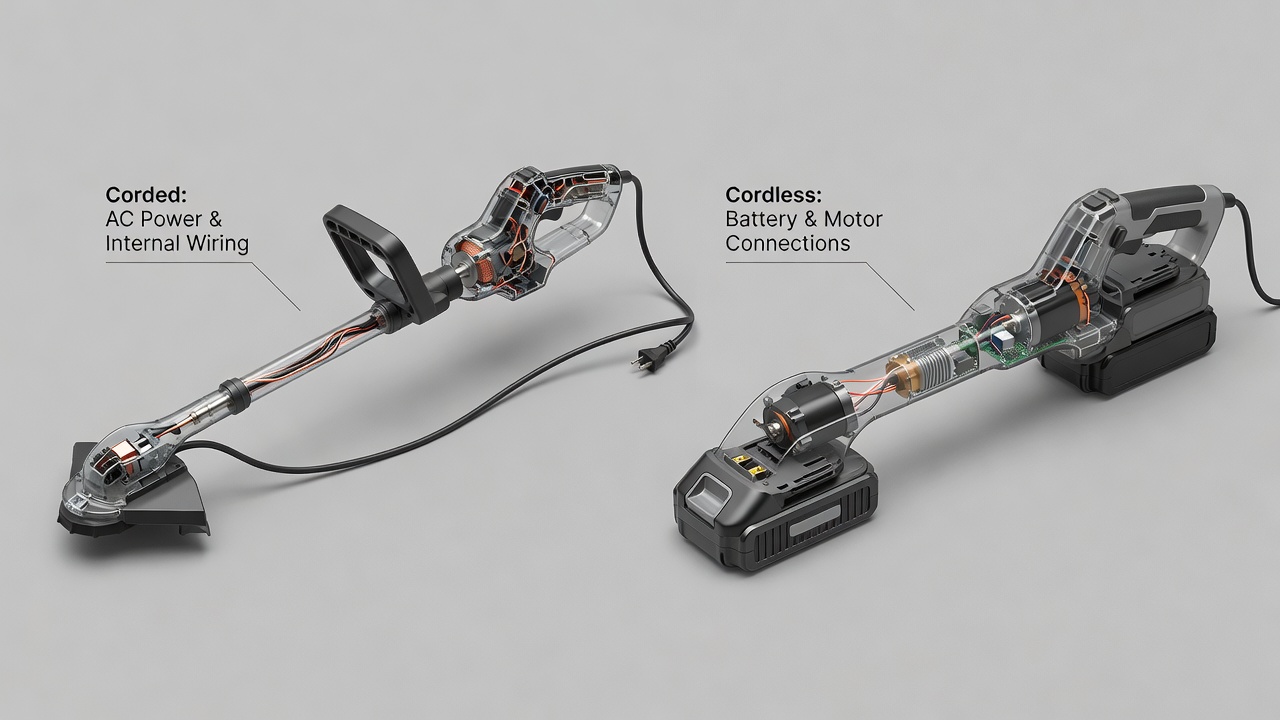

Rewiring applies specifically to electric weed eaters, which include corded (plug-in) and cordless (battery-powered) models. Gas-powered weed eaters do not have electrical wiring that requires replacement in the same way. The rewiring process addresses issues such as a damaged power cord, faulty internal wiring connections, non-functional switches, or loose motor connections that prevent the tool from operating.
Before starting, identify whether your weed eater is corded or cordless. Corded models have a power cord that connects to an electrical outlet and may require rewiring if the cord is damaged or internal connections are loose. Cordless models have battery terminals and motor connections that may need rewiring if the battery no longer holds a charge connection or the motor fails to activate.
The primary safety concern when rewiring is electrical shock. Even with the device unplugged, residual charge can exist in some components. Work deliberately, avoid touching exposed metal contacts unnecessarily, and keep the work area dry.
Key Factors to Consider Before You Begin
Required Tools and Materials
- Screwdrivers (Phillips and flathead) to open the housing
- Wire strippers to safely remove insulation from wires
- Electrical tape to insulate connections
- Replacement wire in the correct gauge for your motor (typically 16 AWG for motors under 10 amps)
- Multimeter (optional) to test electrical connections
- Small container to organize screws and small parts during disassembly
Identifying the Correct Wire Gauge
Wire gauge determines how much electrical current the wire can safely carry. Most residential electric weed eaters use 16 AWG (American Wire Gauge) wire for motors drawing under 10 amps. If your motor draws 10-15 amps, use 14 AWG. Check your weed eater’s motor specifications on the housing label or in the manual to confirm the amperage rating. Using wire that is too thin for your motor’s amperage can cause overheating and fire hazards.
When to Replace Instead of Rewire
Consider replacing your weed eater instead of rewiring if the motor housing is cracked, the power switch mechanism is broken (not just disconnected), the motor runs but produces no cutting action, or the device is over 10 years old. Rewiring is most cost-effective for newer models with intact housings and functioning motors.
Step-by-Step Guide: How to Rewire an Electric Weed Eater
Step 1: Disconnect Power and Gather Your Workspace
For corded models, unplug the device from the electrical outlet. For cordless models, remove the battery completely. Place the weed eater on a clean, dry work surface with good lighting. Lay out all your tools and materials so they are easily accessible. If your weed eater has a power switch cover or guard, remove it first.
Step 2: Disassemble the Housing
Locate all screws holding the weed eater housing together. Most models have 4-8 screws on the handle or motor section. Using the appropriate screwdriver, carefully remove each screw and place them in your small container to prevent losing them. Gently separate the housing halves. Some housings may have small clips or tabs; apply gentle pressure and wiggle slightly to avoid breaking them.
Step 3: Photograph the Current Wiring Configuration
Before disconnecting any wires, take a clear photo of the existing wiring layout. This reference is invaluable if you need to verify your new connections. Note which wire connects to which terminal on the motor and switch. Many wires follow a color code: black (hot/power), white (neutral), and green (ground), though some older or corded models may use different colors.
Step 4: Disconnect and Remove Old Wires
Using your wire strippers, carefully strip approximately 1/4 inch of insulation from each wire end to expose the bare conductor. For corded models, locate where the power cord enters the housing and connects to the motor. Unscrew or unsolder the terminal connections holding the wires in place. For cordless models, disconnect the battery terminal wires from the motor. Keep track of which wire was connected to which terminal.
Step 5: Clean Internal Connections
Once old wires are removed, inspect the terminal points on the motor and switch. If terminals appear corroded or dirty, gently clean them with a dry cloth or use fine-grit sandpaper to remove oxidation. Clean terminals ensure better electrical contact with new wires.
Step 6: Install New Wires
Cut your replacement wire to the same length as the original wiring. Strip approximately 1/4 inch of insulation from each end. For corded models, attach the black (hot) wire to the positive motor terminal and the white (neutral) wire to the negative terminal. Secure connections by twisting the bare wire around the terminal post clockwise, then tightening the terminal screw. For cordless models, connect the positive wire from the battery terminal to the positive motor terminal and the negative wire to the negative terminal.
If your switch is separate from the motor, the hot wire should run through the switch before reaching the motor. This allows the switch to control power flow.
Step 7: Insulate New Connections
Wrap each new wire connection with electrical tape, covering the entire exposed terminal area. Wrap tightly and overlap the tape slightly with each turn to ensure complete insulation. This prevents accidental contact between live wires and the housing.
Step 8: Reassemble the Housing
Carefully align the housing halves and press them together until they seat fully. Reinsert screws in their original positions and tighten them evenly using a gentle, steady hand. Over-tightening can crack plastic housings. For corded models, ensure the power cord is properly seated in its entry point.
Step 9: Test the Repair
For corded models, plug the weed eater into an outlet and press the power button. The motor should start smoothly. For cordless models, insert a fully charged battery and press the power button. The motor should engage. Listen for unusual sounds and feel for vibrations. If the motor does not start or makes grinding noises, unplug or remove the battery immediately and recheck your wire connections.
Specific Rewiring Scenarios
Rewiring the Power Switch on a Corded Weed Eater
If only the switch is faulty, locate the switch terminals inside the housing. The switch typically has two terminals: one receives power from the cord, and the other sends power to the motor. Remove wires connected to the switch terminals and install new wires of the same gauge. Ensure the switch mechanism moves freely and clicks when pressed. If the switch is physically broken, replacement rather than rewiring is necessary.
Rewiring Battery Connections on a Cordless Model
For cordless models, the battery terminal connector may lose its electrical connection. Locate the positive and negative terminals where the battery connects. If contacts appear corroded, clean them with a dry cloth. If wires are loose, carefully tighten the terminal screws. If wires are damaged, remove them completely, strip fresh wire ends, and reconnect to the terminals with firm, even pressure on the screw connections.
Rewiring After a Power Cord Failure
If your corded weed eater’s power cord is damaged or cracked, the internal wires may be exposed. In this case, carefully remove the damaged portion of the cord from inside the housing, strip and inspect the internal wires for damage, and install new wires from the cord’s entry point to the motor. If the cord itself is torn or the plug is damaged, it is often more practical to replace the entire cord.
Troubleshooting After Rewiring
Motor does not start: Recheck your wire connections against your reference photo. Ensure all terminal screws are tight. Test with a multimeter to confirm electrical flow from the power source through the switch to the motor.
Motor starts but runs slowly: Check that you used the correct wire gauge. Undersized wire creates resistance and reduces motor power. Verify that no wires are partially disconnected.
Sparking or burning smell: Stop immediately and unplug or remove the battery. This indicates incorrect wiring, reversed polarity on cordless models, or a shorted connection. Inspect all wires and terminals for corrosion or contact with the metal housing.
Button does not turn the motor off: The switch may be faulty or wired incorrectly. Verify that the power wire runs through the switch before reaching the motor. If the switch mechanism is broken, replacement is necessary.
Frequently Asked Questions
Can I rewire a gas-powered weed eater?
Gas-powered weed eaters do not have electrical wiring that requires replacement in the traditional sense. However, if a gas model has an electric starter, the wiring for that starter can be rewired using the same principles described here. Most gas models rely on a pull-cord starter and do not have electrical components.
How long does rewiring a weed eater take?
For someone with basic mechanical skills, rewiring typically takes 30-60 minutes. The disassembly and reassembly are straightforward, but taking time to photograph the original configuration and carefully test connections afterward adds to the total time.
Is it safe to rewire my own weed eater?
Yes, rewiring is safe if you follow proper precautions: always disconnect power before starting, avoid touching exposed terminals while plugged in, use the correct wire gauge, and thoroughly insulate all connections with electrical tape. If you are uncomfortable working with electrical components, have a professional technician handle the rewiring.
What should I do if my weed eater stops working after I rewire it?
First, ensure the power source is active by testing the outlet (for corded models) or charging the battery (for cordless models). Unplug or remove the battery, then carefully recheck all wire connections to ensure they match your reference photo. Look for loose terminal screws or wires that may have shifted during reassembly. If problems persist after verification, consult the manufacturer or seek professional repair.
