Quick Answer
Power down, disconnect PCIe power cables, press and hold the PCIe x16 retention latch on the motherboard, then slide the GPU straight back out of the slot. Reverse the process to install. Full removal takes under five minutes with a single Phillips screwdriver and proper anti-static precautions.

A graphics card is the single heaviest, most power-hungry expansion card in a modern desktop build — and it is also the component most frequently swapped, upgraded, RMA’d, or reseated to resolve instability. Knowing exactly how to remove a GPU without snapping the PCIe latch, bending the slot, or inducing ESD damage separates a competent builder from one who creates a second problem while fixing the first. This guide covers the complete removal and reinstallation workflow for 2026-era hardware, including triple-slot flagship cards, vertical GPU mounts, PCIe 5.0 x16 slots with reinforced latches, and anti-sag bracket installation — with reference to both AMD and NVIDIA GeForce Hardware Documentation best practices.
Tools, Safety Requirements, and Pre-Removal Checklist
Skipping safety steps before a GPU removal is the leading cause of ESD damage and broken PCIe retention latches. Modern reinforced slots — found on boards like those compared in the ASUS ROG Maximus Z890 Hero vs MSI MEG Z890 ACE comparison — use steel-shielded latches rated for significantly higher insertion forces, but they still require a deliberate press-and-hold release technique.
Required Tools
- Phillips #2 screwdriver (magnetic tip preferred)
- Anti-static wrist strap connected to bare metal chassis ground
- Anti-static mat or anti-static bag for card storage
- Flashlight or headlamp for latch visibility inside a dense build
- Zip ties or cable management clips (for reinstallation)
- GPU support bracket or sag brace (for reinstallation of cards over 1.5 kg)
Pre-Removal Power-Down Sequence
- Exit all applications and shut down the OS completely — do not use sleep or hibernate.
- Switch the PSU rocker to the Off (0) position.
- Hold the power button for 5 seconds to fully discharge capacitors on the motherboard.
- Unplug the AC mains cable from the PSU.
- Wait 30 seconds before opening the case panel — high-end PSUs retain charge briefly after disconnection.
- Attach your anti-static wrist strap to an unpainted metal point on the chassis.
Never attempt GPU removal while the system is in sleep or S3 suspend state. PCIe slots on platforms supporting the AMD Ryzen 5 9600X vs Intel Core Ultra 5 245K generation remain powered in standby, and contact with slot pins in that state can cause irreversible silicon damage on both the GPU and the CPU’s integrated PCIe controller.
Step-by-Step GPU Removal Procedure

Step 1 — Disconnect PCIe Power Connectors
Locate every PCIe power cable running from the PSU to the GPU. Modern flagship cards use one or two 16-pin 12VHPWR (ATX 3.x) connectors, while mid-range cards commonly use 8-pin or dual 8-pin PCIe connectors. Squeeze the locking clip on each connector and pull straight back — never side-to-side, which stresses the connector housing. For 12VHPWR connectors, press the small plastic tab on the narrow side of the plug before pulling. A connector removed at an angle is the primary cause of bent 12VHPWR pins, which can short +12V to adjacent sense lines on reinsertion.
Step 2 — Remove the PCIe Bracket Screws
Open the rear I/O panel of the case and locate the slot cover screws securing the GPU’s metal bracket to the chassis. Most cases use one or two thumbscrews or Phillips screws per card. Triple-slot and quad-slot cards occupy two to four slot positions — remove every screw covering occupied and blanketed positions that are mechanically attached to the GPU bracket assembly. Set screws aside in a magnetic parts tray.
Step 3 — Release the PCIe x16 Retention Latch
This is the step most responsible for broken motherboards. The retention latch is a small plastic tab at the end of the PCIe x16 slot, opposite the card’s bracket end. On standard slots, pressing down on the latch releases the card. On reinforced steel-shielded slots (ASUS SafeSlot, MSI Steel Armor, Gigabyte Ultra Durable), the latch requires a firm press-and-hold — it does not auto-release on light contact.
- Use a fingertip or the eraser end of a pencil to press the latch down and hold it depressed.
- With your other hand, grip the GPU by its heatsink shroud at both ends — never by the fan blades.
- Lift the card straight up and toward you simultaneously while maintaining latch pressure.
- If the card does not release, do not force it — verify the latch is fully depressed and that no screw remains tightened at the bracket.
Step 4 — Extract the Card
Once the latch clears, pull the card straight back horizontally along the PCIe slot axis — not upward at an angle. Angled extraction drags the edge fingers across the slot contacts and scores the gold plating. On very long cards (330 mm+) inside mid-tower cases, you may need to tilt the card’s front end slightly upward once the rear bracket clears the chassis rail before pulling the card fully free. Place the card immediately on an anti-static mat or into its original anti-static bag. Do not set it on carpet, a cardboard box, or a bare wooden surface.

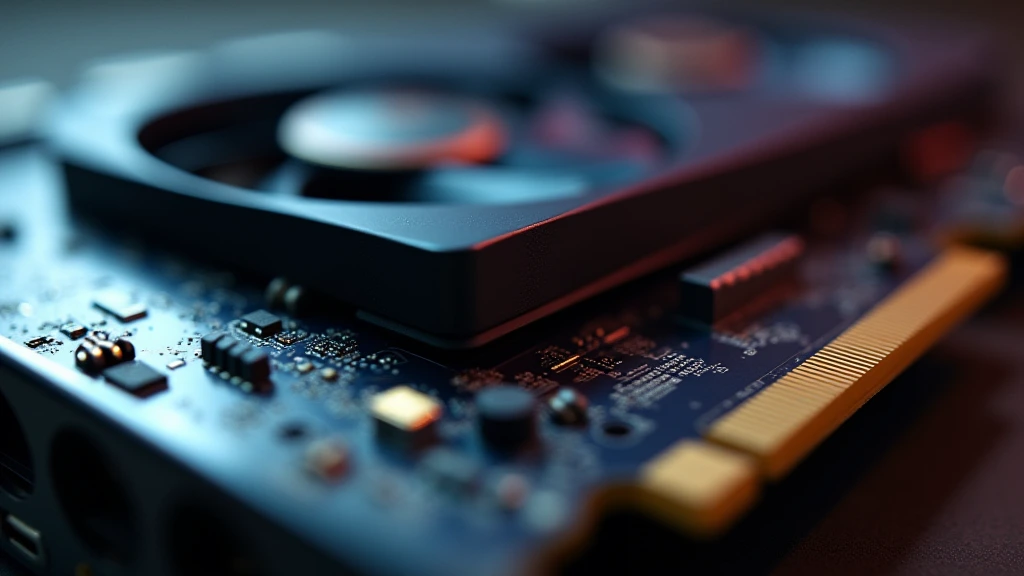

Step 5 — Inspect Slot and Card Contacts
After removal, visually inspect the PCIe x16 slot for bent pins, debris, or burned contacts. Inspect the GPU’s gold edge fingers for corrosion or scoring. Light oxidation can be removed with 99% isopropyl alcohol on a lint-free swab using a single direction stroke — never scrub back and forth. Check the latch mechanism moves freely and springs back to locked position. Consult our full graphics card tests & GPU guides section for diagnostic procedures if the slot contacts show heat discoloration.
PCIe Latch Failure Modes and Stuck GPU Solutions
Why GPUs Get Stuck
The three most common causes of a GPU that won’t release: (1) the retention latch is obscured by the GPU’s heatsink overhang and cannot be fully depressed, (2) a bracket screw is still engaged, or (3) the card has developed a slight warp from thermal cycling and is mechanically binding in a reinforced slot. Triple-slot cards on Z890 and X870E boards frequently obscure the latch entirely.
Stuck Card Extraction Protocol
- Reconfirm all bracket screws are removed — run your finger along every slot position.
- Use a flashlight to locate the latch under the card’s overhang.
- Use a plastic spudger (not metal) to reach under the card and depress the latch.
- Apply firm, even upward pressure at the center of the card — do not lever from one end.
- If resistance remains after confirmed latch release, rock the card gently along its length axis (front-to-back, not side-to-side) to break any thermal adhesion between the bracket and chassis slot cover rail.
Latch Damage Assessment
A broken PCIe latch does not prevent GPU operation — the latch is a retention clip, not an electrical contact. A snapped latch tab simply means the slot no longer mechanically locks the card. The card remains functional and seated via the bracket screws and friction of the edge connector. Replace the motherboard at next opportunity if the latch body itself fractures into the slot channel, as plastic debris between contacts causes intermittent PCIe link errors.
GPU Installation Procedure and PCIe Slot Alignment
Seating the Card Correctly
- Identify the primary PCIe x16 slot — on Intel Z890 and AMD X870E boards, this is always the topmost full-length slot, wired directly to the CPU for full bandwidth. Refer to our desktop CPU benchmarks & reviews for platform-specific PCIe lane configurations before placing a high-bandwidth card in a secondary slot.
- Remove the corresponding rear I/O slot cover(s) for the card’s width. Triple-slot cards remove three covers.
- Align the GPU’s edge connector notch with the slot key and lower the card straight down until the latch clicks audibly.
- A proper seat produces a single distinct click — if you hear no click, the card is not fully engaged. Press down firmly at both ends of the PCIe connector region, not on the heatsink.
- Secure bracket screws finger-tight first, then tighten with the screwdriver — over-torquing a single screw before others are engaged warps the bracket and induces micro-stress on slot contacts.
- Reconnect all PCIe power connectors until each latches audibly.
Choosing the Right GPU for Your Platform
Platform selection directly affects how much PCIe bandwidth your GPU receives, which matters for top-tier cards. The Radeon RX 9060 XT 8GB vs 16GB comparison demonstrates that VRAM capacity interacts with PCIe bandwidth at high resolutions — installing a bandwidth-sensitive card into a PCIe 4.0 x8 secondary slot rather than a PCIe 5.0 x16 primary slot measurably impacts 4K throughput.
GPU Anti-Sag Bracket Installation
When a Sag Bracket Is Mandatory, Not Optional
Any GPU weighing over 1.2 kg — which includes virtually every triple-slot card from the RTX 4080 generation onward and all current RTX 50-series and RX 9000-series flagship models — exerts enough cantilevered force on the PCIe slot to cause measurable socket stress over 12–18 months of operation. Symptoms of progressive PCIe sag damage include intermittent display loss, PCIe link speed downtraining from x16 to x8, and visible deflection of the motherboard PCB near the slot anchor points.
Sag Bracket Installation Steps
- Select a bracket type: adjustable arm brackets mount to a case fan screw point or drive bay rail; integrated case brackets (found in premium mid-towers) clip directly to the GPU’s heatsink shroud frame.
- Position the support arm under the GPU’s far end (the end away from the I/O bracket) before tightening any bracket fasteners — this establishes the correct height datum.
- Raise the arm until it makes flush contact with the underside of the GPU shroud with zero upward force — the goal is to eliminate droop, not to push the card upward, which creates an upward moment arm on the slot.
- Lock the arm’s height adjustment and secure all bracket mounting screws.
- Recheck GPU seating at the PCIe slot — bracket installation should not have shifted the card.
GPU Sag Bracket Compatibility Reference
| GPU Class | Typical Weight | Sag Risk Level | Bracket Required? | Recommended Bracket Type |
|---|---|---|---|---|
| Dual-slot mid-range (RX 9060 XT, RTX 5060) | 0.6–0.9 kg | Low | No | Optional support clip |
| Triple-slot high-end (RTX 5080, RX 9070 XT) | 1.2–1.6 kg | Medium–High | Yes | Adjustable arm or case bracket |
| Triple/Quad-slot flagship (RTX 5090, RX 9900 XT) | 1.8–2.8 kg | Critical | Mandatory | Dual-point rigid support system |
| Vertical mount (riser cable) | Any | None (gravity neutral) | No | Riser mount clamp only |
| Liquid-cooled AIO GPU (waterblock) | 0.9–1.3 kg (card only) | Medium | Yes | Adjustable arm, clear of tubing |
Post-Installation Verification and Thermal Checks
First Boot Checks
After completing installation, reconnect power and boot to the OS. Open GPU-Z or HWiNFO64 immediately and verify the following before running any load:
- PCIe link width: Must read x16 on a primary slot. An x8 reading indicates incomplete seating or a slot fault.
- PCIe link speed: Gen 5.0 on Z890/X870E platforms with a PCIe 5.0–capable card. Gen 4.0 is correct for Gen 4 cards on Gen 5 boards.
- GPU detected: Full device name must appear, not “Unknown Display Adapter” or a generic VGA entry.
- Fan operation: Fans should remain at 0 RPM at idle on cards with semi-passive cooling — they spin only above approximately 50–60°C GPU junction temperature under load.
Thermal Validation Under Load
Run a 10-minute GPU stress test (3DMark TimeSpy Extreme, FurMark 2, or Unigine Superposition) immediately after installation. Target thermal ceilings for 2026-era cards: GPU junction temperature below 90°C on air-cooled designs (AMD’s RDNA 4 architecture uses hotspot junction targets up to 110°C as a throttle trigger, not 90°C), VRAM temperature below 105°C for GDDR7 modules, and VRM temperature below 105°C. Temperatures exceeding these thresholds within the first 10 minutes on a freshly installed card indicate inadequate case airflow or incomplete heatsink contact from a warped GPU PCB — both addressable before any further use.
Final Diagnostic Verdict & Maintenance Checklist
GPU removal and reinstallation is low-risk when executed with the correct sequence. The most common errors — forcing a card before the latch releases, pulling connectors at an angle, and ignoring sag on heavy cards — all cause damage that is avoidable with deliberate technique. Use the following checklist before closing the case after every GPU service operation.
- PSU switched off and AC cable unplugged before any contact with the card — confirmed.
- Anti-static wrist strap grounded to chassis metal throughout the procedure — confirmed.
- All PCIe bracket screws removed before attempting extraction — confirmed.
- Latch fully depressed and held during card extraction — confirmed.
- Card stored on anti-static surface immediately after removal — confirmed.
- PCIe slot and card edge fingers inspected for damage or debris — confirmed.
- New or reinstalled card seated with audible latch click at the slot — confirmed.
- All PCIe power connectors reconnected and audibly latched — confirmed.
- Anti-sag bracket installed and set to contact-without-uplift position for cards over 1.2 kg — confirmed.
- Post-boot GPU-Z PCIe link width reads x16 at correct generation — confirmed.
- 10-minute stress test completed with temperatures within rated thresholds — confirmed.
For platform-level context before selecting a replacement GPU — including how PCIe lane provisioning differs between current Intel and AMD CPU platforms — review our desktop CPU benchmarks & reviews and graphics card tests & GPU guides to match your new card to the correct motherboard and slot configuration before performing another swap.
