Quick Answer
Safely removing a GPU requires shutting down your PC, disconnecting all PCIe power cables, releasing the retention latch at the slot’s rear edge, and gently extracting the card perpendicular to the motherboard. Never force the card; apply firm, even pressure. Document cable routing before disconnection to prevent reconnection errors.
Pros
- 24GB VRAM is a major advantage for memory-intensive workloads
- 384-bit memory bus supports strong data throughput
- Modern display connectivity includes DisplayPort 1.4a and HDMI 2.1
- Official Founders Edition model from NVIDIA
Cons
- The listing does not include practical details such as power requirements or physical dimensions
- It is a flagship-class card that may be more than casual gamers or general users need
- Compatibility checks are necessary because the manufacturer listing does not specify cooling, PSU, or accessory details
Overview: The NVIDIA GeForce RTX 3090 Founders Edition is a premium desktop graphics card built for users who need top-tier GPU capability. It combines the RTX 3090 chipset with 24GB of GDDR6X memory, making it a strong specification choice for demanding graphics tasks.
Performance: With a 384-bit memory interface and modern output options, this card is well suited to high-resolution gaming, rendering, and other workloads that benefit from large VRAM capacity. The three DisplayPort 1.4a connections and one HDMI 2.1 port also make it practical for current monitors and multi-display setups.
Drawbacks: The manufacturer listing leaves out important setup information such as power draw, card size, and included accessories. It is also a high-end model, so users with lighter gaming or productivity needs may not fully use its capabilities.
Verdict: This card is best for enthusiasts, creators, and professionals who prioritize memory capacity and NVIDIA's reference Founders Edition design. If you need a powerful GPU for demanding workloads and want the RTX 3090 class of performance, it is a compelling option.
Pros
- Very large 24GB frame buffer for demanding workloads and future-facing gaming setups.
- Strong ray tracing and AI acceleration from 2nd Gen RT Cores and 3rd Gen Tensor Cores.
- Durable TUF build with military-grade components and dual ball fan bearings.
- Includes HDMI 2.1 and DisplayPort 1.4a for modern high-resolution displays.
Cons
- This is a high-end, premium-class GPU that will be excessive for casual or 1080p-only gaming.
- The product data does not list dimensions, power requirements, or included accessories, so build planning may require extra checking.
- Tuning software is included, but the card may still demand a capable cooling and power setup in a well-prepared system.
Overview & Design: The ASUS TUF Gaming NVIDIA GeForce RTX 3090 is a flagship-class graphics card built around NVIDIA Ampere architecture. It is positioned for users who want a high-end GPU with a focus on durability, cooling design, and long-term stability.
Performance & Key Features: With 24GB of GDDR6X memory, 2nd Generation RT Cores, and 3rd Generation Tensor Cores, this card is designed for demanding gaming and creative workloads. It is well suited to 4K and 8K output, ray tracing, and AI-assisted features such as DLSS, while HDMI 2.1 and DisplayPort 1.4a support modern display setups.
Drawbacks & Considerations: Based on the product data, this is clearly a premium, high-performance GPU, which makes it more card than many users need for everyday gaming. The listing also does not provide dimensions, power draw, or accessory details, so buyers should confirm system compatibility before purchase.
Verdict: The TUF RTX 3090 is best for enthusiasts, creators, and power users who want top-tier GPU memory capacity and strong cooling-focused construction. If you need a durable high-end card for heavy workloads or high-resolution gaming, it is a compelling option.
Pros
- High-end RTX 5080 performance platform with 16GB GDDR7 memory.
- Quad-fan cooling and vapor chamber design focus on stronger thermal control.
- Protective PCB coating adds practical durability benefits.
- Factory OC profile reaches up to 2790 MHz in OC mode.
- Backed by a 3-year warranty.
Cons
- The quad-fan cooler may be less suitable for compact cases, so fitment should be checked carefully.
- As a flagship-class GPU, it is most appropriate for users who truly need top-tier performance.
- The listing does not provide full compatibility details such as dimensions, power requirements, or display outputs.
Overview: The ASUS ROG Astral NVIDIA GeForce RTX 5080 16GB GDDR7 White OC Edition is a premium graphics card aimed at enthusiast gaming and advanced PC builds. Its white finish and quad-fan cooling solution give it a distinctive look while signaling a focus on thermal performance.
Performance: Built on NVIDIA Blackwell and supporting DLSS 4, this model is positioned for demanding gaming and GPU-heavy workloads. ASUS lists a boost of up to 2790 MHz in OC mode, 1899 AI TOPS, and 16GB of GDDR7 memory, while the quad-fan design is intended to improve airflow and pressure by up to 20%.
Considerations: This is a large, high-end card, so buyers should confirm case space and overall system compatibility before purchase. The raw listing does not include full details such as dimensions, power draw, or port layout, so those specifications should be checked separately.
Verdict: For users building a premium gaming or creator system that can benefit from strong cooling, modern memory, and RTX 5080-class performance, this ASUS ROG Astral model is a strong candidate. It is best suited to enthusiasts who want a feature-rich card with a focus on sustained thermal control.
Pros
- Advanced thermal system combines a quad-fan design, vapor chamber, and thermal pad for strong cooling potential
- 16GB GDDR7 memory suits demanding modern games and creator workloads
- PCIe 5.0 and HDMI/DP 2.1 provide up-to-date interface support
- Backed by a 3-year warranty for added ownership confidence
Cons
- The 3.8-slot, quad-fan design is large and may not fit smaller cases easily
- This is a premium RTX 5080 OC model, so it may be more power and performance than some users need
- The listing does not provide full fitment details such as exact dimensions, so buyers should verify case clearance before purchase
Overview: The ASUS ROG Astral NVIDIA GeForce RTX 5080 16GB GDDR7 OC Edition is a premium high-end graphics card built for serious gaming rigs and demanding creator systems. Its large 3.8-slot design and 4-fan cooler give it a substantial, performance-focused presence.
Performance: NVIDIA Blackwell support, DLSS 4, PCIe 5.0, and 16GB of GDDR7 memory make this card well suited to modern games and advanced graphics workloads. The quad-fan layout, patented vapor chamber, and phase-change thermal pad are all aimed at keeping temperatures lower during sustained heavy use.
Drawbacks: The biggest limitation is physical size. A 3.8-slot card can be difficult to fit in compact cases, and the premium OC positioning may be more than many mainstream users require. The manufacturer listing also does not include every compatibility detail, so measuring clearance beforehand is important.
Verdict: This ASUS ROG Astral RTX 5080 is best for enthusiasts who want advanced cooling, current-generation connectivity, and high-end NVIDIA performance in a well-built flagship card. If your case has the room and your system is built for top-tier gaming or creative work, it is a strong option.
Pros
- 10,240 CUDA cores with a 2.55 GHz boost clock
- 16GB GDDR6X on-board memory for heavy visual assets
- 3rd Gen Ray Tracing and 4th Gen Tensor Cores
- Supports NVIDIA DLSS and G-SYNC technologies
- Backward-compatible with PCIe 3.0 slots
Cons
- At over 12 inches long, case compatibility can be limited
- Significant power and system cooling requirements
Understanding PCIe Architecture and GPU Physical Integration
Graphics processing units connect to modern motherboards via PCI Express (PCIe) slots, standardized expansion interfaces that carry both electrical power and high-bandwidth data signals. Unlike older AGP connectors or ISA cards, PCIe uses a mechanical retention mechanism consisting of a spring-loaded latch positioned at the rear end of the slot. This latch physically secures the card’s rear bracket to the motherboard, while electrical contact occurs through 164 gold-plated pins at the card’s insertion edge.
Modern discrete GPUs draw power through two distinct pathways: the PCIe slot itself supplies up to 75 watts, while dedicated 6-pin, 8-pin, or dual 8-pin connectors deliver supplemental power for high-performance cards. Mid-range and enthusiast-grade GPUs typically require multiple supplemental connectors. Understanding this dual-power architecture is critical, removing a GPU without properly disconnecting external power cables can cause capacitor discharge arcing, BIOS corruption, or permanent damage to voltage regulator modules on both the card and motherboard.
The removal process differs fundamentally from installation: extraction requires releasing mechanical tension before applying physical force, whereas insertion relies on gradual pressure alignment. This distinction prevents accidental damage to the PCIe connector pins, which deform permanently under side-loading stress.
Pre-Removal System Preparation and Safety Protocols
Powering Down and Electrical Safety
Begin by shutting down your operating system completely, do not use sleep mode or hibernate. Allow the system 30 seconds to reach full power-off state, then physically disconnect the power supply from the wall outlet. Many users skip this step and attempt removal while the PSU remains connected, which presents genuine electrocution and component damage risks. The PSU’s 5V standby rail remains active even when the system appears off, powering the motherboard’s management circuitry and USB headers. Disconnecting the power cable eliminates this hazard entirely.
After disconnecting AC power, press the power button five times to discharge residual capacitive charge from the power supply and motherboard planes. This practice seems redundant but prevents unexpected voltage spikes when you open the case. Allow an additional 60 seconds before opening the chassis to permit voltage stabilization. Before finalizing equipment decisions, refer to our comprehensive vertical gpu mount airflow comparison.
Electrostatic Discharge (ESD) Mitigation
Static electricity poses a documented risk to semiconductor components, particularly to sensitive GPU memory and VRAM. Wear an anti-static wrist strap connected to a bare metal part of the case chassis, or alternatively touch a bare metal part of the case every 10 to 15 seconds during the removal process. Humidity levels below 40% dramatically increase ESD risk; if your environment is particularly dry, increase ambient humidity or work in a location with naturally higher moisture levels.
Never work on carpeted surfaces, synthetic fibers generate substantial static charge. Hardwood, tile, or concrete floors present significantly lower ESD risk. Avoid touching the GPU’s printed circuit board (PCB) directly; handle the card by its rear bracket and edges only. The PCB’s edge connectors and memory chips tolerate direct contact poorly. For broader ecosystem context, read through our operational guide on weak psu cause gpu stutter.
Disconnecting Power Delivery Systems
6-Pin and 8-Pin PCIe Power Connector Removal
Before touching the PCIe slot itself, disconnect all dedicated power connectors supplying the GPU. These connectors typically include one or more 6-pin or 8-pin cables routed from the power supply. The connector housings use a small plastic release tab, depress this tab fully while pulling the connector away from the GPU’s power header. Do not pull on the wire insulation; grasp the connector body itself. Excessive force or improper angle can damage the connector pins on both the cable and the GPU header.
High-end GPUs employing dual 8-pin connectors require both to be disconnected. Unplug one connector fully before removing the second to prevent the remaining connector’s tension from stressing the GPU’s power input circuit. Document the order of disconnection mentally or photographically if multiple cables route through the same cable bundle. For troubleshooting and reliability insights, consult our in-depth black screen gpu drivers report.
Identifying All Power Connections
Some GPUs incorporate additional power connectors for auxiliary systems, auxiliary 4-pin headers for fan control, ARGB RGB lighting connectors, or secondary power distribution points. While these carry lower currents than main power inputs, they still require disconnection. Trace every cable visible connected to the GPU from front to rear before proceeding. This systematic approach prevents accidental tugging during extraction.
For reference, when comparing system configurations, high-performance GPUs paired with platforms like the ASUS ROG Maximus Z890 Hero vs MSI MEG Z890 ACE often require multiple PCIe power stages and supplemental connectors. Understanding your specific motherboard and GPU combination’s power topology prevents costly mistakes.
Locating and Operating the PCIe Retention Latch
Physical Latch Location and Mechanism
The PCIe retention latch exists at the rear of the PCIe x16 or x8 slot, a white or transparent plastic lever protruding from the slot’s right-side edge (when viewing the motherboard front-facing). This lever operates on a spring-loaded hinge mechanism; pressing it toward the rear of the slot disengages a plastic hook that normally catches the notch on the GPU’s rear bracket. The latch design requires deliberate operation, it won’t disengage accidentally under normal circumstances but provides enough give to allow extraction when properly released. Readers comparing setup options can review our technical analysis on daisy chain pcie cables.
Locate your specific PCIe slot before attempting removal. Most motherboards implement multiple PCIe x16 slots, though only the topmost slot typically runs at full electrical and bandwidth capacity. Verify that your GPU occupies this slot visually; inspect the slot’s rear edge for the white latch lever.
Releasing the Latch Mechanism
Push the latch firmly toward the rear of the motherboard with your index finger or a thin plastic tool (the blunt end of a non-conductive screwdriver works adequately). The latch should move approximately 3 to 5 millimeters before stopping. You’ll observe the lever rotate upward, visibly disengaging from the GPU’s rear bracket. If the latch doesn’t move, it may already be in the released position, examine closely for any existing gap between the latch and bracket.
Apply steady pressure rather than sudden force; the spring mechanism resists but yields smoothly. Forcing the latch risks cracking the plastic lever, which renders the slot potentially unusable for future GPU installation. Maintain pressure while simultaneously proceeding to the extraction step.
Physical Extraction and Anti-Torque Technique
Grip Point and Extraction Force Application
With the latch released, grasp the GPU’s rear bracket with one hand, the metal or plastic mounting plate extending beyond the rear of the chassis. Support the GPU’s opposite end (near the front of the slot) with your other hand, placing fingers beneath the card’s body without touching the PCB directly. This two-point grip distributes extraction force evenly and prevents the card from rotating or tilting during removal.
Apply steady, perpendicular force directly away from the motherboard, not upward, not at an angle, but straight back toward the rear of the case. The card should slide smoothly with moderate resistance; if you encounter significant resistance after the latch release, verify that no additional screws, cables, or retention mechanisms remain connected. Over-torquing during extraction risks bending the PCIe connector pins or cracking the GPU’s PCB near stress concentration points.
Multi-Slot Spacing and Interference Management
Modern compact cases often position adjacent PCIe slots very closely, sometimes with only 0.5 to 1 inch separation. If your GPU occupies a slot with another expansion card adjacent, you may need to remove that neighboring card first to create extraction clearance. Similarly, RAM modules positioned near the GPU can interfere with extraction if they protrude into the GPU’s path. Check vertical clearance before applying extraction force; withdraw slowly to ensure no components catch on the GPU as it exits the slot.
The extraction should require approximately 5 to 10 seconds of steady withdrawal. If extraction takes longer or requires excessive force, stop and re-examine the latch position and surrounding constraints. Forcing the card often causes more damage than taking additional time to verify proper disassembly sequencing.
Diagnostic Troubleshooting During Removal
Common Removal Obstacles and Solutions
| Obstacle Type | Diagnostic Indicator | Resolution Protocol |
|---|---|---|
| Latch won’t disengage | Lever appears stuck; minimal movement observed | Verify correct slot targeted; examine for dust obstruction; apply steady (not sudden) pressure; may require 10 to 15 second hold |
| Card won’t extract despite latch release | Uniform high resistance throughout extraction attempt | Verify all power connectors fully disconnected; inspect for screws at rear bracket mounting points; check for RAM/cooling interference; verify slot cleanliness |
| Extraction causes audible creaking or crackling | Acoustic resistance indicators during removal | Stop immediately; inspect for bent pins or PCB damage; re-examine for cable/screw obstruction; resume slowly with gentle rocking motion (max 2 to 3mm amplitude) |
| Connector pins damaged or bent | Visible pin misalignment; asymmetrical contact point wear patterns | Do not attempt repair; cease extraction; consult GPU manufacturer warranty; photographically document damage for RMA claim |
| GPU bracket screw remains fastened to case | Rearward pull activates torque on rear bracket; audible binding | Release manual extraction attempt; locate and remove Phillips-head or thumbscrew at GPU’s rear mounting point; retry extraction |

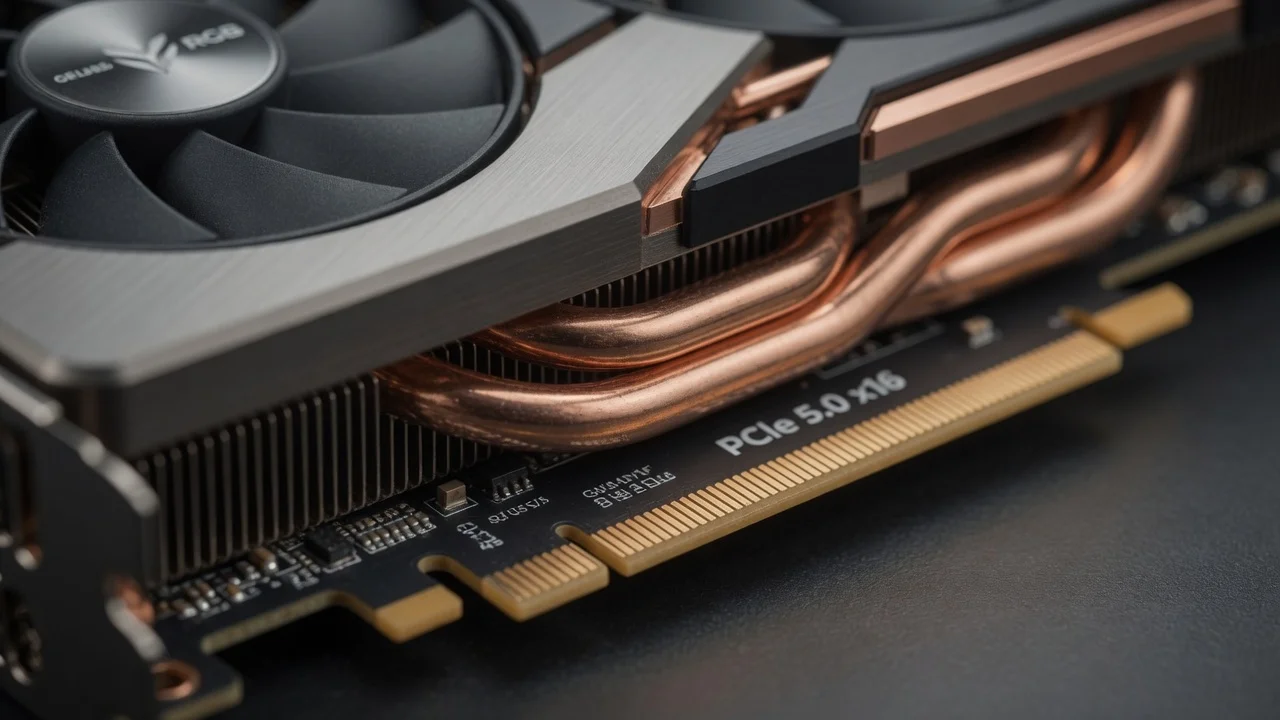

Connector Pin Inspection Post-Extraction
After successful removal, inspect the GPU’s 164-pin edge connector under adequate lighting. The gold-plated pins should appear uniformly aligned and colored. Bent, corroded, or discolored pins indicate either improper extraction or pre-existing environmental damage. Bent pins prevent proper electrical contact and cause complete system failure if the card is reinstalled. Damaged pins require professional rework or GPU replacement, do not attempt to straighten pins yourself, as the brittle solder joints connecting pins to the PCB will fracture under mechanical stress.
Software Considerations and Driver Removal
GPU Driver Cleanup Post-Hardware Removal
After physically removing the GPU, Windows retains GPU driver files and BIOS settings that reference the removed hardware. Before installing a replacement GPU or reinstalling the same card, perform driver cleanup using manufacturer-supplied utilities. NVIDIA provides GeForce Experience’s Driver Uninstall feature, while AMD offers the AMD Cleanup Utility. These tools remove graphics driver components, registry entries, and VRAM cache files that otherwise cause compatibility issues or driver conflicts when new hardware initializes.
Access the Control Panel (Windows 10/11) and navigate to Programs and Features, then search for and uninstall all NVIDIA or AMD driver packages. Alternatively, boot into Safe Mode and run the manufacturer’s cleanup utility in isolation, Safe Mode loads minimal system services and prevents driver processes from locking files during deletion.
For comprehensive verification of driver removal, use the NVIDIA GeForce Hardware Documentation resources or AMD’s official support portal to identify all driver-related components installed on your system. Some installations create multiple service entries or background processes that don’t appear in standard uninstall listings.
BIOS Configuration and Device Detection Reset
Some motherboard BIOS implementations retain GPU configuration settings, PCIe slot priority assignments, GPU memory allocation, or dedicated graphics enabling flags. After GPU removal, access BIOS (typically via Del, F2, or F12 during POST) and navigate to Advanced Chipset Settings or Display Configuration sections. Verify that Primary Graphics Device is set to Auto-Detect or defaults to system IGPU (integrated graphics) if present. This prevents BIOS error codes during POST when the expected GPU fails to initialize.
Similarly, disable any GPU-specific overclocking profiles or voltage adjustment settings stored in BIOS. These settings reference your specific GPU’s electrical characteristics; applying them to different hardware or integrated graphics causes system instability or boot failures.
Post-Removal System Verification and Documentation
Visual Inspection Protocol
With the GPU removed, conduct a detailed inspection of the exposed PCIe slot and surrounding motherboard area. Verify that:
- The PCIe slot’s 164 contact points appear uniformly gold-colored and free of corrosion or tarnishing
- No dust, debris, or thermal paste residue obscures the slot entrance
- The retention latch mechanism returned to its original position (white lever perpendicular to slot)
- No broken plastic fragments remain inside the slot from a damaged latch mechanism
- Surrounding motherboard capacitors, power delivery components, and traces show no signs of burn marks, component lifting, or solder joint cracks
Clean the PCIe slot gently using a can of compressed air applied in short bursts, do not insert objects into the slot or apply high-pressure spray that risks forcing debris deeper into the connector assembly. If visible corrosion exists on the contact points, consult a professional component cleaning service rather than attempting DIY remediation.
Photographic Documentation and Cable Routing Records
Before GPU removal, photograph the complete cable routing, power connection points, and surrounding component placement from multiple angles. Document:
- The exact routing of each PCIe power cable from PSU through the case to the GPU
- The position of any custom standoffs, backplates, or retention brackets securing the GPU
- Thermal paste application points if the GPU had direct contact with case-mounted heatsinks
- The position of RAM modules and CPU cooler relative to the GPU extraction path
- Any custom fan headers, ARGB control lines, or auxiliary connections routed to the GPU
This documentation proves invaluable when troubleshooting GPU-related issues or when reinstalling the same card months later. Without photographic reference, reassembly confusion often leads to incorrect power connector orientation, damaged connectors, or forgotten auxiliary connections.
Performance Considerations When Upgrading GPU Models
Compatibility Assessment Across Generational Transitions
If you’re removing an older GPU to install a newer model, verify compatibility across several dimensions: PCIe generation support (x16 slots now support PCIe 5.0, but cards operate at backward-compatible PCIe 4.0 or 3.0), power delivery requirements, and physical form factor. Newer high-performance cards require substantially more power than predecessors, verify that your PSU supplies sufficient wattage and appropriate connector types before removal.
For context on CPU and GPU combinations, review AMD Ryzen 5 9600X vs Intel Core Ultra 5 245K performance characteristics when considering platform upgrades. GPU-CPU pairing significantly affects bottleneck considerations and thermal management strategies.
Similarly, high-performance cards like the Radeon RX 9060 XT 8GB vs 16GB comparison demand specific motherboard features, robust power delivery phases, adequate PCIe slot mechanical support for heavier cards, and thermal management for surrounding components. Removing an older GPU without considering these upgrade requirements leads to premature system instability when new hardware initializes.
Thermal Management and Thermal Paste Residue
Modern GPUs contact case-mounted heatsinks or heatpipes in some designs, requiring thermal paste application between the GPU’s rear PCB and thermal interface. When removing such a GPU, inspect the thermal paste layer and consider whether residue removal or reapplication is necessary. If thermal paste hardened or degraded (typically after 3+ years), remove it completely using isopropyl alcohol (90% concentration minimum) and lint-free wipes. Never reinstall a GPU with degraded thermal paste still in place, it provides inadequate heat transfer and risks component overheating.
For comprehensive graphics card tests & GPU guides on thermal management and performance optimization, consult manufacturer specifications for your specific card model.
Final Diagnostic Verdict & Maintenance Checklist
Successfully removing a GPU requires methodical adherence to electrical safety protocols, mechanical understanding of PCIe architecture, and careful execution of extraction technique. The removal process centers on three critical actions: (1) complete power disconnection at multiple levels, (2) systematic latch release verification, and (3) perpendicular extraction force application without over-torque stress.
Use this comprehensive checklist before, during, and after GPU removal:
- Pre-Removal: Shut down OS completely; disconnect PSU from wall; press power button 5 times; wait 60 seconds; wear anti-static wrist strap; photograph cable routing from multiple angles
- Power Disconnection: Identify all dedicated PCIe power connectors; disconnect 6-pin, 8-pin, and dual 8-pin connectors; verify no auxiliary power lines remain connected; trace every cable from GPU to PSU
- Latch Release: Locate white PCIe retention lever at slot’s rear edge; apply steady pressure toward motherboard’s rear; verify visual disengagement from GPU bracket; maintain pressure throughout extraction
- Physical Extraction: Grasp rear bracket with one hand; support GPU body with other hand (avoid touching PCB); apply perpendicular rearward force; withdraw slowly over 5 to 10 seconds; stop immediately if unusual resistance or acoustic signals occur
- Post-Removal Inspection: Inspect PCIe connector pins for damage; examine motherboard slot for debris or corrosion; verify retention latch returned to neutral position; clean slot gently with compressed air; photograph final configuration
- Software Cleanup: Access Control Panel and uninstall GPU drivers; run manufacturer cleanup utility; access BIOS and reset GPU-related settings; disable GPU overclocking profiles; set primary graphics to Auto or IGPU
- Documentation: Store thermal paste residue samples; document thermal interface material condition; record all power connector specifications and quantities; maintain photographic archive for future reference
For advanced platform configurations or when removing GPUs from server-class motherboards, consult manufacturer documentation specific to your motherboard model. The ASUS ROG Maximus Z890 Hero and MSI MEG Z890 ACE, referenced earlier as ASUS ROG Maximus Z890 Hero vs MSI MEG Z890 ACE, incorporate design variations that slightly alter removal procedures, reviewing chipset-specific documentation ensures compliance with manufacturer guidelines and warranty conditions.
Proper GPU removal technique protects your hardware investment, ensures safe reassembly, and establishes a foundation for reliable system operation across multiple upgrade cycles. By following this systematic approach, you eliminate risks of electrical hazard, component damage, and data loss while maintaining your system’s long-term reliability and resale value.
