Quick Answer: How to Spool a Weed Eater
To spool a weed eater, remove the trimmer head cap and spool, clear out old line, then wind 9 to 20 feet of new trimmer line tightly onto the spool in the direction marked by arrows. Thread the line ends through the eyelets in the head, reassemble the spool and cap, and test the feed by tapping the trimmer head on the ground. The key is winding neatly without overlaps or loose coils, which cause jams and feed failures.

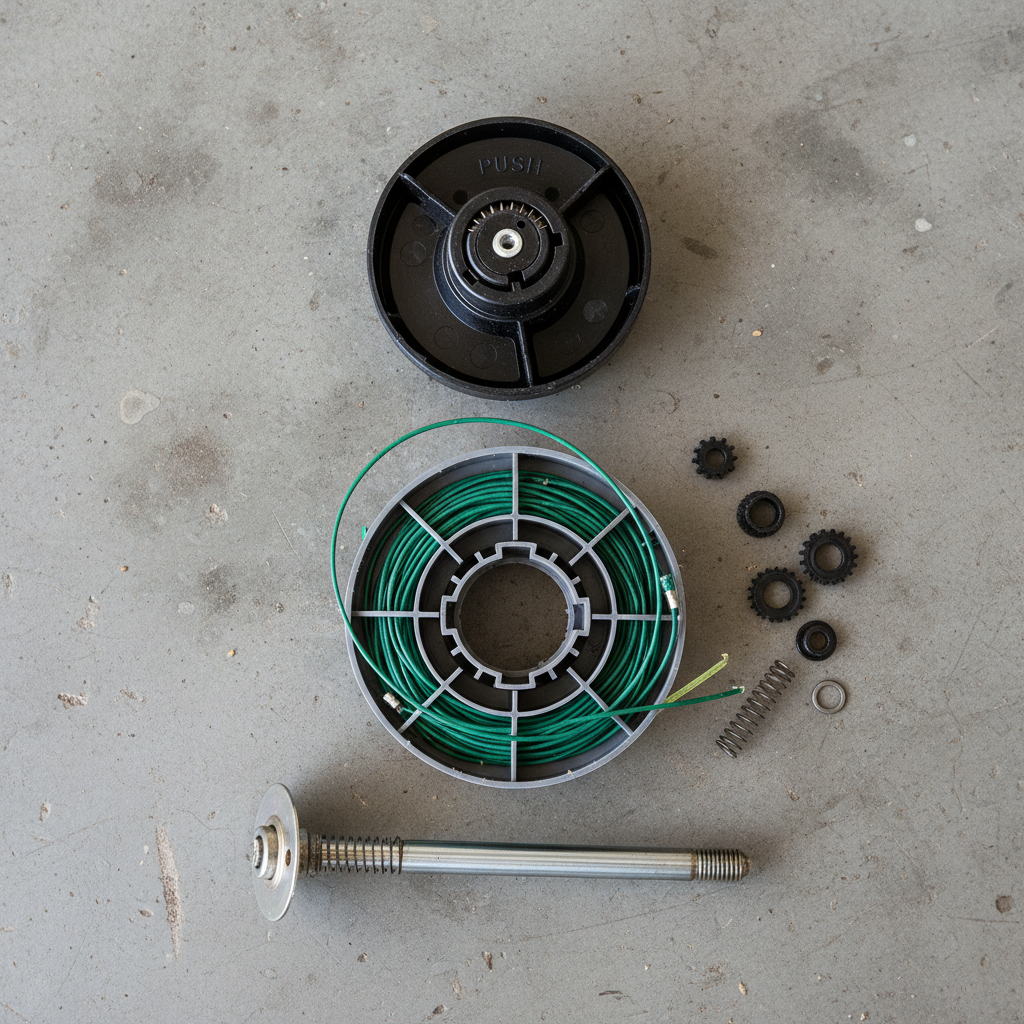

Understanding the Weed Eater Spool
When you “spool” a weed eater, you’re reloading the trimmer head with fresh cutting line. The spool is the internal cartridge that holds and feeds the nylon trimmer line as it rotates. Most residential and commercial trimmers use a bump-feed design, which advances line automatically when you lightly tap the trimmer head against the ground. Some premium models have automatic feed heads that release line continuously, but bump-feed remains the industry standard for homeowners.
Understanding your trimmer head type is essential because the spooling process and line specifications vary. Bump-feed heads are simple, affordable, and require you to manage the line length manually. Fixed-line heads, less common today, have two rigid lines and don’t require spooling at all. Before you begin, check your trimmer’s manual or look for markings on the spool cap to confirm which type you have.
Key Factors Before You Begin
Find the Correct Line Specifications
Using the wrong line diameter or length can cause performance problems and even damage your trimmer’s gear head. Most residential trimmers use one of three standard diameters:
- 0.065″ to 0.080″, Light work: edging, new grass, small residential yards
- 0.080″ to 0.095″, Standard: typical residential lawn maintenance (most common)
- 0.105″ to 0.155″, Heavy-duty: thick brush, dense weeds, commercial use
Check your trimmer’s manual or look inside the spool cap for printed specifications. If you’ve lost the manual, visit the manufacturer’s website using your model number, or measure your old line with a caliper. Using a line thicker than recommended can strain the motor and cause internal tangles; using thinner line may result in frequent breaks and poor cutting performance.
Recommended line length typically ranges from 9 to 20 feet, depending on spool size and design. Most bump-feed spools hold 15 to 17 feet comfortably. Oversized spools in commercial trimmers may accept 20+ feet. Again, your manual is the authoritative source.
Assess the Spool Condition
Before winding new line, inspect the spool for damage. Look for cracks, warping, or melted spots. If the spool has deep grooves from previous winding, clean them gently with a soft brush. A damaged spool can prevent smooth line feeding and may need replacement. Most aftermarket spools cost $10-$25 and are widely available online or at hardware stores.
Gather Necessary Items
You’ll need:
- Replacement trimmer line (correct diameter for your model)
- Scissors or a utility knife to cut the line to length
- Your trimmer’s manual (if available)
- A small flathead screwdriver (to remove the spool cap on some models)
- A clean, flat work surface
Step-by-Step Guide to Spooling a Bump-Feed Trimmer
Step 1: Remove the Trimmer Head or Spool Cap
Disconnect the trimmer from its power source (unplug if corded, or remove the battery if cordless). Most bump-feed heads have a spool cap held by a large center bolt or clip. On many models, you can remove the cap by hand, grip it firmly and turn counterclockwise. If it’s stuck, use a flathead screwdriver or a small adjustable wrench to gently loosen it. Once the cap is off, the spool should lift out freely. Set all parts on a clean surface in the order you removed them, so reassembly is straightforward. For complementary field maintenance guidelines, examine our breakdown of marshall stanmore iii vs harman kardon onyx studio 8.
Step 2: Remove Old Line and Clean the Spool
Lift the spool out of the trimmer head and inspect it. Use your fingers or a small brush to remove old line fragments, dirt, and dried nylon dust from the grooves. A clean spool winds new line more evenly and prevents jams. If there’s caked-on debris, rinse the spool under warm water and dry it completely before proceeding.
Step 3: Cut Your New Line to Length
Most manufacturers recommend 15, 17 feet for residential bump-feed spools, though your manual may specify differently. Measure out the correct length on your work surface and cut it cleanly with scissors or a utility knife. A sharp cut prevents fraying. If you’re unsure of the exact length, err slightly on the shorter side rather than overfilling the spool, which can cause jams and prevent the cap from seating properly. To evaluate matched hardware tolerances, consult our detailed overview of dyson v8 cyclone vs bissell featherweight stick.
Step 4: Locate the Line Starter Hole
Examine the spool closely. You’ll find a small slot or hole, usually marked with an arrow or labeled “START” or “ANCHOR.” This is where you thread the first end of your new line. Insert approximately ½ inch of line into the starter hole, ensuring it sits snugly. Some spools have a small notch that holds the line in place; others rely on you holding it steady as you begin winding.
Step 5: Wind the Line Onto the Spool
This is the most critical step. Check the spool for directional arrows, they show which way to wind. Wind slowly and evenly, keeping tension on the line with your free hand. The line should lay flat in adjacent coils without overlapping or crossing over itself. Overlaps are the number-one cause of jams and feed failures. When planning workspace deployment, consider the engineering criteria outlined in our bissell crosswave hydrosteam vs shark stainforce guide.
As you wind, ensure:
- Coils lay side-by-side in neat rows
- The line stays tight, loose winding causes the line to slip or tangle
- No line crosses over or tucks under previous wraps
- You fill the spool evenly, not piling line on one side
Wind until you’ve used most of your line, leaving 6 to 8 inches free. This remaining length is critical for the next step.
Step 6: Thread the Line Through the Eyelets
Once the spool is fully wound, locate the two eyelets (small holes) in the trimmer head housing. These are the slots where trimmer line feeds out during operation. Take the two free ends of your line and thread one end through each eyelet. The line should sit snugly in the eyelets, with a few inches extending beyond each one. Do not pull the line tight, leave it slightly slack so it can advance freely when you bump the trimmer head.
Step 7: Reassemble the Spool and Cap
Carefully place the spool back into the trimmer head, ensuring the line ends remain positioned in the eyelets. Align the center bolt hole of the spool with the trimmer head shaft. Slide the spool cap back on and turn it clockwise by hand until snug. Do not over-tighten, as this can warp the cap and prevent proper line feeding. If your trimmer uses a clip-style cap, press it down until you hear or feel it lock into place.
Step 8: Test the Line Feed
Before using the trimmer, test the bump-feed mechanism. Hold the trimmer firmly and tap the spool head gently against the ground or a concrete surface a few times. You should feel or hear a slight “click” as the bump mechanism engages, and small amounts of line should advance from the eyelets. If nothing happens, remove the cap and check that the line is properly seated in the eyelets and wound neatly without tangles.
Troubleshooting Common Spooling Issues
Line Jams or Won’t Feed
If the line doesn’t advance after bumping, the problem is almost always improper winding. Remove the spool and inspect for:
- Overlapping coils, Line crossed over itself during winding. Unwind and rewind neatly.
- Loose coils, Line wound too loosely slips inside the spool and tangles. Wind tighter on your next attempt.
- Overstuffed spool, Too much line crammed onto the spool prevents the cap from seating flush. Trim excess line and reinstall.
- Line caught in the spool grooves, Clean the spool thoroughly and ensure coils lay flat before reassembling.
Line Breaks Immediately After Spooling
New breaks often indicate:
- Wrong line diameter, Using line thicker than the manufacturer’s spec strains the trimmer and snaps quickly. Verify your line size matches your manual.
- Line twisted or kinked during winding, Nylon weakens if twisted. Unwind slowly and rewind, keeping the line straight.
- Rough or damaged eyelets, Burrs or cracks on the eyelet edges cut the line as it feeds. Sand smooth with fine-grit sandpaper or replace the trimmer head if severely damaged.
Spool Wound Too Tightly or Too Loosely
Too tight: The trimmer head becomes difficult to remove, line advances erratically, and motor strain increases. Wind more loosely next time, the line should have slight give when you press it with your finger. Too tight also heats the nylon, causing it to weld or stick to itself on the reel.
Too loose: Line slips inside the spool, tangles, and doesn’t feed smoothly. Maintain consistent, firm tension as you wind. You should feel moderate resistance when pulling the line taut.
Cap Won’t Fit Back On
Usually, the spool is overfilled. Remove excess line, rewind, and try again. If the cap still won’t seat, inspect the spool and cap for cracks or warping. A warped or damaged cap or spool should be replaced.
Pro Tips for Smooth Spooling
- Wind in a well-lit area. Good visibility helps you spot overlaps and twisted line before they cause problems.
- Keep tension consistent. Vary your grip pressure or hand speed, and your winding will be uneven. Maintain steady, moderate pressure throughout.
- Reference the manual every time. Line specs and winding direction vary between models. A few seconds checking the manual saves frustration later.
- Buy quality line. Cheap, brittle line breaks more easily and doesn’t feed smoothly. Stick with name-brand line from established manufacturers.
- Store spare line indoors. Nylon degrades in direct sunlight and extreme heat. Keep a spool or two in a cool, dry place for your next refill.
- Replace the spool every 2 to 3 years. Over time, plastic spools warp from heat and stress. A fresh spool improves feed reliability.
Everything You Need to Know: How To Spool A Weed Eater FAQ
Q: How often should I respool my trimmer?
A: This depends on how frequently you trim and the thickness of vegetation. Most homeowners respool their trimmers 2 to 4 times per season. You’ll know it’s time when you’re bumping the head repeatedly with little to no line advancement, or when the line keeps breaking. Always keep spare trimmer line on hand so you’re never caught without it mid-season.
Q: Can I use the same spool with different line diameters?
A: It’s not recommended. Spools are designed to fit specific line diameters snugly. Using thicker line on a spool sized for thinner line causes binding and jams. Using thinner line on a spool sized for thicker line means the line slips and feeds poorly. Stick with your manufacturer’s specified diameter.
Q: Why does my line keep twisting or kinking while I wind it?
A: Kinks happen when you apply uneven pressure or when the line gets caught on something during winding. Wind slowly and smoothly, keeping your free hand steady to avoid twists. If the line is kinked before you start, discard that section, kinked nylon is weak and will break during use.
Q: Is automatic feed better than bump feed?
A: Automatic feed advances line continuously without bumping, making it convenient for long trimming sessions. However, it uses more line and can be pricier to repair. Bump feed is simpler, more durable, and more affordable for most homeowners. Choose based on your yard size and trimming frequency.
Q: What should I do if my trimmer head is damaged?
A: If the spool is cracked or severely warped, replace it, most aftermarket spools are inexpensive. If the eyelets are rough or cracked, sand them smooth or replace the entire trimmer head. If the internal bump mechanism is broken, the head typically cannot be repaired and should be replaced as a unit.
