Quick Answer: How to String a Weed Trimmer
To string a weed trimmer, identify your trimmer type (bump-feed, manual-wind, or automatic spool), remove the spool or head assembly, cut trimmer line to the appropriate length (typically 20–30 feet), wind it onto the spool following the directional arrows, and reinstall the spool into the trimmer head. Secure the line ends in designated notches and ensure even winding to prevent tangling. The exact procedure varies by model, but these universal steps apply to most residential weed trimmers.
Understanding Your Weed Trimmer Type
Before you begin stringing your trimmer, identify which type you own. Different trimmer heads use different stringing methods, and using the wrong technique can result in tangled line, poor performance, or damage to the spool.

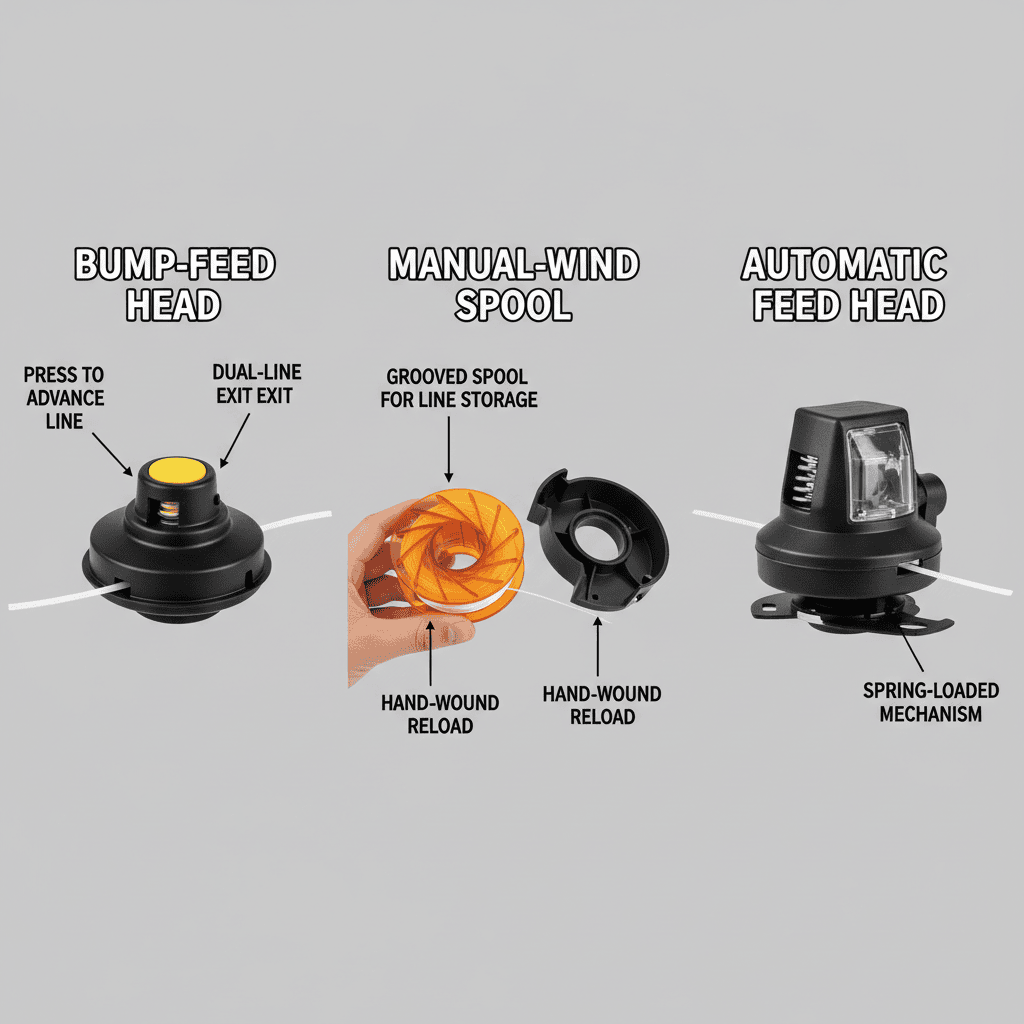

Three Main Trimmer Head Types
- Bump-Feed Heads: Automatic system where the trimmer releases a preset amount of line each time you tap the head on the ground. Requires minimal winding technique—you simply load pre-cut line segments into the spool slots.
- Manual-Wind Heads: Requires you to wind the line manually onto a fixed spool using your hands. This is the most common residential design and requires careful attention to winding direction and tension.
- Automatic Spools: Semi-automatic system that gradually feeds line as you trim. Winding procedure is similar to manual-wind but the line advances automatically during operation.
Your trimmer’s instruction manual will specify which type you have. If you’ve lost the manual, check the manufacturer’s website or examine your trimmer head—bump-feed heads have a distinctive round, flat design, while manual-wind spools have visible grooves or slots for winding.
Tools and Materials You’ll Need
Gather these items before beginning:
- Trimmer Line: Purchase the correct diameter for your model. Common sizes include .065″, .080″, and .095″. Check your trimmer’s manual or head for specifications.
- Measuring Tape or Ruler: To measure line length (typically 20–30 feet depending on spool size).
- Small Flathead Screwdriver or Allen Wrench: To remove the spool cap (some models use tool-free caps).
- Clean Work Surface: Lay out a clean cloth or workbench to prevent losing small parts during disassembly.
- Safety Glasses: Protect your eyes from spring-loaded parts or debris during disassembly.
Trimmer line is inexpensive and widely available at hardware stores, big-box retailers, and online suppliers. When purchasing, verify compatibility with your specific trimmer model.
How to Remove the Spool or Trimmer Head
Step 1: Prepare Your Trimmer
- Disconnect the trimmer from power (remove the battery for cordless models, drain fuel for gas models, or unplug electric models).
- Wait at least 5 minutes for the trimmer head to cool if you’ve been using it recently.
- Place the trimmer on a flat, stable work surface with the head facing upward.
Step 2: Access the Spool Cap
- Locate the spool cap at the center of the trimmer head (it looks like a round plastic or metal disc).
- Check for an arrow or line indicating the loosening direction. Most spool caps rotate counterclockwise to loosen.
- Use your screwdriver, Allen wrench, or hand (depending on your model) to turn the cap counterclockwise until it releases.
- Some caps are spring-loaded; support the cap with your hand as you remove it to prevent it from flying off.
Step 3: Remove the Spool
- Gently lift the spool straight upward out of the head housing.
- If the spool is stuck, do not force it. Check for any tabs or locks preventing removal and release them carefully.
- Place the spool on your clean work surface and set aside any small springs, washers, or clips that come loose during removal (these must be reinstalled in the correct order).
Measuring and Cutting Trimmer Line
Determining Line Length
Most residential trimmer spools require 20–30 feet of line. Your spool will have a fill line or indicator marking the maximum length—do not exceed this limit or the line will not wind properly.
- If your spool has a marked fill line, measure to that point.
- If not visible, check your trimmer’s manual for the recommended length.
- As a general rule, measure the circumference of the spool and multiply by 10–12 windings (this varies by spool design).
Cutting the Line
- Use sharp scissors or trimmer line cutters to cut a clean, straight end (jagged edges prevent proper feeding).
- For dual-line spools: Cut two equal pieces of line, each at your calculated length. Some spools accept one long piece that is folded in half; check your manual.
- For single-line bump-feed heads: Cut shorter segments (typically 8–12 inches each), as the spool holds multiple pieces that feed one at a time.
Winding String onto the Spool
This is the most technique-sensitive step. Improper winding causes tangling, poor line feeding, and trimmer malfunction.
Step 1: Identify the Starting Point
- Examine the spool for a small notch, groove, or slot near the edge—this is where the line begins winding.
- Look for an arrow printed on the spool indicating winding direction. Follow this arrow precisely.
- Some spools have two arrows if dual lines are required; each line winds in a specific direction to prevent tangling.
Step 2: Secure the Line
- Insert approximately 2–3 inches of the line end into the starting notch.
- Hold this end firmly with one hand to prevent it from slipping during winding.
- Ensure the line is positioned flat against the spool (not twisted or bunched).
Step 3: Wind the Line
- Using your other hand, begin rotating the spool in the direction indicated by the arrow.
- Wind the line slowly and steadily, maintaining even tension—the line should lay flat in neat, parallel rows.
- Wind tightly but not so tight that the spool becomes difficult to turn. If you feel excessive resistance, you are winding too tightly.
- Continue winding until you reach the fill line marked on the spool. Do not overfill, or the line will jam and prevent the spool from rotating.
- When winding is complete, the final 6–12 inches of line should remain unwound (this will be threaded through the trimmer head eyelets).
Step 4: Secure the End
- Most spools have a small notch or slot on the opposite side of the starting point where you tuck the final line end to prevent unwinding.
- Insert the remaining line end into this notch securely.
- Verify that the line does not slip out when you gently pull on it.
Reinstalling the Spool and Head
Step 1: Thread the Line
- Look at the trimmer head for small openings or eyelets (typically two for dual-line models, one for single-line).
- Pull the unsecured line ends outward and thread each through the appropriate eyelet.
- The line should extend 8–10 inches beyond the head opening (you can trim excess line after testing the trimmer).
Step 2: Reinstall the Spool
- Align the spool with the trimmer head opening and carefully lower it straight down into the housing.
- Ensure that any springs, washers, or clips are reinstalled in their correct positions beneath the spool.
- The spool should sit flat and spin freely when pushed by hand. If it binds or feels tight, remove it and check for misaligned parts.
Step 3: Reinstall the Spool Cap
- Position the spool cap over the center of the spool.
- Turn clockwise (or according to the directional marking on your model) until the cap is snug.
- Do not over-tighten, as this can warp the cap or damage the spool threads.
- Test that the spool spins freely by rotating the cap gently with your hand—it should turn smoothly with minimal resistance.
Bump-Feed Trimmer Heads: Special Instructions
Bump-feed heads simplify the stringing process by using pre-wound cartridges or allowing you to insert single line segments that feed automatically.
How Bump-Feed Works
When you tap the trimmer head on the ground during operation, a spring-loaded mechanism releases a preset amount of fresh line automatically. This design requires less precision winding and reduces the likelihood of tangles.
Stringing a Bump-Feed Head
- Purchase pre-wound bump-feed cartridges specific to your trimmer model (easiest option).
- OR, if winding manually: Cut line segments 8–12 inches long (your manual specifies exact length).
- Remove the spool cap and insert line segments into the designated slots on the spool—typically two slots for dual-line operation.
- Ensure each segment is fully inserted and seated properly.
- Thread the free ends through the head eyelets (usually 3–4 inches extended).
- Reinstall the spool cap and test by tapping the head against the ground; fresh line should advance slightly with each tap.
Common Mistakes When Stringing a Weed Trimmer
- Winding in the Wrong Direction: Line will jam or tangle. Always follow the directional arrow marked on your spool.
- Overfilling the Spool: Excess line prevents the spool from rotating freely and causes jams. Stop when you reach the fill line marked on the spool.
- Winding Too Tightly: Makes it difficult to turn the spool and can break the line during use. Wind firmly but with moderate tension.
- Loose or Uneven Winding: Creates loops, tangles, and poor line feeding. Maintain consistent tension and lay each wrap flat and parallel.
- Not Securing Line Ends in Notches: The line unwound during operation or when the spool cap is tightened. Always insert both ends firmly into their designated notches.
- Misaligning the Spool During Reinstallation: Causes binding and prevents the spool from spinning. Ensure the spool seats fully and evenly in the housing.
- Using Incompatible Line Diameter: Wrong-sized line won’t feed properly or may break frequently. Always verify diameter specifications for your model.
- Threading Line Through Wrong Eyelets: Causes the trimmer head to function incorrectly. Most dual-line models require one line per eyelet.
Maintenance Tips to Extend Trimmer Line Life
Regular Inspection
- Check line condition after each use. Discard any segments that are frayed, cracked, or significantly shortened.
- Inspect the spool and head housing for debris, grass buildup, or damage that could snag line.
Storage Best Practices
- Store your trimmer in a cool, dry location away from direct sunlight. UV exposure degrades trimmer line over time.
- If storing the trimmer for extended periods (winter months), remove the old line and replace with fresh line before the next season.
- Keep extra trimmer line in a sealed container or bag to prevent moisture absorption and UV degradation.
Cleaning the Spool Area
- Before installing new line, use a soft brush or cloth to remove grass clippings, dust, and dried debris from the spool and head housing.
- Debris buildup can restrict line movement and cause tangling.
Replacement Intervals
- Light residential use (monthly or less): Replace line every 2–3 months or when it becomes noticeably worn.
- Moderate use (weekly): Replace line every 4–8 weeks.
- Frequent use (multiple times weekly): Check line condition weekly and replace as needed, often every 2–4 weeks.
Troubleshooting: What to Do If Stringing Goes Wrong
Line Won’t Wind Smoothly onto the Spool
- Check for obstacles: Ensure the spool rotates freely and there are no hairline cracks, burrs, or debris on the spool surface.
- Verify winding direction: Recheck the arrow marking on your spool—winding backward causes immediate binding.
- Adjust tension: You may be winding too tightly. Reduce pressure on the line and try again.
Spool Won’t Spin Freely After Stringing
- Check for overfilling: Remove the spool and verify that line doesn’t exceed the fill line. If overfilled, remove excess line carefully.
- Verify spool alignment: Reinstall the spool, ensuring it sits flat and centered in the head housing. Misalignment causes binding.
- Inspect for twisted line: If line is bunched or twisted on the spool, remove it completely, smooth out any kinks, and rewind more carefully.
Line Keeps Breaking Shortly After Installation
- Check diameter compatibility: Verify you purchased the correct line size for your trimmer model. Using undersized line causes frequent breaking.
- Inspect the eyelets: Burrs, cracks, or rough edges on head eyelets can cut line. Use sandpaper to smooth rough edges, or consult the manufacturer about replacement parts.
- Reduce operating speed: If you’re running the trimmer at maximum RPM, reduce speed temporarily to test if lower throttle prevents breaking (this indicates a diameter mismatch).
Can I Rewind Line If I Made an Error?
Yes. If you wound the line incorrectly, remove it completely by unwinding the spool. Straighten any kinks in the line by pulling it through your fingers or laying it in the sun for a few minutes to relax it. Rewind carefully, following the directional arrows on your spool. Do not reuse line that is kinked, cracked, or damaged—purchase fresh line instead.
Frequently Asked Questions
What diameter trimmer line do I need?
Common residential trimmer line sizes are .065″, .080″, and .095″. Consult your trimmer’s user manual, check the spool housing, or visit the manufacturer’s website to confirm the correct diameter. Using incorrect diameter line prevents proper feeding and can damage the trimmer head.
How do I know which direction to wind the line?
The spool has arrows printed on its surface indicating the correct winding direction. Follow these arrows exactly—winding in the opposite direction causes the line to jam and prevents it from feeding. If the arrows are worn or illegible, contact the manufacturer or check the user manual.
How often should I replace my trimmer line?
Line replacement frequency depends on usage. With light monthly use, replace line every 2–3 months. With weekly use, replace every 4–8 weeks. With frequent use (multiple times weekly), check line condition weekly and replace every 2–4 weeks. Replace line immediately if it becomes frayed, cracked, or significantly shortened.
Can I use different brands of trimmer line in my trimmer?
Yes, as long as the line diameter matches your trimmer’s specifications. Major trimmer line brands are compatible across most trimmer models provided the diameter is correct. Verify compatibility by matching the diameter marking on the packaging to your spool or manual. Avoid mixing different line types (e.g., spiral vs. round) unless your manual explicitly permits it.
