Direct Answer: How to String an Echo Trimmer
To string an Echo trimmer, start by turning the trimmer off, disconnecting the spark plug, and letting the engine cool. Press the release tabs on the spool cap (or remove the center screw on some models) to lift the cap and free the spool, then remove any old line and clean debris from the head and spool. Cut a single length of trimmer line — typically 18 to 25 feet for a standard bump-feed spool, or follow the length stated in your model’s manual. For a dual-line spool, fold the line in half and hook the midpoint into the notch in the spool flange, then wind both ends evenly in the direction of the arrow stamped on the spool, keeping tension so the coils lie flat. Thread each loose end through the eyelets on the head and leave about 4 to 6 inches of line sticking out. Reinstall the spool in the head, press the cap down until it clicks into place, and pull the line ends gently to release them. To feed more line, start the trimmer, bring it to operating speed, and tap the head on the ground — the tap-and-go mechanism advances the line automatically. If the line does not feed or tangles, check that the winding direction matches the arrow, the line is not crossing itself, and the line gauge is within the range specified for your model (often 0.065 to 0.095 inches).
Before You Start: Safety Preparation and Required Tools
Before you touch any part of the trimmer head, safety comes first. Echo’s owner’s manuals consistently instruct you to shut off the engine, disconnect the spark plug wire, and allow the engine to cool completely before performing any maintenance. This prevents accidental starting, which could cause serious injury when your hands are near the cutting head.
Step 1: Disconnect the Spark Plug
Locate the spark plug at the front or side of the engine. Pull the rubber boot off the metal terminal and position it away from the plug so it cannot accidentally reconnect. On battery-powered Echo models, remove the battery pack instead.

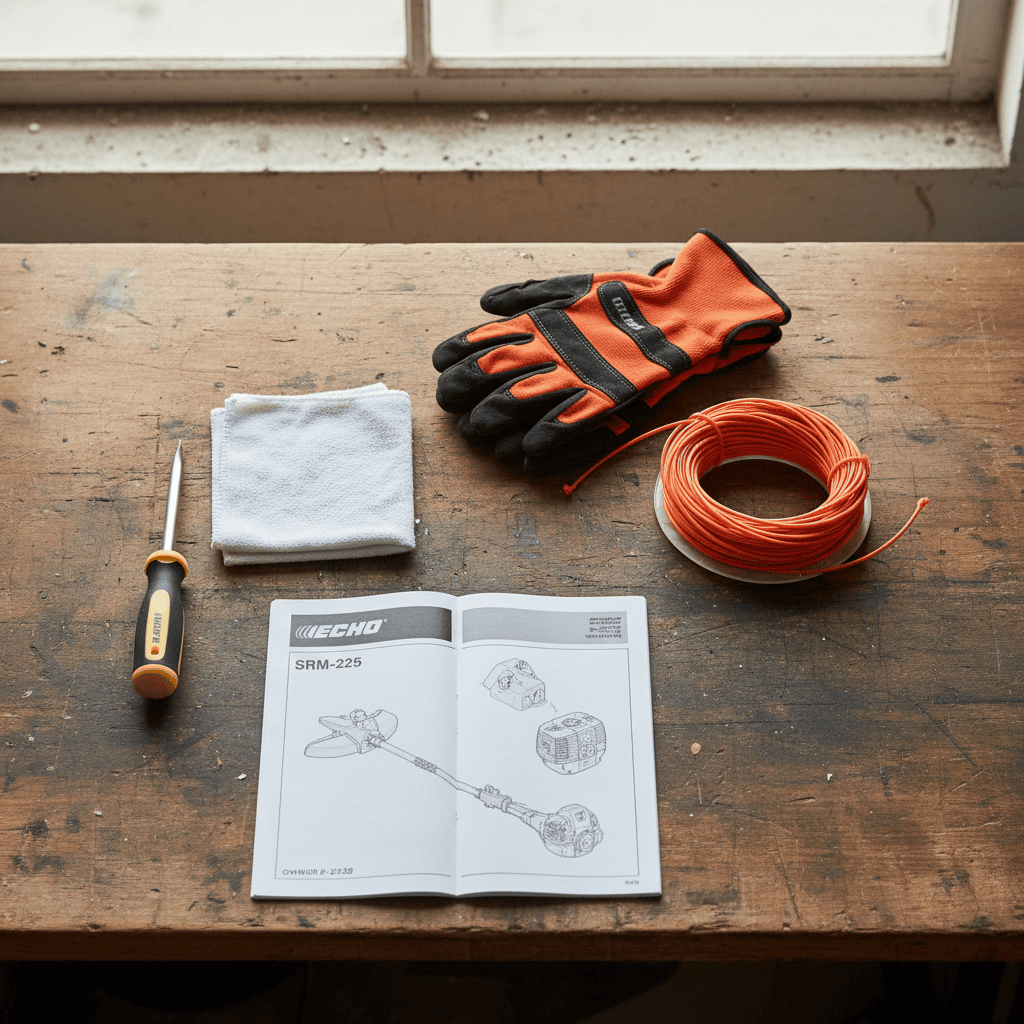

Step 2: Gather the Tools and Parts
- Replacement trimmer line – check your model’s manual for the correct diameter.
- A flat-head screwdriver – some Echo heads have a center screw that must be removed.
- Safety gloves – protect your hands from debris and sharp edges.
- A clean cloth or brush – to wipe away grass, dirt, and old line fragments.
Step 3: Identify Your Echo Trimmer Head Type
Echo trimmers use three common head designs. The bump-feed (tap-and-go) head is the most popular and is the focus of this guide. Manual-feed heads require you to stop the engine and hand-pull the line, and fixed-line heads use pre-cut line segments that you insert without winding. Knowing which head you have determines the exact restringing procedure. Look for release tabs, an arrow on the spool, or a line-advance button to confirm the type. When in doubt, consult your owner’s manual.
Understanding Echo Trimmer Head Types: Bump-Feed vs. Manual-Feed vs. Fixed-Line
Echo offers several trimmer head designs, and the correct stringing procedure depends on which one you own. Here’s how to tell them apart.
Bump-Feed (Tap-and-Go) Head
This head has a spring-loaded spool mechanism inside. When you tap the head on the ground while the trimmer is running at operating speed, the spool releases a small amount of line. The line is then cut to length by the blade on the debris shield. This is the system covered in detail in the next section. It usually features a spool cap with release tabs or a center screw.
Manual-Feed Head
Manual-feed heads do not advance line by tapping. Instead, you stop the engine, remove the head or pull the line through a feed slot, and then pull the line manually to the desired length. Some manual-feed designs require you to turn the spool by hand to extend the line. These heads are less common but still found on some smaller Echo trimmers.
Fixed-Line Head
Fixed-line heads use pre-cut line pieces (often 8 to 12 inches long) that are locked into place through integrated slots or clamps. There is no spool to wind. To replace the line, remove the old pieces, insert new pre-cut pieces into the retention slots, and make sure they are secure. Consult your model’s manual for the exact line length and insertion method.
How to String an Echo Trimmer: Step-by-Step for Tap-and-Go Heads
The following sequence works for the vast majority of Echo bump-feed heads, including the popular SRM-225 and SRM-2620 models. Always verify specific spool retention details in your owner’s manual.
Step 1: Remove the Spool Cap and Spool
With the trimmer off and the spark plug disconnected, lay the trimmer on its side so the head is accessible. Look for two release tabs on the outer cap. Press them inward simultaneously and lift the cap straight up. On some models, you’ll instead need to remove a center screw with a flat-head screwdriver. Once the cap is off, lift the spool out of the head. Remove any remaining old line from the spool and set the spool aside.
Step 2: Clean the Trimmer Head and Spool
Use a cloth or small brush to remove grass clippings, dirt, and broken line fragments from inside the head and from the spool flange. A clean head ensures smooth line feeding and prevents jams. Inspect the spring, feed slots, and eyelets for wear or damage.
Step 3: Cut the Correct Line Length
For a standard Echo bump-feed spool, cut a single length of line between 18 and 25 feet. The exact capacity depends on the spool model, so check your manual. For a dual-line spool, you will fold this one length in half to create two equal sides. Using a longer piece can cause the line to bind inside the head.
Step 4: Find the Winding Direction and the Center Notch
Look at the top or side of the spool for a directional arrow. It indicates the correct winding direction. Also locate the small notch or slot in the spool flange that holds the midpoint of the line. Align the line with this notch before you start winding.
Step 5: Hook the Line Midpoint and Wind in the Arrow’s Direction
For a dual-line spool, fold the line exactly in half and place the midpoint into the notch. Hold both ends together. Begin winding the line onto the spool in the direction indicated by the arrow. Keep the line taut and wind evenly and tightly, making sure the coils do not overlap or cross each other. This even winding is critical for smooth feeding. If your spool is single-line, insert the line into the anchor hole on the spool and wind in the arrow direction, leaving a small tag at the anchor.
Step 6: Leave the Loose Ends and Thread Through the Eyelets
When the line is fully wound, about 4 to 6 inches of the folded loop should protrude from the spool. Cut the loop so you have two separate ends. Place the spool back into the trimmer head and guide each loose end through the corresponding eyelet (feed hole) on the head. Pull the ends through until they exit the eyelets. Do not pull so much that you unwind the spool.
Step 7: Reinstall the Cap and Release the Line
Press the spool cap back into place until you hear or feel it click. Make sure the retention tabs are fully engaged. If your model has a center screw, replace and snug it. Then, gently pull on each line end to release tension and confirm they can move freely. The line ends should stick out about 4 to 6 inches.
Step 8: Advance the Line by Tapping
Reconnect the spark plug wire, start the trimmer, and accelerate to full operating speed. While the head is spinning, tap the bump-feed head on the ground or on a hard surface. The tap releases the spool brake, allowing centrifugal force to advance the line. The blade on the debris shield will trim the line to the correct cutting length. If the line does not advance, repeat the tap or check the winding direction.
Alternate Methods: Manual-Feed and Fixed-Line Echo Trimmers
If your Echo trimmer uses a manual-feed or fixed-line head, the process differs from the bump-feed method above.
Manual-Feed Echo Trimmers
Manual-feed heads typically have a knob or screw that you loosen to release the spool. After removing the head from the trimmer or opening the access cap, take out the spool and remove old line. Wind new line following the same direction arrow on the spool, but instead of threading through eyelets, route the line through a channel or hole that allows the line to exit the head. Reassemble the head, tighten the knob, and then manually pull the line ends to the desired length. You will need to stop the engine each time to advance more line.
Fixed-Line Echo Trimmers
Fixed-line heads have no spool to wind. They use a small piece of line that slides into a retention slot or clamp. Remove the old line fragments, cut a new piece to the length specified in your manual (often about 9-12 inches), and insert the center or one end into the slot, then thread the line through the exit hole. Make sure the line is secure and does not slide out. These heads are usually found on lightweight trimmer models or as an accessory on larger units.
Side-Mounted vs. Top-Mounted Spools
Most Echo bump-feed heads are top-mounted. However, some older models have side-mounted spools. The difference is primarily in how you access the spool: side-mounted heads often require removing a thumb screw or side knob. The winding and threading steps are essentially the same, but you should consult the owner’s manual for the exact release mechanism.
Troubleshooting: Line Not Advancing or Line Coming Out
After restringing, you may encounter a few common problems. Use this quick diagnostic guide to fix them.
Line Will Not Advance When Tapping
- Winding direction is wrong. Confirm the line is wound in the direction of the arrow on the spool. Reversing the direction prevents the spool from rotating correctly.
- The line is crossed or overlapped. Remove the spool and rewind evenly with tension. Loose or overlapping coils will jam the spool.
- The spool is not fully seated. Remove the spool and reinsert it, making sure it drops into the drive dog correctly.
- The eyelets are clogged. Clean the eyelets and the feed channels with a small wire or brush.
- Trimmer not at operating speed. The tap-and-go mechanism only works at full throttle.
Line Keeps Coming Out or Tangling
- The line is too long. You may have exceeded the spool capacity. Check your manual for the recommended length.
- Line diameter is too small. Using a thinner line than specified lets it slip out of the eyelets.
- The anchor tab was not used. On some spools, the line must be inserted into a small anchor slot before winding.
- The head is cracked or worn. Inspect the spool and cap for damage that could allow the line to escape.
How Tight Should the Line Be?
Wind the line firmly enough that the coils stay in place when you set the spool down, but not so tight that it stretches or deforms. A good rule is to keep the line under light tension while winding and stop before the spool looks bulged or overfilled. In most cases, the line should sit just below the flanges of the spool.
Choosing the Right Line and When to Check the User Manual
Using the correct trimmer line diameter is essential for proper performance and avoiding damage to your head. Echo models commonly use line in the 0.065 to 0.095 inch range, but the exact size depends on your trimmer’s engine and head design. The owner’s manual specifies the recommended gauge. If you use a line that is too thick, it may not fit through the eyelets or may overload the engine. If it is too thin, it will wear quickly and be less effective at cutting.
Line Material and Shape
Most Echo trimmers accept standard round line, but twisted, square, or serrated line is also available. For heavy weeds, a thicker, heavier-duty line provides more cutting power. For regular grass trimming, the standard round line is sufficient. Always follow the diameter and shape recommendations in your model’s manual.
Where to Find Model-Specific Instructions
Your Echo owner’s manual contains the exact spool capacity, line length, and head diagram for your model. You can download it free from Echo’s official website by entering your model number. If you don’t have the manual, search for the model number stamped on the trimmer shaft or under the spool.
Maintenance While the Head Is Apart
While the spool is off, take the opportunity to clean the entire head, check the debris shield for cracks, and inspect the line cutting blade. A sharp blade ensures a clean cut and helps the line stay at the correct length. Lubricate the spool spring with a light oil if it appears dirty or sticky, and replace any worn parts.
Frequently Asked Questions
How much line do I need to string an Echo trimmer?
Most Echo bump-feed spools hold a single length of line between 18 and 25 feet. For a dual-line spool, you fold that length in half, so each side is roughly 9 to 12 feet before winding. The exact capacity is printed in your model’s owner’s manual and on some spools.
Why does my Echo trimmer line keep coming out?
Line can come out if it is wound in the wrong direction, if it overlaps itself, or if the line diameter is too small for the eyelets. Also, ensure the spool cap is fully locked and the line ends are not pulled too far through the eyelets when you reinstall the spool.
How do I advance the line on a bump-feed Echo trimmer?
Start the trimmer and bring the engine to full operating speed, then tap the head on the ground. The tap pushes the spool down against its spring, releasing a small amount of line. The blade on the guard cuts the line to the correct length.
Can I use any brand of trimmer line in an Echo trimmer?
Yes, you can use any brand of trimmer line as long as the diameter matches your Echo model’s specification and the line shape fits through the eyelets. However, premium line may last longer and cut better, so check reviews for durability if you plan heavy use.
