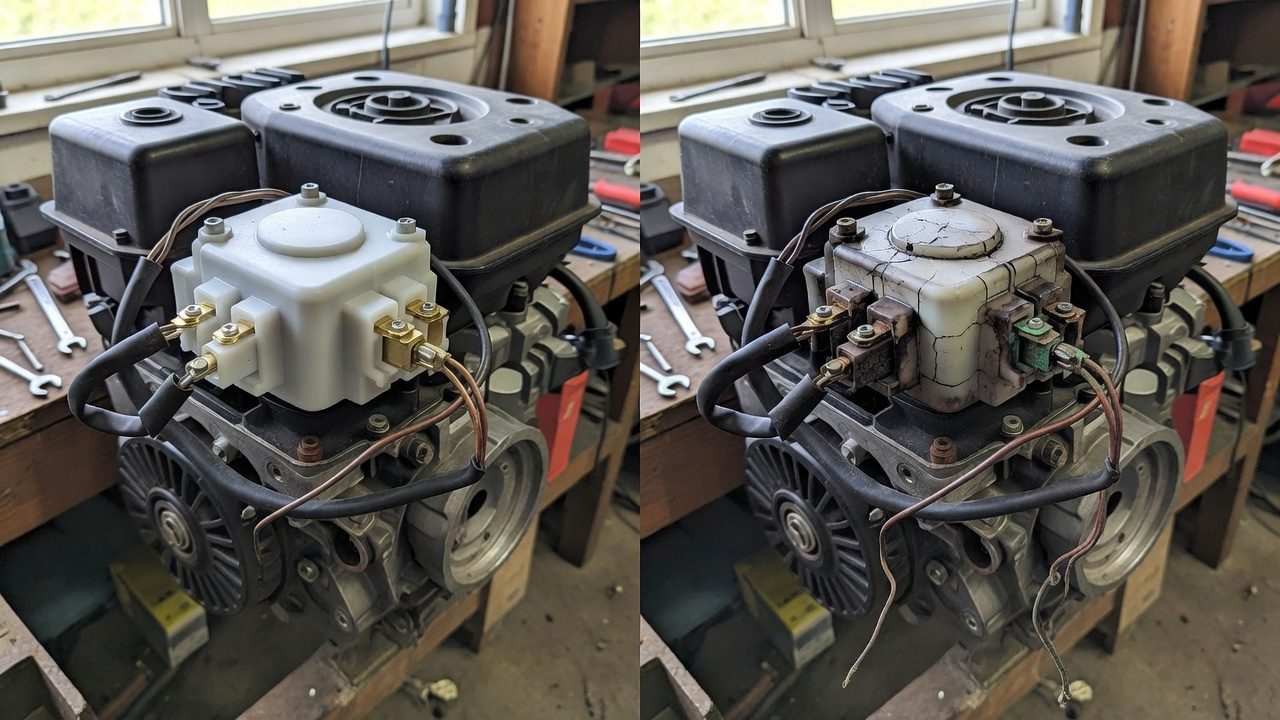

Recognizing Signs of a Failed Ignition Coil
Before you reach for a multimeter, understanding what a failing coil actually does helps confirm whether testing is worth your time. The ignition coil transforms low voltage from your mower’s battery into the high voltage needed to create a spark at the spark plug. When it fails, that spark either becomes too weak to ignite fuel or disappears entirely.
- Engine won’t start: The most obvious sign, if there’s no spark, there’s no combustion.
- Hard starting: The mower cranks but takes multiple pulls to catch, or starts intermittently.
- Engine stalls under load: Runs fine at idle but dies when you engage the blade or hit resistance.
- Weak or intermittent spark: Spark plug fires occasionally or produces a thin, pale spark instead of a strong blue one.
- Misfiring or rough running: Engine coughs, hesitates, or loses power during operation.
- Engine dies after warming up: Starts fine when cold but quits once it reaches operating temperature, suggesting the coil degrades as it heats.
If your mower displays one or more of these symptoms, the coil is a prime suspect, though fuel delivery issues, spark plug wear, and carburetor problems can mimic coil failure. Testing narrows it down.
Visual Inspection: The First Diagnostic Step
Begin with your eyes. Many coil failures leave physical evidence you can spot in seconds, saving you time with a multimeter.
What to look for:
- Cracks or splits in the coil body: The plastic or epoxy housing can fracture from impact, vibration, or heat cycling. Even tiny cracks allow moisture inside, causing electrical failure.
- Burn marks or discoloration: Dark brown, black, or charred areas indicate the coil overheated or arced internally. This is a certain sign of failure.
- Corrosion on terminals: White, green, or blue powdery deposits on the connection points suggest oxidation that breaks electrical contact.
- Loose or corroded wire connections: Check that the spark plug wire and primary terminals are firmly seated. Wiggle them gently, any movement means poor contact.
- Oil or fuel leakage around the coil: Contamination degrades insulation and can cause shorts.
- Burnt or melted insulation on the spark plug wire: If the wire jacket is charred or the rubber is sticky, high-voltage arcing or overheating has occurred nearby, often pointing to coil distress.
If you spot cracks, burn marks, or heavy corrosion, you’ve likely found your problem. Many DIYers stop here and replace the coil, it’s usually cheaper and faster than troubleshooting further. If the coil looks clean and intact, move to multimeter testing for confirmation.
Testing Coil Resistance with a Multimeter
A multimeter is the workhorse tool for coil diagnosis. These inexpensive meters (often $15 to 30) measure electrical resistance, continuity, and voltage. For coil testing, you only need the resistance (ohms) function.
Setting Up Your Multimeter
- Turn off the mower engine and disconnect the spark plug wire to prevent accidental starting.
- Set your multimeter to the ohms (Ω) resistance setting. If your meter has multiple resistance ranges, start with the lowest ohms range (usually ×1 or ×10).
- Locate the coil’s primary terminals on your mower. These are where the battery/ignition wires connect. Consult your mower’s manual or trace the wires from the engine block, the terminals are usually clearly labeled or color-coded.
Measuring Primary Winding Resistance
The coil’s primary winding is the low-voltage circuit. Testing it tells you whether the coil’s copper wire is intact and free of breaks or shorts. Users looking for related component recommendations can explore our marshall stanmore iii vs harman kardon onyx studio 8 breakdown.
- Place one multimeter probe on the positive terminal of the coil (or the first primary terminal).
- Place the other probe on the negative terminal (the ground or second primary terminal).
- Read the meter display. For most small engine lawn mower coils, the primary resistance should fall between 0.5 and 2 ohms. Check your mower’s service manual for the exact specification, different coil designs vary.
What the readings mean:
- 0.5 to 2 ohms (or the range in your manual): Normal. Your coil’s primary winding is intact.
- Much higher than expected (e.g., 10+ ohms) or infinite resistance (the meter reads “OL” or ∞): The coil’s internal wire is broken or severely corroded. The coil has failed and must be replaced.
- Zero or near-zero resistance (0.0 to 0.1 ohms): Unusual and suggests an internal short circuit. Replace the coil.
If your reading falls within spec, the primary winding is likely good, but proceed to continuity testing to rule out secondary issues. Before finalizing equipment decisions, refer to our comprehensive dyson v8 cyclone vs bissell featherweight stick comparison.
Checking Continuity in the Spark Plug Wire Connection
The secondary circuit runs from the coil’s high-voltage output through the spark plug wire to the spark plug. A break anywhere in this path prevents spark. Testing continuity here isolates whether the problem is the coil itself or the spark plug wire.
- Set your multimeter to continuity mode (often marked with a speaker symbol or beep icon). Some meters don’t have a dedicated mode, if yours doesn’t, use the ohms setting and look for very low resistance (close to 0).
- Disconnect the spark plug wire from the coil’s output terminal. This is the terminal that connects to the spark plug wire, not the battery terminals.
- Place one probe on the coil’s output terminal.
- Place the other probe on the spark plug itself (the metal shell, not the insulated boot).
- Listen for a beep (continuity mode) or check for near-zero resistance (ohms mode). There should be a complete path, no beep or high resistance means the wire is broken.
If the spark plug wire shows infinite resistance (no continuity), the wire itself has failed, replace it. If continuity is good but the coil’s primary resistance was out of spec, the coil is the culprit. For broader ecosystem context, read through our operational guide on bissell crosswave hydrosteam vs shark stainforce.
Testing the Coil In-Engine vs. Bench Testing
In-engine testing: Most lawn mower coils can be tested in place without removal. Locate the terminals, connect your multimeter probes, and measure. This is fast and avoids the hassle of unbolting the coil. If readings are normal but symptoms persist, the coil may be heat-sensitive or the problem lies elsewhere (fuel, compression, carburetor).
Bench testing: Remove the coil and test it on your workbench if you suspect the in-engine environment is affecting results (for example, if the coil works fine when cold but fails when hot). Bench testing also lets you inspect the coil closely for internal damage and verify readings without engine vibration interfering with meter accuracy.
How to safely remove the coil:
- Disconnect the spark plug wire.
- Unplug or disconnect the primary wires from the battery/ignition system. Note the wire positions or take a photo for reassembly.
- Unbolt the coil (usually 1 to 2 bolts) and lift it free.
- Test as described above, then reinstall if readings are good.
For most DIYers, in-engine testing is sufficient. If readings are normal and the coil looks clean, the problem usually lies in the spark plug, fuel system, or air filter, not the coil.
Interpreting Multimeter Results and Next Steps
Your test results point to a clear answer:
| Primary Resistance Reading | Secondary Continuity | Physical Condition | Diagnosis | Action |
|---|---|---|---|---|
| Within spec (0.5 to 2 Ω) | Good (beep or low Ω) | No cracks or burns | Coil is likely good | Check spark plug, fuel delivery, air filter, or carburetor. Test spark directly with a spark tester if symptoms persist. |
| Out of spec (very high or ∞) | Any reading | Any condition | Internal wire break or severe corrosion | Replace the coil. |
| Within spec or out of spec | No continuity (∞ or no beep) | Any condition | Spark plug wire is broken | Replace the spark plug wire. Retest coil after replacement if symptoms remain. |
| Any reading | Any reading | Visible cracks, burn marks, or heavy corrosion | Physical damage indicates failure | Replace the coil, regardless of meter readings. |
If tests are normal but symptoms persist: The coil may be heat-sensitive (failing only when warm), or the problem is elsewhere. Try a spark tester (a $10 tool that lights up when spark is present) to confirm spark is reaching the plug. If spark is strong and consistent, look to fuel delivery, compression, or air intake. If spark is weak or intermittent despite normal coil readings, replace the coil anyway, some coils fail under load even though bench tests look fine.
Can coils be repaired? No. Ignition coils are sealed units. Once internal winding breaks or insulation fails, there is no practical repair. Replacement is the only option, and coils typically cost $20 to 80 depending on your mower model.
Safety Considerations When Testing Ignition Coils
Ignition coils generate thousands of volts, treat them with respect.
- Always disconnect the spark plug wire before testing to prevent accidental engine starting or shock.
- Never touch the spark plug wire or coil output terminal while the engine is running. High-voltage shock is possible.
- Disconnect the battery or kill switch before removing the coil to eliminate any chance of live current.
- Wear dry gloves or keep your hands dry when working with electrical components.
- Do not test the coil in wet conditions, moisture can cause shorts or meter errors.
- If you must test with the engine running (for a heat-sensitivity diagnosis), use a spark tester instead of a multimeter, spark testers are insulated for this purpose.
Common Questions on How To Test A Lawn Mower Coil Answered
Q: Can I test a lawn mower coil without a multimeter?
A: Partially. Visual inspection reveals obvious damage like cracks or burn marks. For a definitive electrical test, a multimeter is the simplest tool. Alternatively, a spark tester ($10) confirms whether spark is present, if there’s no spark and the spark plug is good, the coil has likely failed. But a spark tester doesn’t tell you why; a multimeter pinpoints the problem. Multimeters are worth owning for any small engine maintenance.
Q: How much does a lawn mower ignition coil cost?
A: Replacement coils range from $20 for basic models to $80 for commercial or specialty mowers. Online retailers, hardware stores, and mower dealers stock them. Having the mower model number handy ensures you buy the correct coil. Installation is usually a 5-minute job, two bolts and two wire connections.
Q: Why does my coil fail so often?
A: Coils fail prematurely due to heat cycling (repeated heating and cooling weakens insulation), moisture and corrosion, engine vibration, or poor fuel causing carbon buildup near the coil. Keeping the engine area clean, ensuring proper air flow around the coil, using fresh fuel, and maintaining the spark plug can extend coil life. If a mower eats coils every season, check for excessive heat near the coil or recurring moisture problems.
Q: What’s the difference between primary and secondary resistance testing?
A: Primary resistance tests the low-voltage side of the coil (battery side), which should show 0.5 to 2 ohms. Secondary resistance tests the high-voltage side (spark plug side), usually by checking continuity through the spark plug wire. Both tests confirm the coil’s internal integrity. High primary resistance or lack of secondary continuity both point to coil or wire failure.
Conclusion
Testing a lawn mower ignition coil takes 10 minutes and costs nothing if you own a multimeter. Start with visual inspection for cracks or burn marks, measure primary resistance with a multimeter (target: 0.5 to 2 ohms, depending on your mower), and check spark plug wire continuity. If readings fall outside spec or the coil shows physical damage, replacement is your answer. Most lawn mower coils cost under $50 and take minutes to swap. This simple test saves you from chasing phantom fuel or spark plug problems when the real issue is a dead coil.
