Quick Answer: How to Test a Lawn Mower Solenoid
To test a lawn mower starter solenoid, disconnect it from the circuit and set a multimeter to continuity or resistance (Ω) mode. Probe the two large terminals, then apply 12V to the small trigger terminal — a working solenoid clicks audibly and shows continuity (near-zero resistance). No click and an open-circuit reading confirm a faulty solenoid. Without a multimeter, bridge the two large terminals with a heavy-gauge jumper wire: if the engine cranks immediately, the solenoid is the failed component.

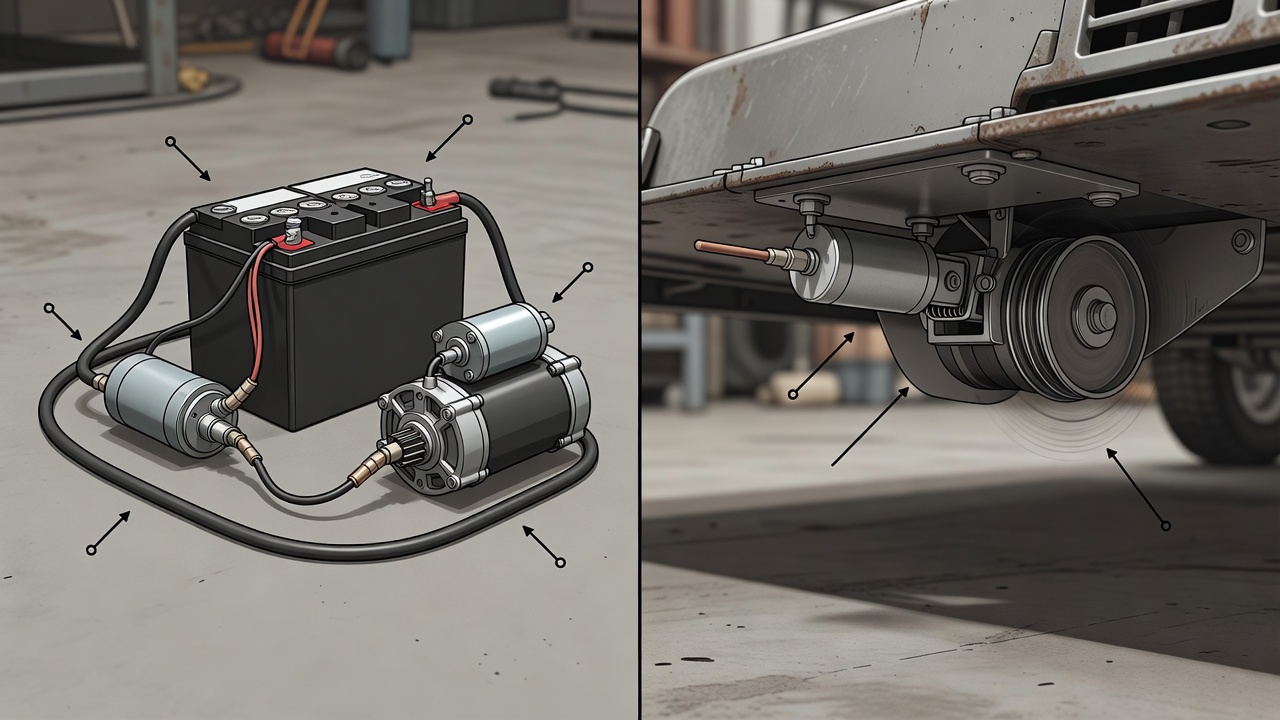

What Is a Lawn Mower Solenoid and What Does It Do?
Two distinct types of solenoids appear on lawn mowers. Confusing them is the single most common diagnostic mistake.
Starter Solenoid
The starter solenoid is an electromagnetic switch mounted between the battery and the starter motor. When you turn the ignition key, low-amperage current from the key switch energizes the solenoid coil. The energized coil pulls a plunger that closes a set of heavy-duty contacts, routing full battery current (100–200 A) to the starter motor to crank the engine. On most riding mowers the solenoid mounts directly on the starter motor or on a bracket near the battery. On push mowers with electric start, it typically sits on the engine block near the starter.
Safety Interlock Solenoid
The safety interlock solenoid (also called a blade brake solenoid or PTO solenoid) controls the blade engagement clutch on riding mowers and zero-turn mowers. It is not involved in starting the engine. A faulty interlock solenoid causes the blades to fail to engage or causes unexpected blade shutoff — it does not produce a no-crank, no-start symptom. If the engine cranks and runs but the blades will not spin, test the interlock solenoid, not the starter solenoid.
| Feature | Starter Solenoid | Safety Interlock Solenoid |
|---|---|---|
| Function | Sends current to starter motor | Engages/disengages blade clutch |
| Symptom when faulty | No-crank, no-start; single click | Blades won’t engage; mower shuts off |
| Location | Near battery or on starter motor | Under deck near PTO clutch |
| Terminal count | 3 or 4 | 2 (simple on/off coil) |
Signs Your Lawn Mower Solenoid May Be Failing
Before testing, confirm the symptoms point to a solenoid and not the battery or starter motor.
- Single loud click, no crank: The solenoid coil is energizing and pulling the plunger, but the internal contacts are burned or corroded and not passing current to the starter. This is the classic starter solenoid failure signature.
- No sound at all when the key is turned: Either the battery is completely dead, the key switch has failed, the safety interlock circuit is open, or the solenoid coil itself is open and not energizing.
- Intermittent starting: The mower starts sometimes and not others. Internal contacts are pitting — they make connection under some conditions (temperature, vibration angle) and not others.
- Visible corrosion or heat damage on the solenoid body: Carbon tracking or melted plastic around the terminals indicates sustained arcing from failing contacts.
Rule out the battery first. A fully charged 12V lawn mower battery must read 12.6 V or higher at rest with a multimeter. A battery below 12.0 V lacks the cranking amperage to energize the solenoid properly and mimics a solenoid failure. Charge or load-test the battery before proceeding.
What You Need Before You Start Testing
Tools
- Digital multimeter (any auto-ranging model works)
- Heavy-gauge jumper wire, minimum 10 AWG, for the bypass test — thinner wire overheats under starter-motor current
- Basic socket set (8 mm or 5/16 in. for most solenoid mounting bolts)
- Safety glasses
- Work gloves
Safety Steps — Complete These Before Touching Any Terminal
- Park the mower on a flat, hard surface. Engage the parking brake.
- Remove the ignition key.
- Disconnect the spark plug wire(s) to prevent accidental engine start during testing.
- Wear safety glasses. The battery can produce hydrogen gas; a spark near a vented battery is a burn and explosion risk.
- Do not perform the jumper wire bypass test near fuel lines or a fuel leak.
How to Test a Lawn Mower Solenoid with a Multimeter
This is the most accurate method. It tests both the solenoid contacts and the coil winding independently.
Step 1 — Locate and Label the Terminals
Most starter solenoids have two large terminals and one or two small terminals.
— Large terminal 1 (B): battery positive cable
— Large terminal 2 (S or M): cable to starter motor
— Small terminal (I or G): ignition/key switch trigger wire
— Fourth terminal (on 4-terminal units): ground or accessory circuit
Photograph the wiring before disconnecting anything.
Step 2 — Check Battery Voltage
Set the multimeter to DC voltage (20 V range). Probe the battery terminals: red probe to positive, black probe to negative. Record the reading. Proceed only if the battery shows 12.4 V or higher. Below that, charge the battery and retest.
Step 3 — Test the Solenoid Contacts (Continuity Test)
- Disconnect all wires from the solenoid.
- Set the multimeter to continuity mode (diode/beep symbol) or resistance (Ω).
- Place one probe on each of the two large terminals.
- At rest (not energized): the meter should read OL (open circuit) — no continuity. This confirms the contacts are normally open, as designed.
- Now energize the solenoid: touch a short wire from the positive battery terminal to the small trigger terminal on the solenoid, and ground the solenoid body or the second small terminal to the battery negative.
- The solenoid should click audibly. With the trigger wire still connected, re-probe the two large terminals.
- Good solenoid: continuity beeps (or resistance drops to 0–0.5 Ω). Bad solenoid: OL remains — contacts are not closing despite the coil energizing.
Step 4 — Test the Solenoid Coil Winding (Resistance Test)
- Set the multimeter to resistance (Ω) mode, 200 Ω range.
- Probe the two small terminals (or the small terminal and the solenoid body/ground terminal).
- A healthy solenoid coil winding typically reads 2–5 Ω for standard lawn mower starter solenoids. Some heavy-duty solenoids fall in the 4–10 Ω range. Consult your engine manufacturer’s service manual for the exact specification — Briggs & Stratton published specs, for example, appear in their engine model service bulletins.
- OL (infinite resistance): the coil winding is open — solenoid is definitively failed and will not energize at all.
- Near 0 Ω (shorted winding): the coil is shorted — solenoid draws excessive current and will blow fuses or damage the key switch.
Interpreting Results
| Multimeter Reading | Contacts Test | Coil Test | Verdict |
|---|---|---|---|
| Contacts: 0 Ω when energized; Coil: 2–5 Ω | Pass | Pass | Solenoid is good — investigate battery, key switch, starter motor |
| Contacts: OL when energized; Coil: 2–5 Ω | Fail | Pass | Contacts burned — replace solenoid |
| Contacts: OL when energized; Coil: OL | Fail | Fail | Coil open — replace solenoid |
| Contacts: OL when energized; Coil: ~0 Ω | Fail | Fail (shorted) | Replace solenoid; check fuses |
How to Test a Lawn Mower Solenoid with a Jumper Wire (No Multimeter Required)
This is a bypass confirmation test. It determines whether the solenoid is the fault in the starting circuit without measuring electrical values. Treat any spark near the battery as a fire risk — work quickly and keep the jumper wire away from fuel components.
Step-by-Step Jumper Wire Bypass Test
- Ensure the spark plug wire is disconnected (prevents engine starting unexpectedly during the test).
- Locate the two large terminals on the solenoid. Leave all existing wires connected to the solenoid and the circuit.
- Using a 10 AWG or heavier jumper wire, touch one end to the large battery-side terminal and the other end to the large starter-motor-side terminal simultaneously, bridging them directly.
- Engine cranks: full current is now bypassing the solenoid and reaching the starter motor. The solenoid contacts are not passing current on their own — the solenoid is faulty, replace it.
- Engine does not crank: the solenoid contacts are not the fault. The problem is upstream (battery, key switch, safety interlock circuit) or downstream (starter motor itself).
Important: bridging the terminals produces a large spark. This is normal at 12V DC with starter-motor current. Do not repeat the test more than two or three times in succession — prolonged arcing damages the terminal posts. This test confirms or rules out the solenoid only; it does not diagnose the root cause of why the solenoid failed.
How to Test a Lawn Mower Safety Interlock Solenoid
If the engine starts and runs but the blades do not engage, or if the mower shuts off when you leave the seat, test the safety interlock solenoid (PTO/blade brake solenoid) — not the starter solenoid.
Locating the Interlock Solenoid
On riding mowers, the blade interlock solenoid sits near the PTO clutch under the deck or mounted to the transmission tunnel. It has two terminals and a simple coil — no heavy contact set, because it controls a clutch electromagnet, not full starter current.
Multimeter Test for the Interlock Solenoid
- Disconnect the two-wire connector from the solenoid.
- Set the multimeter to resistance (Ω) mode.
- Probe the two solenoid terminals.
- A working interlock solenoid coil reads approximately 3–8 Ω depending on the manufacturer. Check your mower’s service manual for the precise specification. OL indicates an open coil — replace the solenoid.
- Reconnect the harness. With the seat occupied, parking brake set, and PTO switch engaged, use the multimeter in DC voltage mode to confirm 12V is present at the solenoid connector. Voltage present but coil OL = bad solenoid. No voltage = fault in the safety interlock switch circuit (seat switch, PTO switch, or brake switch).
How to Test a Briggs & Stratton Solenoid Specifically
Briggs & Stratton engines power the majority of residential riding mowers and many walk-behind models. Their starter solenoid configuration differs slightly from generic descriptions.
Terminal Configuration
Briggs & Stratton starter solenoids are typically 4-terminal units: two large terminals (battery positive and starter motor) and two small terminals. One small terminal receives the ignition trigger wire from the key switch; the second small terminal connects to an accessory circuit or grounds the coil. Some older single-cylinder Briggs engines use a 3-terminal solenoid where the solenoid body itself serves as the ground through the mounting bracket.
Wire Colors (General Briggs & Stratton Convention)
- Red (large terminal): battery positive
- Red or orange (large terminal): to starter motor
- Yellow or white with red tracer (small terminal): ignition trigger from key switch
- Black (small terminal or body): ground
Wire colors vary by model year and OEM harness supplier. Always verify with the wiring diagram in the specific engine model’s service manual before assuming color identity.
Step-by-Step Test on a Briggs & Stratton Solenoid
- Confirm battery voltage is 12.4 V or higher.
- Disconnect the spark plug wire.
- Disconnect all four terminals from the solenoid.
- Set multimeter to Ω mode. Probe the two small terminals. Expected reading: 2–5 Ω. OL = open coil, replace solenoid.
- Probe the two large terminals at rest. Expected reading: OL (open). Any continuity at rest indicates welded contacts — replace solenoid immediately (a welded solenoid can start the engine without a key).
- Energize the solenoid: connect the positive small terminal to battery positive and the ground small terminal to battery negative using short test leads.
- Listen for the click and re-probe the large terminals. Expected reading: 0–0.5 Ω. OL = failed contacts, replace solenoid.
What to Do After the Test: Replace or Investigate Further?
Solenoid Tests Bad — Replacement
Replacement starter solenoids for riding mowers and walk-behind mowers with electric start cost $8–$35 for aftermarket units at hardware stores or online retailers. OEM Briggs & Stratton solenoids typically run $20–$50 depending on terminal configuration. The swap is a straightforward DIY task: disconnect the battery negative terminal first, unbolt the solenoid, transfer wires one at a time to the new unit (photograph the original configuration), reconnect the battery, and test.
Solenoid Tests Good — Next Diagnostic Steps
If the solenoid passes both the coil resistance test and the contacts continuity test, the no-start fault lies elsewhere in the circuit. Test these components in order:
- Battery load test: A battery can show 12.6 V at rest but collapse under cranking load. A battery load tester or a trip to an auto-parts store (most offer free battery testing) rules this out definitively.
- Key switch: With the key in the START position, verify 12V appears at the solenoid trigger terminal using the multimeter in DC voltage mode. No voltage = faulty key switch or broken wire.
- Safety interlock circuit: Most riding mowers will not allow the solenoid to energize unless the seat switch, blade switch, and brake switch are all satisfied. Consult the wiring diagram and test each switch for continuity in the engaged position.
- Starter motor: If 12V reaches the starter motor (confirmed at the large starter terminal with the key cranking) but the motor does not turn, the starter motor has failed. Remove it and bench-test it by applying 12V directly from a jump-start battery.
Frequently Asked Questions
Can a bad solenoid drain my lawn mower battery?
A solenoid with a shorted coil winding (near-zero Ω reading) draws continuous current even with the key off if it remains connected, slowly draining the battery. A solenoid with an open coil or failed contacts draws no current at rest and will not drain the battery — it simply prevents starting.
What does a single click mean when I turn the key on my lawn mower?
One loud click is the solenoid coil energizing and pulling the plunger. It confirms the coil is functional and the trigger circuit (battery, key switch, safety interlocks) is intact. The click with no crank means the internal contacts are not passing current to the starter motor — the contacts are burned, corroded, or the battery voltage has collapsed under load. Test contacts with the multimeter method and load-test the battery.
Is the jumper wire bypass test safe to perform at home?
Yes, bridging the two large solenoid terminals with a 10 AWG or heavier wire at 12V DC is a standard automotive and small-engine diagnostic procedure used by professional technicians. The risk is not electrocution — 12V DC at the currents involved is not a lethal shock hazard for a healthy adult with dry hands. The real risks are: a spark igniting nearby fuel vapors, the spark plug wire being connected (causing unexpected engine start), and wire overheating if the jumper gauge is too thin. Following the safety steps listed above — spark plug wire disconnected, no fuel leaks present, short duration contact — makes the test safe.
How do I know if my problem is the solenoid or the starter motor?
The jumper wire test distinguishes them. Bridge the two large solenoid terminals: if the engine cranks, the starter motor is working and the solenoid is the fault. If the engine does not crank with the solenoid bypassed, probe the large starter-motor terminal with the multimeter in DC voltage mode while a second person holds the key in START. Voltage present at the terminal with no motor movement = failed starter motor. No voltage = wiring fault between the solenoid and starter motor.
