Quick Answer: How to Test a Lawn Mower Solenoid
Bridge the two large terminals on the solenoid with an insulated jumper wire while the ignition is off — if the starter motor cranks, the solenoid is faulty. Confirm with a multimeter: a healthy solenoid coil reads 0.4–4 ohms across the small terminals, and a voltage-drop test across the large terminals during cranking should show less than 0.5 V. A solenoid that fails any one of these three tests needs replacement, not repair.
Pros
- Powerful 80V brushless motor delivers 32HP gas-equivalent performance with quiet fume-free operation and no engine maintenance.
- Complete kit includes four 6.0Ah batteries and 600W charger for substantial runtime up to 1.5 acres.
- SmartCut technology and 42-inch heavy-duty steel deck ensure consistent cuts without bogging in tough conditions.
- Versatile towing up to 350 lbs and optional cargo hauling plus comfort features like high-back seat and LED lights.
- Strong 4-year limited warranty and full compatibility with the Greenworks 80V tool ecosystem.
Cons
- Rear utility cargo bed for 200 lb hauling is sold separately and not included in the kit.
- Runtime of up to 1.5 acres varies with conditions and may require recharging or battery swaps on larger properties.
- As a fully cordless model continuous operation depends on battery levels unlike gas engines with unlimited runtime.
The Greenworks 80V 42" CrossoverT Cordless Riding Lawn Tractor is a ready-to-mow zero-emission tractor designed for homeowners managing medium to large lawns. It features a reinforced 42-inch stamped steel deck of 12-gauge construction along with premium comfort elements such as a high-back padded seat with foldable armrests. The overall build emphasizes durability and user convenience right out of the box with the included battery and charger set.
Performance centers on the 80V TruBrushless motor that provides 32HP gas-equivalent power with instant torque and quiet fume-free operation. SmartCut technology senses grass conditions and automatically adjusts power to maintain a consistent cut even in tall thick or wet areas. The four 6.0Ah batteries support runtime for up to 1.5 acres depending on conditions while dual LED headlights and a 7-position deck height range from 1.5" to 4.5" add practicality. Front and rear attachments further allow towing up to 350 lbs for added yard utility.
Key considerations include that the rear utility storage bin capable of hauling 200 lbs is sold separately so full cargo functionality requires an extra purchase. Runtime remains condition-dependent and may fall short for properties significantly larger than 1.5 acres without using the 600W charger or swapping batteries. The cordless design prioritizes ease and low maintenance but trades off the continuous runtime of traditional gas models.
This tractor delivers strong value for eco-conscious owners of residential properties who want gas-like power without the emissions noise or upkeep. It suits those who already use or plan to expand into the Greenworks 80V family of tools and who appreciate the 4-year limited warranty. Users with exceptionally large or commercial-scale lawns should evaluate battery logistics carefully before purchase.
Pros
- Delivers strong 21 horsepower equivalent power comparable to gas riding mowers.
- Provides up to 1.5 acres of runtime on a full charge with the six included batteries.
- Features low-maintenance dual brushless motors without belts for greater durability.
- Offers versatile 12-position cutting height adjustment from 1.5 to 4.5 inches.
- Includes digital controls for blade settings, drive speeds, and cruise control.
Cons
- Limited to 1.5 acres of cutting per charge without purchasing additional batteries for bigger lawns.
- Requires recharging time for the six 56V batteries after each use session.
- Relies solely on battery power with no hybrid or gas backup option for extended operation.
The EGO Power+ TR4204 is a cordless electric riding lawn mower built as a modern tractor alternative for residential use. It features a robust 42-inch stamped steel deck and arrives ready to go with six 56V 6.0Ah batteries plus a charger, creating an immediate impression of convenience and solid construction free from gas engine complexity.
Performance shines through its equivalent 21 horsepower output and top speed of 6 MPH, allowing efficient coverage of up to 1.5 acres on a single charge. Dual brushless cutting motors operate without belts for added durability and less upkeep, while the digital display lets users select three blade settings, three drive speeds, and cruise control. The 12 adjustable heights ranging from 1.5 to 4.5 inches combined with anti-scalp wheels deliver precise results across varied terrain.
Drawbacks center on battery dependency, as larger properties beyond 1.5 acres require extra batteries and recharging intervals can interrupt workflow. The fully electric design eliminates fuel storage needs but demands access to power sources between sessions.
This mower suits homeowners with medium to large yards who value quiet, emission-free operation and reduced maintenance. Those seeking expandable battery capacity for bigger areas will find the EGO Power+ TR4204 a strong long-term investment in cordless lawn care.
Pros
- High-efficiency brushless motors maximize power output and durability over traditional motors
- Up to 2 acres runtime with three included 10.0 Ah batteries supports substantial mowing sessions
- Zero-emission operation with gas-equivalent 20 HP power for quieter environmentally friendly use
- Six-port auto-switchover battery system provides flexible extended runtime options
- Durable 42-inch steel deck plus included mulch and towing kits add immediate functionality
Cons
- Runtime is limited to approximately 70 minutes or 2 acres which may require recharging for larger properties
- Fully battery-dependent design means performance relies on charge levels and spare battery availability
- 42-inch deck size may require more passes on expansive lawns compared to wider commercial models
The PRORUN PZT60V42 is a fully electric 60V zero-turn riding lawn mower built for residential and light commercial use. Its primary design centers on a robust 42-inch 14-gauge stamped steel twin blade deck powered by direct-drive brushless motors, giving an immediate impression of solid construction and modern battery-focused engineering. The mower arrives complete with three 10.0 Ah batteries, a charger, mulch kit, and towing kit for ready-to-work versatility.
In performance terms, four high-efficiency brushless motors deliver power equivalent to a 20 HP gas engine while producing zero emissions. The system supports up to 2.0 acres or 70 minutes of runtime, and six battery ports with auto switchover intelligently manage all PRORUN 60V battery sizes for continuous operation. A washout port on the steel deck further simplifies post-mow maintenance during real-world sessions.
Potential drawbacks include the finite 70-minute runtime window which can limit coverage on larger properties without spare batteries or recharge breaks. As a fully electric model, it also depends entirely on battery charge levels rather than continuous fuel refills, and the 42-inch deck width may demand extra passes compared with wider traditional options.
Overall the PRORUN PZT60V42 offers strong value for homeowners and small-property managers who want gas-like cutting power without emissions or noise. Those with medium-sized lawns seeking quiet efficient zero-turn performance and included accessories will benefit most from this electric mower.
Pros
- Strong 24HP FR730 engine power for demanding cutting conditions
- Wide 54-inch FAB deck reduces total mowing time
- Zero turn design delivers excellent maneuverability
- Fabricated deck supports durable everyday operation
Cons
- Sparse details beyond engine and deck leave other features unspecified
- Gas-powered FR730 engine needs regular fuel and maintenance
- Large 54-inch deck size may feel oversized on compact properties
The Husqvarna Z254F is a zero turn mower from the established Husqvarna brand in the riding lawn mowers category. It centers on a solid build that pairs a 24HP 726cc FR730 engine with a 54-inch FAB deck for straightforward residential grass care.
Performance stems directly from the listed specifications. The FR730 engine delivers the horsepower needed for steady operation across typical lawns while the wide FAB deck completes passes efficiently. Zero turn handling improves control in real yard layouts based on the model design.
Considerations arise from the limited data available. Secondary elements such as comfort features fuel capacity or extras receive no mention and the gas engine format involves routine upkeep. The large deck suits open areas better than confined spaces.
The Husqvarna Z254F provides the most value for owners of medium or large properties who want reliable engine power and a broad cutting width. Users with smaller lots or those seeking extensive accessory options should weigh the core specs carefully before purchase.

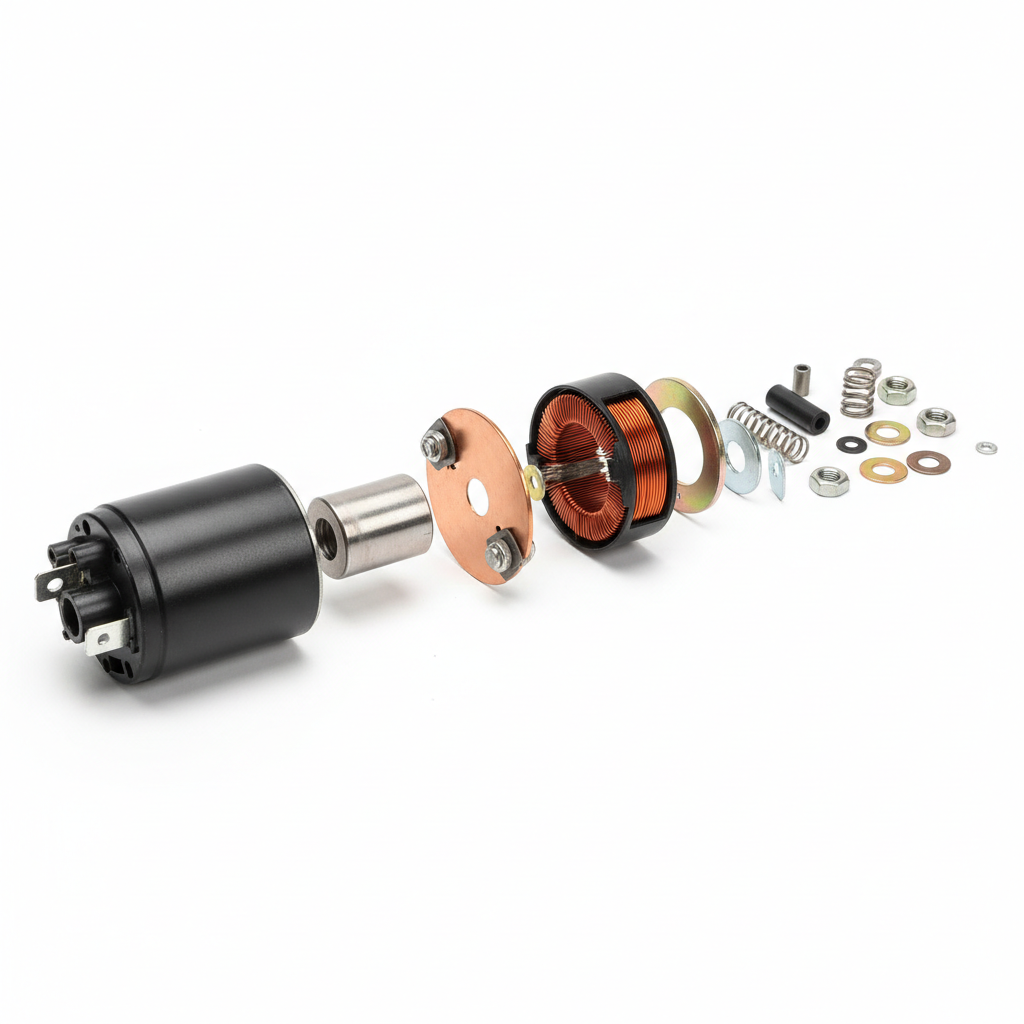

What Is a Lawn Mower Solenoid and What Does It Do?
The starter solenoid is an electromagnetic switch mounted between the battery and the starter motor. When the ignition key turns to the start position, low-amperage current from the ignition circuit energizes the solenoid coil, which closes an internal set of contacts and sends high-amperage current directly to the starter motor. Without a functioning solenoid, that high-current path never completes and the engine never cranks.
This article covers the starter solenoid exclusively. Two other solenoid types exist on some mowers and are not the same component: For additional operational safety benchmarks, see our published testing notes on jbl partybox club 120 vs sony srs xv500.
- Fuel solenoid (anti-afterfire solenoid): Sits on the carburetor and cuts fuel when the ignition is switched off. Symptoms of failure are engine runs rough or dies — not a no-crank condition.
- PTO solenoid: Engages the blade clutch on riding mowers. Failure causes the blades to stop engaging, not a starting problem.
Riding mowers are the dominant use case — the solenoid is typically bolted to the firewall, frame rail near the battery, or starter motor bracket. Push mowers with electric start and zero-turn mowers use the same electrical principle but differ in solenoid location and access; those variants are addressed in their own section below. For additional operational safety benchmarks, see our published testing notes on jbl partybox club 120 vs sony srs xv500.
Symptoms That Suggest a Bad Solenoid (Before You Test)
Run through this checklist before testing. If one or more symptoms match and the battery is confirmed fully charged, a solenoid test is the correct next step. To compare alternative configurations, check our hands-on review of z890 vs x870e motherboard.
- Single loud click when the key turns: The coil is energizing but the internal contacts are not closing properly.
- Rapid clicking (chatter): The solenoid contacts are closing and opening repeatedly because voltage drops the moment current is drawn — often a weak battery, but a high-resistance solenoid can cause the same pattern.
- No sound at all, no crank: The solenoid coil is open, or no voltage is reaching the solenoid (check ignition switch and safety interlock switches first).
- Solenoid body hot to the touch after a start attempt: Excessive coil resistance or internal short is dissipating current as heat.
- Starter motor does not engage despite a fully charged battery: Classic sign of a failed solenoid contact set.
Overlapping symptoms to rule out first: A dead or heavily sulfated battery produces identical click symptoms. Charge or load-test the battery before condemning the solenoid. A seized starter motor will also prevent cranking even when the solenoid is functioning correctly.
Safety Precautions and Tools Needed Before Testing
Follow these steps every time, in order: To compare alternative configurations, check our hands-on review of z890 vs x870e motherboard.
- Park on a flat, hard surface and set the parking brake.
- Chock the rear wheels.
- Disconnect the spark plug wire(s) to eliminate any ignition risk during bypass testing.
- Wear insulated gloves when handling battery terminals or jumper wires near live circuits.
- Keep the fuel cap tight and avoid open flames near the fuel tank.
Tool paths:
| Test | Tool Required | Multimeter Setting |
|---|---|---|
| Bypass test | Insulated jumper wire (10–12 AWG) | None |
| Resistance / continuity test | Digital multimeter | Ohms (Ω) |
| Voltage-drop test | Digital multimeter | DC Volts (V DC) |
Test 1: The Jumper Wire Bypass Test (No Multimeter Required)
This is the fastest test and gives an immediate pass/fail result. Perform it first. Users looking for related component recommendations can explore our marshall stanmore iii vs harman kardon onyx studio 8 breakdown.
Steps
- Locate the solenoid. On most riding mowers it sits near the battery, on the firewall, or bolted to the starter motor bracket. It will have two large (thick-gauge) terminals and two small terminals.
- Turn the ignition OFF and remove the key. The spark plug wire should already be disconnected per the safety steps above.
- Identify the two large terminals. These carry main battery and starter current — they are the terminals the heavy red cable from the battery and the heavy cable to the starter motor connect to.
- Bridge the two large terminals with the insulated jumper wire. Touch one end to each large terminal simultaneously. Do not contact the small terminals or the solenoid body.
- Observe the starter motor.
Pass/Fail Criteria — Bypass Test
| Result | What It Means | Next Action |
|---|---|---|
| Starter motor cranks immediately | FAIL — solenoid is bad. Current flows freely when bypassed but the solenoid’s internal contacts are not closing on their own. | Replace the solenoid. |
| No crank, no click | PASS — solenoid contacts are not the problem. Fault likely in starter motor, wiring, or the battery itself. | Test the starter motor and battery next. |
Zero-turn mower note: The solenoid is typically mounted behind or beneath the seat panel. Remove the seat or access panel before attempting this test. The terminal layout and test procedure are identical.
Test 2: Multimeter Resistance (Continuity) Test
This test checks the health of the solenoid’s internal electromagnetic coil. It does not test the main contacts, so always use it alongside Test 1 or Test 3 for a complete diagnosis. Before finalizing equipment decisions, refer to our comprehensive dyson v8 cyclone vs bissell featherweight stick comparison.
Steps
- Disconnect the solenoid from the mower. Remove both large-terminal cables and the two small-terminal wires. Label them before removal.
- Set the multimeter to ohms (Ω).
- Touch the multimeter probes to the two small terminals (coil/trigger terminals) — not the large terminals.
- Read the resistance.
Pass/Fail Criteria — Resistance Test
| Reading | Interpretation | Action |
|---|---|---|
| 0.4 – 4 ohms | PASS — coil is healthy. | Proceed to Test 3 to check contacts. |
| OL / ∞ (open loop) | FAIL — coil is open-circuited. No current will flow; solenoid cannot energize. | Replace solenoid. |
| 0 ohms or near 0 | FAIL — coil is shorted. Will draw excessive current and overheat. | Replace solenoid. |
Why this test is insufficient on its own: A coil can measure within spec while the internal contact surfaces are pitted, corroded, or welded shut. Those contact failures are what the voltage-drop test catches.
Test 3: Voltage-Drop Test (Most Accurate In-Circuit Test)
The voltage-drop test is the method used by professional technicians because it replicates real operating conditions with full load current flowing. It catches contact resistance that the ohms test cannot detect. For broader ecosystem context, read through our operational guide on bissell crosswave hydrosteam vs shark stainforce.
Steps
- Reconnect the solenoid to the mower (all terminals back in place). Reconnect the spark plug wire for this test since the engine must attempt to crank.
- Set the multimeter to DC Volts (V DC).
- Connect the red probe to the large battery-side terminal of the solenoid and the black probe to the large starter-side terminal.
- Have a helper turn the ignition key to the START position while you read the meter. Hold for no more than 5 seconds per attempt to protect the starter motor.
- Read the voltage drop.
Pass/Fail Criteria — Voltage-Drop Test
| Voltage Drop Reading | Interpretation | Action |
|---|---|---|
| Less than 0.5 V | PASS — solenoid contacts are good. Minimal resistance across the main current path. | Look elsewhere for the fault (starter motor, wiring, battery). |
| 0.5 V or more | FAIL — excessive contact resistance. The solenoid is robbing voltage that the starter motor needs. | Replace solenoid. |
Why voltage drop beats a simple continuity check: Contact resistance only becomes measurable under load. A solenoid contact set with light pitting may read nearly 0 ohms on a bench test but drop a full volt under the 50–200 A draw of a starter motor, leaving the starter starved of power.
How to Test a Solenoid on a Push Mower or Zero-Turn Mower
Push Mower with Electric Start
Push mowers equipped with electric start use a smaller solenoid — sometimes integrated inline on the wiring harness rather than bracket-mounted. The bypass and multimeter tests apply identically; the only difference is access:
- Trace the positive battery cable from the battery toward the starter motor — the solenoid will be in-line along that cable run.
- On some models the solenoid is a sealed cylinder with no exposed terminals; in that case, a voltage-drop test in-circuit is the only practical method without cutting the harness.
- Coil resistance specifications (0.4–4 ohms) and voltage-drop thresholds (under 0.5 V) remain the same.
Zero-Turn Mower
- The solenoid is typically located under or behind the seat, mounted on the frame near the battery compartment. Remove the seat or access panel to reach it.
- Some zero-turn models use a relay instead of a traditional cylindrical solenoid — identifiable by its rectangular plug-in body and four or five blade terminals rather than two large bolt terminals. A relay is tested by swapping it with an identical relay of known good condition, or by applying 12 V directly to the coil pins and listening for a click.
- Terminal layout on a zero-turn solenoid is the same as a riding mower; all three tests apply without modification.
Replace or Repair? Decision Tree After Testing
Starter solenoids are sealed, non-serviceable components — internal contacts and coil windings cannot be accessed or adjusted in the field. Replacement is always the correct action when a solenoid fails any test. Attempting to clean or shim internal contacts risks worse electrical failures and voids any parts warranty.
Solenoid Replacement Cost
Replacement solenoids for riding mowers cost $10–$30 at hardware stores, tractor supply retailers, and online. OEM parts from the mower manufacturer cost slightly more but guarantee fitment.
How to Match a Replacement Solenoid
- Terminal count: Match the number of large terminals (usually 2) and small terminals (usually 2; some have 3 if a ground terminal is present).
- Voltage rating: Virtually all residential mower solenoids are 12 V; confirm on the old solenoid’s label.
- Mounting pattern: Match the bracket holes or strap configuration to the original mount point.
- Cross-reference by mower model number rather than by solenoid appearance alone — use the mower’s deck or frame plate model number when ordering.
What If Replacing the Solenoid Doesn’t Fix the Problem?
If a new solenoid produces the same symptom, the fault is upstream or downstream of the solenoid:
- Ignition switch: No voltage reaching the small solenoid terminals when the key turns = failed ignition switch. Test with a multimeter on DC volts across the small terminals during a start attempt — should read battery voltage (12–12.6 V).
- Safety interlock switches: Riding mowers have seat, blade-engagement, and brake/clutch interlock switches that cut power to the solenoid circuit when open. A failed or misaligned interlock is a common misdiagnosis as a solenoid fault. Bypass each interlock switch in sequence (consult the mower’s wiring diagram) to isolate the offending switch.
- Wiring harness: Corroded connectors or broken wires between the battery, ignition switch, and solenoid cause the same no-crank symptoms. Inspect and probe each connector in the start circuit.
- Starter motor: If the solenoid passes all tests and a new solenoid makes no difference, bench-test the starter motor directly by applying 12 V to its terminal — if it doesn’t spin freely, the starter motor is seized or failed.
Common Questions on How To Test Solenoid On Lawn Mower Answered
What does a bad solenoid sound like on a lawn mower?
A bad solenoid typically produces one of two sounds: a single loud click each time the key is turned (contacts failing to close), or a rapid chattering or clicking (contacts bouncing open and shut under load). No sound at all — combined with a fully charged battery — points to an open coil or no voltage reaching the solenoid from the ignition circuit.
Can I permanently bypass the solenoid to keep mowing?
Bridging the solenoid terminals permanently is not safe and not recommended. The solenoid serves as a high-amperage protection switch — removing it means the full starter circuit is live whenever battery voltage is present, creating a fire and shock hazard. Replacement solenoids cost $10–$30 and take under 30 minutes to swap; bypass is not a viable long-term solution.
How many ohms should a lawn mower starter solenoid read?
A healthy solenoid coil reads 0.4–4 ohms across the two small (trigger) terminals. A reading of OL (open loop) means the coil is broken internally. A reading near 0 ohms means the coil is shorted. Either failure requires solenoid replacement.
How do I know if it’s the solenoid or the ignition switch that’s bad?
Set a multimeter to DC volts and probe the two small terminals on the solenoid while a helper turns the key to START. If you read battery voltage (12–12.6 V) at those terminals and the solenoid still does not click, the solenoid is bad. If you read 0 V or very low voltage, the ignition switch or a safety interlock switch upstream is preventing voltage from reaching the solenoid.
