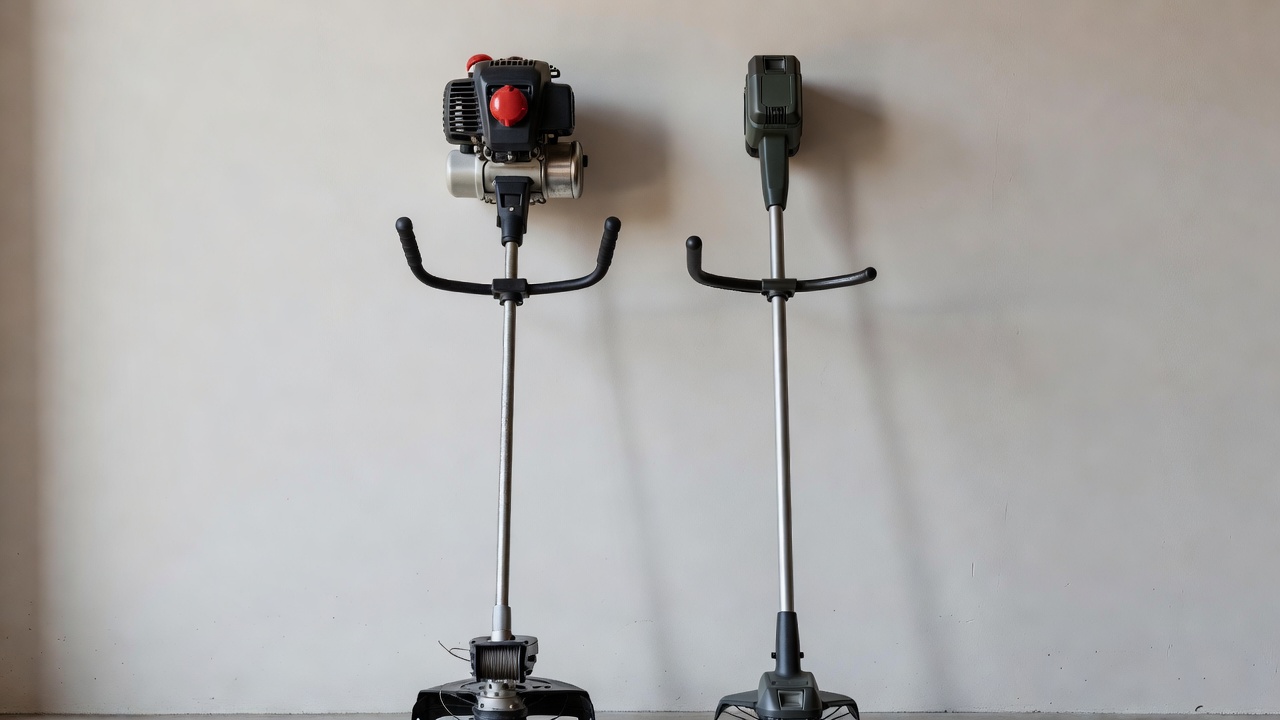

Identify Your Trimmer Type and the Wiring Task
The first step is determining what kind of string trimmer you have and what specific wiring problem you’re facing. Gas-powered weed eaters use a small engine with an ignition system that includes a spark plug wire, ignition coil, and kill switch. Electric trimmers either plug into a wall outlet or use a rechargeable battery, and their wiring concerns are different.
Ask yourself these questions: For broader ecosystem context, read through our operational guide on jbl partybox club 120 vs sony srs xv500.
- Does your trimmer use gasoline and have a spark plug, or does it plug into an outlet or use a rechargeable battery?
- What specific problem are you experiencing: the trimmer won’t start, won’t shut off, has a frayed cord, or something else?
- Can you see visible damage to any wires, or are you trying to reconnect a wire that came loose?
Common wiring issues on gas trimmers include a damaged spark plug wire that won’t deliver spark, a faulty kill switch that prevents the engine from shutting off, or corroded connections at the ignition coil. Electric trimmers more often need a replacement power cord or have loose internal connections. Knowing which problem you’re solving will guide you to the right repair steps. For broader ecosystem context, read through our operational guide on jbl partybox club 120 vs sony srs xv500.
Safety Preparation Before Any Wiring Work
Working on trimmer wiring involves real safety hazards. A gas trimmer’s ignition system can deliver a painful shock, and fuel vapors near the engine create a fire risk. Electric trimmers carry the danger of electric shock if you touch live wiring. Follow these non-negotiable safety steps before touching any wiring: For troubleshooting and reliability insights, consult our in-depth z890 vs x870e motherboard report.
- Gas trimmers: Remove the spark plug wire from the spark plug and ground it against the engine block. This prevents the engine from accidentally firing while you work. Empty the fuel tank or at minimum ensure no fuel is leaking near your work area.
- Electric/battery trimmers: Unplug the power cord from the outlet, or remove the battery pack entirely. Verify the trimmer cannot be turned on by pressing the trigger.
- For all models: Wear safety glasses. Work in a well-ventilated area, especially with gas trimmers where fuel vapors may be present. Keep a fire extinguisher nearby when working on gas-powered equipment.
These precautions may seem basic, but skipping them is how people get hurt. An engine that unexpectedly fires can cause cuts from the trimmer head, and electric shock from a corded trimmer can cause serious injury.
Locating Common Wiring Components on Gas Trimmers
On most gas string trimmers, the wiring system is relatively simple but components are tucked into tight spaces. Here’s where to find the key parts: For troubleshooting and reliability insights, consult our in-depth z890 vs x870e motherboard report.
Spark plug wire: This is the thick, insulated wire that runs from the ignition coil to the spark plug. On most trimmers, the spark plug is mounted on the side or top of the engine cylinder, and the wire connects to it with a rubber boot that pushes onto the spark plug terminal.
Ignition coil: The ignition coil is typically mounted near the flywheel (the finned wheel that spins when you pull the starter rope). It has two or more wires connecting to it, including the spark plug wire and wires leading to the kill switch. The coil generates the electrical pulse that fires the spark plug. Readers comparing setup options can review our technical analysis on marshall stanmore iii vs harman kardon onyx studio 8.
Kill switch wiring: The kill switch is usually mounted on the trimmer’s handle where you can reach it with your thumb. Two wires run from the kill switch down to the ignition coil. When you press the kill switch, it grounds the ignition signal and stops the engine.
Throttle cable and wiring: Some trimmers have electrical connections at the throttle trigger, especially models with electronic ignition or variable speed. These wires are usually small and run alongside the throttle cable through the trimmer shaft. For complementary field maintenance guidelines, examine our breakdown of dyson v8 cyclone vs bissell featherweight stick.
Before disconnecting anything, take clear photos of how everything is connected. This gives you a reference for reassembly and helps ensure you reconnect wires in the correct positions.
Testing Wiring Components Before Replacement
Before buying replacement parts, it’s worth confirming that a wiring component is actually faulty. Many starting problems that seem like wiring issues turn out to be something else entirely. To evaluate matched hardware tolerances, consult our detailed overview of bissell crosswave hydrosteam vs shark stainforce.
Visual inspection: Look for obvious signs of damage. Frayed or cracked insulation on wires, burn marks, corrosion on connectors, or loose terminals are all indicators of a problem. Pull gently on each wire connection to check for loose fits.
Spark plug wire testing: If you suspect the spark plug wire is bad, you can check for continuity using a multimeter set to the ohms setting. Disconnect the wire at both ends and touch one probe to each end. A good wire will show low resistance. However, for many small trimmer engines, obvious physical damage to the wire is sufficient evidence to warrant replacement without electrical testing.
Kill switch testing: To test whether the kill switch is working, disconnect its wires from the ignition coil and try to start the trimmer. If the trimmer now starts and runs normally (but won’t shut off with the switch since it’s disconnected), the kill switch or its wiring may be faulty. Reconnect the wires and press the switch while the engine runs to confirm it shuts off the engine.
Ignition coil connections: Check that all wires connecting to the ignition coil are secure and free of corrosion. Corroded connections can prevent the coil from receiving the signal to generate spark.
Keep in mind that these are general diagnostic steps. Your specific trimmer model may have additional components or different testing procedures outlined in its service manual.
Replacing a Damaged Spark Plug Wire
The spark plug wire is one of the most commonly replaced wiring components on gas trimmers. Over time, heat, vibration, and exposure to fuel can degrade the wire’s insulation, leading to misfires or a no-start condition.
What you’ll need: Replacement spark plug wire (cut to length from a small-engine wire roll, or a pre-cut wire with boot), wire strippers, crimp connectors, dielectric grease, and optionally a wire crimper tool.
Step-by-step process:
- Disconnect the old spark plug wire from both the spark plug and the ignition coil. Note how the wire is routed away from hot engine parts and moving components.
- If the wire connects to the coil with a crimp terminal, use wire cutters to remove the old terminal. If it slides onto a post, simply pull it off.
- Cut your replacement wire to the same length as the old one. It’s better to have it slightly long than too short.
- Strip about a half inch of insulation from the end that connects to the ignition coil.
- Crimp on a new connector that matches the terminal on your ignition coil. A solid crimp ensures a reliable electrical connection.
- Apply a thin layer of dielectric grease inside the spark plug boot before pushing it onto the spark plug. Dielectric grease prevents corrosion, seals out moisture, and makes future removal easier.
- Route the new wire along the same path as the old one, keeping it away from the exhaust muffler and any moving parts.
- Push the spark plug boot firmly onto the spark plug terminal until it clicks into place.
Crimp connectors are the standard method for spark plug wire repairs on small engines. While soldering is sometimes used in other applications, it’s generally not necessary for this type of repair and can actually make the connection more brittle in a high-vibration environment like a trimmer engine.
Replacing or Repairing Kill Switch Wiring
The kill switch is a safety-critical component. If its wiring is damaged or connected incorrectly, the trimmer may not be able to shut off, creating a dangerous situation. Take this repair seriously.
Accessing the kill switch: On most trimmers, the kill switch is mounted on the upper handle. You may need to remove a cover or split the handle housing to access the wiring connections. Again, photograph everything before disconnecting wires.
Common kill switch wiring problems: Wires can break where they flex at the handle, connections can corrode, or the switch itself can fail. If the wire is broken but the switch tests good, you can often repair it by cutting out the damaged section and using crimp connectors to splice in a new piece of wire of the same gauge.
Testing after repair: After reconnecting kill switch wiring, test the switch before putting everything back together. Reconnect the spark plug wire, start the engine, and immediately press the kill switch. The engine should shut off within a second or two. If it doesn’t, double-check your wiring connections.
When to replace the whole switch: If the switch itself feels loose, doesn’t click firmly, or shows signs of internal damage, replace the entire kill switch assembly rather than just the wiring. A faulty switch can fail at the worst time.
Incorrect kill switch wiring is one of the more dangerous mistakes in trimmer repair. If you’re unsure about the wiring configuration, consult your trimmer’s service manual or take it to a qualified technician.
Addressing Electric and Battery Trimmer Wiring
Electric trimmers have different wiring concerns than gas models. Corded electric trimmers may need a replacement power cord, while battery-powered models can develop loose connections inside the housing.
Corded electric trimmers: If the power cord is frayed, cut, or has exposed wires, it should be replaced immediately. For simple cord replacement where the cord enters the trimmer housing, you can often disconnect the old cord and connect a new one using the same terminals. Use a replacement cord of the same gauge and type as the original. However, if the damage is inside the trimmer housing or involves the motor connections, professional repair is strongly recommended due to electric shock risk.
Battery-powered trimmers: These are generally more reliable in terms of wiring since there’s no cord to damage. Common issues include loose battery terminal connections or damaged wiring inside the handle where the trigger switch connects. If you’re comfortable opening the trimmer housing, check that all internal wire connections are secure. If you find damaged wiring inside the housing, consider professional repair, as battery systems can deliver significant current.
For both types of electric trimmers, never attempt repairs on live wiring. Always ensure the power source is completely disconnected before opening any housing or touching any wires.
Testing Your Repair Before Reassembly
Before you put all the covers back on and call the job done, run through these checks:
- Visual check: Confirm all wires are properly connected and seated. No bare wire should be exposed. Wires should be routed away from heat sources, sharp edges, and moving parts.
- Connection check: Gently tug on each wire connection to verify it’s secure. Loose connections will vibrate apart during use.
- Kill switch test (gas trimmers): Reconnect the spark plug wire, start the engine, and verify the kill switch shuts it off reliably.
- Function test: Run the trimmer for a minute or two at normal operating speed. Listen for any misfires, sputtering, or unusual behavior that might indicate a wiring problem.
- Post-run inspection: After running the trimmer, check that no wires have shifted into contact with hot or moving components.
If the trimmer still won’t start after a wiring repair, the problem may not be wiring-related. Other common causes include a fouled spark plug, fuel delivery issues, or a clogged carburetor. At this point, further diagnosis may require tools and knowledge beyond basic wiring repair.
When to Consult a Professional or Service Manual
Not every wiring repair is a good DIY project. Consider professional help if:
- You’re uncertain about any step in the process
- The wiring problem involves the ignition coil itself (not just the wires connecting to it)
- You have an electric trimmer with internal wiring damage
- The kill switch wiring configuration isn’t clear from visual inspection
- The trimmer still won’t start after you’ve addressed the wiring
Your trimmer’s service manual is an invaluable resource for wiring repairs. It contains model-specific wiring diagrams, component specifications, and testing procedures that general guides can’t provide. If you don’t have the original manual, many manufacturers offer digital versions on their websites, or you can often find them through small engine parts suppliers.
Wiring repairs on string trimmers are generally straightforward for someone with basic mechanical skills and a careful approach. The key is working methodically, taking photos before disconnecting anything, and never rushing through safety steps. When in doubt, a qualified small engine technician can diagnose and repair wiring issues quickly and safely.
