To wrap weed eater cord, first disconnect the spark plug wire on a gas trimmer or remove the battery from an electric model. Open the trimmer head, remove the spool, and clear away any old line. Cut a fresh piece of the correct gauge—roughly 15 to 25 feet for most bump-feed spools—and insert one end into the anchor hole on the spool. Wind the line evenly under light tension, following the direction of the arrow printed on the spool, and avoid crossing or overlapping the wraps. Hook the loose ends into the spool notches, thread them through the eyelets, reassemble the head, and test the feed before running the trimmer.
How to Wrap Weed Eater Cord: The Short Answer
Wrapping weed eater cord, also known as trimmer line, onto a spool is a straightforward process once you understand the sequence. The general steps are: remove old line from the spool, cut a fresh length of the correct line gauge, anchor one end to the spool, wind it evenly in the direction indicated by the arrow on the spool, secure the ends in the notches, thread them through the eyelets, and reassemble the trimmer head.
The amount of line you need depends on your spool size, but most bump-feed spools hold roughly 15 to 25 feet. Winding direction is not universal—it varies by brand and model, so always follow the arrow printed on the spool rather than assuming clockwise or counterclockwise. Keeping the wraps neat and under light tension prevents the line from crossing or overlapping, which is the most common cause of jams and tangles.
Before You Start: Safety and Preparation
Before you touch the trimmer head, take a moment to prevent accidental starting. For gas-powered trimmers, disconnect the spark plug wire by pulling the boot off the spark plug. For electric or battery-powered trimmers, remove the battery or unplug the unit from the power source. This simple step eliminates the risk of the trimmer starting while your hands are near the cutting head.
Wear eye protection and gloves while working on the head. Trimmer line can spring loose unexpectedly, and debris may be trapped inside the spool housing. Eye protection shields against flying fragments, and gloves protect your hands from the sharp edges of the line and from any accumulated grass or debris.
If the trimmer has been used recently, allow the engine or motor to cool before handling the head. A hot exhaust or motor housing can cause burns. Once the trimmer is powered down and cool, find a clean, flat workspace where you can set the parts down without losing small components.
What You Need: Line Gauge, Tools, and How Much to Cut
Before you begin, confirm that you have the correct line diameter for your trimmer. Using line that is too thick can damage the trimmer head or prevent it from feeding properly, while line that is too thin may break frequently and reduce cutting performance. Check your owner’s manual for the recommended line gauge, or measure the diameter of the old line still on the spool. Common line gauges range from 0.065 to 0.095 inches, though some heavy-duty models accept thicker line.
The amount of line a spool holds varies by model. For most standard bump-feed spools, roughly 15 to 25 feet of line is typical. If you are unsure, consult your owner’s manual or look for a capacity marking on the spool itself. Cutting too much line can lead to overfilling, which causes jamming and poor line feed. Cutting too little means you will need to repeat the process sooner than necessary.
Most trimmer heads can be opened by hand without tools. Some models may require a screwdriver or a specific tool to release the spool or open the head housing. Check your trimmer’s design before starting so you have the right tool on hand. In addition to the trimmer line and any needed tools, keep a pair of scissors or line cutters nearby to trim the line ends cleanly.

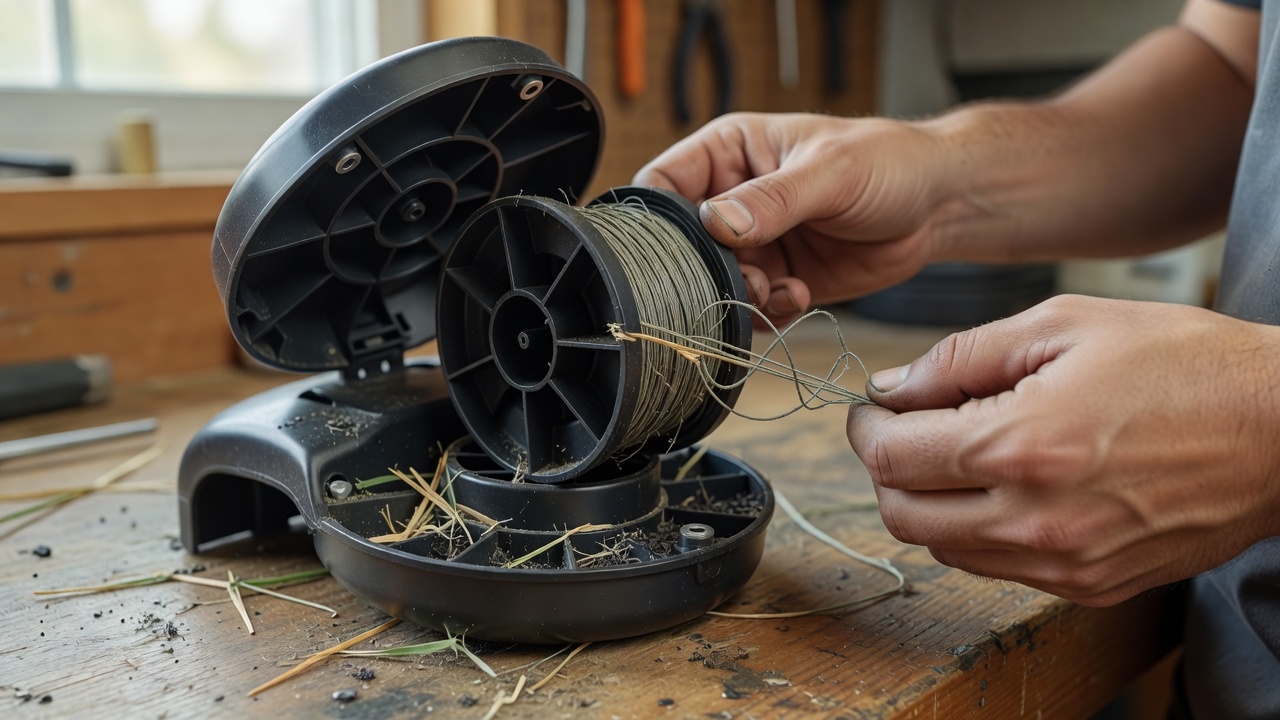

Step 1: Remove the Old Line from the Spool
Open the trimmer head to access the spool. The exact method varies by design—some heads have release tabs you press, others twist off, and some use a snap-fit cap. Refer to your trimmer’s design to determine how the head opens. Once the head is open, lift the spool out of the housing.
If there is still line wound on the spool, unwind it by hand or cut it away with scissors. Remove any broken pieces of line that may be stuck in the spool or housing. Clear away grass clippings, dirt, and debris from the spool and the inside of the trimmer head. A clean spool ensures the new line winds smoothly and feeds without obstruction.
Inspect the spool for cracks or damage. If the spool is worn, warped, or the anchor hole is damaged, consider replacing the spool rather than rewinding it. A damaged spool can cause the line to bind or feed unevenly.
Step 2: Wind the Line onto the Spool
Cut a fresh piece of trimmer line to the appropriate length for your spool. For most bump-feed spools, this is roughly 15 to 25 feet, but check your manual or the spool markings for the exact capacity. Cutting the line end at a slight angle can make it easier to thread through the anchor hole and eyelets later.
Find the anchor hole or slot on the spool. This is typically a small hole or a molded slot near the center of the spool where the line begins. Insert one end of the line into the anchor hole and pull it through until it catches. Some spools have a hook or a tab that holds the line in place; others rely on friction or a simple loop-through design.
Begin winding the line onto the spool in the direction indicated by the arrow printed on the spool. This arrow is the most reliable guide for winding direction, because it varies by brand and model. Some spools wind clockwise, others counterclockwise—there is no universal rule. If the arrow is worn or difficult to read, check your owner’s manual or observe the direction the head rotates during operation.
Keep light but steady tension on the line as you wind. The wraps should lay in neat, even rows without crossing or overlapping. Crossing or overlapping wraps are the primary cause of line tangles and jams. Wind the line in a single direction, layering each wrap next to the previous one rather than on top of it. If the spool has a divider or guide channels, use them to keep the line organized.
Avoid overfilling the spool. Leave a small gap between the outermost wraps and the edge of the spool flanges. Overfilling can cause the line to bind against the housing, preventing it from feeding properly. If you are unsure whether the spool is full enough, err on the side of slightly less line rather than more.
Step 3: Seat the Line, Thread the Eyelets, and Reassemble the Head
Once the line is wound onto the spool, hook the two loose ends into the notches on the spool flanges. These notches hold the line in place and prevent it from unwinding while you reassemble the head. The notches are typically located on the outer edge of the spool flanges, opposite each other.
Thread the line ends through the eyelets on the trimmer head. The eyelets are the small holes or metal-lined openings on the sides of the head housing where the line exits during operation. Pull the line through each eyelet until the spool seats fully into the head. Keeping the line taut while you do this helps prevent it from slipping out of the anchor hole or crossing over itself.
With the line threaded through the eyelets and the spool seated in the housing, reassemble the trimmer head. Snap or screw the head back together according to its design. Make sure the spool rotates freely and the line moves without binding. If the head does not close properly, check that the line is not caught between the spool and the housing.
Step 4: Test the Line Feed
Before returning to cutting, test the line feed to confirm the wrap was successful. Tug each line end by hand to make sure it pulls out smoothly without catching or binding. For bump-feed heads, start the trimmer and tap the head on the ground while it runs at operating speed. The line should advance with each tap, extending to the cutting length and then stopping.
A properly loaded spool releases line without jamming, tangling, or bird-nesting. If the line does not feed, turn off the trimmer and inspect the spool. Common issues include crossed or overlapping wraps, overfilling, or the line not being seated correctly in the anchor hole. Reopening the head and rechecking the winding usually resolves the problem.
If the line feeds but seems to advance unevenly or intermittently, check that the line ends are threaded through the eyelets correctly and that the spool rotates freely within the head. Debris or a misaligned spool can cause uneven feed.
Which Direction Should You Wind? Follow the Arrow
Winding direction is one of the most confusing aspects of wrapping trimmer line, because it is not the same across all brands and models. Some spools wind clockwise, others counterclockwise, and there is no single standard. The arrow printed on the spool is the authoritative guide for your specific trimmer.
If the arrow on your spool is worn off or difficult to read, there are a couple of ways to determine the correct direction. Check your owner’s manual, which should include a diagram or description of the winding direction. Alternatively, observe the direction the trimmer head rotates during operation. The line should wind onto the spool in the same direction that the head spins, so that centrifugal force helps the line feed outward rather than pulling it inward.
Winding in the wrong direction will not necessarily prevent the trimmer from working, but it can cause the line to feed poorly, tangle more easily, or wear unevenly. Taking a moment to confirm the correct direction before you start winding saves time and frustration later.
Skip Hand-Winding: Pre-Wound Spools, Quick-Load Heads, and Fixed-Line Heads
Hand-winding trimmer line is not the only option. Many trimmers are compatible with pre-wound drop-in spools that come already loaded with line. These spools are installed as a complete unit—you remove the old spool, drop in the new one, and reassemble the head. Pre-wound spools are a convenient time-saver, especially for users who find hand-winding tedious or difficult. Check your trimmer’s compatibility before purchasing a pre-wound spool, as not all spools fit all heads.
Quick-load trimmer heads are another alternative. These heads are designed to let you thread line through the head and wind it automatically by rotating the spool or a winding mechanism. Quick-load heads eliminate the need to manually wind line onto a separate spool, making the reloading process faster and more straightforward.
Fixed-line heads take a different approach entirely. Instead of using a wound spool, fixed-line heads accept short, precut segments of trimmer line. You insert the line segments into the head, and they are held in place by clamps or slots. Fixed-line heads are common on commercial-grade trimmers and are valued for their simplicity and durability, though they require you to replace individual line segments rather than rewinding a spool.
Troubleshooting: Why Line Tangles, Jams, or Won’t Feed
If your line tangles or forms a bird’s-nest inside the head, the most likely cause is crossed or overlapping wraps on the spool. Reopen the head, unwind the line, and rewind it carefully in neat, even rows. Overfilling the spool can also cause tangling—make sure you are not using more line than the spool is designed to hold.
If the line will not feed out of the head, check the winding direction. Winding in the wrong direction can prevent the line from advancing properly. Also verify that the line ends are threaded through the eyelets and that the spool is seated correctly in the housing. A misaligned spool or a line that is caught on the housing can block the feed mechanism.
Using the wrong line gauge can cause a range of problems. Line that is too thick may not fit through the eyelets or may jam inside the spool. Line that is too thin may break frequently or fail to engage the feed mechanism properly. Always use the line diameter recommended for your trimmer model.
If the line advances but retracts unevenly or seems to stick, check for debris inside the head. Grass clippings, dirt, and other debris can accumulate in the spool housing and interfere with the line feed. Cleaning the head thoroughly during each line replacement helps prevent this issue.
Common Mistakes to Avoid When Wrapping Trimmer Line
Avoid these common pitfalls to keep your trimmer line feeding smoothly:
- Overfilling the spool. Too much line causes jamming and poor feed. Leave a small gap between the outermost wraps and the edge of the spool flanges.
- Winding in the wrong direction. Always follow the arrow on the spool. Winding against the indicated direction can cause the line to feed poorly.
- Letting line cross or overlap. Neat, even wraps prevent tangles. Take your time and keep the line under light tension as you wind.
- Using the wrong line gauge. Check your manual or the old line for the correct diameter. The wrong gauge can damage the head or reduce performance.
- Skip the power disconnect. Always disconnect the spark plug wire or remove the battery before working on the trimmer head. This prevents accidental starting.
By following the steps outlined in this guide and paying attention to the details—winding direction, line tension, spool capacity, and proper reassembly—you can wrap weed eater cord efficiently and keep your trimmer running smoothly. Whether you choose to hand-wind, use a pre-wound spool, or switch to a quick-load or fixed-line head, the goal is the same: reliable line feed that lets you focus on the job at hand.
