The most common socket sizes for lawn mower spark plugs are 5/8 inch (16mm) and 13/16 inch (21mm), with 5/8 inch being the most widely used across popular brands like Briggs & Stratton. However, the exact size depends on your engine manufacturer and model—Honda and Kohler engines often require 13/16 inch. Before purchasing a socket, verify the correct size for your specific mower by checking the owner’s manual or examining the hex on your current spark plug.

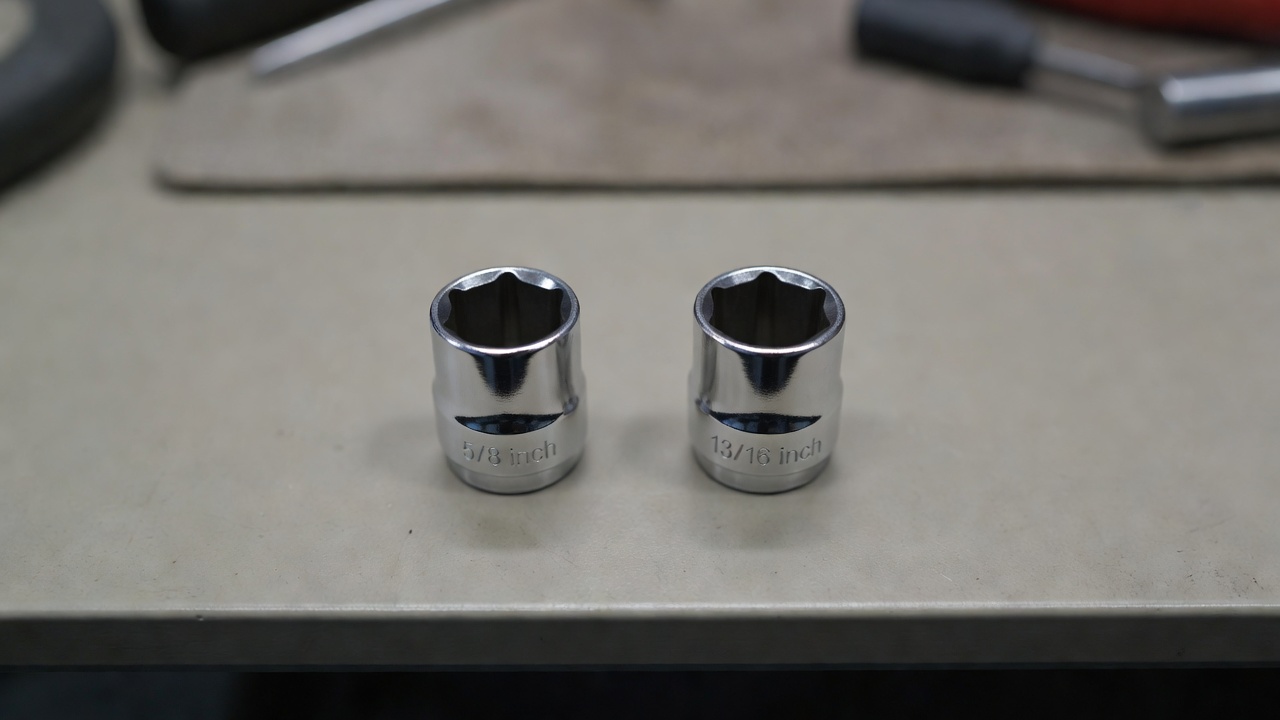

Most Common Socket Sizes for Lawn Mower Spark Plugs
Lawn mower spark plugs don’t use unique socket sizes—they rely on standard hex measurements that you’ll find across automotive and small equipment applications. The two dominant sizes encountered in lawn mower maintenance are 5/8 inch and 13/16 inch.
The 5/8 inch socket (16mm metric equivalent) is the most frequently encountered size, particularly in engines manufactured by Briggs & Stratton, which powers a significant portion of residential lawn mowers. This size is straightforward to find at any hardware store or online retailer, making it accessible for DIY maintenance.
The 13/16 inch socket (21mm metric equivalent) is the second most common size and typically appears in Honda, Kohler, and some Husqvarna lawn mower engines. While less universal than 5/8 inch, it’s still a standard size widely available in spark plug socket kits.
Occasionally, you may encounter other sizes like 3/4 inch on older or specialty engines, but these are less common in modern residential lawn mowers. The variation exists because different engine manufacturers designed their spark plug wells and electrical systems to accommodate different plug styles and heat ranges.
How to Determine the Correct Size for Your Mower
Rather than guessing, take one of these straightforward approaches to identify your mower’s spark plug socket size:
Check the Current Spark Plug
The easiest method is to look at the spark plug already installed in your mower. The hex size—the wrench-turning surface at the base of the plug—is typically stamped or embossed on the metal shell. Remove the ignition wire (the boot that connects to the top of the plug) and examine the hex portion closely. You’ll often see markings like “5/8” or “13/16” printed directly on the plug body. If markings aren’t visible, you can measure the hex width with calipers or a ruler, or remove the old plug and take it to a hardware store for visual comparison.
Consult Your Owner’s Manual
Your mower’s owner’s manual is the authoritative source for all specifications, including spark plug size. Check the maintenance or parts section for spark plug recommendations. The manual will list the exact model number and size required, eliminating guesswork. If you’ve lost the physical manual, most manufacturers post PDFs online searchable by mower model number (typically found on the engine or frame).
Contact the Manufacturer
If you can’t locate the manual or read the old plug clearly, contact the engine or mower manufacturer directly with your model number. Customer service representatives can confirm the socket size in seconds.
Spark Plug Socket vs. Standard Deep Socket
While a standard deep socket might physically fit a spark plug hex, a dedicated spark plug socket is the better choice for lawn mower maintenance—and here’s why.
Spark plug sockets are purpose-built with an interior rubber or magnetic insert. The rubber insert grips the porcelain insulator of the spark plug, holding it securely during removal and installation. This design prevents the plug from spinning freely inside the socket or slipping out unexpectedly. The insert also protects the delicate porcelain insulator from cracking if the socket is dropped or bumped.
A standard deep socket, by contrast, contacts only the hex—the metal portion at the base of the plug. Without the gripping insert, the plug can rotate inside the socket, making controlled extraction difficult. More importantly, if you apply too much force or the socket slips, the torque transmits directly to the porcelain, which can crack or shatter. A cracked insulator creates a pathway for spark leakage and renders the plug unusable.
Spark plug sockets are inexpensive (typically $5–15 USD) and widely available in sets or individually. For the small investment, the added safety and control make them the standard choice for this maintenance task. If you only have a standard deep socket available, you can use it carefully in a pinch—proceed slowly, keep pressure steady and even, and avoid sudden movements.
Why Using the Correct Size Matters
Selecting the correct socket size prevents damage to the spark plug and ensures reliable engine operation:
Hex stripping: An undersized socket may not grip the plug’s hex securely. Applying rotational force on a loose fit rounds off the hex corners, making the plug impossible to remove with standard sockets. A spark plug with a stripped hex often requires professional removal or replacement before the engine can run again.
Porcelain cracking: An oversized socket creates gaps around the hex, causing unstable contact. If the socket shifts or slips during turning, the torque concentrates on the delicate porcelain insulator instead of the metal base, leading to cracks or chips. Damaged porcelain can’t maintain proper electrical insulation, resulting in misfires or engine shutdown.
Cross-threading: If the socket doesn’t fit snugly, you may inadvertently angle it slightly as you remove or install the plug. This can cross-thread the plug in its well, causing the threads to bind or strip. A cross-threaded plug seals poorly and may come loose during operation.
Taking 30 seconds to verify the correct socket size prevents these frustrations and keeps your maintenance straightforward.
Tips for Removing and Installing Lawn Mower Spark Plugs
Once you have the correct socket, these practical steps ensure safe and successful spark plug service:
Let the engine cool. Spark plugs retain heat even after the engine shuts off. Give the mower at least 15–30 minutes to cool before touching the spark plug to avoid burns.
Disconnect the ignition wire. Before removing the spark plug, grip the rubber boot (not the wire itself) and twist gently to disconnect it from the top of the plug. This prevents accidental grounding of the electrode and protects the wire connection.
Hand-thread first. When installing a new spark plug, thread it by hand for the first 2–3 rotations before applying the wrench or socket. This alignment technique prevents cross-threading, which can damage the threaded hole in the engine and create a leak path.
Snug but don’t overtighten. Spark plugs seal against a tapered seat; they don’t require extreme force. Once the plug is seated, tighten it firmly—snug enough that it won’t vibrate loose, but not so forcefully that you crack the porcelain or strip the threads. If you don’t have a torque wrench, use firm hand pressure with the wrench; if the plug feels resistant, stop.
Reconnect the wire securely. Push the ignition wire boot back onto the spark plug terminal firmly. You should feel or hear a subtle click as it seats. A loose connection results in weak spark and rough running.
Check your work. After installation and reconnection, pull the wire boot off and push it back on once more to confirm a tight fit. A properly seated connection resists pulling with gentle pressure.
Following these steps ensures that your spark plug replacement is reliable and that your lawn mower runs smoothly. If you encounter stubborn or seized plugs, stripped hex surfaces, or other complications, consult your owner’s manual or consider seeking help from a lawn equipment service center.
