To repair a self-propelled Toro lawn mower, start by diagnosing the drive system: check the drive cable tension, the drive belt, the rear wheels’ drive gear, and the transmission. Common fixes include adjusting or replacing the drive cable, replacing a worn or broken drive belt, cleaning or replacing the drive gear and pinion, and lubricating or replacing the transmission. Always disconnect the spark plug wire and ensure the mower is on a flat surface before any repair.
Diagnosing Why the Self-Propel Drive Isn’t Working
When your Toro mower’s self-propel drive stops working, the first step is to diagnose the root cause before attempting any repairs. Start by checking the drive cable, which connects the handlebar lever to the drive mechanism. If the cable is loose, stretched, or disconnected, the drive will not engage properly. Look for visible signs of wear, such as fraying or kinks in the cable housing, and check that the cable is properly attached at both ends.
Next, inspect the drive belt. The belt transfers power from the engine to the drive system, and if it is worn, cracked, or slipping, the mower will not move forward. Remove the belt cover if necessary and examine the belt for signs of damage, stretching, or glazing. A belt that is too loose will slip, while a belt that is too tight can strain the system. Also check the rear wheels’ drive gear and pinion, which can become stripped or clogged with grass and debris over time.
Finally, consider the transmission. If the cable, belt, and gears all appear to be in good condition, the problem may lie in the transmission itself. A transmission that is low on lubrication or damaged internally will not transfer power to the wheels. Listen for unusual noises and check for any signs of oil leakage around the transmission housing. By working through these components in order, you can identify the specific cause of the drive failure and proceed with the appropriate repair.
Adjusting or Replacing the Drive Cable
The drive cable is the most common cause of self-propel failure on Toro mowers, and it is also one of the easiest to fix. Over time, the cable can stretch, causing the drive lever to lose its tension and fail to engage the drive mechanism properly. To adjust the cable, locate the adjustment point, usually near the handlebar or at the point where the cable attaches to the drive housing. Loosen the adjustment nut or bolt, pull the cable to remove slack, and retighten the fastener.
If the cable is damaged, stretched beyond adjustment, or broken, it will need to be replaced. Begin by disconnecting the spark plug wire for safety, then remove the cable from the handlebar lever and from the drive mechanism. Note the routing of the cable so you can install the new one correctly. Install the replacement cable, following the original routing, and secure it at both ends. Adjust the tension so the drive engages smoothly when you squeeze the lever.
After adjusting or replacing the cable, test the mower to ensure the drive engages and disengages properly. The drive lever should have a firm feel with minimal slack, and the mower should move forward smoothly when the lever is engaged. If the drive still does not work, move on to checking the drive belt. Regular inspection and adjustment of the drive cable can prevent many common self-propel issues before they become serious problems.
Replacing the Drive Belt

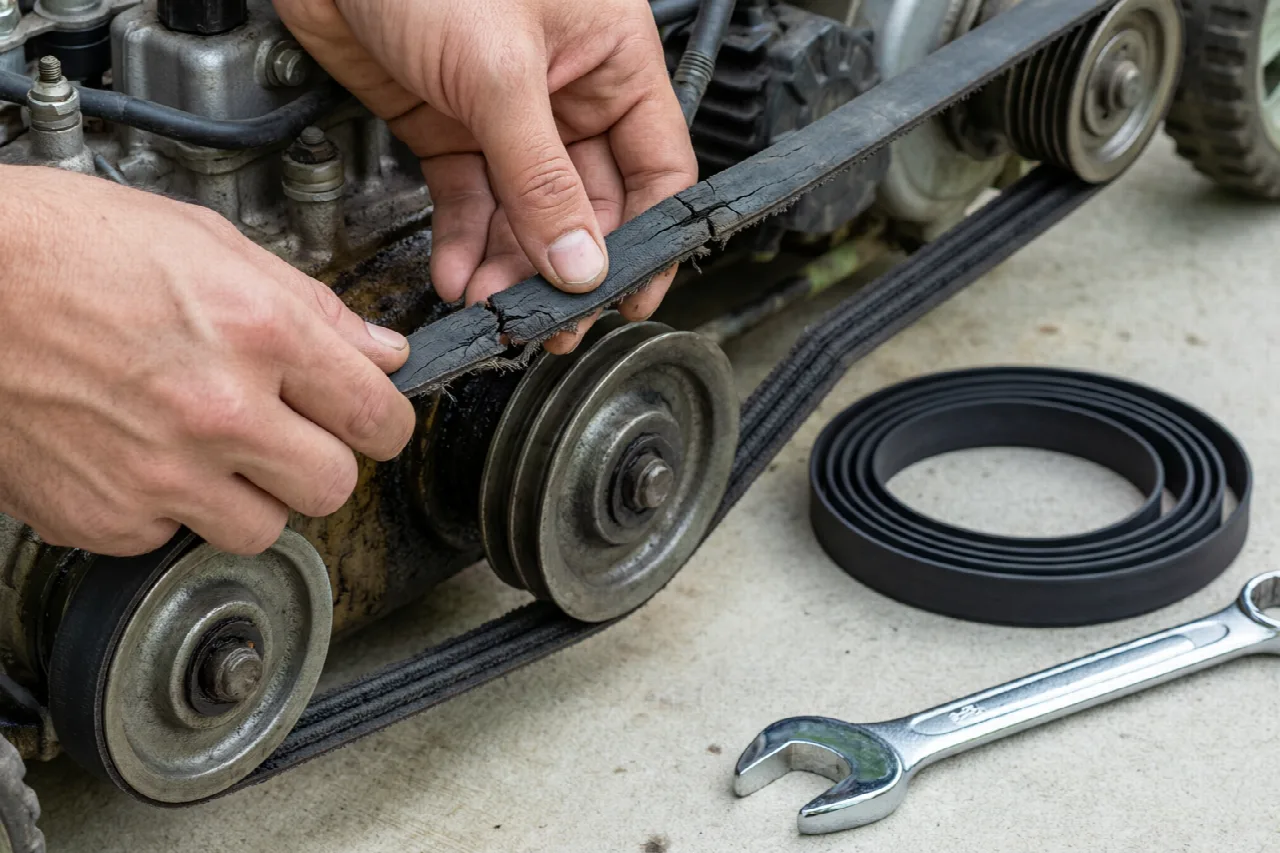

A worn or broken drive belt is another common cause of self-propel failure. The belt transfers power from the engine to the drive system, and over time it can stretch, crack, or break. To replace the belt, first disconnect the spark plug wire and place the mower on a flat surface. Remove any covers or guards that protect the belt, which are typically held in place with a few screws or clips.
Once you have access, note the routing of the old belt before removing it. The belt typically wraps around the engine pulley and the drive pulley, and it may pass over an idler pulley. Loosen the tension by moving the idler pulley or the tensioner, then slide the old belt off the pulleys. Compare the old belt with the new one to ensure they are the same size and type, then install the new belt following the same routing.
After installing the new belt, check the tension. The belt should be snug but not overly tight, with a small amount of give when you press on it. Reinstall any covers or guards, then test the mower to ensure the drive engages properly. If the belt is correctly installed and tensioned, the mower should move forward smoothly when the drive lever is engaged. Replacing a worn belt promptly can prevent damage to other drive components.
Cleaning or Replacing the Drive Gear and Pinion
The drive gear and pinion are located on the rear wheels and transfer power from the drive system to the wheels themselves. Over time, these components can become stripped, worn, or clogged with grass and debris, causing the drive to fail. To inspect them, you will need to remove the rear wheel. Disconnect the spark plug wire, then remove the wheel by taking out the retaining clip or bolt that holds it in place.
Once the wheel is removed, inspect the drive gear and pinion for signs of wear or damage. Look for stripped teeth, cracks, or excessive debris buildup. If the components are clogged with grass or dirt, clean them thoroughly with a brush and a mild solvent. If the gear or pinion is stripped or broken, it will need to be replaced. Remove the damaged component and install a new one, ensuring it is properly seated and aligned.
After cleaning or replacing the drive gear and pinion, reinstall the rear wheel and secure it with the retaining clip or bolt. Test the mower to ensure the drive engages and the wheel turns properly. Regular cleaning of the drive gear and pinion, especially after mowing in wet or heavy grass, can extend the life of these components and prevent premature failure. If the problem persists after cleaning or replacement, the issue may lie in the transmission.
Servicing the Transmission
The transmission is the component that transfers power from the engine to the drive wheels, and it is the most complex part of the self-propel system. If the cable, belt, and gears are all in good condition but the drive still does not work, the transmission may be the culprit. Start by checking the transmission lubricant level. Many Toro transmissions have a fill plug or dipstick that allows you to check and add lubricant as needed.
If the lubricant is low, add the recommended type and quantity for your specific Toro model. Refer to your owner’s manual for the correct lubricant specification, as using the wrong type can damage the transmission. If the transmission is leaking or making unusual noises, it may be damaged internally. In this case, repair may be more involved, and you may need to disassemble the transmission to inspect the internal gears and bearings.
If the transmission is severely damaged or worn, replacement may be the most practical option. Replacement transmissions are available for many Toro models, and installing a new unit can restore the self-propel function. Before replacing the transmission, confirm that the problem is indeed in the transmission and not in another component. Servicing the transmission is often a last-resort repair, but with proper maintenance, it can provide many years of reliable service.
Safety and Preparation Before Repairs
Before beginning any repair on your Toro lawn mower, take the necessary safety precautions. Always disconnect the spark plug wire to prevent the engine from accidentally starting while you work. Place the mower on a flat, stable surface and ensure it is secure before attempting any repairs. Wear work gloves and eye protection to protect yourself from sharp edges and debris.
Gather the tools you will need before starting. Common tools for these repairs include wrenches and sockets, screwdrivers, pliers, and a rubber mallet. You may also need a replacement drive cable, drive belt, drive gear, or transmission depending on the diagnosis. Having the right tools on hand makes the repair process smoother and reduces the risk of damaging components.
Finally, refer to your Toro owner’s manual for model-specific information, including part numbers, adjustment specifications, and lubricant types. The manual is your best resource for ensuring you perform the repair correctly. By following proper safety procedures and preparing adequately, you can complete these repairs confidently and keep your self-propelled Toro mower running smoothly for years to come.
