To replace a pull rope on a lawn mower, first disconnect the spark plug wire and block the blade so the engine cannot accidentally start. Remove the starter housing from the engine (usually held by 3-5 bolts or screws) and open it carefully, because the recoil spring inside is under tension and can snap out. Remove the old rope from the starter pulley, noting whether it was secured by a knot or held by a screw or clip, since anchoring styles vary by starter design. Measure the old rope or use the manufacturer’s specification (most walk-behind mowers use roughly 5-6 feet of 1/8-inch rope), then thread the new rope through the handle and the pulley grommet and anchor it exactly as the original was attached. Rotate the pulley to pre-tension the recoil spring (typically 4-6 turns, with the free rope end held through the notch), pull the rope taut so the handle seats against the pulley, and bolt the housing back onto the engine. If the recoil spring is broken or the starter pawls are damaged, replace the entire starter assembly rather than just the rope.
How Does a Lawn Mower Pull Rope Work?
The pull rope on a lawn mower is part of the recoil starter assembly, which allows you to start the engine without an electric starter. Understanding how this system works will help you diagnose problems and perform the replacement correctly.

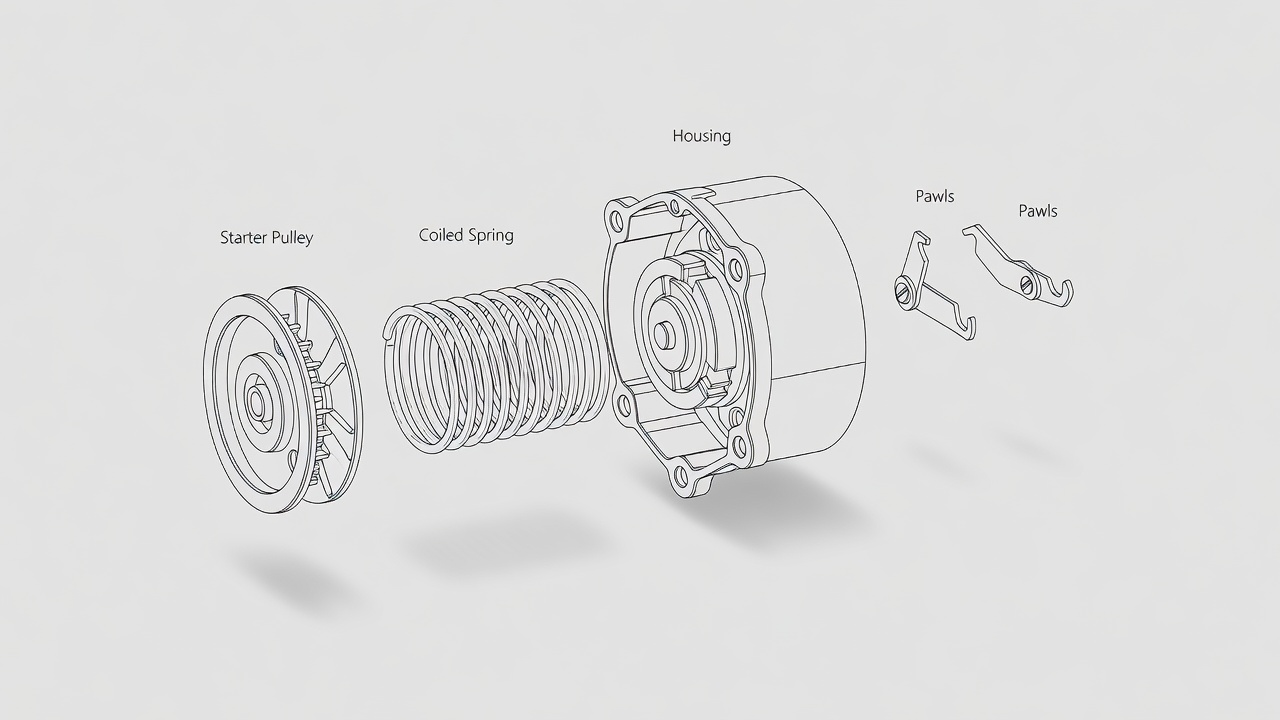

The recoil starter consists of several key components:
- Starter pulley: A wheel that turns when you pull the rope, which engages the engine’s crankshaft
- Recoil spring: A coiled spring that stores energy and returns the rope to its original position
- Rope handle: The part you pull to engage the starter
- Starter housing: The metal casing that contains these components
- Starter pawls: Small teeth that engage with the engine’s flywheel
When you pull the rope, the pulley turns, winding the recoil spring. The spring stores energy, and when you release the rope, the spring unwinds, turning the pulley and starting the engine. The spring then returns the rope to its original position, ready for the next start.
Safety First: What You Need to Do Before You Start
Replacing a pull rope involves working with moving parts and potentially high-tension components. Following safety precautions is essential to prevent injury or damage to the mower.
Disconnect the Spark Plug Wire
Before touching any part of the engine or starter assembly, disconnect the spark plug wire. This prevents the engine from accidentally starting while you’re working on it. The spark plug wire is typically located at the top of the engine, near the spark plug.
Prevent Blade Rotation
Lawn mower blades can turn unexpectedly and cause injury. To prevent this, you can:
- Remove the spark plug wire and place a wooden block or a piece of wood between the blade and the ground
- Use a blade lock or blade brake if your mower has one
- Place the mower on a level surface and ensure it cannot roll
Understand the Recoil Spring Hazard
The recoil spring is under significant tension. When the starter housing is opened, the spring can snap out suddenly, potentially causing injury. Always open the housing carefully and slowly, and be prepared to release the spring if it becomes too tense.
Tools and Materials: What to Gather
Replacing a pull rope requires a few basic tools and the correct replacement part. Having everything ready before you begin will make the process smoother.
Essential Tools
- Socket set or wrench set: To remove the starter housing bolts
- Flathead screwdriver: To open the starter housing
- Pliers: To remove the old rope from the pulley
- Measuring tape: To measure the new rope
- Replacement pull rope: Typically 5-6 feet long and 1/8 inch in diameter
Choosing the Right Rope
Not all ropes are suitable for lawn mower starters. Look for ropes specifically designed for this purpose, which are typically made of durable materials that resist weather and wear. The rope should have a smooth surface to prevent fraying and a proper diameter to fit the pulley grommet.
Step-by-Step: Removing the Starter Housing and Old Rope
Follow these steps to safely remove the old pull rope and prepare for installation of the new one.
Step 1: Remove the Starter Housing
Start by removing the starter housing from the engine. This is usually held in place by 3-5 bolts or screws, depending on your mower model.
- Place the lawn mower on a level surface
- Locate the bolts holding the starter housing to the engine
- Use the appropriate socket or wrench to remove all bolts
- Gently lift the housing off the engine, being careful not to damage any components
Step 2: Open the Starter Housing
Once the housing is removed, you’ll see the internal components. The housing is typically held together by a screw or clip that needs to be removed to access the pulley and spring.
- Use a flathead screwdriver to remove the fastener that holds the housing halves together
- Open the housing carefully, as the recoil spring is under tension
- Be prepared to release the spring if it becomes too tight
Step 3: Remove the Old Rope
Now you can access the old pull rope. Note how it’s anchored to the pulley.
- Identify how the old rope is attached – it may be secured with a knot, a screw, or a clip
- Use pliers to remove the old rope from the pulley
- Check the condition of the pulley and grommet – if they’re worn or damaged, they may need replacement
Step-by-Step: Fitting the New Rope and Pre-Tensioning the Spring
Now you’re ready to install the new pull rope and reassemble the starter assembly.
Step 1: Measure and Prepare the New Rope
Measure the old rope to determine the correct length for the replacement. Most lawn mowers use about 5-6 feet of 1/8 inch diameter rope.
- Check the manufacturer’s specifications if available
- Cut the new rope to the appropriate length
- Thread the rope through the handle and the pulley grommet
Step 2: Anchor the New Rope
Secure the new rope to the pulley using the same method as the original:
- If the original used a knot, tie a similar knot at the end of the new rope
- If it used a screw or clip, attach the new rope with the same hardware
- Ensure the rope is properly seated in the pulley groove
Step 3: Pre-Tension the Recoil Spring
The recoil spring needs to be properly tensioned before reassembling the housing.
- Rotate the pulley 4-6 times to wind the spring
- Hold the free end of the rope through the notch in the pulley
- Pull the rope taut until the handle seats against the pulley
- Check that the spring returns smoothly when released
Step 4: Reassemble the Housing
Once the spring is properly tensioned, reassemble the starter housing.
- Close the housing carefully, ensuring the spring is properly seated
- Bolt the housing back onto the engine using the original bolts
- Tighten the bolts securely but not overly tight
Troubleshooting: When to Replace the Whole Starter Instead of Just the Rope
While replacing just the pull rope is often sufficient, there are situations where the entire starter assembly should be replaced.
When to Replace the Entire Starter Assembly
- Broken recoil spring: If the spring is broken or shows significant wear, it’s better to replace the entire assembly rather than risk injury from a sudden release
- Damaged starter pawls: If the small teeth that engage with the engine’s flywheel are worn or broken, they should be replaced as part of the assembly
- Pulley or grommet wear: If the pulley or grommet is worn, it may need replacement to ensure proper operation
- Repeated failures: If the pull rope keeps breaking or the starter doesn’t work properly after multiple repairs, a new assembly may be more cost-effective
When to Consult a Professional
Replacing a pull rope is generally a do-it-yourself task, but there are times when it’s better to consult a professional:
- If you’re not comfortable working with high-tension springs
- If your mower has complex or unusual starter designs
- If you’ve damaged any components during the process
- If you’re unsure about the proper tension or installation
By following these steps carefully and paying attention to safety precautions, you can successfully replace the pull rope on your lawn mower and restore its functionality.
