Direct Answer: What Charges a Lawn Mower Battery?
A lawn mower battery is charged by one of two systems depending on mower type. Battery-powered and robotic mowers rely entirely on an external charger — a dedicated device that plugs into a standard 120V wall outlet and delivers regulated DC power to the battery pack. Gas-powered riding mowers use an onboard alternator or stator driven by the running engine to generate electricity, which is then converted and regulated to recharge the 12V lead-acid battery while you mow — much like a car’s charging system. Both systems ultimately connect to the battery through wiring, ports, or clamp terminals.

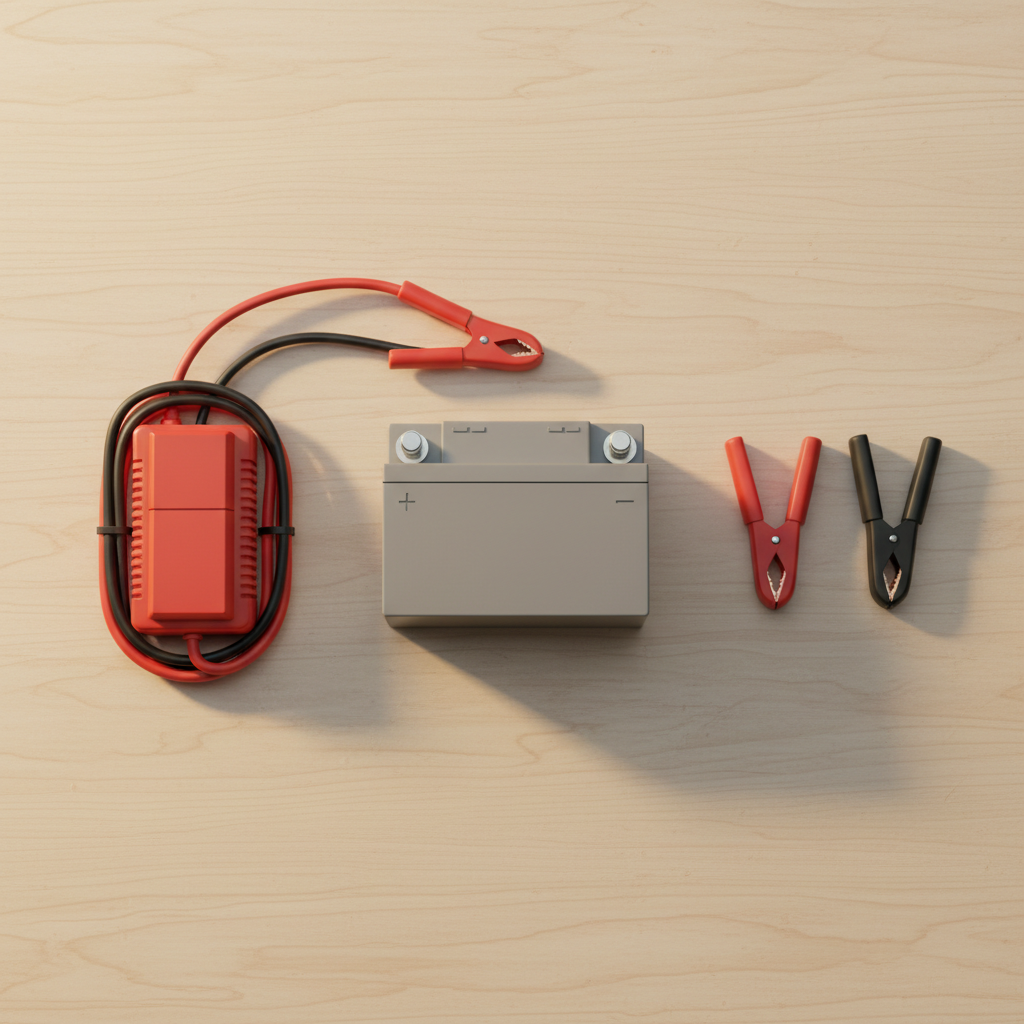

How a Lawn Mower Battery Gets Charged: The Core Components
Understanding the anatomy of the charging system prevents misdiagnosis when something fails. Every mower charging system shares these fundamental parts, though the configuration differs by mower type.
- Battery: Stores electrical energy. Most riding mowers use a 12V lead-acid battery. Cordless push mowers use lithium-ion packs ranging from 20V to 120V depending on brand and platform.
- External battery charger: A standalone device — not the wall outlet itself — that converts AC power from the outlet into the regulated DC voltage the battery requires. The charger controls charge rate, not the outlet.
- Power cord: Connects the external charger to the wall outlet. A damaged cord is a common and overlooked failure point.
- Wall outlet: Supplies AC power to the charger. The outlet itself does not charge the battery — the charger does.
- Alternator or stator (gas riding mowers only): An internal generator driven by the engine crankshaft that produces AC electricity, which is then rectified to DC to charge the battery during operation.
- Rectifier: Converts AC from the stator into DC usable by the battery.
- Voltage regulator: Limits output voltage to protect the battery from overcharge — typically holding output at 13.5–14.7V on a 12V system.
A trickle charger is a low-amperage external charger (typically 1–2 amps) designed for long-term maintenance charging, especially during winter storage. A standard lawn mower battery charger operates at 6–10 amps for faster replenishment. Both serve the same function but at different rates and use cases.
Types of Lawn Mowers and Their Charging Systems
Battery-Powered Cordless Push Mowers
Cordless push mowers use removable lithium-ion battery packs. The battery does not charge inside the mower. You remove the pack and insert it into a dedicated charger dock or wall-mount charger supplied with the mower. The charger plugs into a standard outlet and uses a built-in management circuit to deliver the correct voltage and current. Charge time runs 30 minutes to 2 hours depending on battery capacity and charger output rating.
Many manufacturers — including Greenworks, EGO, and Ryobi — share battery platforms across their power tool and outdoor equipment lines. A 56V EGO battery charged on an EGO rapid charger will work in the mower, provided the charger is rated for that voltage. Never cross-charge batteries between incompatible platforms; voltage mismatches damage cells.
Gas-Powered Riding Mowers
Riding mowers carry a 12V lead-acid battery (typically 200–300 cold-cranking amps) that starts the engine via an electric starter motor. Once the engine runs, the stator — a set of wire coils wound around the engine crankshaft — generates AC electricity. The rectifier converts this to DC, and the voltage regulator holds output at the safe charging threshold. The battery recharges passively as you operate the mower.
When the mower sits unused or the engine fails to run long enough, the battery depletes and requires an external 12V charger to recover it before the next start.
Robotic Lawn Mowers
Robotic mowers use a charging dock — a base station connected to a power outlet via a low-voltage transformer. When the robot returns to its dock (on a timer or when battery is low), metal charging contacts on the robot align with contacts on the dock and charging begins automatically. The dock’s transformer steps down household current to the voltage required by the robot’s internal lithium-ion pack. Charging time ranges from 45 minutes to several hours depending on model and battery size.
The Alternator and Stator: How Gas Mowers Charge Internally
Gas riding mowers do not have a traditional automotive alternator bolted to the engine block. Instead, they use a stator — a stationary set of copper wire coils — positioned around the flywheel. As the engine runs, permanent magnets on the rotating flywheel pass the stator coils and induce an alternating current through electromagnetic induction.
This raw AC passes through a rectifier diode or bridge rectifier, which allows current to flow in only one direction, producing pulsating DC. The voltage regulator then smooths and caps this output. Most small-engine charging systems on residential riding mowers output 3 to 5 amps at 13.5–14.7V — sufficient to maintain and slowly recover the battery during normal mowing sessions but not powerful enough to rapidly recharge a deeply discharged battery. Some commercial-grade mowers with larger engines produce up to 15 amps.
A failed stator, a shorted rectifier, or a faulty voltage regulator breaks this chain. The engine runs normally but the battery slowly drains across every use. Testing output requires a multimeter set to DC voltage across the battery terminals while the engine runs: a healthy charging system reads 13.5–14.7V. A reading at or below resting battery voltage (12.6V) signals a charging circuit fault.
Step-by-Step: How to Charge a Lawn Mower Battery with an External Charger
Follow this procedure for safely charging a 12V lead-acid riding mower battery with a standard external charger. The connection order matters — reversing polarity damages the battery, the charger, and connected electronics.
- Safety first: Park the mower on level ground, set the parking brake, and remove the ignition key. Work in a ventilated area — charging lead-acid batteries emit hydrogen gas.
- Locate the battery: On most riding mowers, the battery sits under the seat or behind the front grille. Consult the owner’s manual for exact location.
- Inspect terminals: Check for corrosion (white or blue-green powder) or loose connections. Clean terminals before charging (see maintenance section below).
- Set charger to the correct rate: Use a 6-amp setting for overnight charging or a 2-amp setting for trickle/maintenance charging. Avoid settings above 10 amps for standard lead-acid batteries unless the charger specifies fast-charge compatibility.
- Connect the positive clamp first: Attach the red (+) clamp to the positive battery terminal. This is the established safe procedure recognized in OEM manuals and electrical safety guidance — connecting negative first on a partially charged battery risks sparks near the battery.
- Connect the negative clamp second: Attach the black (−) clamp to the negative terminal or to an unpainted metal ground point on the mower frame away from the battery.
- Plug in the charger: Connect to the wall outlet last, after both clamps are secured.
- Monitor charge progress: A fully discharged 12V lawn mower battery typically requires 4 to 8 hours at 6 amps to reach full charge. Smart chargers switch to float/maintenance mode automatically when full.
- Disconnect in reverse order: Unplug the charger from the wall first, then remove the negative clamp, then the positive clamp.
Charging the battery while it remains connected to the mower is generally safe if the charger has overcharge protection. For deeply discharged batteries or older mowers with sensitive electronics, disconnecting the battery from the mower before charging reduces risk.
Why Is My Lawn Mower Battery Not Charging? Common Causes and Fixes
| Cause | Symptoms | Fix |
|---|---|---|
| Dead or sulfated battery | Battery reads below 10V; charger shows no activity or immediately shows full | Try a desulfation-capable smart charger. If voltage does not recover above 12V, replace the battery. |
| Faulty external charger | No indicator lights; battery does not gain voltage after hours on charge | Test charger output with a multimeter at the clamps — should read 13.5–14V DC. Replace charger if output is absent or incorrect. |
| Blown charging fuse | Battery drains even with engine running; no charge circuit activity | Locate the inline fuse on the charging circuit wire (typically a 7.5A or 10A blade fuse near the battery or voltage regulator). Inspect the metal strip — a broken strip means the fuse is blown. Replace with identical amperage rating. |
| Failed stator or alternator | Battery voltage at terminals reads at or below resting voltage while engine runs | Test AC output directly at stator leads before the rectifier. No AC output indicates a failed stator — requires replacement. |
| Bad rectifier | Stator produces AC but battery receives no DC charge | Test diode function with multimeter in diode mode. A shorted or open diode indicates rectifier failure — replace the rectifier. |
| Failed voltage regulator | Battery overcharges and boils, or receives no charge despite good stator and rectifier | Replace the voltage regulator — an inexpensive component on most small-engine mowers. |
| Corroded or loose terminals | Intermittent starting; battery shows charge on meter but mower won’t start | Clean terminals and tighten connections (see below). |
| Damaged power cord (cordless mowers) | Charger dock has no indicator light; battery pack does not warm slightly during charge | Inspect cord for cuts or kinks. Test outlet with another device. Replace cord or charger as needed. |
Can a Completely Dead Lawn Mower Battery Be Recharged?
A lead-acid battery that has discharged to 0V or has sat discharged for an extended period often develops sulfation — lead sulfate crystals form on the plates and block chemical reactions. A standard charger may not recover a heavily sulfated battery because it cannot push current through the high internal resistance. A smart charger with a desulfation or reconditioning mode applies pulsed high-voltage bursts to break down crystals and may recover the battery. If the battery fails to hold charge above 12.4V after a full reconditioning cycle, replacement is the correct course. Sulfated batteries that appear to charge but discharge within minutes are not recoverable.
Maintaining Your Lawn Mower Battery and Charging System
Clean Corroded Battery Terminals
Disconnect the negative cable first, then the positive. Mix one tablespoon of baking soda with one cup of water. Apply with an old toothbrush to the terminals and cable ends. The baking soda neutralizes battery acid corrosion. Rinse with clean water, dry thoroughly, reconnect positive first then negative, and apply a thin coat of dielectric grease or terminal protector spray to slow future corrosion.
Winter Storage Charging
Before storing a riding mower for winter, charge the 12V battery fully. A fully charged lead-acid battery resists freezing down to approximately −60°F; a discharged battery freezes at 32°F and suffers permanent plate damage. Connect a trickle charger or battery maintainer at 1–2 amps every 30 days through the off-season, or use a smart maintainer that automatically cycles to prevent overcharge. Remove the battery entirely and store it in a cool, dry location above freezing if the mower sits in an unheated garage in a cold climate.
Battery Lifespan
A properly maintained 12V lead-acid riding mower battery lasts 3 to 5 years under normal seasonal use. Lithium-ion packs in cordless push mowers typically endure 500–1,000 full charge cycles before capacity degrades noticeably, translating to a similar 3–5 year useful life with regular seasonal use. Factors that shorten lifespan include repeated deep discharge, prolonged storage in a discharged state, extreme heat, and chronic overcharging from a faulty voltage regulator.
Routine Charging System Checks
- At the start of each season, test battery voltage with a multimeter. A fully charged 12V lead-acid battery reads 12.6–12.8V at rest.
- With the engine running, test voltage at the battery terminals. A healthy stator and regulator hold 13.5–14.7V — confirming the charging circuit works before the season begins.
- Inspect all wiring harness connections to the stator, rectifier, and voltage regulator for corrosion or chafing annually.
- Check the charging fuse at the start of each season and keep a spare of the correct amperage in the mower’s storage compartment.
Frequently Asked Questions
Does a riding lawn mower charge its own battery while running?
Yes. A gas-powered riding mower charges its 12V battery through an onboard stator and rectifier system driven by the engine. Output is typically 3–5 amps at 13.5–14.7V on residential models. A mowing session of 30 minutes or more in good charging-system condition maintains the battery. Short or infrequent run times allow incremental discharge — supplemental charging with an external charger prevents this.
What voltage and amp setting should I use to charge a lawn mower battery?
For a standard 12V lead-acid riding mower battery, use a 12V charger set to 6 amps for standard charging or 2 amps for trickle/maintenance charging. Avoid settings above 10 amps unless the charger explicitly supports fast-charging that battery type. For lithium-ion cordless mower packs, use only the manufacturer-supplied charger — voltage and communication protocols differ between brands and applying the wrong charger damages cells permanently.
How long does it take to fully charge a lawn mower battery?
A standard 12V lead-acid riding mower battery (typically 20–30 amp-hours capacity) charges in 4 to 8 hours at 6 amps from a fully discharged state. At 2 amps, expect 10–16 hours. Lithium-ion cordless mower packs charge in 30 minutes to 2 hours depending on capacity and the charger’s output rating. A smart charger with automatic shutoff prevents overcharge regardless of time left connected.
How do I know if my mower’s stator or alternator has failed?
Start the engine and let it reach operating speed. Set a multimeter to DC voltage and probe the battery terminals — red probe to positive, black to negative. A healthy charging system reads 13.5–14.7V. A reading at or below resting battery voltage (12.6V) while the engine runs indicates a charging circuit fault. Isolate the cause by then testing AC voltage directly at the stator output leads before the rectifier. No AC output points to a failed stator; AC present but no DC output after the rectifier points to a failed rectifier diode.
