What Size File Do You Need for a 3/8 Chain? (Complete Sharpening Guide)

Quick Answer: File Size for 3/8 Chain

Understanding Chain Types and Pitch Measurements

Before selecting a file, you need to identify what type of chain you’re maintaining and understand the difference between chain pitch and other measurements.

What Is Chain Pitch?

Chain pitch is the distance between the center of one pin and the center of the next pin in the chain. This measurement determines the file size you’ll need. A 3/8 inch pitch chain has pins spaced 0.375 inches apart—this is the standard measurement you’ll reference when buying a file.

Pitch is different from chain width or gauge (the thickness of the metal links). Many people confuse these measurements, which leads to selecting the wrong file size.

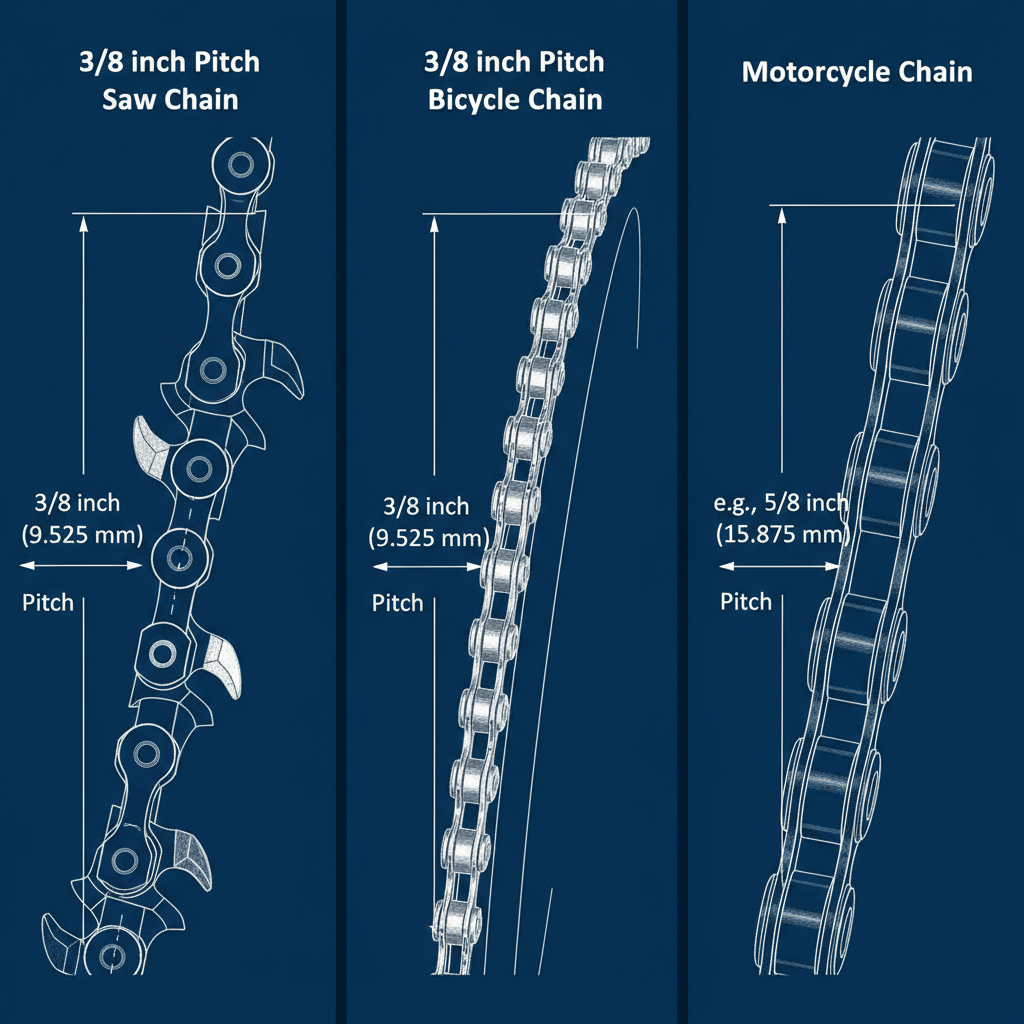

Saw Chains vs. Bicycle Chains vs. Motorcycle Chains

Saw chains (used in chainsaws) typically come in 3/8 inch pitch, .325 inch pitch, and 3/4 inch pitch sizes. A 3/8 inch pitch saw chain has larger teeth designed to cut wood aggressively.

Bicycle chains also come in 3/8 inch pitch sizes, particularly on older bikes or single-speed bicycles. However, bicycle chain teeth are much smaller and more delicate than saw chain teeth.

Motorcycle chains have different pitch measurements entirely (usually .530 inch or .630 inch) and are not relevant to this discussion.

The key point: even though both saw chains and bicycle chains can be 3/8 inch pitch, they require different file sizes because their tooth geometry differs significantly.

File Size for 3/8 Inch Pitch Saw Chains

Standard File Size: 5/32 Inch Round File

A 3/8 inch pitch saw chain requires a 5/32 inch (4mm) round file for sharpening. This file diameter matches the radius of the saw chain’s tooth curves, allowing you to sharpen each tooth with a consistent angle and depth.

Most chainsaw manufacturers—including Stihl, Husqvarna, Echo, and Oregon—specify 5/32 inch round files for 3/8 inch pitch chains in their maintenance guides. Using the correct file size is critical because:

• Correct fit: A 5/32 inch file seats properly in the tooth curve, ensuring even sharpening across the tooth surface
• Consistent angles: The proper file size helps maintain the correct cutting angle (typically 25-35 degrees depending on the saw model)
• Tooth preservation: Using an oversized or undersized file can round over tooth edges or create flat spots, reducing cutting efficiency
• Safety: Poorly sharpened chains require more force to cut, increasing the risk of kickback and operator fatigue

Alternative Options for Saw Chains

Round files with handles: Many manufacturers offer 5/32 inch round files mounted in wooden or plastic handles with guides. These handles help you maintain the correct sharpening angle and are ideal for beginners.

Flat files: Some chainsaw owners use flat files for initial sharpening before finishing with a round file. A flat file allows more aggressive material removal on heavily dulled chains.

Electric sharpeners: Professional-grade electric chain sharpeners can sharpen 3/8 inch chains accurately and quickly. These machines are expensive (typically $200-$500+) but offer speed and consistency for frequent users.

File Size for 3/8 Inch Bicycle Chains

Bicycle Chain Maintenance: When to File vs. Replace

Before discussing file sizes, it’s important to note that bicycle chains rarely require sharpening in the traditional sense. Bicycle chain teeth don’t become dull like saw teeth; instead, they wear down and may become bent or damaged.

In most cases, a worn bicycle chain should be replaced rather than sharpened. Bicycle chains are inexpensive (typically $15-$50) and designed as wear items. Replacing a chain is faster and more effective than attempting to sharpen one.

If Sharpening Is Necessary: 3/32 Inch File

If you need to remove minor burrs or slight rust from a 3/8 inch bicycle chain, use a 3/32 inch round file. This smaller file size matches the delicate tooth geometry of bicycle chains.

Do not use saw chain files on bicycle chains. A 5/32 inch saw chain file is too large and will damage bicycle chain teeth, making the chain more likely to slip or break.

Chain-Specific Sharpening Tools

Some manufacturers produce specialized sharpening tools designed specifically for bicycle chains. These tools often include:

• Small rotary files (often 2-3mm diameter)
• Guides that position the file at the correct angle
• Multiple file options for different chain sizes

Examples include tools from Park Tool, Shimano, and SRAM. These specialized tools are optional—a 3/32 inch round file works adequately if you’re careful with technique.

How to Measure Your Chain Pitch Accurately

Step-by-Step Pitch Measurement

Step 1: Locate three consecutive pins. Look at your chain and identify three pins in a row. The pins are the round rivets that hold the chain together.

Step 2: Measure from center to center. Using a ruler or caliper, measure the distance from the center of the first pin to the center of the third pin. This distance represents two pitches (two intervals).

Step 3: Divide by two. Divide your measurement by two to get the pitch. For example, if the distance between the first and third pin is 0.75 inches, the pitch is 0.75 ÷ 2 = 0.375 inches (3/8 inch).

Alternative method: Some chains have the pitch stamped directly on the chain links. Look for markings like “.325” or “3/8” on the metal plates.

Confirming Pitch Before Buying a File

Before purchasing a file, write down your chain’s pitch measurement. If you’re uncertain, bring the chain to a hardware store or saw shop where staff can verify the size. This prevents buying the wrong file size and saves money.

Choosing Between File Types and Sizes

Round Files vs. Flat Files

Round files are the standard choice for chain sharpening because they match the curved tooth geometry. Round files come in multiple diameters, and matching the correct diameter to your chain pitch is essential.

Flat files are sometimes used for initial aggressive sharpening or for removing significant damage, but they don’t provide the precise cutting surface that round files do. Flat files are a secondary option, not a primary sharpening tool.

File Length and Handle Options

Round files for chain sharpening typically come in lengths from 4 to 12 inches. Longer files are less common but can be useful if you prefer a specific hand position.

Files are available in three formats:

• Bare files: Just the metal file with no handle. These are least expensive but require you to provide your own handle or grip.
• Files with handles: A wooden or plastic handle is pre-mounted on the file. This is the most common and user-friendly option.
• Guided sharpening systems: A handle that includes angle guides and stopping mechanisms. These are ideal for beginners and ensure consistent sharpening angles.

Material Options: Steel vs. Diamond Files

Steel files are the standard and most affordable option. A quality steel file costs $10-$30 and will sharpen many chains before needing replacement.

Diamond files are newer and more durable, staying sharp longer than steel files. They cost more ($30-$70) but may provide better value over many years of use.

Step-by-Step: Selecting and Using Your File

Before You Buy: Verification Checklist

• Measure or verify your chain’s pitch (3/8 inch in this case)
• Confirm your chain type (saw chain vs. bicycle chain)
• Check your saw or bicycle manufacturer’s specifications if available
• Choose between bare file, handled file, or guided system based on your experience level
• Select steel or diamond material based on your budget and usage frequency

Safe Sharpening Practices

For saw chains:

• Secure the chainsaw in a vice or clamp before sharpening. Never hold it in your lap.
• File at a consistent angle (your saw manual specifies this, typically 25-35 degrees)
• Make the same number of strokes on each tooth for even sharpening
• Wear gloves and safety glasses to protect against flying metal particles
• Check your file regularly for damage or excessive wear

For bicycle chains:

• Place the chain on a workbench with good lighting
• Use gentle pressure—bicycle chain teeth are delicate and easy to damage
• File only if absolutely necessary; replacement is usually the better option
• Stop immediately if you feel the file binding or chattering

When to Replace Your Sharpening File

Sharpening files wear down over time. Replace your file if:

• It no longer produces a sharp edge on the chain
• It feels dull or requires excessive pressure
• It develops flat spots or visible damage
• You’ve sharpened 10+ chains with a steel file (diamond files last longer)

A dull file won’t sharpen your chain effectively and may cause more harm than good.

Frequently Asked Questions

Can I use a 5/32 inch file on a .325 inch pitch chain?

No. A .325 inch pitch chain requires a 5/32 inch file (coincidentally the same size as a 3/8 inch chain), but attempting to use the wrong pitch file on the wrong chain will produce poor results. Always verify your chain’s pitch measurement before selecting a file.

What happens if I use the wrong file size?

Using an incorrect file size can round over tooth edges, create flat spots, or leave teeth unevenly sharpened. This reduces cutting efficiency, increases operator fatigue, and may cause the chain to slip or bind during use. In saw chains, this increases the risk of dangerous kickback.

Can I sharpen a bicycle chain with a saw chain file?

No. A 5/32 inch saw chain file is far too large for a 3/8 inch bicycle chain and will damage the delicate teeth. However, most bicycle chains should be replaced rather than sharpened, as replacement is inexpensive and more effective.

How often should I sharpen my 3/8 inch saw chain?

Sharpen your saw chain when it stops cutting efficiently, pulls to one side, or produces fine sawdust instead of chips. For frequent users, this may be every 2-5 hours of cutting. Light users might sharpen once per season. A chain can typically be sharpened 8-10 times before it needs replacement.

Are electric chain sharpeners worth the investment?

Electric sharpeners ($200-$500+) are worthwhile if you sharpen chains frequently or professionally. For casual homeowners with one or two saws, manual sharpening with a 5/32 inch round file is sufficient and much less expensive.

Summary

A 3/8 inch pitch saw chain requires a 5/32 inch (4mm) round file, while a 3/8 inch bicycle chain needs a 3/32 inch file (or replacement is usually recommended). The key to selecting the correct file is accurately measuring your chain’s pitch and confirming your chain type.

Invest in a quality file with a handle for better control and consistency. Always verify your specifications before purchasing to avoid buying the wrong size. With the correct file and proper technique, you’ll maintain sharp, efficient chains that perform safely and effectively.
