Quick Answer: Where Is the Carburetor on a Lawn Mower?
The carburetor is typically located on the side of the engine, attached to the air filter housing and connected to the throttle linkage and fuel line. Its exact position varies by mower model but is generally accessible under or near the air filter assembly. On most walk-behind mowers, look for a metal bowl-shaped component with a fuel line entering it and a throttle cable connected to its side.

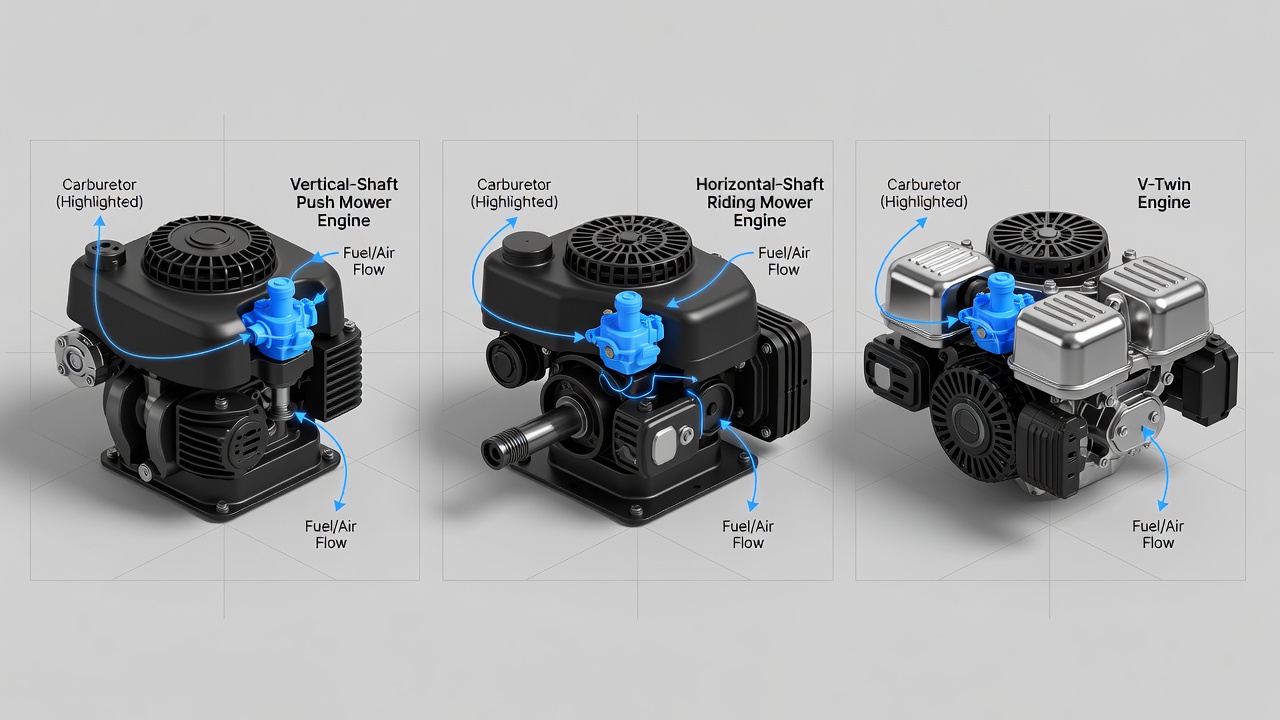

Understanding the Carburetor’s Role and Common Location
What Does the Carburetor Do on a Lawn Mower?
The carburetor mixes air and fuel in the correct ratio for combustion. On small engines, it draws fuel from the tank via gravity or a fuel pump, mixes it with air entering through the air filter, and delivers the mixture to the engine cylinder. A dirty or misadjusted carburetor causes hard starting, rough running, stalling, or excessive fuel consumption.
Where Is the Carburetor Most Commonly Found on a Push or Walk-Behind Mower Engine?
On the vast majority of walk-behind mowers with vertical-shaft engines (Briggs & Stratton, Honda, Kohler, Toro, Craftsman), the carburetor sits on the side of the engine block, directly behind or below the air filter housing. It appears as a metal body (often aluminum) with a removable bowl at the bottom, a fuel inlet nipple, and a throttle arm linkage.
How Is the Carburetor Typically Connected to Other Engine Components?
- Air filter housing: Bolts directly to the carburetor intake throat; removing the air filter cover and element reveals the carburetor opening.
- Fuel line: Runs from the tank (or fuel filter) to the carburetor’s fuel inlet fitting.
- Throttle linkage: Connects the governor arm or manual throttle lever to the carburetor’s throttle plate shaft.
- Choke linkage: Often a separate rod or cable operating the choke plate on the carburetor’s air intake.
- Intake manifold: The carburetor mounts to the engine’s intake manifold with two bolts and a gasket.
Locating the Carburetor on Different Lawn Mower Types
Does the Carburetor Location Differ on a Riding Lawn Mower Versus a Push Mower?
Yes. Riding mowers typically use horizontal-shaft (V-twin or single-cylinder) engines where the carburetor mounts on the side of the engine, often more centrally located and sometimes partially obscured by the frame, battery tray, or muffler. The air filter housing is usually a larger, rectangular or round canister mounted on the side of the engine, with the carburetor directly behind it.
Where Might I Find the Carburetor on a Zero-Turn or Commercial Mower?
Zero-turn mowers commonly use Kohler, Kawasaki, or Briggs V-twin engines. The carburetor sits between the cylinders on V-twins (center-mounted) or on the side of single-cylinder models. Access often requires removing:
• Engine side panels or hood
• Air filter canister and housing
• Sometimes the battery or fuel tank for clearance
Commercial walk-behinds (e.g., Exmark, Scag, Ferris) follow similar patterns—carburetor behind the air filter on the engine side.
What Should I Look for If My Mower Has a Side-Mounted or Vertical-Shaft Engine?
- Vertical-shaft (most push mowers): Carburetor on the side of the engine, below the air filter. Fuel line runs down from tank to carb.
- Horizontal-shaft (riding mowers, generators, pressure washers): Carburetor on the side of the engine, often at roughly the same height as the cylinder head. Air filter housing extends outward from the carburetor.
- Overhead valve (OHV) vs. side-valve (L-head): OHV engines may have the carburetor slightly higher on the engine block; L-head engines often have it lower, near the crankcase.
Step-by-Step Guide to Finding and Identifying Your Carburetor
What Safety Steps Should I Take Before Trying to Locate the Carburetor?
- Disconnect the spark plug wire and secure it away from the plug to prevent accidental starting.
- Work in a well-ventilated area—fuel vapors may be present.
- Have a fire extinguisher nearby (Class B for flammable liquids).
- Wear nitrile gloves and safety glasses to protect from fuel and debris.
- Allow the engine to cool completely if recently run.
What Is a Step-by-Step Process to Trace the Air Filter Housing to the Carburetor?
- Locate the air filter cover—usually a plastic or metal box with latches, screws, or a wing nut on the side of the engine.
- Remove the cover and take out the air filter element (foam, paper, or dual-stage).
- Look into the housing throat—you’ll see a round or oval opening (the carburetor venturi) with a throttle plate (butterfly valve) inside.
- Follow the fuel line from the tank; it terminates at the carburetor’s fuel inlet fitting (often a brass nipple with a hose clamp).
- Identify the throttle linkage—a rod or cable connecting to a lever on the carburetor body.
- Spot the carburetor bowl—a removable metal bowl (often with a drain screw or bolt) at the bottom of the carburetor body.
How Can I Visually Identify the Carburetor and Distinguish It from the Fuel Filter or Spark Plug?
| Component | Appearance | Location | Key Identifiers |
|---|---|---|---|
| Carburetor | Metal body (alum./zinc), bowl at bottom, throttle arm, fuel inlet, choke plate visible in throat | Side of engine, behind air filter | Bowl, throttle linkage, fuel line connection, mounts to intake manifold |
| Fuel Filter | Small inline canister (clear/white plastic or metal) or cartridge in fuel line | Along fuel line between tank and carburetor | No moving parts, no throttle arm, just fuel in/out |
| Spark Plug | Metal shell with ceramic insulator, terminal nut, hex base (5/8″ or 13/16″) | Top or side of cylinder head | Heavy ignition wire boot, no fuel connections |
| Fuel Pump (if equipped) | Small square/round diaphragm pump with 3 ports (in, out, pulse) | Mounted on engine block or bracket near carb | Pulse line to crankcase, no throttle linkage |
What Should I Do If I Cannot Locate the Carburetor or the Air Filter Assembly?
- Consult the owner’s manual—it contains an engine diagram with labeled components.
- Search by engine model number (not mower model). Find the engine model on a sticker on the fan shroud, valve cover, or crankcase. Search “[engine model] carburetor location diagram.”
- Check for aftermarket modifications—some older mowers have been converted to different air filter setups that obscure the carburetor.
- Look for a remote air filter—on some riding mowers, the air filter is mounted on the frame with a duct running to the carburetor. Trace the duct back to the engine.
Accessing the Carburetor for Maintenance or Repair
What Tools Might Be Needed to Remove Covers or the Air Filter to Access the Carburetor?
- Socket set or nut drivers: 5/16″, 3/8″, 7/16″, 1/2″ (common bolt sizes for air filter housing and carburetor mounting)
- Phillips and flathead screwdrivers: For hose clamps, throttle cable clamps, choke linkage
- Pliers: Needle-nose for linkage clips, slip-joint for hose clamps
- Adjustable wrench: For fuel line fittings
- Carburetor cleaner spray: For cleaning once accessed
- Clean rags, catch pan, fuel line clamps: To manage fuel spillage
- Torque wrench (optional): For reinstallation to spec (typically 45-55 in-lbs for carb mounting bolts)
Are There Any Common Obstructions or Parts That Need to Be Removed to Reach the Carburetor?
| Mower Type | Common Obstructions | Removal Notes |
|---|---|---|
| Walk-behind (vertical shaft) | Air filter cover, element, housing base; sometimes fuel tank | Housing base often shares bolts with carburetor—support carb when removing |
| Riding mower (single cylinder) | Engine side panel, battery, air filter canister, muffler heat shield | Disconnect battery negative first; label wires |
| Riding mower (V-twin) | Engine cover/hood, air filter assembly, throttle/choke cables, fuel pump | Carb often center-mounted between cylinders—more disassembly required |
| Zero-turn | Frame rails, hydraulic lines, fuel tank, battery box | May need to lift engine slightly or remove mounting bolts for access |
Critical tip: Before disconnecting the fuel line, clamp it off with a fuel line clamp or pinch-off pliers to prevent fuel drainage. Have a container ready for residual fuel in the carburetor bowl.
When Is It Appropriate to Seek Help from a Small Engine Repair Professional?
- Carburetor requires internal disassembly (welch plugs, pressed-in jets, emulsion tubes) and you lack a carburetor rebuild kit or ultrasonic cleaner.
- Engine has stale fuel damage (varnish, corrosion) requiring parts replacement beyond a basic kit.
- Governor or throttle linkage adjustment is needed—incorrect adjustment can cause dangerous overspeeding.
- Fuel pump or pulse line issues on V-twin engines with complex routing.
- You cannot identify the correct carburetor model for ordering parts—professionals cross-reference by engine spec code.
- Time or tool constraints—a shop can often clean and rebuild in under an hour.
Frequently Asked Questions
Can I clean the carburetor without removing it from the engine?
Yes, for light deposits. Remove the air filter, spray carburetor cleaner into the throat while the engine is running (or cranking), and spray into the bowl vent and fuel inlet. However, this won’t clear clogged main jets, emulsion tubes, or the bowl interior. For thorough cleaning, removal and disassembly are necessary.
Why does my mower have two carburetors?
Some V-twin engines (especially older Kohlers and Kawasakis) use dual carburetors—one per cylinder. Both mount on the intake manifold, each with its own throttle bore but linked by a common throttle shaft. Treat each identically for cleaning; both must be balanced for smooth operation.
What’s the difference between a bowl-type and diaphragm-type carburetor?
Bowl-type (float carburetor): Most common on 4-stroke mower engines. Uses a float and needle valve to maintain fuel level in a bowl. Diaphragm-type: Common on 2-stroke engines (some older mowers, trimmers, blowers) and uses a flexible diaphragm pulsed by crankcase pressure to pump fuel. Diaphragm carbs have no float bowl and mount differently—often directly on the fuel tank or crankcase.
How do I know if my carburetor needs replacement vs. just cleaning?
Replace if: the throttle shaft is worn/loose (air leak), the body is cracked or corroded, welch plugs are leaking and cannot be resealed, or the cost of a rebuild kit approaches the cost of a new carburetor (common on budget engines). Clean and rebuild if: passages are clogged, gaskets are hardened, float needle is dirty, or idle/main jets are varnished—but the body and shafts are sound.
Key Takeaways
- The carburetor is almost always behind the air filter housing on the side of the engine.
- Trace the fuel line from the tank and the throttle cable from the handle—both lead to the carburetor.
- On riding mowers and zero-turns, expect more disassembly (panels, battery, ducting) to reach it.
- Always disconnect the spark plug wire and clamp the fuel line before working.
- When in doubt, use the engine model number to find an exploded-view diagram online or in the manual.
