Direct Answer
To fill lawn mower tires with foam, use a tire foam sealant kit designed for small equipment. Partially deflate the tire, remove the valve core, inject the liquid sealant through the valve stem using the kit’s applicator, reinstall the valve core, and reinflate to the manufacturer’s recommended pressure. The foam expands and cures inside the tire over 24–48 hours, creating a puncture-resistant barrier. Always follow the sealant manufacturer’s volume guidelines for your specific tire size.
Understanding Tire Foam for Lawn Mowers
What Is Tire Foam Sealant and How Does It Work?
Tire foam sealant is a liquid polymer compound that, when injected into a pneumatic tire, expands and cures into a flexible, semi-solid foam matrix. The material coats the inner tire surface and fills the air cavity, sealing punctures as they occur by reacting with outside air. Unlike traditional liquid sealants that remain fluid, foam variants cure to a stable consistency that maintains tire shape and supports the load even after a complete loss of air pressure.
Benefits of Foam-Filled Tires Versus Traditional Pneumatic Tires
- Puncture resistance: The cured foam seals nail holes, thorns, and small cuts instantly, eliminating flats from common debris.
- Run-flat capability: If the tire casing is damaged, the foam structure supports the mower weight, allowing you to finish the job or return to the shop.
- Reduced maintenance: No routine pressure checks or air top-offs are needed once cured.
- Added stability: The foam mass can improve traction on slopes and reduce bounce on uneven terrain.
Trade-offs include increased unsprung weight, a firmer ride, and the inability to adjust pressure for different conditions. Foam-filled tires also cannot be repaired conventionally if the casing fails; the tire must be replaced.
Suitability Across Mower Types
Foam sealant works on both push mowers and riding mowers, but the approach differs. Push mower tires are smaller (typically 8–10 inches) and require less product. Riding mower tires (15–24 inches) need proportionally more sealant and may benefit from professional installation due to weight and bead-seating considerations. Zero-turn mowers with high-speed casters generate more heat; verify the sealant’s temperature rating matches your application. Always confirm the tire is tubeless—foam sealant is not designed for tube-type tires.
Tools and Materials You’ll Need
Required Equipment Checklist

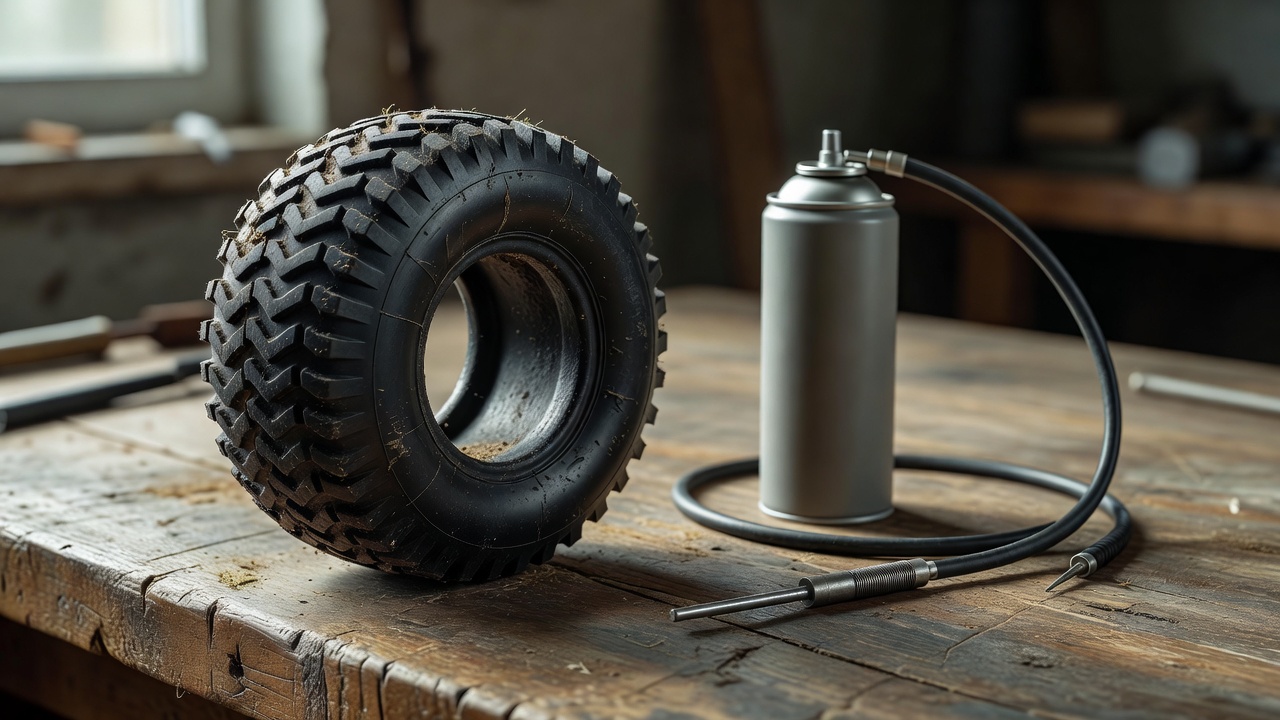

- Tire foam sealant kit: Choose a product labeled for lawn and garden equipment or small off-road tires. Kits typically include the sealant canister, injection hose, and valve core tool.
- Air compressor with regulator: Needed for initial deflation, final inflation, and bead seating. A portable 12V or shop compressor works.
- Tire pressure gauge: Digital or dial gauge accurate to 1 PSI.
- Valve core removal tool: Often included in the kit; a standard 4-way valve tool also works.
- Protective gloves and safety glasses: Sealant can irritate skin and eyes.
- Jack and jack stands (riding mowers): To safely lift and support the mower.
- Wheel chocks: Prevent rolling during the procedure.
- Clean rags and degreaser: For cleaning valve stems and any spills.
Why Not Use Expanding Spray Foam or General-Purpose Products?
Expanding spray foam (polyurethane insulation foam) cures rigid and expands with uncontrolled force. It can rupture the tire casing, separate the bead from the rim, or create dangerous pressure spikes. General-purpose tire sealants (slime-type liquids) remain fluid and do not provide the structural run-flat support of cured foam. Only use products explicitly marketed as tire foam sealant or flat-free foam for small equipment tires. These formulations cure to a specific density, remain flexible across temperature ranges, and are tested for rotational forces.
Step-by-Step Process for Filling Tires with Foam
1. Prepare the Mower and Work Area
Park on a level surface. Engage the parking brake (riding mowers) or disconnect the spark plug wire (push mowers). Chock the opposite wheels. For riding mowers, jack up the axle and secure on jack stands. Remove the wheel assembly if access to the valve stem is obstructed by the frame or fender.
2. Inspect the Tire and Valve Stem
Check the tire sidewall for cracks, dry rot, or bead damage. Foam will not repair structural casing failures. Verify the valve stem is metal (preferred) or high-quality rubber with a removable core. Replace damaged stems before proceeding. Clean the valve stem exterior with degreaser and a rag.
3. Deflate the Tire Partially
Remove the valve cap. Using the valve core tool, unscrew and remove the valve core completely. Allow the tire to deflate until it is soft but still holds its shape on the rim—typically 5–10 PSI remaining. Do not fully deflate to the point where the bead unseats, as reseating can be difficult without a bead blaster or high-volume air source.
4. Attach the Injection Hose
Connect the kit’s injection hose to the valve stem threads. Ensure a tight seal to prevent sealant leakage. Some kits use a quick-connect fitting; others thread directly onto the stem. Follow the kit’s specific connection method.
5. Inject the Foam Sealant
Shake the sealant canister vigorously for the time specified on the label (usually 60–90 seconds) to mix the components. With the canister upright or inverted per manufacturer instructions, open the valve and inject the recommended volume. Volume is typically based on tire size—common guidelines suggest 8–12 ounces for 8–10 inch tires, 16–24 ounces for 15–18 inch tires, and 32+ ounces for 20–24 inch tires. Refer to the product label for exact volumes. Inject slowly, pausing every few seconds to let the foam expand and settle.
6. Reinstall the Valve Core and Reinflate
Close the injection hose valve and disconnect the hose. Quickly reinstall the valve core using the tool, tightening securely but not over-torquing. Inflate the tire to the pressure molded on the tire sidewall (maximum cold pressure) or the mower manufacturer’s specification, whichever is lower. This seats the bead fully and distributes the foam evenly.
7. Rotate and Distribute
Rotate the tire slowly by hand several revolutions to help the liquid foam coat the entire inner surface before it begins to cure. For riding mowers, you can briefly run the mower at idle with the drive disengaged, but only if the tire is fully inflated and seated.
Curing and Post-Application Care
Curing Timeline
Most tire foam sealants reach initial set within 2–4 hours and full cure in 24–48 hours at room temperature (65–75°F). Colder temperatures extend curing time; high humidity can accelerate it. The tire may feel slightly soft or uneven during the first few hours—this is normal as the foam expands and cross-links.
Operating During Cure
Do not operate the mower under load until the foam has fully cured. Light movement (rolling the mower a few feet to reposition) after the initial 2–4 hour set is generally acceptable, but avoid cutting, turning sharply, or traversing slopes. Premature loading can create voids in the foam structure, reducing puncture resistance and causing imbalance.
Ongoing Maintenance
- Visual inspection: Check monthly for sidewall cracks, bead separation, or foam extrusion at the valve stem.
- Pressure check: While foam-filled tires hold pressure, a slow leak at the bead or valve can still occur. Verify pressure seasonally.
- Balance monitoring: Vibration or wobble at speed may indicate uneven foam distribution or tire damage. Have the assembly checked if this develops.
- Replacement: Foam-filled tires cannot be patched conventionally. When tread wears out or the casing fails, replace the entire tire. The foam must be cleaned from the rim before mounting a new tire.
Common Mistakes to Avoid
Using the Wrong Product
Substituting expanding spray foam, automotive tire sealant, or unrated products risks tire rupture, bead failure, and unsafe operation. These materials lack the controlled expansion rate, temperature stability, and rotational durability of purpose-made tire foam sealants. The cost difference is small; the safety risk is not.
Overfilling or Underfilling
Exceeding the recommended volume creates excessive internal pressure as the foam cures, potentially blowing the bead off the rim or cracking the wheel. Underfilling leaves voids that compromise puncture sealing and cause imbalance. Measure or weigh the product if the kit doesn’t provide a metered dispenser.
Ignoring Inflation Guidelines
Inflating above the tire’s maximum rated pressure (molded on the sidewall) to “help the foam expand” is dangerous. The foam generates its own internal pressure during cure. Overinflation combined with foam expansion can exceed the casing’s burst strength. Follow the tire or mower manufacturer’s pressure specification exactly.
Foam Leaks and Imbalance
If foam leaks from the valve stem or bead during injection, stop and reseal the connection. Leaks at the bead may indicate a damaged rim flange or tire bead—address before continuing. After curing, persistent vibration suggests uneven distribution. The tire must be deflated, the foam broken up, and the process repeated, or the tire replaced. Do not add wheel weights to compensate; they cannot correct internal foam imbalance.
Skipping Safety Steps
Never work under a raised mower supported only by a jack. Always use jack stands. Wear eye protection—pressurized sealant can spray forcefully if a fitting fails. Keep the work area ventilated; some sealants release vapors during cure. Dispose of empty canisters and contaminated rags per local hazardous waste guidelines.
Frequently Asked Questions
Can I fill tires that already have liquid sealant in them?
No. Existing liquid sealant will prevent the foam from adhering to the inner liner and curing uniformly. The tire must be removed, cleaned thoroughly, and dried before foam injection.
Will foam-filled tires work in freezing temperatures?
Most quality tire foam sealants remain flexible down to -20°F or lower, but the tire casing itself becomes stiffer in cold. Performance is generally acceptable for winter use (snow blades, blowers), but ride harshness increases. Check the product’s temperature rating.
How long does the foam last?
The foam typically outlasts the tire tread life—3 to 5 years under normal residential use. UV exposure, ozone, and casing fatigue are the limiting factors, not the foam itself.
Can I remove the foam later if I want to go back to air-filled tires?
Removal is labor-intensive. The tire must be dismounted, the foam scraped and solvent-cleaned from the casing and rim, and the tire inspected for damage. It is rarely cost-effective compared to replacing the tire.
Do I need to foam all four tires on a riding mower?
For consistent handling and traction, foam all tires on the same axle at minimum. Foaming all four is ideal. Mixing foam-filled and pneumatic tires on the same axle creates uneven suspension response and steering pull.
