Most modern Honda walk-behind mowers (GCV160, GCV170, GCV200, GXV series) use SAE 10W-30 as the factory-fill viscosity, with SAE 5W-30 recommended for cold-climate starting. Always verify your exact model on the engine label or in the owner’s manual—riding mowers and pre-2000 models may specify different grades. The key is matching the oil viscosity and API classification to your specific engine series and climate, then checking the dipstick on level ground to avoid overfilling, which can cause smoking and internal damage.

Standard Oil Specs by Honda Engine Series

Honda’s small engine lineup uses a handful of core engine platforms, each with consistent oil requirements:

  • GCV160 / GCV170 / GCV200: SAE 10W-30 (factory fill); SAE 5W-30 for temperatures below freezing
  • GXV160 / GXV200: SAE 10W-30 (factory fill); SAE 5W-30 for cold starts
  • GXV340 / GXV390: SAE 10W-30 typical for larger displacement; verify in manual for your model year
  • Riding mowers (HRR, HRX, H-series): Often SAE 10W-30, but capacity may differ; consult your manual

All modern Honda 4-stroke mower engines require an API service category of SJ or later (SL, SM, SN, SP are all acceptable). The viscosity grade matters for starting ease and engine protection across your local temperature range; the API rating ensures the oil contains detergents and anti-wear additives that small air-cooled engines need.

How to Confirm the Exact Spec for Your Mower in 30 Seconds

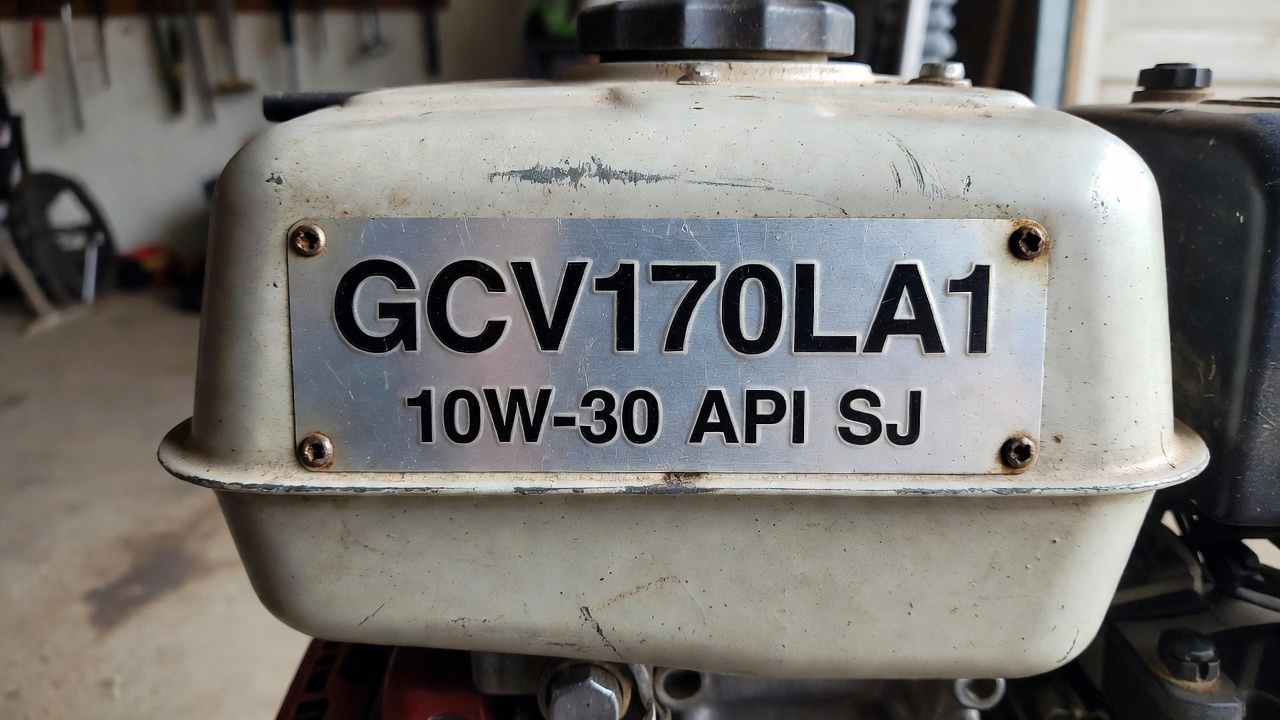

Close-up of Honda engine label showing model number and oil specification

Rather than guessing, locate the authoritative specification on your equipment:

  1. Find the engine label. Look on the recoil starter cover, fan shroud, or side of the crankcase. It will show the engine model (e.g., GCV170LA1, GXV160K1) and often includes an oil viscosity recommendation printed directly on it.
  2. Decode the model number. The first 3–5 characters (GCV, GXV, GX) identify the engine family; the numbers and letters that follow indicate displacement and revision. Write down the full model.
  3. Check the owner’s manual. The manual’s Specifications or Maintenance section lists the exact viscosity, capacity, and API rating. If you don’t have the physical manual, search online for “Honda [engine model] manual PDF” or visit Honda’s official small engine documentation site.
  4. If the label is worn or missing, the owner’s manual is your only reliable source. Contact a Honda dealer with your mower’s model and serial number for a replacement manual.

This 30-second check prevents buying the wrong oil and ensures your engine gets the protection it needs for years of reliable starts.

Viscosity Explained: 10W-30 vs 5W-30 vs Straight-Weight

The SAE (Society of Automotive Engineers) grading system uses two numbers separated by the letter W:

  • The first number (10W or 5W): The oil’s flow at cold startup. Lower numbers flow more easily in freezing temperatures. A 5W oil pours more readily than a 10W oil when the engine is cold, making it easier to start below freezing.
  • The second number (30): The oil’s viscosity at operating temperature (around 100 °C / 212 °F). Higher numbers are thicker; 30 is the standard for small mower engines.

SAE 10W-30 is the default for most climates. It flows adequately in freezing weather while maintaining film strength at operating temperature. Use it unless your region experiences sustained below-freezing conditions or your manual specifies otherwise.

SAE 5W-30 improves cold-start reliability if temperatures regularly dip below freezing. The thinner winter grade helps the engine turn over faster on a cold morning, reducing strain on the starter and battery.

Straight-weight oils (SAE 30) are rarely recommended for modern Honda mowers. Some older engines (pre-2000) list SAE 30 for ambient temperatures above a specified threshold (e.g., above 50 °F). Straight-weight oils offer no cold-flow benefit and are thicker across all temperatures; use them only if your manual explicitly calls for them in your climate.

Oil Classification: API Service Category and Detergent Requirements

Beyond viscosity, the API (American Petroleum Institute) rating ensures the oil contains the right additive package for a 4-stroke air-cooled engine:

  • API SJ or later (SL, SM, SN, SP): All are acceptable for Honda mower engines. These classifications guarantee detergents to prevent sludge, anti-wear agents to protect valve seats and piston rings, and anti-oxidants to resist degradation in high-heat conditions typical of small engines.
  • Automotive “resource-conserving” oils (ILSAC GF-5, GF-6): Fine to use; they meet SN or SP standards and include fuel-economy additives that don’t harm small engines.
  • Synthetic 5W-30 or 10W-30: Permitted by Honda in current manuals, provided it meets API SJ or later. Synthetics excel in cold starts and resist breakdown at high temperatures, though they do not extend Honda’s standard change interval (typically 50 hours or annually).

Do not use:

  • Non-detergent oil (lacks additives; causes rapid sludge buildup)
  • 2-stroke oil (contains extra lubricity for fuel mixture; will foul spark plugs and damage 4-stroke rings)
  • Heavy-duty diesel oil marked “CJ-4” or “CK-4” only (designed for different engine wear patterns; can harm small gas engines unless the manual explicitly approves it)

Synthetic vs Conventional: Is Synthetic Worth It?

Synthetic oils are a legitimate choice for Honda mowers, though they don’t extend maintenance intervals:

  • Cold-start performance: Synthetic flows faster at freezing temperatures, making it ideal for early-season mowing in cold climates or for mowers stored outdoors.
  • High-temperature stability: Synthetic resists breakdown better under sustained high heat, an advantage if you mow for extended hours in hot weather.
  • Change interval: Honda does not extend the recommended change interval for synthetic oil. Change every 50 hours or annually, just as you would with conventional oil. Synthetic may reduce wear, but small air-cooled engines don’t accumulate deposits the way automotive engines do, so the interval remains the same.
  • Leaks in older engines: Modern synthetic oils do not cause gasket leaks in well-maintained engines. If a vintage mower develops a leak after a synthetic oil change, it’s coincidence—the leak was already developing.

Choose conventional 10W-30 for routine mowing, or step up to synthetic if you live in a cold climate or want extra insurance against high-temperature breakdown. Either way, verify API SJ or later on the bottle.

Oil Capacity by Engine Series

Knowing the approximate refill volume helps you buy the right quantity and avoid overfilling:

  • GCV160 / GCV170: Approximately 0.58–0.63 quart (18–20 fluid ounces) refill capacity
  • GCV200: Approximately 0.63–0.74 quart (20–24 fluid ounces) refill capacity
  • GXV160: Approximately 0.61–0.69 quart (19–22 fluid ounces) refill capacity
  • GXV200: Approximately 0.63–0.74 quart (20–24 fluid ounces) refill capacity
  • Riding mowers (GXV340, GXV390): Larger displacement engines; typically 1.1–1.5 quarts; consult your manual

These are typical refill volumes after you drain the crankcase—not total dry-fill capacity. Always check the dipstick while adding oil rather than pouring a pre-calculated amount. Place the mower on level ground, insert the dipstick without screwing it in (or follow your manual’s dipstick procedure), wipe it clean, reinsert, and read the level. Fill until the oil reaches the full mark on the stick.

Step-by-Step Oil Change Procedure

A correct oil change takes 10–15 minutes and prevents costly engine damage:

  1. Run the engine for 5 minutes to warm the oil, making it flow faster and carrying more suspended particles into the drain.
  2. Turn off the engine and let it cool for 2–3 minutes (warm oil drains better, but you don’t want to burn yourself).
  3. Locate the drain bolt at the bottom of the crankcase. Place a small pan underneath to catch the old oil.
  4. Remove the drain bolt by turning it counterclockwise. Allow the oil to drain completely (a few minutes). Wipe the bolt and its threads with a clean rag.
  5. Reinstall the drain bolt. Tighten it snugly—do not over-torque, which can strip the threads. If your manual specifies a torque value, follow it; otherwise, tighten until snug and stop.
  6. Remove the oil filler cap and add the recommended oil through the filler neck. Use a funnel to avoid spillage.
  7. Check the level on level ground. Insert the dipstick (without screwing it in unless your manual says otherwise), wipe it, reinsert, and read the mark. Top off if needed until the oil is at the full line.
  8. Replace the oil filler cap, start the engine, and let it idle for 30 seconds to distribute the fresh oil. Shut it down and check the level once more after it cools.
  9. Dispose of the old oil responsibly. Take it to a recycling center, auto parts store, or service station that accepts used oil.

Alternative tilt method: Some mowers can be tilted to drain without a drain bolt. Tilt the mower with the air filter side up so oil doesn’t flood the filter. This works for simpler engines but is messier; the drain-bolt method is cleaner and preferred.

Common Mistakes That Damage Honda Mower Engines

A few preventable errors can shorten engine life:

  • Using 2-stroke oil or non-detergent oil: These lack the detergents and anti-wear additives that 4-stroke engines require. The result is rapid sludge formation, ring sticking, and internal wear that can seize the engine within a season.
  • Overfilling the crankcase: Even a half-inch above the full mark on the dipstick causes the crankshaft to whip oil into foam, reducing its cooling and lubricating ability. Foamy oil also gets past the piston rings and into the combustion chamber, producing blue smoke. In extreme cases, the excess pressure can blow out seals or cause hydro-lock (incompressible liquid in the cylinder preventing the piston from moving).
  • Skipping oil changes: Running beyond 50 hours or a year allows sludge and varnish to accumulate. Piston rings lose freedom, and internal passages clog, starving the engine of lubrication. A $10 oil change prevents a $400 engine rebuild.
  • Using straight SAE 30 in cold weather: Cold oil flows poorly, causing hard starts and incomplete lubrication during the critical first seconds of operation. Stick with 10W-30 or 5W-30 for your climate.

When to Change Oil: Intervals and Severe-Service Conditions

Follow Honda’s maintenance schedule to keep your mower running:

  • First oil change: After 5–10 hours of operation (break-in). New engines produce metallic wear particles during initial running; this early change clears them out.
  • Routine interval: Every 50 hours or annually, whichever comes first. If you mow 10 hours per week, change every 5 weeks; if you mow once or twice a month, change in spring and fall.
  • Severe service interval: Halve the interval (every 25 hours or 6 months) if you operate in dusty conditions (unpaved yards, sandy soil), ambient temperatures consistently above 90 °F (32 °C), or frequent short runs without full warm-up. Dust clogs the air filter and accelerates oil contamination; heat thins the oil faster.

Mark your calendar or track hours with a small log to stay on schedule. Neglecting maintenance voids many Honda warranties and guarantees premature engine failure.

Riding Mowers and Older Models: Key Differences

Not all Honda mowers follow the same specification:

  • Riding mowers (HRR, HRX, H-series): Often use SAE 10W-30, but their larger engines (GXV340, GXV390, or in-line twins) have capacities of 1.1–1.5 quarts, significantly more than walk-behind models. Some riding mowers include an oil filter, which may change the maintenance schedule. Always consult your mower’s manual.
  • Pre-2000 walk-behind and riding mowers: Older engines (GX110, GX140, GC135, or equivalent) may specify SAE 30 straight-weight for temperatures above a minimum threshold (e.g., above 50 °F / 10 °C). Some older manuals also list SAE 10W-40 as an alternative. If you own a vintage mower, find its original manual to confirm.
  • Finding specs for discontinued models: Search online for “Honda [model number] manual PDF.” If unsuccessful, contact a local Honda dealer with your mower’s model and serial number; they can often provide or order a replacement manual or direct you to an archived resource.

Unusual engine behavior after an oil change or during operation may point to an oil issue:

  • White or blue smoke from the exhaust: Usually indicates overfilling. Drain the excess oil until the dipstick reads full on level ground. If smoke persists, the engine may have sucked oil past the rings during overfill; allow it to run and burn off excess, or consult a service technician.
  • Weak start or failure to start after an oil change: A common cause is hydro-lock (oil in the cylinder preventing compression). Remove the spark plug, pull the starter cord several times to clear the cylinder, reinsert the plug, and try starting again. Next, verify the oil level; overfill is the culprit.
  • Milky or foamy oil on the dipstick: May indicate water contamination (condensation from storage in a damp garage or washed-in rainwater). Perform an oil change immediately. If foaming occurs during operation, the crankcase is likely overfilled; drain to the correct level.
  • Hard starting in cold weather despite using 5W-30: Confirm the oil is truly 5W-30 (check the bottle label). If it is, the issue may be fuel-related (stale gas, clogged carburetor) or ignition-related, not oil. Consult your manual’s troubleshooting section or a service dealer.

When in doubt, drain and refill with fresh oil of the correct grade, verify the level on level ground, and start the engine to see if symptoms resolve. Most oil-related problems trace back to overfilling or using the wrong viscosity.
