Quick Answer: How to Change Oil on a Troy-Bilt Lawn Mower
Warm the engine for 2–3 minutes, shut it off, disconnect the spark plug wire, then drain the old oil through the drain plug or a siphon pump. Reinstall the drain plug, refill with the correct oil type (SAE 30 or 10W-30, typically 18–20 oz for walk-behind models), verify the level with the dipstick, reconnect the spark plug wire, and run the engine briefly to confirm no leaks. Change oil every 50 hours of operation or once per season — whichever comes first — with a first break-in change at 5 hours on a new engine.
Pros
- Large-size design named in product title
- Sharpening and balancing functions listed
- Listed as a new upgraded version
Pros
- Adjustable 15-to-45-degree range in title
- Sharpening and balancing functions listed
Pros
- Sharpener and balancer functions in title
- 15-to-45-degree adjustable setting listed
- Built for lawn mower blade maintenance
Pros
- Includes replacement gaskets and a 98079-55846 spark plug
- Matches Honda HRR216 and HRS216 lawn mower models
- Designed around the 16100-Z8B-901 carburetor specification
Cons
- Restricted to select Honda GCV160 mower applications
- Installation requires basic mechanical tools and skills

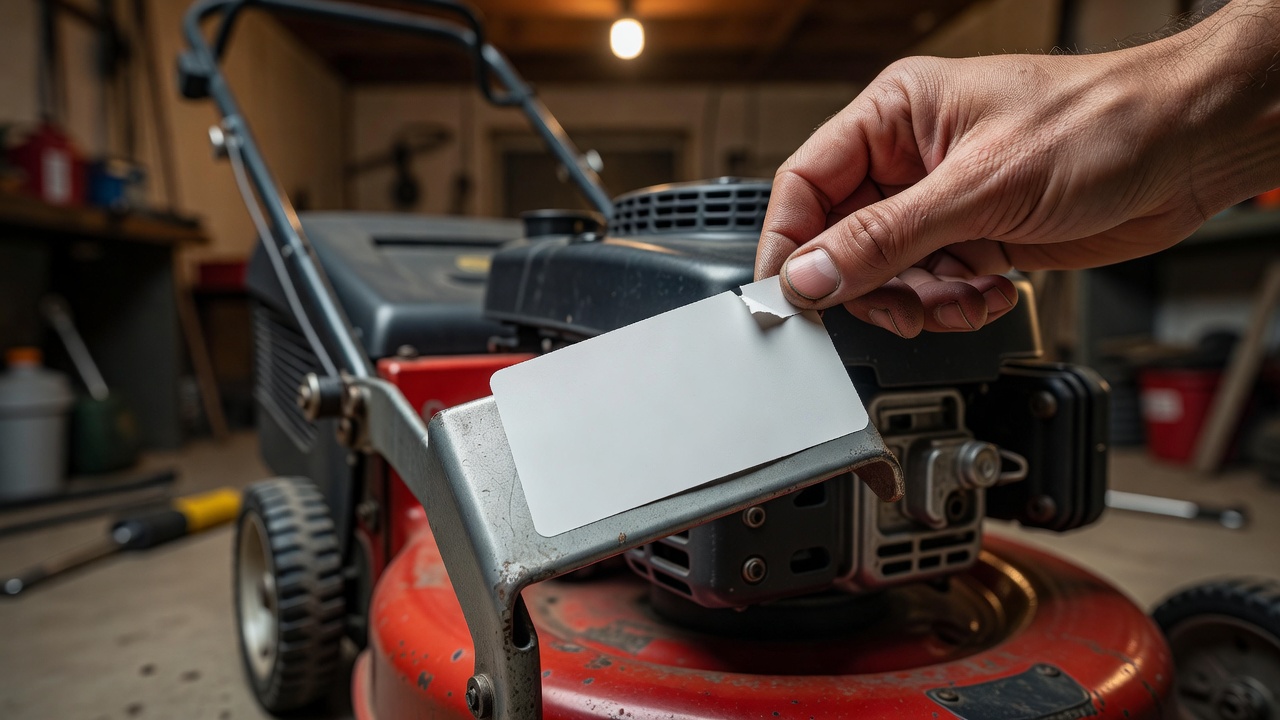

Identify Your Troy-Bilt Model and Engine Before You Start
Oil capacity, drain plug location, and filter presence vary significantly across Troy-Bilt models. Identifying your mower before purchasing oil or starting work prevents wrong-oil errors that can void your warranty.
How to Find Your Model and Engine Number
- Model number: Located on a sticker on the mower deck, frame, or rear housing. Format example: 11A-B2BQ711.
- Engine number: Stamped directly on the engine block or on a sticker above the spark plug.
- Owner’s manual: Lists exact oil type, capacity, and whether your model includes an oil filter.
Engine Brand Variants
Troy-Bilt walk-behind mowers ship with Briggs & Stratton or Honda engines depending on the model year and trim. Riding mowers may use Briggs & Stratton or Cub Cadet-sourced engines. Oil specifications and filter requirements differ between these engine families — always cross-reference the engine manufacturer’s documentation, not just the mower brand. To evaluate matched hardware tolerances, consult our detailed overview of jbl partybox club 120 vs sony srs xv500.
Drain Plug vs. Oil Drain Valve vs. Siphon Pump
- Drain plug: A threaded bolt on the underside or side of the engine crankcase. Present on most TB200, TB240, and riding mower models.
- Oil drain valve: A quarter-turn valve that eliminates the need for tools. Found on select Briggs & Stratton-equipped models.
- Siphon pump method: Required on TB110 and TB130 models, which lack an accessible bottom drain plug. Oil is extracted upward through the dipstick tube.
What Oil Does a Troy-Bilt Lawn Mower Take? (Type & Capacity by Model)
Use the table below as a quick reference. Verify against your specific owner’s manual before adding oil — model variants within the same series can differ. To evaluate matched hardware tolerances, consult our detailed overview of jbl partybox club 120 vs sony srs xv500.
| Model | Engine | Oil Type | Capacity | Oil Filter |
|---|---|---|---|---|
| TB110 | Briggs & Stratton 140cc | SAE 30 / 10W-30 | ~18 oz | No |
| TB130 | Briggs & Stratton 163cc | SAE 30 / 10W-30 | ~20 oz | No |
| TB200 | Briggs & Stratton 163cc | SAE 30 / 10W-30 | ~20 oz | No |
| TB240 | Briggs & Stratton 190cc | 10W-30 / 5W-30 synthetic | ~20 oz | Select variants: Yes |
| Pony / Bronco / Horse (riding) | Briggs & Stratton (various) | 10W-30 / 5W-30 | 48–64 oz (varies by engine) | Yes |
Oil Type Selection Guide
- SAE 30: Recommended for warm climates where temperatures stay consistently above 40°F (4°C). Standard choice for most Troy-Bilt walk-behind mowers used in spring through fall.
- 10W-30: Better for variable temperature conditions. Acceptable in most Briggs & Stratton engines per the engine manufacturer’s recommendations.
- Synthetic 5W-30: Provides extended protection and works across a wider temperature range. Compatible with most Troy-Bilt engines — confirm in your owner’s manual. Does not extend the recommended change interval on its own.
Do not use automotive oil additives or high-mileage blends in small engines. These are formulated for multi-cylinder car engines and can damage small engine seals.
Tools and Supplies You Need Before Changing the Oil
- Correct oil type and quantity (per table above)
- Drain pan (minimum 1-quart capacity)
- Oil siphon pump (required for TB110, TB130; useful on any model where drain plug access is obstructed)
- Adjustable wrench or correct socket size for drain plug
- Funnel
- Clean rag or shop towels
- Oil filter wrench (for models with a filter)
- Sealable container or used oil bottle for disposal
Safety checklist before starting: When planning workspace deployment, consider the engineering criteria outlined in our z890 vs x870e motherboard guide.
- Disconnect the spark plug wire — prevents accidental engine start during work.
- Work on a flat, level surface to get an accurate dipstick reading.
- Allow the engine to cool to safe handling temperature after the warm-up run (2–3 minutes of run time warms oil for easier draining without making the engine dangerously hot).
- Keep flames and cigarettes away — fresh oil and residual fumes are flammable.
How to Change Oil on a Troy-Bilt Walk-Behind Mower (Step-by-Step)
Method A: Drain Plug Method (TB200, TB240, and Models with Accessible Plug)
- Warm the engine. Run the mower for 2–3 minutes. Warm oil flows faster and carries more contaminants out during the drain.
- Shut off the engine. Wait 2–3 minutes for surfaces to cool slightly.
- Disconnect the spark plug wire. Pull the rubber boot off the spark plug and tuck it aside so it cannot accidentally contact the plug.
- Position the drain pan. Place it beneath the drain plug on the underside or side of the engine block.
- Remove the drain plug. Turn counterclockwise with a socket or wrench. Let oil drain completely — allow 3–5 minutes.
- Inspect the drain plug. Check threads and the washer or O-ring for damage. Replace if stripped or cracked.
- Reinstall the drain plug. Thread by hand first to avoid cross-threading, then tighten snugly. Briggs & Stratton specifies 140 in-lbs (approximately 11.6 ft-lbs) for standard drain plugs — consult your engine manual for the exact torque spec. Overtightening cracks the crankcase.
- Add new oil. Insert a funnel into the oil fill tube and pour in the correct quantity for your model. Add in stages and check the dipstick — do not pour the full amount in at once.
- Check the dipstick. Remove the dipstick, wipe it clean, reinsert fully, then remove and read. Oil should sit between the two notch marks — not above the upper mark.
- Reconnect the spark plug wire.
- Run the engine for 30–60 seconds. Shut off, wait one minute, then recheck the dipstick and inspect around the drain plug for leaks.
Method B: Siphon Pump Method (TB110, TB130, and Models Without Accessible Drain Plug)
- Warm the engine for 2–3 minutes, then shut off.
- Disconnect the spark plug wire.
- Remove the dipstick. Insert the siphon pump tube fully into the dipstick tube until it reaches the bottom of the oil reservoir.
- Pump the siphon to extract oil into your drain pan or sealable container. Continue until no more oil is extracted (typically 15–20 pump strokes).
- Reinsert the dipstick temporarily to confirm the reservoir is empty.
- Add new oil through the dipstick tube using a narrow funnel. Add in stages, checking the dipstick between additions.
- Verify level with the dipstick, reconnect the spark plug wire, run the engine briefly, and recheck.
Overfill warning: Adding too much oil causes the engine to smoke heavily, can foul the spark plug, and may damage seals. If you overfill, use the siphon pump to remove the excess before running the engine.
How to Change the Oil Filter on a Troy-Bilt Mower (Models That Apply)
Important: Most Troy-Bilt walk-behind mowers do not have an oil filter. Filters are standard on riding mowers (Pony, Bronco, Horse) and present on select TB240 variants. Check your owner’s manual before purchasing a filter — installing a filter step on a filterless engine is unnecessary and the filter location will simply not exist. For additional operational safety benchmarks, see our published testing notes on marshall stanmore iii vs harman kardon onyx studio 8.
Oil Filter Replacement Steps (Riding Mowers and Applicable Walk-Behinds)
- Complete the oil drain procedure above before removing the filter.
- Locate the oil filter — typically a canister screwed onto the engine block near the drain plug.
- Place the drain pan beneath the filter. Residual oil will spill when the filter is removed.
- Remove the old filter by turning counterclockwise. Use an oil filter wrench if hand pressure is insufficient. Do not use pliers — they crush the canister.
- Apply a thin film of fresh oil to the rubber gasket on the new filter. This ensures a proper seal and makes next removal easier.
- Pre-fill the new filter approximately halfway with fresh oil. This reduces dry-start duration after the oil change.
- Thread the new filter on by hand until the gasket contacts the engine surface, then tighten an additional ¾ turn. Do not use a wrench to tighten — hand-tight plus ¾ turn is the standard for spin-on filters.
- Proceed with adding new oil, checking the dipstick, and running the engine. Recheck for filter leaks after the first run.
How to Change Oil on a Troy-Bilt Riding Mower
The core process mirrors the walk-behind drain plug method, but with key differences:
- Oil capacity is significantly larger — typically 48–64 oz (1.5–2 qt) depending on the engine. Confirm in your specific model’s owner’s manual.
- An oil filter change is required at every oil change interval on virtually all riding mower models.
- Drain plug location varies — on Pony and Bronco models it is typically on the lower engine block; you may need ramps or a mower lift for adequate clearance to position the drain pan.
- Engage the parking brake and remove the ignition key before starting work.
- For a full step-by-step riding mower procedure specific to Pony, Bronco, and Horse models, refer to the dedicated Troy-Bilt riding mower oil change guide.
Oil Change Intervals: When to Change Oil on a Troy-Bilt Mower
| Situation | Recommended Interval |
|---|---|
| New engine break-in change | After first 5 hours of operation |
| Standard seasonal use | Every 50 hours or once per season (whichever comes first) |
| Heavy use / commercial-style operation | Every 25 hours |
| Mower stored over winter | Change oil before storage or at first spring startup |
The 5-hour break-in change is specified in Briggs & Stratton engine documentation for new engines. During break-in, metal particles from engine seating contaminate the oil faster than during normal operation — skipping this change leaves abrasive material circulating in the crankcase. To compare alternative configurations, check our hands-on review of dyson v8 cyclone vs bissell featherweight stick.
Signs Your Oil Needs Changing
- Oil on dipstick appears black or very dark brown (new oil is amber).
- Oil has a gritty texture when rubbed between fingers.
- Burning oil smell during operation.
- Milky or white/grey oil — this signals coolant or water contamination, which points to a head gasket failure. Do not simply change the oil; have the engine inspected before further use.
How to Dispose of Used Lawn Mower Oil
Used motor oil is a regulated waste in most U.S. states. Dumping it on the ground or in storm drains is illegal under EPA used oil management standards (40 CFR Part 279) and most state environmental statutes. One quart of motor oil can contaminate up to 250,000 gallons of drinking water.
Accepted Disposal Methods
- Auto parts stores: AutoZone, O’Reilly Auto Parts, and Advance Auto Parts operate used oil collection programs at most locations. Call ahead to confirm your local store accepts it — participation can vary by location.
- Municipal recycling programs: Many counties operate household hazardous waste (HHW) drop-off sites. Check your city or county public works website.
- Earth911 locator: Enter your zip code at earth911.com to find the nearest used oil recycling site.
Store used oil in a sealed, clean container (the original oil bottle works well) until you can transport it. Do not mix used oil with gasoline, antifreeze, or other fluids — contaminated oil is rejected at recycling centers. Users looking for related component recommendations can explore our bissell crosswave hydrosteam vs shark stainforce breakdown.
Troubleshooting Common Troy-Bilt Oil Change Problems
Mower Is Smoking After an Oil Change
Overfilling is the most common cause. Excess oil gets pulled into the combustion chamber and burns off as white or blue smoke. Remove the dipstick and use a siphon pump to extract oil until the level reads within the correct range on the dipstick. Run the engine for a few minutes — light smoke should clear once the excess is burned off. If smoke persists after correcting the level, check for oil spilled on the engine block and wipe it clean.
Stripped Oil Drain Plug
Stop immediately — do not attempt to over-tighten a stripped plug. Options: install an oversized replacement drain plug of the same thread pitch (available at auto parts stores), use a thread repair kit (Heli-Coil) to restore the crankcase threads, or replace the drain plug with a rubber expandable drain plug as a temporary solution. A machine shop can re-tap the crankcase thread if the damage is severe. Continuing to run the engine with an improperly sealed drain plug will result in total oil loss and engine seizure.
Milky or White Oil
Milky oil indicates water or coolant has entered the crankcase — most likely a blown head gasket, a cracked block, or water ingestion from running the mower through deep standing water. Do not restart the engine. Drain the contaminated oil and have the engine inspected by a small engine technician. Running an engine on emulsified oil causes rapid bearing and cylinder wall damage.
Dipstick Reads Overfull After Oil Change on Level Ground
If you added the correct quantity but the dipstick reads above the full mark, confirm the mower is on a flat surface — even a slight tilt skews the reading. If level and still overfull, use the siphon pump to remove oil in small increments (2–3 oz at a time), rechecking the dipstick each time until the level falls within the correct range.
Buyer FAQs: How To Change Oil On A Troy Bilt Lawn Mower Solved
Can I use 10W-30 instead of SAE 30 in my Troy-Bilt walk-behind mower?
Yes. Briggs & Stratton approves 10W-30 as an alternative to SAE 30 in its engines across most operating temperatures. 10W-30 performs better in cooler conditions at startup. Either is acceptable for typical warm-season mowing — SAE 30 is the traditional recommendation for sustained high temperatures.
Do I have to change the oil filter every time I change the oil on my Troy-Bilt?
On models equipped with an oil filter (primarily riding mowers and select TB240 variants), yes — change the filter at every oil change. The filter traps contaminants; leaving a used filter in place reintroduces those particles into fresh oil immediately. Most Troy-Bilt walk-behind models do not have a filter, so this step does not apply.
How do I know if my Troy-Bilt uses a siphon pump or drain plug method?
Check your owner’s manual first. As a general guide: TB110 and TB130 models typically require a siphon pump because the crankcase drain is not accessible without tilting the mower (which risks fuel and oil spills). TB200, TB240, and riding mowers generally have an accessible drain plug. If unsure, look at the underside of the engine block — a drain plug is a threaded bolt approximately 3/8 to 1/2 inch in diameter.
What happens if I skip the 5-hour break-in oil change on a new Troy-Bilt mower?
Metal filings and manufacturing debris from engine seating accumulate in the oil during the first few hours of operation. Skipping the break-in change leaves this abrasive material circulating through bearings and cylinder walls for the remainder of the season. The Briggs & Stratton engine manual specifies the 5-hour change for this reason. It is a low-cost step that meaningfully extends engine life.
