Quick Answer: How to Change Ride-On Mower Blades
Disconnect the spark plug lead, lift and stabilise the mower on a dedicated lift or ramps, wedge the blade with a wooden block, then loosen the blade bolt counter-clockwise (clockwise on reverse-threaded models). Slide off the old blade, inspect the spindle, fit the new blade with the cutting edge facing down toward the ground, and torque the bolt to manufacturer spec — typically 70–90 ft-lb. Finish with a blade-balance check before the test run.

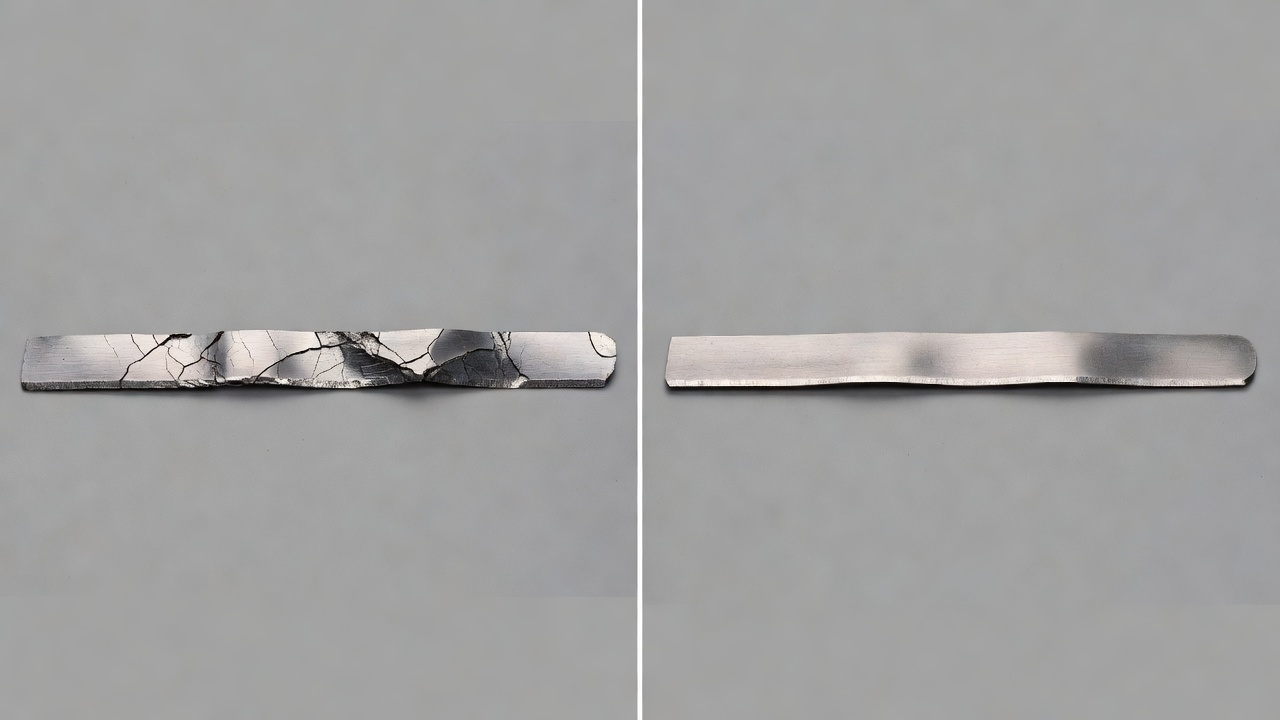

Sharpen or Replace? Decide Before You Start
Confusing these two tasks wastes time and money. Use this one-sentence rule: if the blade has visible cracks, bends, missing chunks, or impact gouges deeper than 1/4 inch, replace it — a dull edge only means sharpen it.
- Replace: Cracked steel, bent blade body (even slightly — a bent blade cannot be safely straightened and reused), worn centre hole, blade thickness under manufacturer minimum.
- Sharpen: Rolled or dull cutting edge with no structural damage. Sharpening does not require full removal on all decks, but the same safety steps apply when the blade must come off for bench sharpening.
If in doubt, replacement blades for common decks cost $15–$40 and eliminate risk. Continue below for full replacement.
Tools and Safety Gear You Need
Gather everything before you start. Stopping mid-task with the mower lifted is a safety hazard.
- PPE: Heavy leather or cut-resistant gloves; ANSI-rated safety glasses or goggles.
- Lift equipment: Dedicated ride-on mower lift (safest), drive-on ramps (front or rear depending on deck position), or a floor jack rated above your mower’s weight with jack stands — never use a floor jack alone.
- Wooden block (2×4 section): Acts as a blade brake to stop rotation while loosening the bolt.
- Breaker bar (1/2-inch drive) or impact wrench: Blade bolts are torqued to 70–90 ft-lb and are often corroded. A standard ratchet is rarely sufficient.
- Torque wrench (0–150 ft-lb range): Required for installation — over-torquing distorts the blade hub; under-torquing risks blade throw.
- Socket set: Most blade bolts are 5/8-inch or 15/16-inch; check your model’s manual.
- Wire brush and penetrating oil (e.g., PB Blaster): For corroded bolts — apply 10–15 minutes before attempting removal.
- Blade balancer: Cone or magnetic type ($8–$20). Covered in the balance-check section — do not skip this tool.
- Owner’s manual: For jack points, torque spec, and thread direction specific to your model.
How to Safely Lift and Stabilise Your Ride-On Mower
Warning: A tipping ride-on mower causes serious crush injury, fuel spills, and engine damage. Never work under a mower supported only by a floor jack. Always use rated jack stands or a purpose-built lift.
Option 1 — Dedicated Ride-On Mower Lift (Recommended)
Scissor-style or ramp-type mower lifts raise all four wheels simultaneously. No jack points needed, no tipping risk. Position the lift on level concrete, drive the mower on, engage the lift lock, and apply the parking brake.
Option 2 — Drive-On Ramps
For rear-engine single-blade mowers, drive the front wheels onto ramps to access the deck from the front. For garden tractors with mid-mounted decks, front ramps provide clearance. Confirm the deck is accessible at ramp height before committing. Apply parking brake and chock the rear wheels.
Option 3 — Floor Jack with Jack Stands
Consult your owner’s manual for stamped or labelled jack points — using the wrong lift point bends the frame. Typical jack points on garden tractors are the front axle centre or reinforced frame rails behind the front wheels. Lift one side, place a rated jack stand, repeat the other side. Never rely solely on the jack.
Fuel and Oil Before Tilting
If your lift method involves tilting the mower beyond 15 degrees, drain the fuel tank or run the engine until the tank is near-empty, and check the oil level is not above the full mark. Tilting a full-tank mower risks fuel leaking into the air filter and oil leaking past valve seals. Most dedicated lifts and ramps keep the mower level — fuel management is primarily required when using a single-side floor jack raise above 20 degrees.
Step-by-Step: Removing the Old Blades
Step 1 — Disconnect the Spark Plug Lead
Pull the spark plug wire off the plug tip before any other step. On twin-cylinder engines, disconnect both leads. Tape the lead back away from the plug so it cannot accidentally reconnect during the job. This is a non-negotiable safety step — a blade can rotate if the engine fires.
Step 2 — Lower the Deck and Apply Parking Brake
Set the deck lift lever to its lowest position before raising the mower. This reduces the distance the deck hangs below the frame and makes blade access easier. Engage the parking brake firmly.
Step 3 — Lift and Stabilise the Mower
Use the method selected above. Confirm the mower does not rock before sliding underneath. Work on a hard, flat, level surface only — never on grass or gravel.
Step 4 — Locate the Blade Bolt(s)
Each blade is held to the spindle by a single central bolt (and sometimes a star washer or blade adapter). Single-blade decks have one bolt; twin-blade decks have two, each on its own spindle. On triple-blade zero-turn decks, the procedure is the same — work one blade at a time.
Step 5 — Block the Blade
Wedge a short section of 2×4 timber between the blade tip and the inside of the deck housing. This prevents the blade from rotating as you apply torque to the bolt. Do not use your hand to hold the blade still.
Step 6 — Loosen the Blade Bolt (Thread Direction Warning)
Most ride-on mower blade bolts are standard right-hand thread: turn counter-clockwise (left) to loosen. However, some models use reverse-thread (left-hand thread) bolts that require clockwise rotation to loosen. Forcing a reverse-thread bolt counter-clockwise strips the threads.
Known reverse-thread applications: some older Snapper rear-engine riders use left-hand thread on the blade bolt. The majority of current garden tractors from John Deere, Husqvarna, Craftsman, Cub Cadet, and Troy-Bilt use standard right-hand thread — always verify in your owner’s manual before applying force. The bolt or spindle housing is sometimes stamped with “L” (left-hand) to indicate reverse thread.
Apply penetrating oil to a corroded bolt and wait 10–15 minutes. Use a breaker bar for initial movement; switch to a ratchet once the bolt is free. Impact wrenches work but can over-torque on reinstall — use a torque wrench for the final fit.
Step 7 — Remove the Blade
With the bolt and any washers removed, slide the blade straight down off the spindle shaft. Note the blade orientation before removal: on most decks, the blade is installed with the cutting edge and lift wings angled upward toward the deck (the blade faces down toward the ground when the deck is in the cutting position). Take a photo before removal to confirm orientation.
Twin-Blade and Triple-Blade Decks
Repeat Steps 5–7 for each additional spindle. Do not leave one blade removed and one installed for extended periods — deck balance is affected. Replace all blades in a set for even cut quality and balanced deck load.
Inspecting the Spindle and Deck Before Fitting New Blades
Fitting a new blade onto a damaged spindle causes immediate vibration, accelerated bearing failure, and blade throw risk. Inspect before reinstalling.
- Spindle shaft wobble: Grasp the spindle shaft by hand and push side to side. Any lateral play indicates a worn or damaged spindle bearing — replace the spindle assembly before fitting new blades.
- Shaft surface condition: The shaft should be smooth and straight. Scoring, rust ridges, or visible bending means the spindle must be replaced.
- Blade adapter/hub: Check the adapter (if fitted between blade and spindle) for cracks or deformation. A cracked adapter must be replaced.
- Deck housing: Clear debris, built-up grass, and rust scale from inside the deck. A clogged deck reduces airflow and cut quality. A wire brush and scraper handle this quickly.
- Deck damage: Check for cracks in the deck shell around spindle housings — impact damage here affects blade tracking.
Step-by-Step: Fitting and Torquing the New Blades
Step 1 — Confirm Blade Orientation
The blade must be fitted with the cutting edge and any upturned lift wings facing up toward the inside of the deck. When the mower is on the ground in cutting position, the cutting edge faces down toward the grass. Fitting the blade upside-down prevents cutting and can damage the deck. Compare with your pre-removal photo.
Step 2 — Slide the Blade onto the Spindle
Align the blade centre hole over the spindle shaft. Replace the star washer (if fitted) in its original position. Thread the blade bolt by hand — full thread engagement before applying any tool. Cross-threading a blade bolt is a serious safety failure point.
Step 3 — Block the Blade and Torque to Spec
Re-wedge the 2×4 block between the blade tip and deck housing. Tighten the bolt with the breaker bar until snug, then use a calibrated torque wrench to reach the manufacturer specification. Do not estimate torque by feel.
Blade Bolt Torque Specifications by Brand
| Brand | Typical Torque Range | Notes |
|---|---|---|
| John Deere | 70–90 ft-lb | Verify in model-specific Technical Manual (TM series); spec varies by deck size |
| Husqvarna | 70–85 ft-lb | Owner’s manual Section 6 (Service); some 48″ decks specify 85 ft-lb minimum |
| Craftsman | 70–90 ft-lb | Refer to model operator’s manual; Craftsman/Husqvarna-platform models align with Husqvarna spec |
| Cub Cadet | 70–90 ft-lb | Model-specific manuals available at cubcadet.com; XT1/XT2 series commonly 90 ft-lb |
| Troy-Bilt | 70–90 ft-lb | Troy-Bilt shares MTD platform with Cub Cadet; confirm via troy-bilt.com manual lookup |
Always cross-reference your specific model’s owner’s manual or manufacturer service documentation for the binding specification. The ranges above represent commonly published values across model lines and are starting references only — your model may differ.
Blade Balance Check: The Step Most Guides Skip
An unbalanced blade creates vibration that loads spindle bearings unevenly, shortening their service life and causing deck shake that loosens fasteners over time. New blades from reputable suppliers are factory-balanced but can arrive slightly off; sharpened-and-reinstalled blades are the higher risk.
How to Use a Blade Balancer
A cone balancer mounts to a wall or workbench; a magnetic balancer mounts to a ferrous surface. Both work by suspending the blade through its centre hole on a central pin or cone — an unbalanced blade tips to the heavy side.
- Clean all debris and rust from the blade before balancing.
- Place the blade centre hole over the balancer cone or pin.
- Release the blade gently. A balanced blade remains horizontal or rotates slowly without dropping to one side.
- If one end drops, that end is heavier. Remove small amounts of material from the heavy end using a metal file or bench grinder — work the non-cutting back edge only, not the cutting bevel.
- Recheck after each filing pass. Stop when the blade holds level.
No Balancer Available?
A nail driven horizontally into a wall stud, with the blade hung through its centre hole, is a field alternative — it shows gross imbalance but lacks the sensitivity of a dedicated tool. For a $10–$20 investment, a proper balancer is the correct call on any blade you intend to run at 3,000+ RPM.
Test Run and Post-Installation Checks
- Lower the mower from the lift or ramps before reconnecting anything.
- Reconnect the spark plug lead(s).
- Check the area around the mower is clear of people, animals, and loose objects.
- Start the engine on a flat, paved, or firm surface. Do not engage the blade immediately.
- Listen for unusual sounds at idle — a deep rumble or metallic vibration at the deck indicates a fitting or balance issue. Stop the engine immediately and recheck.
- Engage the blades at low throttle and listen again. Normal operation is a clean airflow sound from the deck.
- Make a short test pass on a small grass area. Check the cut quality — uneven or scalped strips indicate incorrect blade orientation or a blade fitted upside-down.
- After the first mow, re-torque the blade bolt(s). Blades can micro-settle on the spindle during initial use.
Frequently Asked Questions
Which way do you turn a ride-on mower blade bolt to loosen it?
Counter-clockwise (left) on the vast majority of models — standard right-hand thread. A small number of older models (certain Snapper rear-engine riders, for example) use left-hand (reverse) thread requiring clockwise rotation to loosen. Check your owner’s manual before applying force. The spindle housing is sometimes stamped “L” to indicate left-hand thread.
Do I need a torque wrench to fit mower blades?
Yes. Blade bolts torqued below specification back out under vibration, creating a blade-throw hazard. Bolts torqued above specification distort the blade hub or spindle thread. A beam-type torque wrench costs under $30 and removes all guesswork. Tightening by feel is not a safe substitute at 70–90 ft-lb.
How do I know if my mower spindle is damaged and needs replacing?
Grasp the bare spindle shaft with both hands and apply firm side-to-side and up-down pressure. Any detectable lateral play or wobble indicates worn spindle bearings. Also look for scoring on the shaft surface, visible bending, or rust pitting deep enough to affect blade seating. A damaged spindle must be replaced before new blades are fitted — running new blades on a worn spindle causes rapid bearing failure and unsafe vibration.
Why is my ride-on mower vibrating after a blade change?
The four most common causes after a DIY blade change: (1) blade fitted upside-down — the lift wings must face up into the deck; (2) blade bolt under-torqued and the blade has shifted on the spindle; (3) blade is unbalanced — check with a balancer and file the heavy end; (4) spindle bearing damage that was present before the job and is now more noticeable with the disturbance of removal. Stop use, lower the deck, and diagnose before continuing to mow.
