How Do You Check an Ignition Coil on a Lawn Mower? (Spark Test, Multimeter & Air-Gap Guide)

Quick Answer: How to Check a Lawn Mower Ignition Coil

Remove the spark plug, ground its threads against the engine block, crank the engine, and watch for a strong blue spark — a weak yellow spark or no spark at all points to the coil or its circuit. Follow up with a multimeter resistance test on both windings and a feeler-gauge check of the armature air gap. A coil that fails two or more of these three tests should be replaced.

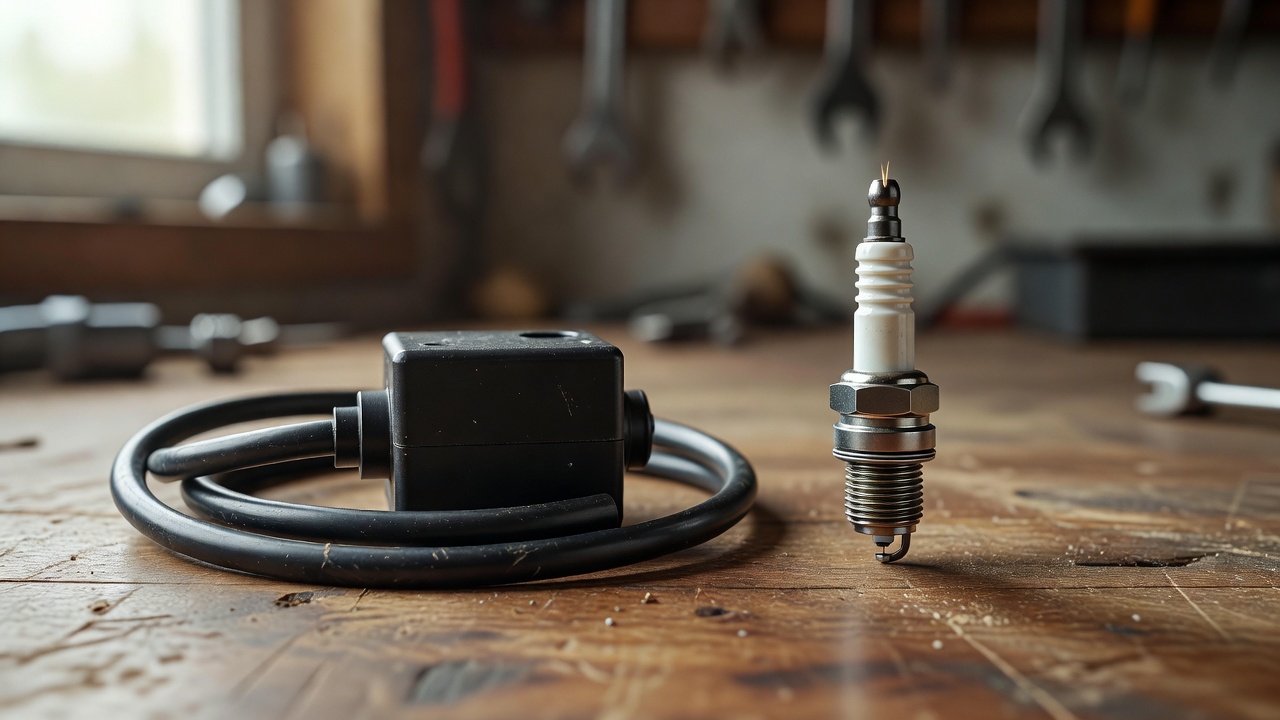

What an Ignition Coil Does (and How It Differs from a Spark Plug)

The ignition coil — also called the ignition module or armature — is a transformer mounted close to the flywheel. As the flywheel spins, its built-in magnets pass the coil and induce a low-voltage current in the primary winding. The coil instantly steps that up to 15,000–30,000 volts through the secondary winding and fires the high-tension lead connected to the spark plug.

The spark plug is just the delivery point — a controlled gap where that high-voltage pulse jumps and ignites the fuel-air mixture. A brand-new spark plug produces zero spark if the coil driving it is dead. This distinction matters: many owners replace the plug, get no result, and assume deeper engine trouble, when the coil was the fault all along.

The kill wire (also called the stop wire) grounds the primary winding on demand to cut the spark and stop the engine. A shorted or pinched kill wire mimics a dead coil perfectly — disconnecting it is the first step in any coil diagnosis.

Location: On most push mowers the coil is bolted directly to the engine block beside the flywheel, visible once you remove the engine cover or shroud. On riding mowers it is in the same area but may be partially hidden by the blower housing; twin-cylinder engines carry one coil per cylinder.

Signs Your Lawn Mower Ignition Coil May Be Failing

Run through this symptom checklist before picking up a tool. The pattern matters.

• No-start, no spark: Engine cranks normally but never fires. Fuel and compression are confirmed good. Classic total coil failure or shorted kill wire.
• Hard start when cold, runs fine after: Marginal coil or dirty armature gap — the coil is weak but functional once warmed slightly.
• Starts fine, dies after 10–20 minutes: Heat-related coil failure. The coil’s internal insulation breaks down at operating temperature, causing the winding to short. The engine restarts after a cool-down period. This failure mode can pass a cold multimeter test and still be defective in use.
• Intermittent spark: Engine surges, misses, or cuts out randomly. Suspect a cracked coil body, a loose high-tension lead connection, or a kill wire with intermittent contact.
• Weak spark (yellow/orange color): Spark is present but too weak to reliably ignite the mixture under compression. Causes: wrong armature air gap, partially shorted secondary winding, or deteriorated coil.

If symptoms only appear when the engine is hot, prioritize the live spark test performed after the engine has warmed — a cold resistance reading may show normal values on a heat-failing coil.

What You Need Before You Start Testing

• Spark plug wrench (typically 5/8 in or 13/16 in)
• Digital multimeter set to ohms (Ω) — a standard $15–$30 meter works; a dedicated coil tester is faster but not required
• Feeler gauge set — you need blades in the 0.006–0.014 in range
• Insulated gloves — secondary voltage exceeds 15,000 V; never hold an uninsulated plug wire during cranking
• Engine service manual or manufacturer spec sheet — resistance values vary by brand and model; download free PDFs from the manufacturer’s site or a dealer portal before testing
• Basic hand tools — usually a 5/16 in or 3/8 in socket to remove the coil shroud

Safety first: Turn off the fuel valve before removing the spark plug to prevent raw fuel from entering the cylinder. Keep clear of the blade during any cranking test. Disconnect the spark plug wire before reaching near the flywheel for the air-gap check.

Step-by-Step: The Spark Test (No Multimeter Required)

This is the fastest first-pass test. Do it before disassembling anything else.

1. Locate and disconnect the kill wire from the coil’s primary terminal (usually a single spade connector). This rules out a grounded kill switch mimicking a dead coil. Label it so you reconnect it later.
2. Remove the spark plug with the plug wrench.
3. Reconnect the plug to its wire (the high-tension lead from the coil).
4. Ground the plug’s threaded body against a bare metal surface on the engine block — hold it firmly with insulated pliers or use a jumper wire clipped between the plug shell and the block. Do not hold it bare-handed.
5. Crank the engine — pull the starter cord briskly two or three times (or turn the key on a riding mower).
6. Observe the spark in the gap between the plug’s electrodes.

Interpreting results:

• Strong, consistent blue-white spark: The coil is generating adequate voltage. The no-start problem likely lies elsewhere — check the spark plug condition, carburetor fuel delivery, or compression.
• Weak, intermittent, or yellow/orange spark: Coil output is marginal. Proceed to the multimeter test and armature gap check.
• No spark at all: Check that the kill wire is fully disconnected and the plug wire seats firmly on the plug. If still no spark, the coil has likely failed or the flywheel key is sheared. Proceed to the multimeter test to confirm.

Important limitation: A heat-failing coil can produce a strong blue spark when cold and fail completely once hot. If the engine starts fine but dies after warming up, repeat this test immediately after the engine stalls — while components are still at operating temperature.

Step-by-Step: Testing the Ignition Coil with a Multimeter

This test checks the electrical integrity of both coil windings. It catches open circuits (broken wire inside the coil) and short circuits (winding-to-winding or winding-to-core contact).

Setting Up

1. Disconnect the spark plug wire and the kill wire from the coil.
2. Set the multimeter to the ohms (Ω) range — use a low range (0–200 Ω) for the primary test and a higher range (0–20,000 Ω or auto-range) for the secondary test.

Primary Winding Resistance Test

The primary winding is the low-voltage side. Its terminals are the two small spade or screw terminals on the coil body (one is usually ground to the mounting bracket).

1. Place one multimeter probe on each primary terminal.
2. Read the resistance. Typical range: 0.4–2.5 Ω depending on manufacturer.

Secondary Winding Resistance Test

The secondary winding is the high-voltage side. Test between the high-tension lead (the thick wire that connects to the spark plug) and one of the primary terminals.

1. Insert one probe into the tip of the high-tension lead boot (contact the metal terminal inside).
2. Place the other probe on a primary terminal or the coil’s metal core/mounting tab.
3. Read the resistance. Typical range: 4,000–15,000 Ω depending on manufacturer.

Resistance Reference by Engine Brand

Always cross-reference against your engine’s specific service manual. The values below are representative ranges from published service documentation and are a starting point, not a substitute for OEM specs.

Verify exact specs in the OEM service manual for your engine model number before making a replacement decision.

Reading the Results

• Reading within spec: That winding is electrically intact.
• OL or infinite resistance: Open circuit — the wire inside that winding is broken. The coil cannot function and must be replaced.
• Near-zero resistance (0–0.1 Ω on secondary, or 0 Ω on primary with probes not touching): Short circuit — windings are internally shorted. Replace the coil.
• Reading outside spec but not open/shorted: Degraded winding. Combined with a weak spark test, this justifies replacement.

Step-by-Step: Checking and Setting the Armature Air Gap

The armature air gap is the distance between the face of the ignition coil and the flywheel magnet as it passes. Too wide and the magnetic induction is too weak to charge the coil properly. Too narrow and the coil body can contact the spinning flywheel — destructive and dangerous.

Common spec range: 0.008–0.012 inches (0.20–0.30 mm). Your service manual specifies the exact value for your engine model — use that figure, not the generic range, for final setting.

Checking the Gap

1. Disconnect the spark plug wire.
2. Rotate the flywheel by hand until the magnet (a shiny silver or dark rectangular area on the flywheel rim) is aligned with the coil face.
3. Slide a feeler gauge blade of the target thickness between the coil legs and the flywheel magnet. The blade should slide through with light drag — not free-sliding, not binding.

Adjusting the Gap

1. Loosen (do not remove) the two coil mounting bolts.
2. Slide the feeler gauge — or a folded business card as a field substitute — between the flywheel magnet and the coil legs.
3. The flywheel magnet will pull the coil toward it magnetically. Allow this to happen, then hand-tighten the mounting bolts while the gauge holds the gap.
4. Torque the mounting bolts to spec (typically 25–40 in-lb; check your manual).
5. Rotate the flywheel by hand to confirm it clears the coil with no contact before reinstalling the shroud.

Note on the business card method: A standard business card is approximately 0.010–0.012 inches thick, which falls within the common spec range. It is a valid field substitute but a feeler gauge is more accurate. Always verify with a gauge before final assembly if one is available.

Riding Mower Differences: Safety Switches and Multiple Coils

The three tests above apply to riding mowers as well, but riding mowers add a layer of complexity that can produce false coil-failure symptoms.

Safety interlock switches — the seat switch, blade engagement switch, and brake/clutch interlock — are wired in series with the ignition circuit. A faulty seat switch or a switch that reads as permanently open will cut spark exactly as a dead coil does. Before testing the coil on a riding mower:

• Confirm all switches are in their correct operating positions (operator seated, brake engaged, blade disengaged).
• Test each switch with the multimeter set to continuity: actuate the switch and verify it opens and closes cleanly.
• Temporarily bypass one switch at a time by connecting its two terminals with a jumper wire — for diagnostic purposes only. Bypassing permanently removes a safety function and must not be done on a mower returned to service.

Twin-cylinder engines (common on 18 HP+ riding mowers from Kohler and Kawasaki) have one ignition coil per cylinder. If the engine runs but misfires on one side, test each coil individually. A dead coil on one cylinder allows the engine to run roughly on the other.

Charging system note: Some riding mower ignition systems interact with the battery voltage and charging circuit. A severely discharged battery can produce weak cranking that reduces flywheel speed below the threshold needed to induce coil voltage — the result looks like a coil problem. Charge or load-test the battery before condemning the coil on an electric-start riding mower.

Pass or Fail: How to Read Your Results and Decide Next Steps

Use this decision tree after completing all three tests.

• Passed all three tests (strong spark, resistance in spec, gap correct): The ignition coil is functioning. Investigate the spark plug (replace it as a low-cost step), carburetor fuel delivery, choke operation, or compression. The coil is not the fault.
• Passed spark test, but resistance reading is out of spec (open or shorted winding): The coil is electrically degraded — it may fire cold but fail under load or heat. Replace the coil.
• Passed resistance test, but weak or no spark: Check the armature gap first and re-gap if necessary. Retest spark. If spark remains weak after correct gapping, suspect heat-related insulation breakdown not captured by a cold resistance test — replace the coil.
• Failed all three tests: Replace the coil. Do not invest time cleaning or repairing — internal winding failures are not field-repairable.
• Corroded primary terminals causing resistance reading anomalies: Clean terminal contacts with fine-grit sandpaper or electrical contact cleaner, retest. If reading returns to spec and spark is strong, corrosion was the fault — no replacement needed.

One clarification: Ignition coils cannot be repaired. Unlike carburetors (rebuildable) or spark plugs (re-gappable), a coil with an open or shorted winding is scrap. Cleaning terminals and correcting the armature gap are the only salvage actions available; everything else is a replacement decision.

Frequently Asked Questions

Can a lawn mower ignition coil fail only when hot?

Yes. Heat-related coil failure is a recognized failure mode where internal winding insulation breaks down at operating temperature, causing an intermittent or permanent short. The coil passes all cold tests — multimeter resistance reads normal, spark is strong — but the engine dies 10–20 minutes into use and restarts after cooling down. To catch this, repeat the spark test immediately after the engine stalls, while components are still hot. A coil that fails spark when hot but passes when cold should be replaced.

What does an OL reading on my multimeter mean for the ignition coil?

OL (overload, or over-limit) means the resistance is higher than the meter’s measurement range — effectively infinite resistance. On a coil winding, OL means an open circuit: the wire inside that winding is broken. No current can flow, no spark is possible. An OL reading on either the primary or secondary winding is a definitive failure — replace the coil.

If I get no spark, is it definitely the ignition coil?

Not necessarily. A no-spark condition has several causes beyond the coil: a shorted kill wire, a faulty safety interlock switch (riding mowers), a sheared flywheel key that has shifted ignition timing, a cracked flywheel that has lost its magnets, or a fully seized engine that won’t crank fast enough to induce coil voltage. Work through the diagnostic sequence — disconnect the kill wire, confirm cranking speed is normal, then test the coil electrically before ordering a replacement.

Do I need a special coil tester, or will a regular multimeter work?

A standard digital multimeter is sufficient for the resistance tests described in this guide. Dedicated coil testers (sometimes called spark testers or inline testers) make the live spark test safer and easier to observe — they fit between the plug wire and the spark plug and display a visible spark without requiring you to hold a grounded plug — but they add no diagnostic capability beyond what a multimeter and a grounded plug already provide. A multimeter is the priority tool; a spark tester is a convenience upgrade.
