How to Clean a Briggs & Stratton Lawn Mower Carburetor (Step-by-Step Guide)

Quick Answer: How to Clean a Briggs & Stratton Carburetor

Turn off the fuel shut-off valve, remove the air filter housing, disconnect the throttle and choke linkages, unbolt the carburetor from the engine, remove the bowl bolt and float bowl, spray carburetor cleaner through the main jet and all fuel passages, clear any blocked orifices with compressed air or a thin wire, then reassemble in reverse order and start the engine. For light seasonal varnish, an in-situ spray clean without full removal often restores performance without disassembly.

Is a Dirty Carburetor Actually Your Problem? (Symptoms Checklist)

Confirm the carburetor is the fault before disassembly. Cleaning a carburetor that is not the root cause wastes time and risks introducing new problems.

Clean the carburetor if the engine shows these symptoms:

• Engine surges or hunts at idle — speed rises and falls rhythmically without throttle input
• Hard starting or no-start after sitting for more than 30 days, especially after winter storage
• Engine starts but dies when throttle is applied

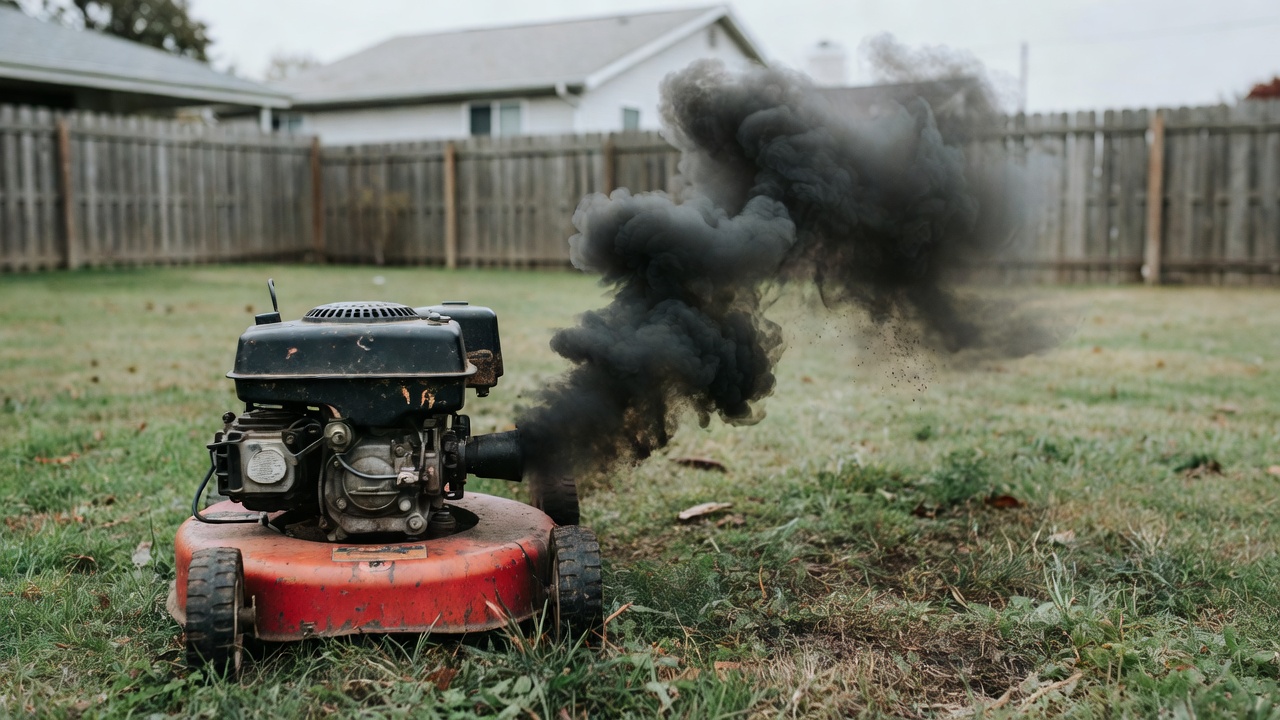

• Black smoke or a strong fuel smell — signs the engine is running rich from a stuck float or clogged main jet orifice
• Visible varnish buildup (yellow or brown residue) inside the fuel bowl when inspected

Rule these out first before touching the carburetor:

• Fouled or worn spark plug — remove and inspect; replace if the electrode is black, oily, or eroded
• Stale or water-contaminated fuel — drain the tank and refill with fresh fuel before any carb work
• Clogged air filter — a severely restricted filter mimics a rich-running carburetor; replace it first
• Low compression — if a compression test reads below 90 PSI, the carburetor is not the core issue

If symptoms match the carburetor list and the basic checks pass, proceed to identify your carburetor type.

Which Briggs & Stratton Carburetor Type Do You Have?

Briggs & Stratton engines across the 450e, 500e, 675ex, and 725ex series use different carburetor designs. The disassembly procedure and what you can clean varies by type.

How to Find Your Engine Model, Type, and Code Numbers

The model, type, and code numbers are stamped directly on the engine block — typically on a metal tag or cast into the blower housing above the spark plug. Record all three numbers before ordering parts or referencing a service manual. Briggs & Stratton’s official parts lookup at briggsandstratton.com accepts these numbers to confirm the exact carburetor fitted to your engine.

Common Carburetor Types by Engine Series

Important: Pulsa-Jet carburetors do not have a removable float bowl in the same manner as float-type carburetors — the fuel pickup tubes draw directly from the tank. Full disassembly steps below apply to Nikki and Walbro float-type units, which cover the majority of current Briggs & Stratton walk-behind mower engines. Pulsa-Jet owners should limit cleaning to in-situ spray methods and consult the model-specific service manual for further disassembly.

Tools and Supplies You Need Before You Start

• Carburetor cleaner spray (aerosol, small-engine rated — WD-40 Carb & Throttle Body Cleaner or similar)
• Flat-head and Phillips screwdrivers
• 5/16 in. or 3/8 in. socket and ratchet (bowl bolt removal)
• Needle-nose pliers (throttle and choke linkage clips)
• Thin wire or a carburetor jet cleaning tool (do not use a drill bit — it enlarges orifices)
• Compressed air with a nozzle tip
• Clean rags or shop towels
• Small parts tray or magnetic tray (prevents losing the needle valve, float pin, or bowl bolt o-ring)
• Replacement bowl bolt o-ring or gasket (inexpensive; replace as a matter of course)
• Carburetor rebuild kit (optional — purchase only if you find a damaged needle valve seat, cracked float, or worn emulsion tube during disassembly)
• Fuel shut-off valve (if your mower lacks one, use a fuel line clamp or drain the tank before removal)

Ethanol-blended fuels (E10 and E15) accelerate varnish buildup in small-engine carburetors by absorbing moisture and leaving behind gum deposits when fuel sits unused. Briggs & Stratton recommends using fuel stabilizer or draining the carburetor completely before storage to prevent this buildup.

Method 1 — Quick Clean: How to Clean a Briggs & Stratton Carburetor Without Removing It

Use this path for mild varnish or end-of-season gum where the engine still starts and runs but surges or hesitates. If the engine will not start at all, skip to Method 2.

Steps for In-Situ Spray Clean

1. Turn off the fuel shut-off valve (located on the fuel line beneath the tank). If no valve is present, clamp or drain the fuel line.
2. Remove the air filter cover and air filter. Set the filter aside — do not spray cleaner through it.
3. Locate the carburetor throat — the round opening that connects to the air filter housing.
4. With the engine off, spray two to three short bursts of carburetor cleaner directly into the carburetor throat. Allow 60 seconds to penetrate.
5. Open the fuel valve, start the engine, and let it run at half throttle for two to three minutes to draw cleaner through the fuel circuits.
6. With the engine running, spray an additional short burst into the throat to clean the throttle plate and idle circuit. The engine may briefly stumble — this is normal.
7. Run the engine under load (engage the blade if safe to do so) for five minutes to clear residue.

Pass/Fail Checkpoint

After the spray clean, the engine should idle smoothly without surging and accelerate cleanly from idle to full throttle. If surging persists, the engine stalls on acceleration, or black smoke continues, the main jet or fuel passages are blocked beyond what in-situ cleaning can reach. Proceed to Method 2.

Method 2 — Full Disassembly Clean: Step-by-Step Carburetor Removal and Jet Cleaning

This path addresses heavy varnish, a clogged main jet orifice, a stuck needle valve, or a failed spray clean. Work on a clean bench with a parts tray. Take photos at each disassembly stage — linkage routing is easy to misremember on reassembly.

Step 1 — Prepare the Engine and Remove the Air Filter Housing

1. Disconnect the spark plug wire and move it away from the plug to prevent accidental starting.
2. Turn off the fuel shut-off valve or clamp the fuel line.
3. Remove the air filter cover, air filter, and air filter housing mounting bolts. Lift the housing free and set it aside.

Step 2 — Disconnect the Throttle Linkage and Choke Linkage

1. Photograph the throttle linkage and choke linkage routing before touching any clips.
2. Use needle-nose pliers to slide the throttle linkage wire out of its slot on the throttle lever. Do not bend the wire — it is indexed to a specific bend angle.
3. Disconnect the choke linkage in the same manner. Some Briggs & Stratton models use a small Z-shaped clip; keep it in the parts tray immediately.
4. Disconnect the governor spring if it connects directly to the carburetor. Note which hole it attaches to — governor spring hole position affects engine speed.

Step 3 — Remove the Carburetor from the Engine

1. Slide the fuel line off the inlet fitting on the carburetor. Have a rag ready for residual fuel.
2. Remove the two mounting bolts (typically 3/8 in.) that secure the carburetor to the engine intake. These also secure the mounting gasket — save the gasket or replace it if torn.
3. Pull the carburetor free. It will come off straight away from the intake.

Step 4 — Remove the Float Bowl and Bowl Bolt

1. Hold the carburetor upright (fuel inlet facing up) over a rag.
2. Remove the bowl bolt at the bottom center of the carburetor using a 5/16 in. socket. On Nikki and Walbro units fitted to 675ex and 725ex series engines, the bowl bolt itself is the main jet — a small orifice is drilled through its center. Treat it carefully.
3. Lower the float bowl. Residual fuel will drain — contain it with the rag.
4. Inspect the bowl bolt o-ring or gasket. Replace it if compressed, cracked, or flattened — a failed seal causes air leaks and lean running after reassembly.

Step 5 — Remove the Float and Needle Valve

1. The float is held by a hinge pin (a small roll pin or solid pin) that passes through two towers on the carburetor body. Push the pin out sideways using a thin punch or small screwdriver.
2. Lower the float and observe the needle valve — a small tapered pin hanging from a clip on the float. Lift the needle valve free and inspect the tip. A grooved or deeply scored tip means the needle valve seat is worn; replace the needle valve as part of a rebuild kit.
3. Inspect the float itself. Shake it — fuel sloshing inside a plastic float means it is cracked and must be replaced before reassembly.

Step 6 — Clean the Main Jet, Emulsion Tube, and All Fuel Passages

1. Hold the bowl bolt (main jet) up to a light source and look through the center orifice. You should see a clear pinhole of light. If it is blocked, soak the bolt in carburetor cleaner for 10 minutes, then clear it with compressed air — never use a wire or drill bit, which will enlarge the orifice and permanently alter the fuel mixture.
2. Spray carburetor cleaner through every passage and port visible in the carburetor body: the main bore, idle circuit port, emulsion tube (the vertical tube inside the main bore), and the fuel inlet seat.
3. Follow each spray with a burst of compressed air from the opposite end of the passage to confirm it is clear.
4. Spray cleaner into the needle valve seat and blow it clear with compressed air.
5. Wipe all external surfaces with a clean rag. Do not use wire brushes on soft aluminum bodies — they remove material and damage sealing surfaces.

Step 7 — Check Float Height (Float-Type Carburetors)

Float height controls the fuel level in the bowl and affects mixture richness. On most Briggs & Stratton float carburetors, the float should sit parallel to the carburetor body gasket surface (approximately level) when the needle valve is seated and the carburetor is held upside down. Float height specification varies by carburetor model — consult the Briggs & Stratton model-specific service manual or the official parts lookup at briggsandstratton.com for the exact measurement before reassembly. A float set too low causes lean running; too high causes rich running and flooding.

Step 8 — Reassemble the Carburetor

1. Reinstall the needle valve onto the float clip, lower the float into the carburetor body, and push the hinge pin back into position.
2. Seat a new o-ring or gasket on the bowl bolt.
3. Reinstall the float bowl and thread the bowl bolt in by hand first, then torque to specification. Bowl bolt torque for most Briggs & Stratton float carburetors is 35–45 in-lb (approximately 4–5 N·m). Verify this value against the service manual for your specific engine series before final tightening — overtorquing cracks the bowl or strips the soft aluminum threads.

Step 9 — Reinstall the Carburetor on the Engine

1. Position a new or undamaged mounting gasket against the intake flange.
2. Slide the carburetor onto the intake studs and thread the mounting bolts finger-tight.
3. Reconnect the fuel line to the inlet fitting.
4. Reconnect the choke linkage and throttle linkage using your reference photos. Confirm both levers move freely through their full range without binding.
5. Reconnect the governor spring to the correct hole.
6. Reinstall the air filter housing, air filter, and cover.
7. Reconnect the spark plug wire.

Post-Clean Test: How to Confirm the Carburetor Is Working Properly

1. Open the fuel shut-off valve and wait 30 seconds for the bowl to fill.
2. Set the throttle to the “choke” or “start” position and pull-start the engine. It should start within two to three pulls.
3. Allow the engine to warm up for two minutes at idle. Idle should be steady — no surging or hunting.
4. Advance the throttle to full. The engine should accelerate cleanly without stumbling or hesitating.
5. Engage the mower blade (if safe) and confirm the engine maintains speed under load without bogging.

Idle Speed Adjustment After Cleaning

If the engine idles too fast or too slow after reassembly, locate the idle speed screw on the side of the carburetor body — a spring-loaded screw that contacts the throttle lever at rest. Turn it clockwise to increase idle speed, counterclockwise to decrease. Target idle speed for most Briggs & Stratton walk-behind engines is approximately 1,750 RPM (no-load) — confirm the specification in the engine service manual for your series.

Failure Signs That Point to a Reassembly Error

• Fuel leaking from the bowl — o-ring not seated or bowl bolt undertorqued
• Engine runs but immediately floods — float installed upside down or needle valve not clipped to float
• Engine surges identically to before cleaning — main jet orifice still blocked; disassemble and re-clean
• Engine will not reach full throttle — throttle linkage misrouted or governor spring in wrong hole

When to Replace Instead of Clean: Knowing the Threshold

Cleaning has limits. Replace the carburetor outright when any of the following are true:

• Cracked float — fuel inside the float means the engine will always run rich; no cleaning resolves this
• Severely worn needle valve seat — a grooved or pitted seat allows fuel to bypass the needle, causing flooding; a rebuild kit replaces the seat on some models, but heavily damaged bodies may not seal reliably afterward
• Stripped bowl bolt threads in the carburetor body — a thread repair insert can sometimes salvage this, but on inexpensive carburetors the repair cost exceeds replacement cost
• Cracked carburetor body — hairline cracks in the throttle bore or bowl mating surface cause unmetered air leaks that produce lean surging no adjustment corrects
• Corroded or dissolved passages — ethanol degradation in older carburetors can dissolve pot-metal passages to the point where no jet cleaning restores correct fuel flow

Replacement Briggs & Stratton carburetors for common walk-behind mower engines (Nikki and Walbro units for 675ex and 725ex series) are widely available from authorized dealers and major retailers. Verify current pricing at the time of purchase — aftermarket units are often significantly less expensive than OEM, but confirm the part number matches your engine’s model, type, and code before ordering. A rebuild kit is a cost-effective middle path when only the needle valve, o-rings, and gaskets are worn; it is not a solution for structural damage to the carburetor body.

Frequently Asked Questions

How often should I clean my Briggs & Stratton carburetor?

Clean or inspect the carburetor every season — specifically at the start of spring before first use and before winter storage. If you use ethanol-blended fuel (E10 or E15) without a fuel stabilizer, inspect annually at minimum. Engines stored with untreated fuel in the bowl for more than 30 days are likely to need at least an in-situ spray clean before reliable starting resumes.

Can I use WD-40 instead of carburetor cleaner?

No. Standard WD-40 is a moisture displacer and light lubricant, not a carburetor solvent. It will not dissolve varnish or gum deposits. Use a product specifically labeled as carburetor and choke cleaner — these contain ketones and other solvents formulated to break down fuel varnish in small passages without damaging aluminum or rubber components when used as directed.

My Briggs & Stratton engine surges after I already cleaned the carburetor — what did I miss?

Post-clean surging almost always means one of three things: the main jet orifice is still partially blocked (inspect with a light source and re-clean), the idle circuit port inside the carburetor bore is blocked (a small port above the throttle plate — spray cleaner directly into it), or there is an air leak at the mounting gasket or bowl bolt o-ring. Confirm the bowl bolt is torqued to 35–45 in-lb and the mounting gasket is not torn or compressed flat.

Does the cleaning process differ between a Pulsa-Jet and a Nikki float-type carburetor?

Yes, significantly. A Nikki or Walbro float-type carburetor (used on most current Briggs & Stratton walk-behind engines) has a removable float bowl, bowl bolt main jet, and float assembly that can be fully disassembled and soaked. A Pulsa-Jet carburetor draws fuel directly from the tank through two pickup tubes — there is no separate removable bowl. Cleaning a Pulsa-Jet is limited to in-situ spray methods and removal of the fuel pickup tubes for inspection; full disassembly requires the model-specific Briggs & Stratton service manual.
