How to Clean the Carburetor on a Craftsman Lawn Mower? (Step-by-Step Guide)

Quick Answer: How to Clean a Craftsman Lawn Mower Carburetor

To clean a Craftsman lawn mower carburetor, start by turning off the fuel valve and disconnecting the spark plug wire. Remove the air filter housing to expose the carburetor, then detach the fuel line and throttle linkage before unbolting the carburetor from the engine. Remove the float bowl and main jet, spray every metal part thoroughly with carburetor cleaner, clear the jet orifice with a thin wire or compressed air, reassemble in reverse order, and restart the mower.

If your mower only surges lightly or hesitates occasionally, an in-place spray cleaning without removing the carburetor is often enough. If the engine stalls repeatedly, refuses to start, or the jet is visibly varnished, you need the full disassembly method described below.

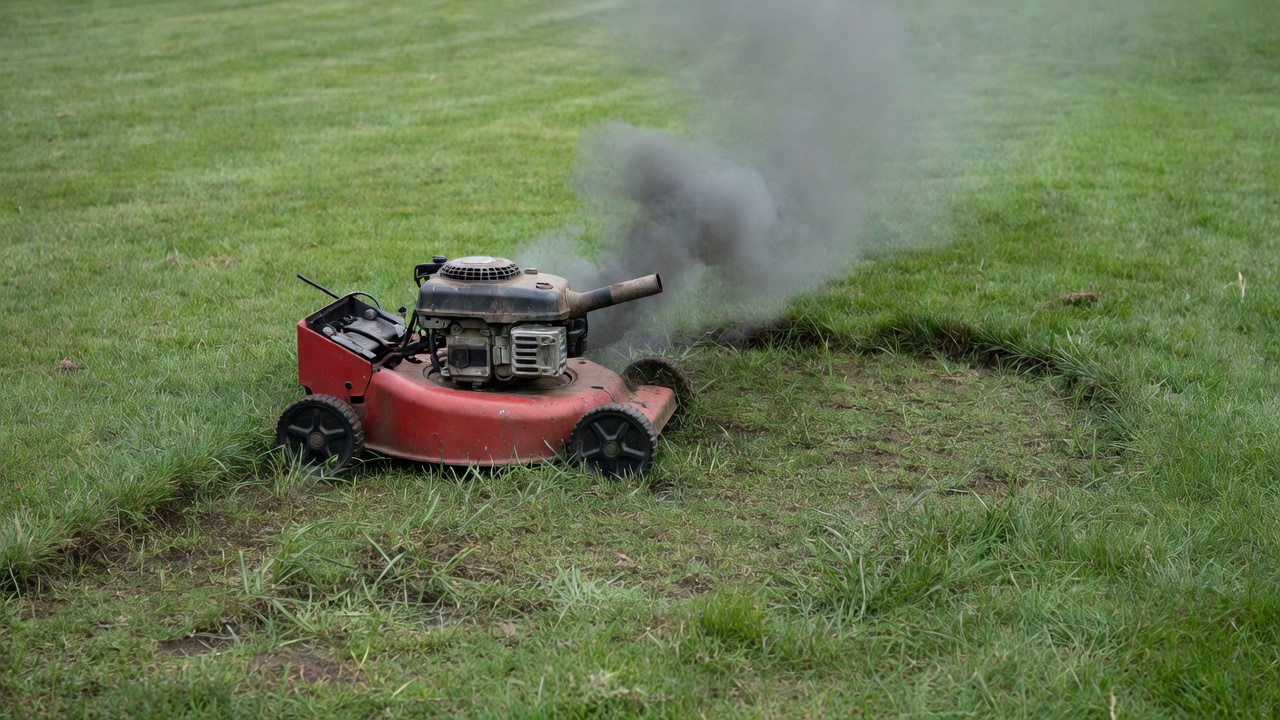

How Do You Know Your Craftsman Carburetor Needs Cleaning?

Carburetor deposits don’t appear overnight. Ethanol-blended gasoline (E10 or E15) leaves sticky gum and varnish behind as it evaporates, and that buildup narrows the tiny fuel passages inside the carburetor. Over a single off-season, a Craftsman mower left with untreated fuel in the tank can develop enough varnish to clog the main jet completely.

Watch for these classic symptoms:

• Hard starting: The engine cranks but takes many pulls to fire, or won’t start at all unless you use starting fluid.
• Surging: The engine speeds up and slows down rhythmically at idle instead of running steady.
• Stalling: The mower runs for a minute, then dies, especially when you engage the blades or go uphill.
• Rough idle and hesitation: The engine sputters under load or when you advance the throttle.
• Black smoke or strong fuel smell: A stuck float or needle valve can flood the engine with too much fuel.

Clean, Rebuild, or Replace?

Cleaning fixes most carburetor problems if the gaskets, float, and needle valve are still in good shape. You should consider a carburetor rebuild kit (which includes new gaskets, an O-ring, and often a new needle valve) when you find cracked or flattened gaskets during disassembly. Replace the carburetor entirely if the body is warped, a mounting stud is stripped, or the float is punctured and fuellogged. As a rule of thumb: clean first, rebuild if gaskets are worn, replace only if the metal parts are damaged.

Which Engine Is in Your Craftsman Mower — and Why It Matters

Craftsman lawn mowers ship with different engines depending on the model year and deck size. The three most common are Briggs & Stratton, Kohler, and Tecumseh, and each has a slightly different carburetor design and location. Knowing which one you have prevents confusion mid-task.

Find the engine brand and model number by looking for a stamped metal tag or sticker on the engine shroud, usually near the recoil starter or above the spark plug. On a walk-behind mower, the carburetor sits on the side of the engine behind the air filter housing. On riding and zero-turn models, it is mounted lower on the engine block, often under a plastic or metal cover.

If your Craftsman mower was built with an OEM replacement carburetor from a supplier such as Poulan/Husqvarna, the layout will still follow the engine brand above. Write down the engine model number before shopping for parts, because a rebuild kit must match the exact engine series.

What Tools and Supplies Do You Need Before You Start?

Gather everything before you begin so the job isn’t interrupted halfway through. You will need:

• Carburetor cleaner spray — a solvent aerosol designed for small engines. Avoid brake cleaner, which can damage plastic and rubber carburetor parts.
• Socket set and wrenches — typically 8mm, 10mm, and 12mm sockets plus a ratchet and extension.
• Screwdrivers — flat-head and Phillips, including a small precision flat-head for the mixture screw.
• Pliers or needle-nose pliers — for spring clips on the throttle linkage and fuel line clamps.
• Parts tray or muffin tin — to keep screws and linkage parts organized in order.
• Protective gloves and safety eyewear — carburetor cleaner is a strong solvent and will irritate skin and eyes.
• Compressed air — a can of compressed air or an air compressor with a blow gun to clear jets and passages.
• Thin wire — a fine wire or a jet-cleaning tool from a small-engine parts kit. Never use a drill bit, which can enlarge the jet orifice.
• Optional: carburetor rebuild kit — worth having on hand if you suspect the gaskets are old or cracked.

Method 1: How to Clean the Craftsman Carburetor In Place (No Removal)

Use this method when the mower starts but surges mildly, hesitates, or has sat for a few weeks. It takes about 15 minutes and requires no disassembly. It will not fix a completely clogged jet or a stuck float.

1. Work in a well-ventilated area. Move the mower outside or open the garage door, and make sure the engine is cold.
2. Disconnect the spark plug wire and pull it away from the spark plug so the engine cannot accidentally fire.
3. Remove the air filter cover and air filter to expose the carburetor throat. Set the filter aside in a clean place.
4. Spray carburetor cleaner directly into the carburetor throat and through the small openings you can see. Aim the straw attachment at the venturi and the idle circuit openings.
5. Let the cleaner soak for 10–15 minutes to dissolve gum and varnish, then spray again.
6. If the mower has a fuel shutoff valve, close it. On many Craftsman walk-behinds there is no valve, so pinch the fuel line with a clamp or be ready for a small fuel spill.
7. Reinstall the air filter and cover, reconnect the spark plug wire, open the fuel valve if you closed one, and start the engine. Run it at full throttle for a few minutes. If surging persists, move on to Method 2.

Some guides suggest spraying cleaner into the carburetor while the engine is running. This can work for mild deposits, but it also risks a backfire or a sudden engine overspeed, and it does nothing for the float bowl and main jet where most clogs form. The safer, more effective approach is the cold-engine soak described above.

Method 2: How to Remove and Fully Disassemble the Craftsman Carburetor

Use this method when the mower stalls repeatedly, won’t start, or the in-place cleaning didn’t help. Plan for about an hour of work.

Step 1: Prepare the Mower Safely

1. Disconnect the spark plug wire and secure it away from the plug.
2. Turn the fuel valve off if your model has one. If it doesn’t, clamp the fuel line with a fuel-line pliers or a small hose clamp to stop fuel flow.
3. Place a rag or drip pan under the carburetor to catch fuel that drains from the line and bowl.

Step 2: Remove the Air Filter Housing

Unscrew the air filter cover, lift out the filter element, and remove the housing base from the carburetor. On most Craftsman walk-behinds, the housing base is held by two or three screws or a single wing nut. This exposes the carburetor, throttle linkage, and fuel line.

Step 3: Disconnect the Fuel Line

The fuel line runs from the fuel tank or fuel pump to a brass fitting on the carburetor. Slide the spring clamp back with pliers, then twist and pull the hose off the fitting. Expect a small amount of fuel to dribble out. On some models the line is secured with a barbed fitting and a screw-type clamp; loosen the clamp with a screwdriver first.

Step 4: Release the Throttle Linkage

The throttle and choke linkages are thin metal rods with plastic or metal clips. Take a photo with your phone before removing anything — this is the single best way to avoid a confused reassembly. Use needle-nose pliers to pop the spring clips off the linkage studs, then lift the rods away. Do not bend the rods; they are easy to kink and difficult to straighten.

Step 5: Unbolt the Carburetor

Remove the two mounting bolts or nuts that hold the carburetor to the intake flange (usually 8mm or 10mm). On Briggs & Stratton engines, the carburetor often mounts with two long studs and nuts. Lift the carburetor straight off the flange. If the gasket sticks, gently pry with a flat screwdriver — then plan to replace that gasket.

Step 6: Remove the Float Bowl

Turn the carburetor upside down. On most Briggs & Stratton float-type carbs, the bowl is held by a single center bolt that also acts as the main jet. On Kohler and Tecumseh carbs, the bowl may be held by four small screws around the rim. Remove the bowl and set it aside; the fuel inside will drain out.

Step 7: Remove the Main Jet and Needle Valve

The main jet is the brass or zinc component in the center of the carburetor body (or the center bolt itself on Briggs & Stratton). Unscrew it with a properly sized flat-head screwdriver or socket. The needle valve rides on the float and is held by a small clip; lift the float hinge pin out, then remove the float and needle valve together. Keep every part in your parts tray in the order you removed it.

How to Clean the Carburetor Parts and Clear the Main Jet

This is the heart of the job. Cleaning is only as good as your patience with the small passages.

1. Spray every metal part — carburetor body, float bowl, main jet, and needle valve — with carburetor cleaner. Pay special attention to the bowl, where water and varnish settle.
2. Soak the heavily varnished parts in a small container of carburetor cleaner or a dedicated parts dip for 30–60 minutes. Do not soak rubber or plastic parts, gaskets, or the float if it is plastic.
3. Clear the main jet orifice. Hold the jet up to the light; you should see through the tiny hole. If it is blocked, push a thin wire through it, then blast it with compressed air. Never use a drill bit or a toothpick (toothpick fibers can lodge in the orifice).
4. Blow out every passage in the carburetor body with compressed air, directing the air through the jet bore, the idle circuit, and the fuel inlet. This dislodges debris that spray alone cannot move.
5. Inspect the needle valve and seat. The needle tip should be smooth and pointed, with no groove worn around it. If you can feel a ridge, replace the needle valve and seat — a worn needle is a common cause of flooding and hard starting.
6. Check the float. A plastic float should be intact with no cracks. A brass float should not contain fuel; shake it gently — if you hear liquid inside, it is punctured and must be replaced.
7. Inspect the gaskets. If the bowl gasket, mounting gasket, or inlet needle seat gasket is cracked, flattened, or hard, install the new gaskets from a rebuild kit. Reusing a bad gasket will cause an air leak and the mower will run lean or surge.
8. Let everything dry completely before reassembly. Carburetor cleaner evaporates quickly, but any leftover solvent can contaminate the first fuel charge.

How to Reassemble and Reinstall the Craftsman Carburetor

Reassembly is the reverse of removal, but a few details matter.

1. Install the needle valve and float first, then the float bowl with a fresh gasket. Tighten the Briggs & Stratton center bowl bolt snugly with a wrench — the official service guidance for most Briggs & Stratton series calls for roughly 60–80 in-lb (5–7 ft-lb), which is “firmly snug” by hand with a short wrench. Do not overtighten; the bowl is aluminum and the threads strip easily.
2. Mount the carburetor to the intake flange with a new gasket, then tighten the mounting nuts evenly in a crisscross pattern.
3. Reconnect the fuel line and push the spring clamp back over the barb. Give the hose a tug to confirm it is seated.
4. Reattach the throttle and choke linkage using your earlier photo as a reference. Each rod should snap into its clip with light pressure and move freely when you work the throttle lever by hand.
5. Reinstall the air filter housing and filter.
6. Reconnect the spark plug wire.
7. Open the fuel valve and wait 30 seconds for the bowl to fill. Check for fuel leaks at the bowl gasket and fuel line fitting.
8. Start the engine. If it won’t start, the bowl may not have filled, or the throttle linkage is misrouted. If it starts but runs rough, the mixture screw may need adjustment. Turn it gently clockwise until it just seats (never force it), then back it out to the factory setting — typically 1.5 turns for most Briggs & Stratton and Tecumseh carbs — and fine-tune from there.

Model-Specific Notes: Briggs & Stratton, Kohler, and Tecumseh Carburetors on Craftsman Mowers

Briggs & Stratton

The most common engine on Craftsman walk-behinds. Most use a float-type carburetor with a single center bowl bolt that doubles as the main jet. The bowl is plastic on many newer models, so use a properly sized socket, not pliers, to avoid cracking it. If your Craftsman has a Pulsa-Jet carburetor, the fuel pump is built into the carburetor body — do not soak the whole carburetor; clean it with spray and compressed air only to avoid damaging the pump diaphragm.

Kohler

Found on many Craftsman riding mowers and some larger walk-behinds. Kohler carburetors have a metal float bowl with an external bowl drain screw — you can drain old fuel and flush the bowl without removing the carburetor. The bowl is held by four screws, and the main jet is a separate brass part. Kohler engines are sensitive to air leaks, so always replace the intake gasket when you reinstall the carburetor.

Tecumseh

Common on older Craftsman models. Tecumseh carburetors use a metal bowl held by a center bolt, and many have a fixed main jet that cannot be removed — clean it in place with spray and compressed air. Some Tecumseh carbs have an idle fuel adjustment screw on the side; count and record the number of turns to seat before removing it so you can return it to the same setting.

Zero-Turn and Riding Models

On Craftsman zero-turn mowers, the carburetor sits lower and is often shielded by a heat shield or engine cowl. You may need to remove the cowl for access. The cleaning procedure is identical, but allow extra time for the extra fasteners, and be careful not to drop screws into the engine shroud.

How to Prevent Carburetor Buildup on a Craftsman Lawn Mower

Prevention is far easier than cleaning. The three rules below will keep your Craftsman carburetor clean for years.

• Use a fuel stabilizer. Add a stabilizer such as STA-BIL to the fuel can before filling, or directly to the tank at the rate on the label. Stabilizer chemistry extends the usable life of gasoline and dramatically reduces gum and varnish formation during storage.
• Avoid ethanol-blended fuel when possible. Ethanol attracts moisture and leaves sticky deposits as it evaporates. If you must use E10, never leave it in the tank for more than a few weeks. E15 is not approved for most small engines — check your Craftsman owner’s manual.
• Run the carburetor dry before storage. At the end of the season, close the fuel valve and let the engine run until it stalls. This empties the float bowl, and an empty bowl cannot varnish. Then drain the fuel tank or add stabilized fresh fuel for spring.
• Change the air filter regularly. A clogged air filter makes the engine run rich, which deposits carbon and varnish in the carburetor throat. Replace the filter annually or every 25 hours of use.

As routine maintenance, most Craftsman owner’s manuals do not schedule carburetor cleaning — the carburetor is expected to stay clean with fresh, stabilized fuel and a good air filter. In practice, a preventive in-place spray cleaning once per season, before winter storage, is a reasonable habit for mowers that sit for weeks between uses.

Frequently Asked Questions

Can I clean a Craftsman lawn mower carburetor without removing it?

Yes. For mild surging or hesitation, remove the air filter and spray carburetor cleaner into the carburetor throat, let it soak for 10–15 minutes, then replace the filter and run the engine. This in-place method handles light deposits, but it cannot clear a clogged main jet or a stuck float — those require the full removal and disassembly procedure.

How do I unclog the main jet on a lawn mower carburetor?

Remove the main jet from the carburetor body, spray it with carburetor cleaner, and push a thin wire through the orifice to break up the varnish. Finish by blasting it with compressed air. Never use a drill bit, which will enlarge the jet and ruin the fuel mixture.

How do I know if I need to clean, rebuild, or replace the carburetor?

Clean the carburetor when the engine surges, stalls, or starts hard and the parts are in good condition. Rebuild it with a new gasket kit if you find cracked or flattened gaskets during disassembly. Replace it if the carburetor body is warped or cracked, a mounting stud is stripped, or the float is punctured.

How do I prevent carburetor varnish over the winter?

Add fuel stabilizer to the tank, run the engine for a few minutes to circulate it, then close the fuel valve and run the engine until it stalls so the float bowl empties. Store the mower with a full tank of stabilized fuel or an empty tank — never a partially full tank of untreated fuel.
