Direct Answer: How to Clean a Toro Lawn Mower Carburetor
To clean a Toro lawn mower carburetor, shut down and cool the engine, locate the carburetor near the air filter, remove the fuel line and mounting bolts, then disassemble the float bowl and internal components. Soak jets and passages in carburetor cleaner, scrub gently with a soft brush, inspect gaskets and the needle valve for damage, rinse thoroughly, reassemble in reverse order, and reinstall. The process takes 1–2 hours and requires either basic external cleaning for light varnish or full disassembly for stuck jets and performance restoration.

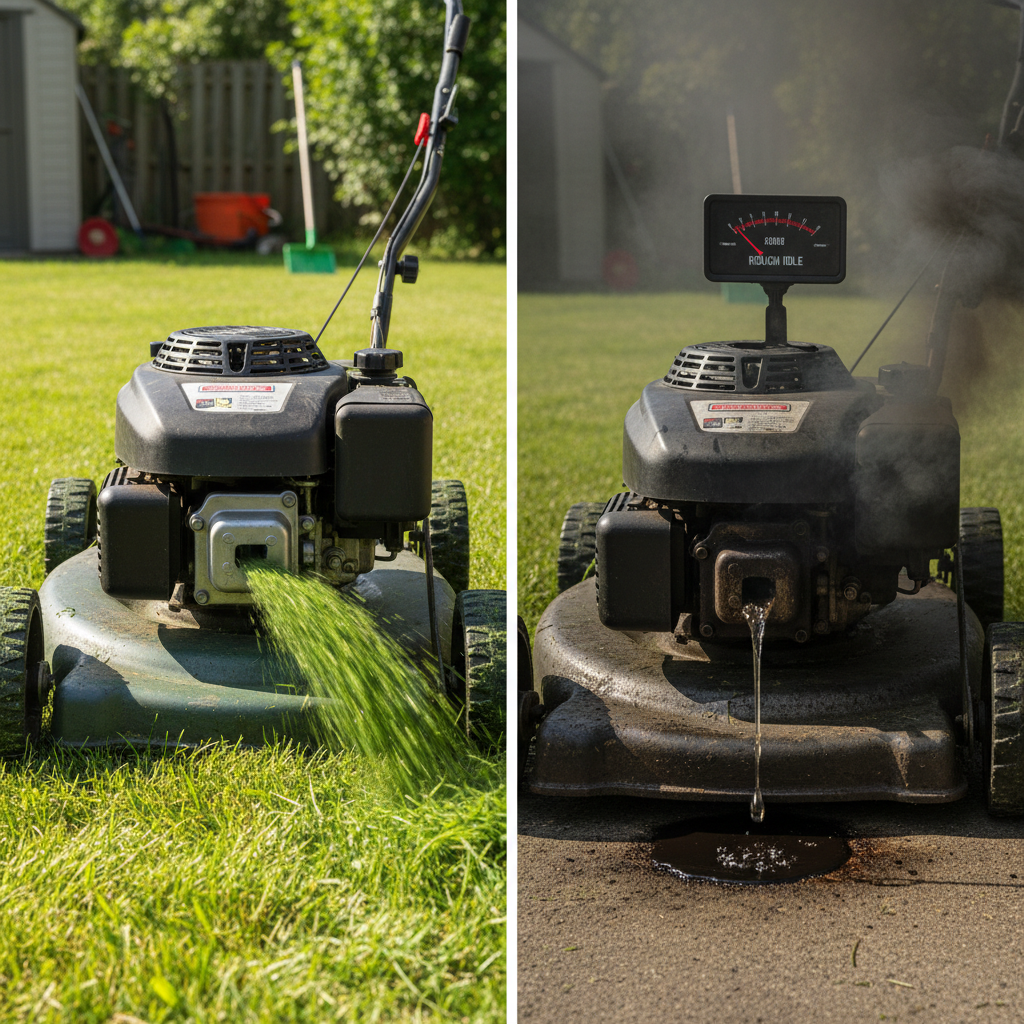

Signs Your Toro Carburetor Needs Cleaning
A carburetor accumulates varnish and fuel residue over time, especially when lawn mowers sit idle during off-season months. Ethanol-blended fuels accelerate varnish buildup, leaving sticky deposits that restrict fuel flow and air passage. Common symptoms include:
- Hard starting or failure to start after sitting for weeks
- Rough idling or stalling at low throttle
- Uneven power delivery during mowing
- Black smoke from the exhaust (over-rich fuel mixture)
- Fuel leaking from the carburetor bowl or overflow tube
If your Toro mower exhibits these symptoms, a carburetor cleaning often restores performance without replacement. Determine whether you need basic external cleaning (for light varnish on seasonal mowers) or full disassembly (for stuck internal components or severe buildup).
Tools and Materials You’ll Need
Gather these items before starting to avoid interruptions:
- Carburetor cleaner (spray or soak—non-flammable formula recommended for safety)
- Socket set and wrenches (typically 8mm, 10mm, and 12mm for Toro carburetors)
- Screwdrivers (both Phillips and flathead)
- Small soft brush (old toothbrush or plastic brush—never wire, which can enlarge jet orifices)
- Gasket set (replacement gaskets and seals specific to your carburetor model)
- Fuel container (to safely drain remaining fuel)
- Compressed air (optional but helpful for drying passages)
- Shop towels or rags
- Work gloves (carburetor cleaner dries skin)
- Safety glasses
Consult your Toro mower’s manual or search online for your specific model’s carburetor type (Briggs & Stratton Pulsa-Jet, Kohler, or Tecumseh are common on Toro push and riding mowers).
Step-by-Step: Preparing and Removing Your Carburetor
1. Safety First: Cool the Engine and Disconnect Fuel
Allow the engine to cool completely before handling the carburetor—hot metal causes burns. Once cool, shut off the fuel valve (if present) or pinch the fuel line with a clamp to stop flow. Locate the fuel line connecting the tank to the carburetor and carefully disconnect it, allowing any remaining fuel to drain into a container. Place a rag under the connection point to catch drips.
2. Locate the Carburetor on Your Toro Model
On push mowers, the carburetor sits atop the engine block, directly below or adjacent to the air filter housing. On riding mowers, access varies—some have the carburetor near the front of the deck under a shroud, while others position it on the side of the engine. Consult your owner’s manual if unsure; a photo of your specific model helps confirm location.
3. Remove Mounting Hardware
The carburetor typically attaches with 2–4 bolts or studs to the engine’s intake manifold. Using your socket set or wrenches, carefully remove these fasteners and set them in a small container to prevent loss. Note the orientation of any linkage arms connected to the throttle or choke before disconnecting them—take a photo for reference during reassembly. Some models have a secondary fuel line for overflow; note its connection point as well.
4. Inspect the Air Filter and Intake Gasket
Once the carburetor is loose, check the rubber or foam air filter for dirt or damage. A clogged air filter restricts airflow and contributes to rich running conditions. If dirty, clean or replace it. Examine the carburetor-to-intake gasket for cracks or deterioration; plan to replace this gasket during reassembly if it appears compromised.
Disassembling and Cleaning Internal Components
5. Remove and Inspect the Float Bowl
The float bowl is the lower chamber that holds fuel. It typically attaches with a single bolt or a clip at the bottom center of the carburetor. Carefully unscrew or unclip it—fuel may still be present, so drape a rag underneath. Inside, you’ll find a float (a hollow brass or plastic sphere) and a needle valve (a small tapered pin). These control fuel level; inspect them for damage or varnish coating. If the needle valve is stuck or corroded, soak it separately in carburetor cleaner for 15–30 minutes.
6. Locate and Clean the Jets
Jets are small brass tubes with precisely sized orifices that meter fuel and air. The main jet controls full-throttle fuel flow; the pilot jet handles idle and low-speed running. These are typically held by small bolts or pressed into the carburetor body. Carefully unscrew jets using the correct-size wrench—forcing the wrong size strips threads. Soak jets in carburetor cleaner for 30–60 minutes to dissolve varnish. Use a soft brush or compressed air to clear the internal passages; never poke a wire or needle into a jet orifice, as this enlarges the opening and causes over-fueling.
7. Soak All Internal Passages
Submerge the carburetor body (minus float bowl and jets for now) in a container of carburetor cleaner for 1–2 hours. This dissolves varnish from internal fuel and air passages, which is essential for proper atomization and combustion. After soaking, use a soft brush to scrub the exterior gently and dislodge loosened deposits.
8. Inspect Gaskets and Seals
Gaskets between the float bowl and main body, and between the carburetor and intake manifold, should be replaced if they show cracks, hardening, or compression set. Most gasket kits for Toro carburetors cost $5–$15 and prevent air leaks that cause lean running or stalling. If a gasket appears intact and flexible, reuse it only if you’re confident in its seal—new gaskets are inexpensive insurance.
9. Rinse and Dry Thoroughly
After soaking, rinse all components with fresh carburetor cleaner to remove loosened debris. If available, use compressed air to dry internal passages and jet orifices. Allow parts to air-dry on a clean towel for 15–30 minutes before reassembly. Moisture left in the carburetor promotes corrosion and future varnish formation.
Reassembly and Reinstallation
10. Reassemble in Reverse Order
Begin with the carburetor body. Install cleaned jets in their original positions, tightening gently with the correct wrench—snug, not cranked down. Reinstall the needle valve and float in the float bowl, ensuring the needle moves freely and the float swings without binding. Attach the float bowl to the main body with a new gasket, tightening the bolt firmly but not excessively (over-tightening cracks the bowl).
11. Reinstall the Carburetor on the Engine
Mount the carburetor back on the intake manifold using a new gasket and the original bolts. Torque these bolts evenly in a crisscross pattern (similar to tightening a car wheel) to ensure a uniform seal—uneven tightening warps the casting and causes air leaks. Reattach the fuel line, the choke and throttle linkage (referencing your earlier photo), and any overflow tubes.
12. Reconnect Fuel and Test
Turn the fuel valve back on (or unclamp the fuel line). Allow fuel to fill the carburetor bowl—you may hear a clicking sound as the float needle seats. Check for fuel leaks around the bowl, fuel line connection, and overflow tube. If dry, attempt a cold start with the choke fully engaged. The engine should catch within 3–4 pulls. Once running, let it warm up, disengage the choke, and listen for smooth idle. Slight adjustments to the idle screw (if accessible) may be needed, but a properly cleaned carburetor typically runs well without tuning.
Troubleshooting After Cleaning
Mower Still Won’t Start or Runs Rough
If the engine remains stubborn after cleaning, several issues may persist:
- Clogged fuel filter: Check the fuel filter (usually between tank and carburetor). Replace if it restricts flow.
- Stuck needle valve: The needle may not have fully freed during soaking. Remove the float bowl again and soak the needle valve separately for another 30 minutes, then test movement gently with a small tool.
- Carburetor flooding: If fuel runs out the overflow tube during sitting, the needle valve is not seating. Clean it again or replace it if damage is visible (a new needle valve costs $10–$20).
- Air leak at gaskets: A lean mixture (caused by air entering past poorly seated gaskets) causes hard starting and high-speed hesitation. Tighten carburetor bolts slightly or reapply gaskets with fresh sealant if recommended by your mower’s manual.
Black Smoke or Over-Rich Condition
If the engine runs but produces black exhaust smoke, the mixture is too rich (excess fuel, insufficient air). This may indicate:
- The float level is set too high—fuel overflows into the engine
- The jet orifice was enlarged during cleaning—replacement is the remedy
- The air filter is clogged again—clean or replace it
Seasonal Maintenance Tips
To prevent future carburetor problems, drain fuel or add fuel stabilizer before storing your Toro for winter. Run the mower for 5–10 minutes with stabilizer-treated fuel to coat internal passages and prevent varnish. In spring, if the mower hesitates to start, a quick carburetor cleaning (or simply running with fresh fuel) often restores performance. For mowers used year-round, clean the carburetor annually or every 50–100 hours of operation.
When to Replace Instead of Clean
If the carburetor body is cracked, the float sinks (indicating a leak), or jets are stripped or severely corroded, replacement is more practical than repair. Replacement carburetors for most Toro mowers range from $40–$120, and installation is straightforward. Consult your mower’s manual or a parts supplier to confirm the correct carburetor model for your specific Toro unit.
Frequently Asked Questions
Q: How often should I clean my Toro mower’s carburetor?
A: For seasonal mowers (spring through fall use), clean the carburetor annually before storage or if starting difficulty develops. Year-round mowers with light use benefit from cleaning every 50–100 operating hours or annually. Mowers stored with untreated fuel need cleaning more frequently due to ethanol varnish buildup.
Q: Can I use regular gasoline cleaner or automotive carburetor cleaner on my Toro?
A: Yes, automotive carburetor cleaner works well on Toro lawn mower carburetors. Use a non-flammable spray or soak formula for safety. Avoid harsh solvents like acetone or MEK, which can damage plastic components or gaskets. Follow the product label for application and safety precautions.
Q: Do push mowers and riding mowers require different cleaning procedures?
A: The cleaning process is identical; the only difference is access. Push mower carburetors are typically easier to reach due to their compact design. Riding mower carburetors may require removing a gas tank cover or fuel line protection. Both use similar jets, float bowls, and needle valves.
Q: What is the correct soak duration for carburetor parts in cleaner?
A: Soak the carburetor body for 1–2 hours; soak heavily varnished jets for 30–60 minutes. For stubborn buildup or a mower that sat for years, overnight soaking (8–12 hours) is safe and effective. Longer soaking poses no harm as long as parts remain submerged and protected from evaporation.
