How to Fix a Craftsman Lawn Mower: The Short Answer
To fix a Craftsman lawn mower, identify the specific symptom first — engine won’t start, rough running, poor cutting, loss of self-propelled drive, or excessive vibration — then follow the corresponding repair procedure. The most common fixes involve replacing the spark plug, cleaning or replacing the air filter, draining stale fuel, cleaning the carburetor, and sharpening or replacing the blade. Always disconnect the spark plug wire before performing any mechanical work.
Pros
- Powerful 80V brushless motor delivers 32HP gas-equivalent performance with quiet fume-free operation and no engine maintenance.
- Complete kit includes four 6.0Ah batteries and 600W charger for substantial runtime up to 1.5 acres.
- SmartCut technology and 42-inch heavy-duty steel deck ensure consistent cuts without bogging in tough conditions.
- Versatile towing up to 350 lbs and optional cargo hauling plus comfort features like high-back seat and LED lights.
- Strong 4-year limited warranty and full compatibility with the Greenworks 80V tool ecosystem.
Cons
- Rear utility cargo bed for 200 lb hauling is sold separately and not included in the kit.
- Runtime of up to 1.5 acres varies with conditions and may require recharging or battery swaps on larger properties.
- As a fully cordless model continuous operation depends on battery levels unlike gas engines with unlimited runtime.
The Greenworks 80V 42" CrossoverT Cordless Riding Lawn Tractor is a ready-to-mow zero-emission tractor designed for homeowners managing medium to large lawns. It features a reinforced 42-inch stamped steel deck of 12-gauge construction along with premium comfort elements such as a high-back padded seat with foldable armrests. The overall build emphasizes durability and user convenience right out of the box with the included battery and charger set.
Performance centers on the 80V TruBrushless motor that provides 32HP gas-equivalent power with instant torque and quiet fume-free operation. SmartCut technology senses grass conditions and automatically adjusts power to maintain a consistent cut even in tall thick or wet areas. The four 6.0Ah batteries support runtime for up to 1.5 acres depending on conditions while dual LED headlights and a 7-position deck height range from 1.5" to 4.5" add practicality. Front and rear attachments further allow towing up to 350 lbs for added yard utility.
Key considerations include that the rear utility storage bin capable of hauling 200 lbs is sold separately so full cargo functionality requires an extra purchase. Runtime remains condition-dependent and may fall short for properties significantly larger than 1.5 acres without using the 600W charger or swapping batteries. The cordless design prioritizes ease and low maintenance but trades off the continuous runtime of traditional gas models.
This tractor delivers strong value for eco-conscious owners of residential properties who want gas-like power without the emissions noise or upkeep. It suits those who already use or plan to expand into the Greenworks 80V family of tools and who appreciate the 4-year limited warranty. Users with exceptionally large or commercial-scale lawns should evaluate battery logistics carefully before purchase.
Pros
- Delivers strong 21 horsepower equivalent power comparable to gas riding mowers.
- Provides up to 1.5 acres of runtime on a full charge with the six included batteries.
- Features low-maintenance dual brushless motors without belts for greater durability.
- Offers versatile 12-position cutting height adjustment from 1.5 to 4.5 inches.
- Includes digital controls for blade settings, drive speeds, and cruise control.
Cons
- Limited to 1.5 acres of cutting per charge without purchasing additional batteries for bigger lawns.
- Requires recharging time for the six 56V batteries after each use session.
- Relies solely on battery power with no hybrid or gas backup option for extended operation.
The EGO Power+ TR4204 is a cordless electric riding lawn mower built as a modern tractor alternative for residential use. It features a robust 42-inch stamped steel deck and arrives ready to go with six 56V 6.0Ah batteries plus a charger, creating an immediate impression of convenience and solid construction free from gas engine complexity.
Performance shines through its equivalent 21 horsepower output and top speed of 6 MPH, allowing efficient coverage of up to 1.5 acres on a single charge. Dual brushless cutting motors operate without belts for added durability and less upkeep, while the digital display lets users select three blade settings, three drive speeds, and cruise control. The 12 adjustable heights ranging from 1.5 to 4.5 inches combined with anti-scalp wheels deliver precise results across varied terrain.
Drawbacks center on battery dependency, as larger properties beyond 1.5 acres require extra batteries and recharging intervals can interrupt workflow. The fully electric design eliminates fuel storage needs but demands access to power sources between sessions.
This mower suits homeowners with medium to large yards who value quiet, emission-free operation and reduced maintenance. Those seeking expandable battery capacity for bigger areas will find the EGO Power+ TR4204 a strong long-term investment in cordless lawn care.
Pros
- High-efficiency brushless motors maximize power output and durability over traditional motors
- Up to 2 acres runtime with three included 10.0 Ah batteries supports substantial mowing sessions
- Zero-emission operation with gas-equivalent 20 HP power for quieter environmentally friendly use
- Six-port auto-switchover battery system provides flexible extended runtime options
- Durable 42-inch steel deck plus included mulch and towing kits add immediate functionality
Cons
- Runtime is limited to approximately 70 minutes or 2 acres which may require recharging for larger properties
- Fully battery-dependent design means performance relies on charge levels and spare battery availability
- 42-inch deck size may require more passes on expansive lawns compared to wider commercial models
The PRORUN PZT60V42 is a fully electric 60V zero-turn riding lawn mower built for residential and light commercial use. Its primary design centers on a robust 42-inch 14-gauge stamped steel twin blade deck powered by direct-drive brushless motors, giving an immediate impression of solid construction and modern battery-focused engineering. The mower arrives complete with three 10.0 Ah batteries, a charger, mulch kit, and towing kit for ready-to-work versatility.
In performance terms, four high-efficiency brushless motors deliver power equivalent to a 20 HP gas engine while producing zero emissions. The system supports up to 2.0 acres or 70 minutes of runtime, and six battery ports with auto switchover intelligently manage all PRORUN 60V battery sizes for continuous operation. A washout port on the steel deck further simplifies post-mow maintenance during real-world sessions.
Potential drawbacks include the finite 70-minute runtime window which can limit coverage on larger properties without spare batteries or recharge breaks. As a fully electric model, it also depends entirely on battery charge levels rather than continuous fuel refills, and the 42-inch deck width may demand extra passes compared with wider traditional options.
Overall the PRORUN PZT60V42 offers strong value for homeowners and small-property managers who want gas-like cutting power without emissions or noise. Those with medium-sized lawns seeking quiet efficient zero-turn performance and included accessories will benefit most from this electric mower.
Pros
- Strong 24HP FR730 engine power for demanding cutting conditions
- Wide 54-inch FAB deck reduces total mowing time
- Zero turn design delivers excellent maneuverability
- Fabricated deck supports durable everyday operation
Cons
- Sparse details beyond engine and deck leave other features unspecified
- Gas-powered FR730 engine needs regular fuel and maintenance
- Large 54-inch deck size may feel oversized on compact properties
The Husqvarna Z254F is a zero turn mower from the established Husqvarna brand in the riding lawn mowers category. It centers on a solid build that pairs a 24HP 726cc FR730 engine with a 54-inch FAB deck for straightforward residential grass care.
Performance stems directly from the listed specifications. The FR730 engine delivers the horsepower needed for steady operation across typical lawns while the wide FAB deck completes passes efficiently. Zero turn handling improves control in real yard layouts based on the model design.
Considerations arise from the limited data available. Secondary elements such as comfort features fuel capacity or extras receive no mention and the gas engine format involves routine upkeep. The large deck suits open areas better than confined spaces.
The Husqvarna Z254F provides the most value for owners of medium or large properties who want reliable engine power and a broad cutting width. Users with smaller lots or those seeking extensive accessory options should weigh the core specs carefully before purchase.
Safety Precautions Before You Begin Any Repair
Skipping safety steps causes injuries and voided warranties. Follow these steps before touching any component:

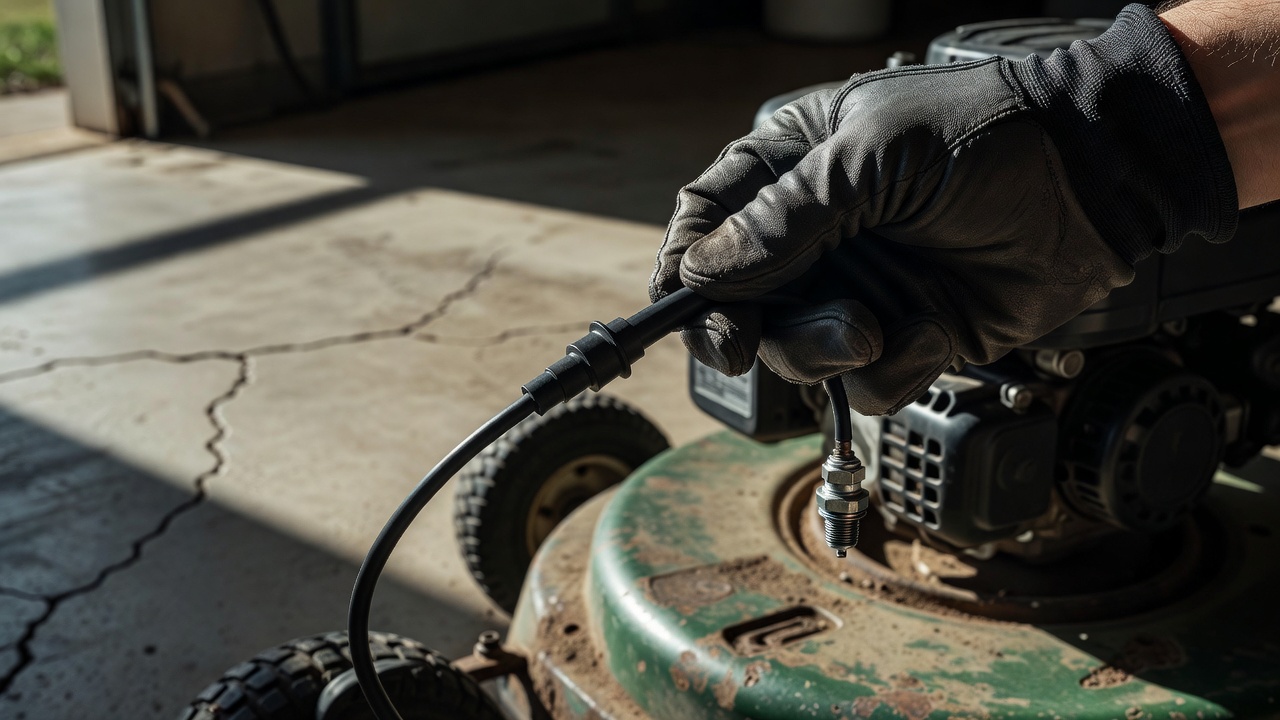

- Disconnect the spark plug wire. Pull the rubber boot off the spark plug terminal. This prevents accidental engine start while your hands are near the blade or deck.
- Work on a flat, stable surface. Never tilt the mower with the carburetor side down — oil enters the air filter and combustion chamber, creating a hard-start or smoke problem.
- Drain or stabilize fuel before any extended repair. Use a fuel siphon or run the engine dry to empty the tank when working near ignition sources or when storing the mower.
- Wear heavy gloves when handling the blade — edges remain sharp even when dull enough to cut poorly.
- Allow the engine to cool completely before touching the muffler, cylinder head, or exhaust components.
- Locate your model number before ordering parts. On most Craftsman walk-behind mowers it is stamped on a sticker on the mower deck or frame. On riding mowers, check under the seat or on the frame rail. The model number format is typically an 11- or 12-digit number (e.g., 917.XXXXXX for older units or a CMM/CMXGMAM series for newer models).
Tools and Parts You Need to Fix a Craftsman Lawn Mower
Basic Tool Kit
- Socket set (3/8-inch drive, metric and SAE)
- Spark plug socket (most Craftsman walk-behinds use a 5/8-inch or 13/16-inch plug socket)
- Torque wrench (required for blade bolt — see torque specs below)
- Flathead and Phillips screwdrivers
- Needle-nose pliers
- Fuel siphon or turkey baster
- Wire brush and carburetor cleaner spray
- Blade balancer (cone-style, under $10)
- Drain pan for oil changes
Common Replacement Parts to Have On Hand
- Spark plug (match to your engine — see engine section below)
- Air filter (foam pre-filter + paper main filter for most models)
- Fuel filter (inline, $3–$8)
- Primer bulb (if cracked or stiff)
- Drive belt (for self-propelled models)
- Blade (matched to your deck size — 21-inch, 22-inch, or riding deck width)
- Engine oil (SAE 30 for warm climates; 10W-30 for variable temps — Briggs & Stratton and Kohler both specify SAE 30 above 40°F/4°C for standard overhead-valve engines)
Engine identification matters. Most Craftsman walk-behind mowers use a Briggs & Stratton single-cylinder engine (series 450E through 163cc or larger OHV models). Craftsman riding mowers use Briggs & Stratton, Kohler (Command or Courage series), or Kawasaki engines. The engine model and type are stamped directly on the engine shroud or block — use these numbers, not the mower model number, to source the correct spark plug and oil capacity. For broader ecosystem context, read through our operational guide on jbl partybox club 120 vs sony srs xv500. For complementary hardware performance, examine our breakdown on riding lawn mower.
How to Fix a Craftsman Lawn Mower That Won’t Start
Work through these steps in order. Each step eliminates one potential cause before moving to the next. For broader ecosystem context, read through our operational guide on jbl partybox club 120 vs sony srs xv500.
Step 1: Check the Spark Plug
- Disconnect the spark plug wire.
- Remove the plug with a spark plug socket.
- Inspect the electrode: a black, sooty deposit indicates a rich fuel mixture or oil burning; a white or blistered electrode indicates overheating; a worn or bridged gap prevents ignition.
- Replace the plug if in doubt — plugs cost $3–$6 and cause more no-start problems than any other single part.
- Set the gap using a feeler gauge. Briggs & Stratton specifies 0.030 inches (0.76 mm) for most single-cylinder engines; Kohler Courage and Command series specify 0.030 inches as well. Confirm against your engine’s operator manual for your specific model.
- Torque the new plug to 180 in-lb (15 ft-lb) for most Briggs & Stratton aluminum-head engines — do not over-tighten.
Step 2: Check the Fuel
- Gasoline degrades in as little as 30 days without a fuel stabilizer, forming varnish that clogs the carburetor.
- Drain all old fuel using a siphon. Dispose of it at a local recycling center or auto parts store.
- Refill with fresh 87-octane gasoline. Craftsman and its engine suppliers recommend fuel with no more than 10% ethanol (E10). Avoid E15 or E85, which damage fuel lines and carburetor seals.
- Add a fuel stabilizer (such as STA-BIL) if the mower will sit more than 30 days.
Step 3: Check and Clean the Air Filter
- Remove the air filter cover (usually a single wing nut or two screws).
- Inspect the paper filter element. Tap it gently against a hard surface to dislodge loose debris. Do not blow compressed air through the filter from outside-in — this forces dirt deeper into the paper fibers.
- If the filter is oil-soaked, gray, or structurally compromised, replace it. Most Craftsman walk-behind air filters cost $5–$12.
- Wash foam pre-filter elements in warm soapy water, rinse, dry completely, then lightly coat with clean engine oil before reinstalling.
Step 4: Check the Primer Bulb and Choke
- Press the primer bulb 3 times before each cold start. If the bulb is cracked, stiff, or does not spring back, replace it — a failed primer bulb prevents fuel from reaching the carburetor bowl.
- Ensure the choke lever is set to CHOKE (or FULL CHOKE) for a cold start, then moved to RUN once the engine fires. Running with the choke closed floods the engine.
Step 5: Clean the Carburetor
If the above steps don’t restore starting, the carburetor is likely varnished from stale fuel. For troubleshooting and reliability insights, consult our in-depth z890 vs x870e motherboard report. For complementary hardware performance, examine our breakdown on weed eater.
- Turn off the fuel valve (if equipped) or clamp the fuel line.
- Remove the air filter assembly to access the carburetor.
- Spray carburetor cleaner into the throat of the carburetor while attempting to start — if the engine briefly fires, the carburetor is not receiving fuel and needs cleaning or replacement.
- Remove the carburetor bowl (single bolt at the base). Clean the bowl and the main jet (small brass fitting with a tiny hole) with carburetor cleaner and compressed air.
- If varnish is heavy and the jet hole is blocked, soak the carburetor in carburetor cleaner solution for 30 minutes, then blow clear with compressed air. Never use wire or drill bits to clear jets — this enlarges the orifice and alters the fuel mixture permanently.
- Reassemble and test. A carburetor rebuild kit ($5–$15) replaces the bowl gasket, needle, and float — recommended if cleaning alone does not resolve the issue.
How to Fix a Craftsman Lawn Mower That Runs Rough or Stalls
A mower that starts but surges, hunts (cycles up and down in RPM), or stalls under load has a fuel delivery or governor problem, not an ignition problem.
- Dirty carburetor: The most common cause of surging. Follow the carburetor cleaning steps above. Pay particular attention to the idle circuit and pilot jet, which clog before the main jet.
- Clogged fuel filter: Replace the inline fuel filter ($3–$8). Restricted fuel flow causes the engine to starve under load and recover at idle.
- Governor issue: The governor spring and linkage control engine speed. A detached or stretched governor spring causes uncontrolled surging. Inspect the linkage on the side of the carburetor — all springs must be connected to their posts. Do not attempt to adjust governor arm position without the manufacturer’s specification; incorrect governor settings can over-speed and destroy the engine.
- Partially blocked choke: A choke plate that doesn’t open fully restricts airflow at high RPM, causing a rich-running, rough idle. Check that the choke plate rotates fully to the vertical (open) position when the control lever is in RUN.
How to Fix Craftsman Lawn Mower Cutting Problems
Diagnosing an Uneven or Poor Cut
- Leaving strips of uncut grass: Usually a dull blade that deflects grass sideways rather than cutting it cleanly.
- Scalping in spots: Deck is set unevenly, or the ground is uneven relative to deck height. Check that all four deck height adjustment wheels are set to the same position.
- Ragged, torn cut: Blade is dull. Grass tips will appear brown and frayed 24 hours after mowing.
How to Sharpen or Replace the Blade
- Disconnect the spark plug wire. Tilt the mower on its side with the air filter and carburetor facing up.
- Block the blade with a piece of wood against the deck to prevent rotation.
- Remove the blade bolt with a socket wrench. Note: most Craftsman blade bolts are right-hand thread — turn counterclockwise to remove. Torque spec for reinstallation is typically 450–600 in-lb (38–50 ft-lb) for walk-behind decks, but verify in your model’s operator manual — under-torqued blade bolts are a serious safety hazard.
- Inspect the blade: if it has cracks, a bent sail (the curved lift portion), or is worn thinner than 1/4 inch at the cutting edge, replace it — do not sharpen a cracked or bent blade.
- Sharpen with a file or angle grinder at the original bevel angle (approximately 30–35 degrees). Remove equal material from both cutting edges to maintain balance.
- Balance the blade before reinstalling. Hang the blade on a cone balancer or a nail through the center hole. If one side drops, grind additional material from that side’s cutting edge until the blade rests level. An unbalanced blade causes destructive vibration and premature spindle bearing failure.
How to Fix a Craftsman Self-Propelled Mower That Won’t Drive
The self-propelled system is mechanically separate from the engine. Diagnosis splits into three areas: the drive cable, the drive belt, and the transmission/wheel assembly. Readers comparing setup options can review our technical analysis on marshall stanmore iii vs harman kardon onyx studio 8. For complementary hardware performance, examine our breakdown on lawn tractor specifications.
Drive Cable
- The drive cable connects the bail handle to the transmission. If the mower moves only weakly or not at all when the bail is engaged, inspect the cable for fraying, kinking, or a stretched outer sheath.
- Adjustment: Most Craftsman self-propelled models have a cable adjuster at the handle or at the transmission input. Turn the adjuster to take up slack — the drive should engage firmly when the bail is pressed halfway.
Drive Belt
- Disconnect the spark plug wire and remove the blade for access (on many walk-behind models the drive belt runs through the blade shaft area).
- Inspect the belt for glazing, cracking, fraying, or stretching. A glazed belt slips and provides intermittent drive.
- Route the replacement belt according to the diagram on the deck or in the service manual for your model number — belt routing varies between Craftsman models.
- Replacement belts are available by Craftsman part number or by cross-referencing belt width and length (printed on the original belt).
Transmission and Wheel Engagement
- If the belt is intact and the cable is adjusted, the fault is likely in the transmission or rear wheel drive pawls (the one-way ratcheting mechanism inside the rear wheels).
- Worn drive pawls allow wheels to spin freely instead of engaging. Replacement pawl kits are model-specific and cost $10–$25.
- A seized or stripped transmission is generally not user-serviceable and warrants professional repair or mower replacement depending on the machine’s age and value.
How to Fix Excessive Vibration or Noise on a Craftsman Lawn Mower
- Bent blade: The single most common cause of sudden vibration. A blade bent even 1/8 inch out of plane creates severe vibration at 3,000 RPM. Do not attempt to straighten a bent blade — replace it. Blades are inexpensive ($15–$35) and a bent replacement is a catastrophic failure risk.
- Loose blade bolt: Check torque immediately. A loose blade can separate from the deck.
- Loose engine mounting bolts: Inspect and torque the four engine mounting bolts to the deck. Refer to your engine’s specification — typically 140–200 in-lb depending on engine size.
- Worn spindle bearings: On riding mowers and zero-turn models with multiple spindles, a worn blade spindle bearing creates a grinding or rumbling noise that worsens under cutting load. Grab the blade tip and attempt to rock it up and down — any play indicates a failed bearing.
- Debris in the deck: Packed clippings around the blade spindle area can create imbalance and noise. Clean the underside of the deck after every 8–10 hours of use.
Routine Maintenance to Prevent Future Craftsman Lawn Mower Problems
| Task | Interval | Notes |
|---|---|---|
| Check engine oil level | Before each use | Never operate below the MIN mark on the dipstick |
| Clean underside of deck | Every 8–10 hours | Prevents corrosion and clipping buildup |
| Check/clean air filter | Every 25 hours or seasonally | More frequently in dusty conditions |
| Replace spark plug | Every 100 hours or annually | Briggs & Stratton and Kohler both recommend annual replacement |
| Change engine oil | First change at 5 hours (new engine), then every 50 hours or annually | Use SAE 30 above 40°F; 10W-30 for variable temps. Capacity is typically 18–20 oz for walk-behind OHV engines — confirm for your engine model |
| Replace fuel filter | Annually | Especially important with ethanol-blended fuels |
| Sharpen or replace blade | Every 20–25 hours or each season | More often on sandy or rocky terrain |
| Inspect drive belt | Annually | Replace if glazed, cracked, or frayed |
| Winterization / storage prep | End of season | Drain fuel or add stabilizer, change oil, remove and store battery (riding mowers), clean deck, fog cylinder with storage oil |
Oil Change Procedure (Walk-Behind)
- Run the engine for 2 minutes to warm the oil — warm oil drains more completely.
- Disconnect the spark plug wire. Tilt the mower toward the dipstick/drain side.
- Remove the oil drain plug or use an oil extractor through the dipstick tube.
- Drain completely into a pan, reinstall the drain plug, and refill to the FULL mark on the dipstick. Do not overfill — excess oil is pushed into the air filter and combustion chamber.
- Dispose of used oil at any auto parts store — it is accepted free of charge.
When to Call a Professional or Replace Your Craftsman Lawn Mower
Some repairs exceed DIY scope or cost more in parts and time than the mower’s remaining value. For troubleshooting and reliability insights, consult our in-depth z890 vs x870e motherboard report.
- Seized engine: If the engine will not turn over by hand (with the spark plug removed), internal components have fused from oil starvation or overheating. Repair cost typically exceeds $200–$400 in labor, often more than a comparable used mower.
- Cracked engine block or cylinder head: Not repairable. Engine replacement is the only option — evaluate against mower age and replacement cost.
- Carburetor replacement vs. repair: If cleaning fails and a rebuild kit does not resolve the issue, a new carburetor for a walk-behind Briggs & Stratton engine costs $20–$45. This is almost always worth doing before scrapping the mower.
- Professional repair cost benchmarks: Independent small-engine shops charge $50–$100/hour. A full tune-up (plug, filter, oil, blade sharpening) runs $60–$120. Carburetor rebuild labor adds $40–$80. Transmission replacement on a self-propelled mower runs $100–$200 including parts. Compare these costs against a comparable replacement mower ($200–$400 new for a walk-behind) to make an informed decision.
- Finding an authorized service center: Craftsman-branded service is handled through Stanley Black & Decker’s service network. Use the service locator at
craftsman.comor contact 1-888-331-4569. Independent small-engine repair shops certified for Briggs & Stratton or Kohler engines can service any Craftsman mower regardless of brand authorization.
Buyer FAQs: How To Fix A Craftsman Lawn Mower Solved
Why won’t my Craftsman lawn mower start after sitting all winter?
Stale fuel is the cause in the majority of cases. Gasoline left in the tank and carburetor bowl over winter oxidizes and leaves varnish deposits that block the carburetor’s main jet and idle circuit. Drain the old fuel completely, clean or rebuild the carburetor, replace the spark plug, and refill with fresh E10 or ethanol-free gasoline. In most cases the mower starts after these three steps. For complementary field maintenance guidelines, examine our breakdown of dyson v8 cyclone vs bissell featherweight stick.
How do I know if my Craftsman mower blade needs sharpening or full replacement?
Sharpen if the blade edge is dull but the blade body is straight and crack-free. Replace immediately if the blade is bent (check by holding the center hole on a flat surface — both tips must sit at the same height), if it has visible cracks near the center hole or cutting edge, or if the blade is worn thinner than 1/4 inch at the cutting edge. A bent or cracked blade is a projectile hazard and must not be run.
What type of oil does a Craftsman lawn mower take?
Most Craftsman walk-behind mowers with Briggs & Stratton or Kohler overhead-valve engines require SAE 30 motor oil when operating above 40°F (4°C), or SAE 10W-30 for variable temperature conditions. Oil capacity for typical walk-behind OHV engines is approximately 18–20 fluid ounces — confirm the exact capacity from the dipstick markings or your engine’s operator manual, as capacity varies by engine displacement and model series. Use the oil change interval of 50 hours or once per season, whichever comes first. Readers comparing setup options can review our technical analysis on marshall stanmore iii vs harman kardon onyx studio 8.
Can I fix a Craftsman self-propelled mower drive problem myself?
Yes, in most cases. Drive cable adjustment and drive belt replacement are straightforward DIY repairs requiring only basic hand tools and typically $10–$30 in parts. Worn drive pawls inside the rear wheels are also user-replaceable with model-specific kits. A seized or stripped gearbox transmission is the one component where professional repair or mower replacement is usually more cost-effective than DIY disassembly.
For more hands-on benchmarks and buying recommendations, consult our guides on heavy-duty chainsaw buyer guide, as well as high-CFM commercial leaf blower guide.
Mechanical safety standards, operational tolerances, and protective gear guidelines align with benchmark specifications established by the American National Standards Institute (ANSI).
