Direct Answer: How to Fix a Self-Propelled Lawn Mower
To fix a self-propelled lawn mower that isn’t moving, start by checking the simplest components: ensure the drive belt is intact and properly tensioned, inspect the drive cable for breaks or proper adjustment, and verify the transmission is engaged. Common fixes include tightening or replacing the drive cable, replacing a worn or broken drive belt, lubricating moving parts, and checking the transmission fluid (if applicable). Always disconnect the spark plug wire before performing any repairs for safety.
Understanding Your Self-Propelled Lawn Mower’s Drive System
Before diving into repairs, it is essential to understand how the self-propulsion mechanism works. Most self-propelled lawn mowers use a mechanical drive system that transfers power from the engine to the wheels. Understanding this relationship helps you pinpoint exactly where the failure is occurring.

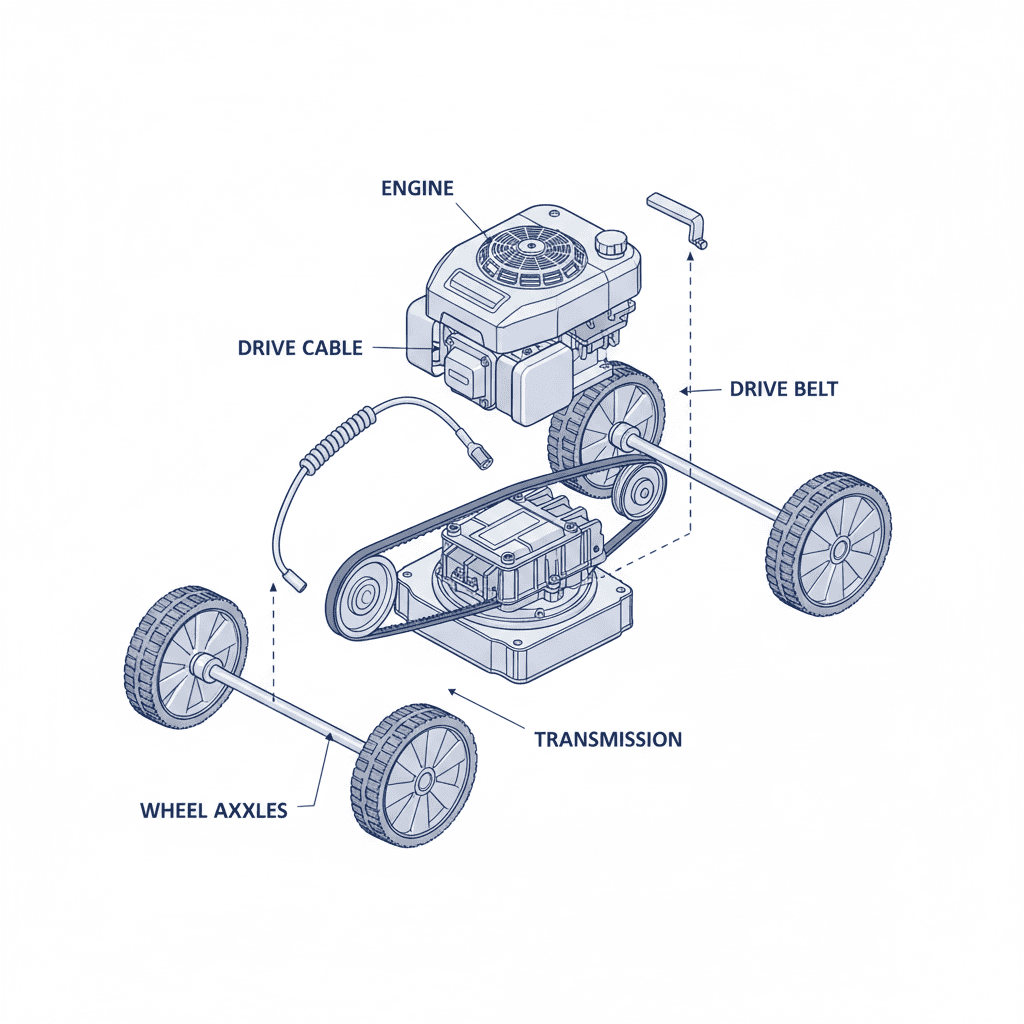

Key Components of the Drive System
- The Engine: Provides the rotational power necessary to spin the blade and drive the wheels.
- The Drive Cable: A steel cable connected to the handlebar lever. When you squeeze the lever, the cable pulls tight, engaging the drive system.
- The Drive Belt: A rubber or reinforced belt that connects the engine pulley to the transmission or wheel axle. It acts as the physical link transferring motion.
- The Transmission: The gearbox that reduces the high speed of the engine to a manageable walking speed for the wheels. In some models, this is integrated into the wheel hub.
- The Wheels and Axles: The final output point where the power is applied to move the mower forward.
How They Work Together
When you engage the self-propel lever on the handle, the drive cable tightens. This tension either pulls a idler pulley against the drive belt to create friction or directly engages a clutch mechanism within the transmission. The engine’s rotation is then transferred via the belt to the transmission, which turns the axles and moves the wheels. If any link in this chain is broken, loose, or worn, the mower will fail to self-propel.
Common Reasons for Failure
The most frequent causes for a self-propelled mower stopping include a snapped or stretched drive cable, a worn-out or slipped drive belt, debris jammed in the wheel axles, or internal transmission failure. Identifying which component is at fault is the first step toward an effective repair.
Safety First: Preparing for Repair
Lawn mower repair involves working with sharp blades, hot engines, and moving mechanical parts. Prioritizing safety is non-negotiable to prevent serious injury.
Essential Safety Precautions
- Disconnect the Spark Plug: Before touching any part of the mower, locate the spark plug wire and pull it off the spark plug. This ensures the engine cannot accidentally start while your hands are near the blade or drive components.
- Allow the Engine to Cool: If the mower has been running, wait at least 15–20 minutes for the engine and muffler to cool down to avoid burns.
- Work on a Flat Surface: Place the mower on a level, stable surface. If you need to tilt the mower to access the underside, ensure the carburetor and air filter are facing up to prevent oil or fuel from leaking into the engine internals.
- Wear Protective Gear: Use heavy-duty gloves to protect your hands from sharp edges, grease, and pinching hazards. Safety glasses are recommended to shield your eyes from debris.
Consulting the Owner’s Manual
Every mower model is slightly different. Your owner’s manual contains specific diagrams for your drive system, part numbers for replacements, and manufacturer-specific maintenance schedules. Always refer to it before disassembling complex components like the transmission.
Step-by-Step Troubleshooting Guide
Follow this logical progression to diagnose and fix your self-propelled lawn mower. We start with the easiest, most common issues and move toward more complex repairs.
Step 1: Check the Drive Cable
The drive cable is the most common point of failure because it undergoes significant tension every time you use the mower.
Inspection
- Locate the cable where it connects to the handlebar lever and where it attaches to the drive mechanism near the engine or transmission.
- Check for visible fraying, kinks, or a complete break in the cable.
- Squeeze the handlebar lever. Does it feel loose or lack resistance? If so, the cable may be stretched or detached.
Adjustment and Fix
If the cable is intact but loose, it likely needs adjustment. Most cables have an adjustment nut or bracket where the cable housing meets the mower deck or transmission.
- Loosen the locking nut on the cable bracket.
- Pull the cable housing slightly to increase tension on the inner wire.
- Tighten the locking nut while holding the tension.
- Test the lever action. It should engage the drive smoothly without excessive slack.
If the cable is frayed or broken, it must be replaced. Purchase a replacement cable specific to your mower model, thread it through the guides, and secure it according to the manual.
Step 2: Inspect the Drive Belt
If the cable is functioning correctly, the next likely culprit is the drive belt. Belts wear out over time due to heat, friction, and age.
Accessing the Belt
You will typically need to remove the mower deck cover or a specific belt guard. This usually involves removing several bolts with a socket wrench. Keep track of all hardware.
What to Look For
- Cracks or Fraying: Inspect the rubber for deep cracks or missing chunks.
- Glazing: A shiny, smooth surface indicates the belt is slipping and has hardened.
- Proper Seating: Ensure the belt is sitting correctly in the pulleys. A slipped belt will not transfer power.
- Tension: The belt should have a slight give when pressed but should not be loose enough to slip off the pulleys.
Replacement
If the belt is damaged, replace it immediately. Note the routing of the old belt before removing it, or take a photo for reference. Install the new belt, ensuring it is seated in all pulley grooves. Reassemble the cover and test the mower.
Step 3: Check the Transmission and Wheel Drive
If the cable and belt are in good condition, the issue may lie in the transmission or the wheel engagement mechanism.
Front-Wheel vs. Rear-Wheel Drive
In many mowers, especially front-wheel-drive models, the transmission is located inside the wheel housing. Check if the wheel spins freely when the mower is lifted and the drive is engaged. If the wheel does not turn, the internal gears may be stripped.
Checking for Debris
Grass clippings, twigs, and mud can jam the axle or the transmission input shaft. Clean around the wheel axles and the transmission housing thoroughly. Use a putty knife or brush to remove compacted debris.
Transmission Fluid
Some higher-end mowers have sealed transmissions that require no maintenance, while others have serviceable gearboxes. Check your manual to see if your transmission requires fluid. If it does, ensure the fluid level is adequate and that there are no leaks. Low fluid can cause slipping or failure to engage.
Step 4: Lubricate Moving Parts
Friction is the enemy of any mechanical system. Regular lubrication can prevent premature wear and restore smooth operation.
Where to Lubricate
- Cable Ends: Apply a small amount of light machine oil to the ends of the drive cable where it connects to the lever and the transmission.
- Pivot Points: Lubricate the pivot points on the handlebar lever and any linkage arms in the drive system.
- Axles: If your mower has grease fittings on the wheel axles, apply the recommended grease. Do not over-grease, as this can attract dirt.
Note: Avoid getting lubricant on the drive belt or pulleys, as this can cause the belt to slip. Wipe away any excess oil immediately.
Step 5: Assessing Damage and Replacement Needs
Not all parts can be repaired. Knowing when to replace a component is crucial for a lasting fix.
- Cables: Never attempt to splice a broken drive cable. The tension required for operation makes splices unsafe and unreliable. Always replace the entire cable.
- Belts: A cracked or stretched belt cannot be restored. Replacement is the only option.
- Transmissions: If the transmission makes grinding noises or the wheels lock up unexpectedly, the internal gears are likely damaged. In most consumer mowers, the entire transmission unit must be replaced rather than repaired internally.
When to Seek Professional Help
While many self-propelled mower issues are DIY-friendly, some situations warrant professional assistance to avoid further damage or safety risks.
Signs of Major Transmission Failure
If you have verified that the cable and belt are functional, but the mower still does not move, or if you hear loud grinding or whining noises from the transmission area, the internal gears may be stripped. Replacing a transmission often requires specialized tools and precise alignment. If you are not comfortable with this level of disassembly, consult a professional.
Repairs Requiring Specialized Tools
Some repairs, such as pressing bearings onto axles or welding broken frame components, require equipment not typically found in a home garage. Additionally, if the issue involves the engine’s internal combustion components (e.g., the engine lacks the power to drive the wheels), a small engine technician can diagnose compression or fuel delivery issues more accurately.
Finding a Reputable Repair Shop
Look for authorized service dealers for your mower’s brand. They have access to genuine parts and specific technical bulletins. You can also check local reviews for independent small engine repair shops. Ask for estimates upfront and inquire about warranty coverage on both parts and labor.
Frequently Asked Questions
Why does my self-propelled mower work intermittently?
Intermittent operation is often caused by a drive cable that is slightly too loose or a belt that is on the verge of slipping. As the engine vibrates, the connection may momentarily fail. Check the cable tension first, ensuring it engages fully when the lever is squeezed. If the tension is correct, inspect the belt for glazing or wear that might cause it to slip under load.
Can I use WD-40 on my lawn mower drive system?
WD-40 is primarily a water displacer and light lubricant, not a long-term lubricant for high-friction mechanical parts. It can attract dust and dirt, which may gum up the drive system over time. For cable ends and pivot points, use a dedicated machine oil or silicone spray. For greasing axles, use a lithium-based grease. Never spray lubricants on the drive belt or pulleys.
How often should I replace the drive belt on a self-propelled mower?
There is no fixed timeline for belt replacement, as it depends on usage frequency and terrain. However, it is good practice to inspect the belt at the start of each mowing season. Most belts last between 3 to 5 years with regular residential use. Replace it immediately if you see cracks, fraying, or if it appears stretched and loose.
Is it worth repairing the transmission or should I buy a new mower?
This depends on the age and overall condition of the mower. If the mower is less than 5 years old and the engine is in good shape, replacing the transmission is usually cost-effective. However, if the mower is older, has significant rust, or the engine requires frequent maintenance, the cost of a new transmission plus labor may approach the price of a new mower. In such cases, replacement might be the more economical choice.
