How to Fix a Toro Self-Propelled Lawn Mower

To fix a Toro self-propelled lawn mower that isn’t working properly, first identify the specific symptom. If the engine runs but the drive wheels won’t pull the mower forward, the most common fixes are adjusting the drive cable tension, replacing a worn drive belt, or cleaning the wheel drive gears. For erratic movement or grinding noises, inspect the transmission and friction components. Always disconnect the spark plug wire and follow safety precautions before beginning any repairs.

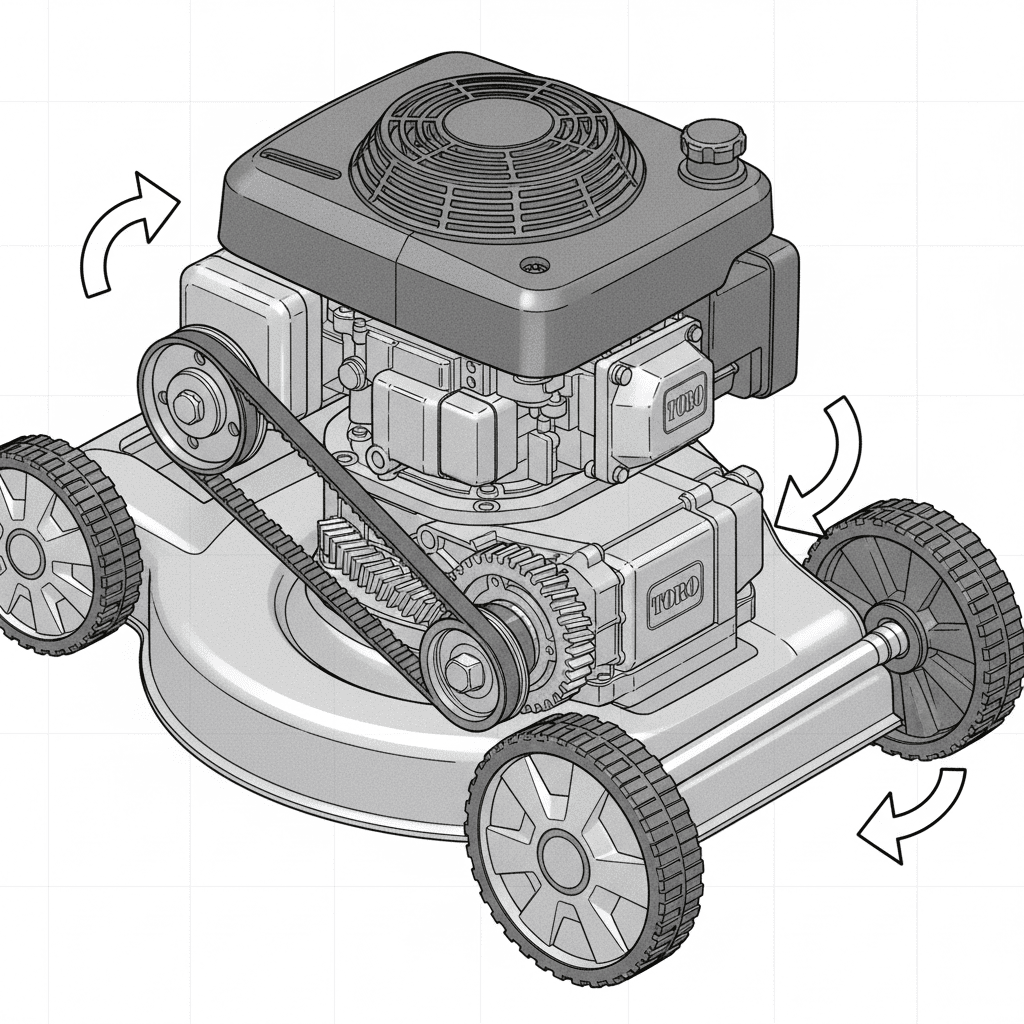

Understanding How a Toro Self-Propelled Lawn Mower Drives the Wheels

Before attempting repairs, it’s helpful to understand how the self-propulsion system works. Toro self-propelled mowers use an engine-driven pulley system connected to a drive belt that transfers power to the transmission. The transmission then engages the wheel gears to move the mower forward. Many Toro models feature the Personal Pace system, which uses a speed-control linkage that automatically adjusts the mower’s speed based on how fast you walk behind it.

How the Drive System Transfers Power

• Engine Pulley: Connected to the engine crankshaft, this pulley drives the main belt.
• Drive Belt: Transfers rotational power from the engine pulley to the transmission pulley.
• Transmission: Converts belt power into wheel rotation through internal gears.
• Wheel Gears and Pinions: Engage the wheels to move the mower forward.

Personal Pace System Overview

The Personal Pace system is Toro’s variable-speed self-propulsion technology. It uses a spring-loaded linkage that connects the bail handle to the transmission. When you press the bail, the linkage engages the drive system. The system automatically adjusts speed based on resistance and walking pace. If this linkage becomes misaligned or disconnected, the mower may not self-propel properly.

Safety Precautions and Tools Needed Before Starting Repairs

Before performing any maintenance or repairs on your Toro self-propelled lawn mower, follow these essential safety steps:

Essential Safety Steps

• Disconnect the spark plug wire to prevent accidental engine startup.
• Allow the engine to cool completely before handling any components.
• Work on a flat, stable surface to prevent the mower from rolling.
• Wear protective gloves to protect hands from sharp edges and debris.
• Drain or disconnect fuel if working near the fuel system to prevent spills or fire hazards.

Tools and Parts Checklist

Toro Won’t Self-Propel: Adjusting the Drive Cable and Linkage

When your Toro mower engine runs but the drive wheels won’t engage, the drive cable is often the culprit. Over time, the cable can stretch, become loose, or disconnect from the linkage.

Step-by-Step Drive Cable Adjustment

1. Locate the drive cable – Follow the cable from the bail handle down to the transmission area.
2. Find the adjustment mechanism – Most Toro models have a threaded adjuster or a knob near the handle or at the transmission end.
3. Loosen the lock nut – Use a wrench to loosen the nut securing the cable adjuster.
4. Adjust cable tension – Turn the adjuster to increase tension (usually clockwise) until there’s slight resistance when the bail is pressed.
5. Tighten the lock nut – Secure the adjuster in place once proper tension is achieved.
6. Test the engagement – Reconnect the spark plug wire briefly to test if the wheels now engage when the bail is pressed.

Checking the Speed-Control Linkage

On Personal Pace models, the speed-control linkage connects the bail to the transmission. If this linkage is bent, disconnected, or stuck, the mower won’t self-propel. Inspect the linkage for:

li>Disconnected or broken spring clips
• Bent or misaligned metal rods
• Debris preventing free movement
• Worn plastic bushings

Toro Moves Slowly or Struggles on Slopes: Belt and Friction Disk Inspection

If your Toro mower moves on flat ground but struggles on inclines or moves slower than expected, the drive belt or friction components may need attention.

Inspecting the Drive Belt

1. Access the belt area – Remove the mower deck cover or access panel (consult your model manual for location).
2. Check belt condition – Look for cracks, fraying, glazing, or stretching. A worn belt will appear shiny or have visible damage.
3. Test belt tension – Press the belt with your finger; it should have slight give but not be loose.
4. Replace if necessary – If the belt is worn, replace it with the correct Toro replacement part for your model.

Friction Disk Inspection (Disc-Drive Models)

Some Toro models use a friction disk system instead of gears. The friction disk presses against a drive plate to transfer power. If this disk wears down, the mower will slip or fail to engage properly.

• Visual inspection: Look for uneven wear, glazing, or thinning of the friction material.
• Thickness check: Compare the disk thickness to specifications in your manual.
• Replacement: Worn friction disks should be replaced as a unit.

Grinding, Clicking, or Noisy Drive: Transmission and Wheel Gear Checks

Unusual noises during operation often indicate mechanical issues within the transmission or wheel drive system.

Common Noise Causes

Inspecting Wheel Gears and Pinions

1. Remove the wheel – Use a socket to remove the wheel bolt and pull the wheel off.
2. Inspect the pinion gear – Check for worn, chipped, or missing teeth.
3. Check the wheel gear – Look inside the wheel hub for corresponding gear damage.
4. Clean debris – Remove any grass, dirt, or debris that may be interfering with gear engagement.
5. Replace damaged parts – Worn gears must be replaced as matched pairs for proper operation.

Model-Specific Notes for Popular Toro Self-Propelled Series

While the general troubleshooting steps apply to most Toro self-propelled mowers, some model series have unique features to consider.

Personal Pace Models

• The automatic speed adjustment relies on proper spring tension
• Check the handle pivot points for wear that may affect engagement
• Ensure the return spring is properly attached and not stretched

Recycler Series

• Commonly uses rear-wheel drive with a simpler cable system
• Belt routing diagrams are typically found on the mower deck or in the manual
• Wheel drive gears are accessible by removing the rear wheels

TimeMaster Series

• Features a wider cutting deck with dual-blade system
• Drive system components may be larger and require specific torque specifications
• Consult the owner’s manual for exact belt routing and adjustment procedures

Frequently Asked Questions

How do I know if my Toro drive cable needs replacement?

Replace the drive cable if it’s visibly frayed, stretched beyond adjustment range, or if the inner wire is kinked or broken. If you’ve adjusted the cable to maximum tension and the wheels still won’t engage, replacement is likely necessary.

Can I use a generic drive belt instead of a Toro replacement part?

While generic belts may fit, Toro recommends using OEM replacement parts for optimal performance and longevity. Generic belts may have slightly different dimensions or materials that affect engagement and durability.

Why does my Toro self-propel work in reverse but not forward?

This unusual symptom typically indicates a problem with the transmission internal gears or a misadjusted speed-control linkage. Check that the linkage is properly connected and moving through its full range of motion.

How often should I maintain the drive system on my Toro mower?

Inspect the drive system components at the beginning of each mowing season and after every 25 hours of use. Lubricate moving parts, check belt tension, and inspect cables for wear regularly.
