Direct Answer: How to Pulley Swap a Lawn Mower
Performing a pulley swap on a lawn mower involves removing the drive belt, accessing the engine or deck pulleys, and installing the new pulleys to ensure proper belt tension and alignment. The specific steps vary depending on whether you are working on a push mower or a riding mower, and whether you are replacing a drive, idler, or blower pulley. Always disconnect the spark plug wire and consult your mower’s manual before starting.

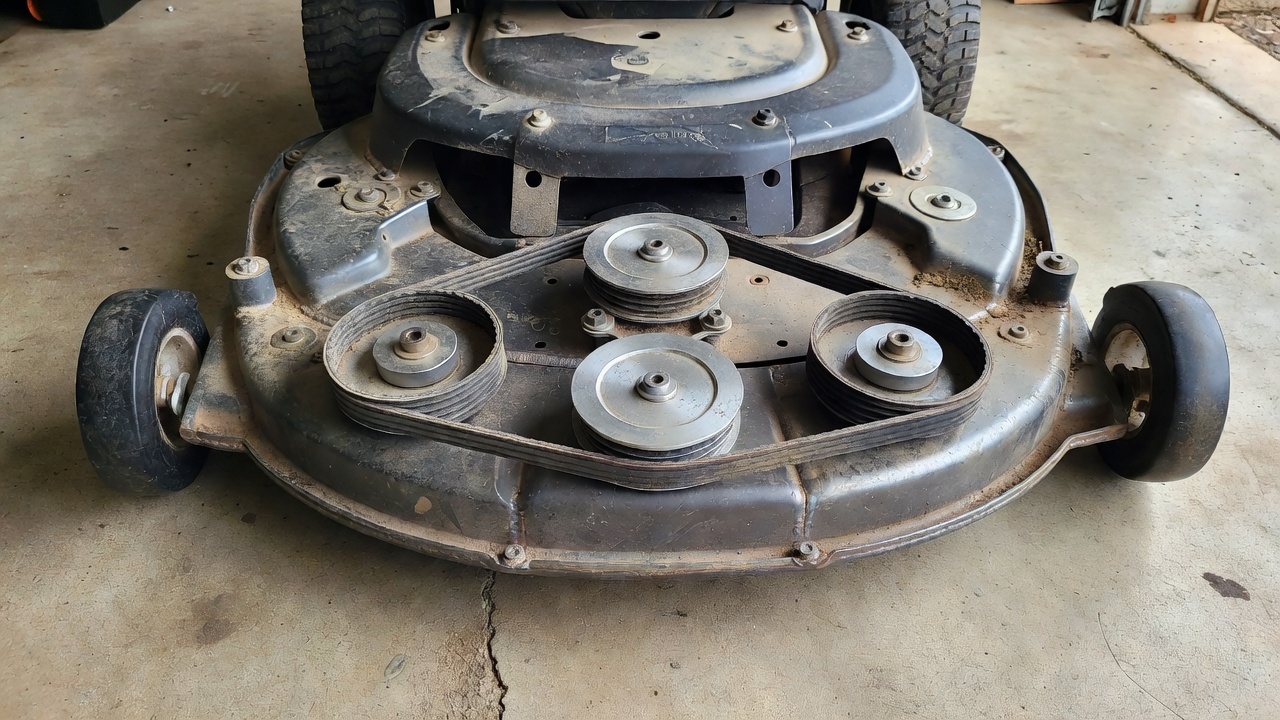

Understanding the Pulley System on a Lawn Mower
Before diving into the swap, it helps to understand what the pulley system does. A lawn mower pulley is a grooved wheel that guides and drives the belt. The belt transfers power from the engine crankshaft to the cutting deck, wheels, or other attachments. A pulley swap typically means replacing one or more of these wheels to change belt routing, adjust speed, or fix wear.
What Is a Pulley Swap?
A pulley swap is the process of removing an existing pulley and installing a different one. This might be done to change the gear ratio, increase blade speed, replace a damaged pulley, or convert a mower to accept a different belt length. It is a common DIY repair for both push and riding mowers.
Key Components: Engine, Pulley, and Drive Belt
- Engine pulley: Mounted on the crankshaft, this is the main pulley that drives the belt.
- Drive belt: A rubber loop that transfers rotational force from the engine pulley to other pulleys.
- Idler pulley: Keeps tension on the belt and guides its path.
- Blower pulley: Often found on riding mowers, it drives the mower deck blades.
- Deck pulleys: Located on the cutting deck, they spin the blades.
Key Factors: Mower Type and Pulley Type
Not all pulley swaps are the same. The procedure differs significantly between a push mower and a riding mower, and the type of pulley you are dealing with changes the approach. Understanding these differences will save you time and prevent mistakes.
Push Mower vs. Riding Mower
On a push mower, the engine pulley is usually small and directly connected to the blade. A pulley swap on a push mower often involves removing the blade, the belt guard, and the engine pulley bolt. The process is relatively simple and requires basic hand tools.
On a riding mower, the pulley system is more complex. There are multiple pulleys under the engine and on the deck, and the drive belt may route around several components. Swapping a pulley on a riding mower often requires removing the deck, loosening tensioner arms, and carefully noting the belt path. It is more time-consuming but still doable at home.
Drive Pulley vs. Idler Pulley vs. Blower Pulley
| Pulley Type | Function | Swap Difficulty |
|---|---|---|
| Drive pulley | Transfers power from the engine to the belt | Moderate; may require crankshaft tools |
| Idler pulley | Maintains belt tension and changes belt direction | Easy; usually held by a single bolt |
| Blower pulley | Drives the mower deck blades | Moderate; deck removal often required |
Each pulley type has a specific role. The drive pulley is the source of motion, the idler pulley keeps the belt tight, and the blower pulley (also called a deck pulley) transfers power to the blades. When swapping any of these, you must match the diameter, groove width, and shaft size.
Step-by-Step Guide to Pulley Replacement
Follow these general steps to perform a pulley swap on most lawn mowers. Always refer to your owner’s manual for torque specs and belt routing diagrams.
Tools You’ll Need
- Socket wrench and sockets (metric and standard)
- Torque wrench
- Screwdrivers (flathead and Phillips)
- Pliers or snap ring pliers
- Belt removal tool or a long screwdriver
- Penetrating oil (like WD-40)
- Hammer or mallet
- New pulley and drive belt
- Safety glasses and work gloves
Step 1: Safety First
Disconnect the spark plug wire and secure it away from the plug. This prevents accidental engine start. For riding mowers, engage the parking brake and remove the key. Allow the engine to cool completely before working near the exhaust and engine parts. Also, drain the fuel or clamp the fuel line if you need to tip the mower.
Step 2: Remove the Drive Belt
The drive belt must be removed before you can access the pulley. On a push mower, remove the belt by releasing the tension from the idler pulley or by sliding it off the engine pulley. On a riding mower, you may need to lower the deck to its lowest setting and remove the belt from the deck pulleys first. Take a photo of the belt routing before removing it so you can reinstall it correctly.
Step 3: Access the Pulley
Depending on the pulley location, you may need to remove a protective cover, a blade, or the entire mower deck. For engine pulleys, remove the blower housing or belt guard. For deck pulleys, remove the deck from the mower and turn it upside down. Use penetrating oil on any rusty bolts and let it sit for a few minutes.
Step 4: Remove the Old Pulley
Use a socket wrench to loosen the center bolt or nut that holds the pulley in place. Some pulleys are keyed to the shaft and may require a puller tool to break them free. Do not pry against the pulley with a screwdriver, as this can bend it. If the pulley is stuck, tap the center bolt with a hammer after applying penetrating oil. Once the bolt is removed, slide the pulley off the shaft. For idler pulleys, simply remove the mounting bolt and the pulley will come off.
Step 5: Install the New Pulley
Clean the shaft and apply a light coat of anti-seize compound to prevent future corrosion. Slide the new pulley onto the shaft, making sure the keyway or flat side aligns with the shaft. If the pulley uses a key, insert it into the keyway before sliding the pulley on. Tighten the center bolt or nut to the manufacturer’s torque specification. Do not over-tighten, as this can damage the pulley or shaft.
Step 6: Reinstall the Belt and Test
Route the drive belt back around the pulleys exactly as shown in your photo or manual. Make sure the belt sits in the grooves and that the idler pulley applies proper tension. Rotate the engine pulley by hand to verify the belt tracks correctly. Reinstall any covers, guards, or the mower deck. Reconnect the spark plug wire, start the mower, and listen for unusual noises. Let it run for a minute, then shut it off and recheck belt tension.
Tips for a Successful Pulley Swap
- Always use a pulley that matches the original diameter and belt groove profile.
- Check the belt for cracks or wear while you have it off; replace it if necessary.
- Do not use impact wrenches on aluminum pulleys unless you are experienced.
- If the pulley has a set screw, tighten it after the main bolt is torqued.
- Apply threadlocker to the pulley bolt if recommended by the manual.
- After the first mowing session, recheck all bolts for tightness.
Frequently Asked Questions
Can I change the pulley size to make my mower faster?
Yes, changing pulley sizes can alter the speed of the blades or wheels. A smaller pulley on the engine or a larger pulley on the deck will increase blade speed. However, overspeeding the blades can cause vibration, poor cutting, and premature bearing failure. Always stay within the manufacturer’s recommended RPM range.
Do I need special tools to remove a lawn mower pulley?
Most pulleys can be removed with basic hand tools like sockets, wrenches, and screwdrivers. If the pulley is seized to the shaft, you may need a gear puller or a pulley remover. These tools are available at auto parts stores or can be rented. For crankshaft pulleys on some engines, a flywheel puller may be required.
How do I know if my pulley needs replacing?
Signs of a failing pulley include visible wear in the groove, a wobbly pulley, rust, cracks, or a worn bearing that makes noise. If the belt slips or the mower vibrates excessively, inspect the pulley for damage. A bent pulley will cause the belt to ride unevenly and should be replaced immediately.
Why does my mower belt keep slipping after a pulley swap?
Belt slipping after a pulley swap usually means the belt is the wrong length, the pulley is misaligned, or the idler tension is insufficient. Double-check that the belt matches the recommended part number and that all pulleys are parallel. Also, ensure the idler spring is properly connected and applying tension.
Conclusion
Pulley swapping a lawn mower is a manageable DIY task if you understand the differences between mower types and pulley styles. By removing the drive belt, accessing the pulley, and installing the new part with correct torque and alignment, you can restore or improve your mower’s performance. Always prioritize safety, consult your manual, and take photos before disassembly. With the right tools and a little patience, your mower will be back in action in no time.
