Quick Answer: How to Put a Belt on a Riding Mower
To put a belt on a riding mower: (1) Set parking brake and disconnect the spark plug wire. (2) Release the idler arm spring to create slack. (3) Loop the new belt around the rear transmission or spindle pulleys first, then route around idler guides and the front crankshaft pulley.
Field-Verified Equipment & Replacement Hardware
Our editorial team’s recommended OEM-grade replacement parts and heavy-duty equipment selections to ensure optimal reliability and performance.
Pros
- Engineered for high power transmission and peak cutting results
- Precise fit design allows straightforward easy installation
- Rugged materials resist heat oil and outdoor wear factors
- Wide compatibility across select Ariens and Gravely zero-turn models
- Genuine Ariens build quality for reliable seasonal use
Cons
- Restricted to select 52-inch deck models on Ariens APEX and Gravely series only
- Requires careful precise installation for optimal function as a replacement part
- Limited detailed technical specs available beyond core belt type and length
The Ariens 52 Inch Zero Turn Riding Lawn Mower Tractor Deck Drive Belt is a heavy duty raw edge V-belt replacement built for zero-turn riding mowers. Made by Ariens it focuses on durable construction and a precise fit over deck spindles and drive wheels giving an immediate sense of solid dependable quality for lawn maintenance work.
Performance centers on high power transmission that supports smooth clean lawn clearance jobs. Key strengths include easy installation for fast swaps with little downtime heavy duty resistance to heat oil and outdoor elements and fitment for select Ariens APEX models plus Gravely PRO-STANCE ULTRA ZT HD and PRO-TURN Z/ZX units. These traits help deliver consistent results across a full mowing season.
Drawbacks to note are the limited compatibility that covers only certain 52-inch deck models so confirmation of exact fit is essential. As a specialized replacement belt proper installation steps matter to prevent issues and broader long-term user experiences remain sparse based on available details.
This Ariens deck drive belt offers strong value for owners of matching Ariens APEX or Gravely zero-turn mowers who need a reliable genuine replacement. It suits both homeowners and professionals focused on maintaining peak cutting efficiency with minimal interruption.
Pros
- Aramid material provides superior durability for heavy-duty lawn and garden applications
- Exact 1/2 x 61 sizing matches common Simplicity drive belt requirements for straightforward replacement
- Covers multiple OEM part numbers to simplify searching and ordering
- Suitable for both riding mowers and other clutching equipment like tillers
Cons
- Aftermarket belt only and not an original Simplicity OEM component
- Compatibility limited to specific Landlord 50-inch and Broadmoor 44-inch deck models requiring size verification
- No installation tools or extras included so users must supply their own
The Technology Parts Store Aramid Heavy Duty Drive Belt is a purpose-built replacement V-belt measuring 1/2 inch wide by 61 inches long. Constructed with heavy-duty Aramid material, it offers a robust build quality suited for outdoor power equipment and makes an immediate impression as a practical aftermarket solution for Simplicity machines.
Performance and key features center on its A59K 4LK610 sizing and ability to replace OEM numbers such as 105115SM, 1601672SM, and 2027102SM. In real-world use it handles the clutching demands of Simplicity Landlord models with 50-inch decks and Broadmoor units with 44-inch decks, delivering reliable power transmission for lawn mowers, tillers, and similar applications without stretching or slipping under normal loads.
Drawbacks and considerations include the fact that this is explicitly not an OEM belt, so buyers must carefully verify their original part number and exact belt dimensions before ordering. Compatibility is also restricted to the listed Simplicity models and deck sizes, which may limit broader use across other brands or configurations.
Verdict: This belt provides solid value for owners of compatible Simplicity Landlord or Broadmoor riding mowers who need a durable, correctly sized drive belt for heavy-duty clutching tasks and want an affordable aftermarket option that matches critical OEM dimensions.
Pros
- Precise match to Snapper OEM number 704430 for straightforward identification
- Standard 1/2 x 101 A99 4L1010 dimensions support accurate fitment on listed models
- Suitable aftermarket option for cost-conscious owners performing routine lawn mower maintenance
- Clear compatibility statement with Snapper ST1842 simplifies product selection
Cons
- Not a genuine OEM belt so material durability may differ from original Snapper parts
- Requires manual verification of belt size and OEM number before ordering to avoid mismatch
- Limited to Snapper ST1842 compatibility with no additional model cross-references provided
The Technology Parts Store 704430 Drive Belt is an aftermarket replacement component sized at 1/2 inch width by 101 inches length and identified as A99 4L1010. It is purpose-built as a direct substitute for the Snapper OEM number 704430 and targets the Snapper ST1842 lawn riding mower. The belt presents as a straightforward V-belt designed for outdoor power equipment, with no additional packaging details or premium branding features listed beyond its functional specifications.
In performance terms the belt is intended to restore proper drive engagement for the ST1842 model. Its stated outside dimensions and standard A99 4L1010 profile allow it to transmit power efficiently when installed correctly, helping the mower maintain consistent blade or wheel drive under typical residential mowing loads. Users who match the OEM number and size can expect the component to seat properly on the existing pulleys without modification.
Potential drawbacks center on the fact that this is explicitly not an OEM belt. Buyers must double-check both the 704430 reference and the physical 1/2 x 101 measurements against their existing part, as aftermarket construction may vary in rubber compound or cord strength compared with factory originals. The product listing also offers limited cross-compatibility data beyond the single Snapper ST1842 model.
Overall this drive belt is best suited for Snapper ST1842 owners seeking an affordable, correctly dimensioned replacement to keep their lawn riding mower operational. Those who verify the OEM number and belt size beforehand will gain the most value from a simple, functional aftermarket part that returns the machine to service without extended downtime.
Pros
- Wide compatibility with Craftsman 42-inch LT series and many Husqvarna models plus multiple OEM part replacements
- Premium polyester and rubber materials provide superior stretch resistance and 30 percent reduced wear
- Simple DIY-friendly design requires no special tools for fast belt swaps
- Heat-resistant build and zigzag stitching ensure reliability in demanding mowing environments
Cons
- Does not fit 46-inch LT2000 mower decks so exact model and deck size verification is required before purchase
- Aftermarket nature means users should cross-check listed part numbers carefully to guarantee precise fitment
- Limited to the specified 42-inch configurations without broader universal sizing options
The Tecreddy 144959 is a replacement mower deck belt sized at 1/2 inch wide by 95.5 inches long and built from high-quality polyester fiber with natural rubber. It targets Craftsman 42-inch riding lawn mowers such as the LT1000 LT2000 LT3000 and DYT4000 along with compatible Husqvarna Poulan AYP and Ariens models. The design creates an immediate impression of robust construction focused on a snug pulley fit for everyday lawn care maintenance.
Performance stands out through polyester fiber cores that resist stretching under heavy loads plus heat-resistant rubber compounds that handle high-torque stop-and-go mowing. Zigzag stitching stops fraying while a low-friction coating cuts pulley wear. Lab tests confirm 30 percent less wear than standard belts so users gain longer service intervals. It replaces key part numbers like 144959 532144959 532130801 and others for reliable real-world operation across listed tractor models.
Drawbacks center on strict sizing limits. This belt does not fit the 46-inch LT2000 mower deck so buyers must verify their exact deck size and original part number. As an aftermarket option precise matching of the compatibility list is essential to prevent installation issues even though no special tools are needed.
The Tecreddy 144959 delivers strong value for owners of matching 42-inch Craftsman and Husqvarna riding mowers who want a durable affordable belt that reduces replacement frequency and simplifies DIY repairs. It is a practical choice for keeping lawn equipment productive with minimal downtime.
Pros
- Exact belt dimensions are clearly listed, which helps with fit verification
- Supports many popular 30-inch deck mower models and part number cross-references
- Purpose-built as a replacement belt for lawn mower deck use
- Compatible with Cub Cadet, Troy-Bilt, and Craftsman applications
Cons
- Compatibility still needs to be checked carefully against the exact mower model and deck configuration
- It is an aftermarket Generic replacement, not an OEM-branded part
- No installation hardware or additional accessories are listed
Overview: The Zip8-Zip 954-05001 is a replacement mower deck belt for 30-inch deck lawn tractors and mini riders. It is listed at 1/2 inch wide and 43.5 inches long, with a black finish.
Performance: This belt is made to replace MTD 754-05001 and 954-05001, along with related Craftsman part numbers. The compatibility list covers models from Cub Cadet, Troy-Bilt, and Craftsman, including CC30, CC30H, TB30, TB30R, and several R1000-series mowers.
Drawbacks & Considerations: Fitment can vary by exact mower configuration, so buyers should verify the part number and deck size before ordering. As a Generic aftermarket replacement, it focuses on compatibility rather than OEM branding, and no installation accessories are specified.
Verdict: For owners of compatible 30-inch deck riding mowers who need a replacement belt with clear cross-reference information, this is a practical option for routine deck maintenance.
To put a belt on a riding lawn mower, you must first determine whether you are replacing the deck belt (which drives the blades) or the drive belt (which moves the mower forward). Disconnect the spark plug wire, engage the parking brake, and remove any covers guarding the pulleys. Then route the new belt according to the routing diagram printed on your mower’s deck or in its owner’s manual, ensuring it is seated firmly in every pulley groove before restoring tension and reattaching all components.
The most common job is the deck belt, and for most mowers the process takes 30 to 60 minutes with basic hand tools. Because belt routing and tension requirements vary by brand and model, always consult your mower’s manual for the specific diagram and any model-specific steps before you begin.
Understanding Your Riding Lawn Mower’s Belt System
Before you touch a wrench, it is essential to understand which belt you are working on. Replacing the wrong belt can waste hours and create frustration. A typical riding mower has two independently operating belts, and each one plays a distinct role.
Deck Belt vs. Drive Belt: What Is the Difference?
The deck belt is the belt that transfers power from the engine’s electric clutch (or a manual engagement pulley) down to the blade spindles under the mowing deck. When you engage the blades, the deck belt spins the spindles, which rotate the cutting blades. On most models the deck belt wraps around a series of pulleys under the deck and is often held taut by a spring-loaded idler pulley.
The drive belt, sometimes called the transmission belt or hydrostatic drive belt, transfers power from the engine crankshaft to the transmission or transaxle. This belt is what propels the mower forward and in reverse. Drive belts tend to be wider and are usually routed around the engine pulley and the transmission input pulley, with an idler system that applies tension only when you press the forward or reverse pedals.
How Do I Know Which Belt Needs to Be Replaced?
Look at the symptoms first. If the blades will not spin or the cutting deck makes a loud screeching or flapping noise, the problem is almost always the deck belt. Your mower may still drive perfectly fine, confirming that the drive belt is intact.
If the mower will not move forward or reverse when you press the pedals, or if you hear a loud squeal from the engine area during engagement, suspect the drive belt. Also check the underside of the mower for visible signs of damage: frayed edges, cracking, glazing, or a belt that has snapped completely. A belt that has slipped off its pulleys but remains intact will typically show shiny, polished surfaces where it has been rubbing against metal.
Common Signs of a Worn or Broken Belt
- Belt appears cracked, frayed, glazed, or has missing chunks along the edges
- Blades do not engage, or the deck vibrates excessively at full throttle
- Mower loses power or stalls when the blades are engaged
- Burning rubber smell coming from the engine or deck area
- Visible belt pieces or debris around the pulleys
- Mower hesitates, jerks, or fails to move when the drive pedal is pressed
Tools and Safety Precautions Before Starting
Belt replacement is one of the most approachable repairs you can perform on a riding lawn mower, but it must be done safely. A mower’s engine can start with surprising force, and its belt systems are under significant spring tension. For troubleshooting and reliability insights, consult our in-depth marshall stanmore iii vs harman kardon onyx studio 8 report.
Essential Tools for Replacing a Riding Mower Belt
- Socket set and ratchet (typically 3/8-inch drive, with standard and metric sockets)
- Wrenches (combination wrenches in common sizes)
- Screwdrivers (flathead and Phillips)
- Pliers (needle-nose and regular)
- Belt routing diagram (from your owner’s manual, or a photo of the old belt before removal)
- Bearing puller or pry bar (for stubborn idler pulleys on some models)
- Work gloves and safety glasses
- Jack and jack stands or sturdy ramps (to lift the mower safely for deck work)
Critical Safety Steps Before You Begin
- Disconnect the spark plug wire. Remove the wire from the spark plug and secure it away from the terminal so the engine cannot accidentally fire.
- Engage the parking brake and remove the ignition key from the switch.
- Work on a flat, level surface. Chock the wheels if the mower is on any incline.
- Disconnect the battery on models where you need to access the engine pulley, to prevent any electrical short.
- If lifting the mower, use proper jacks or ramps rated for its weight. Never rely on blocks of wood alone, and never work under a mower supported only by a jack.
- Wait for hot parts to cool if the mower was recently run, because the engine, exhaust, and metal pulleys can cause burns.
How to Secure the Mower for Belt Replacement

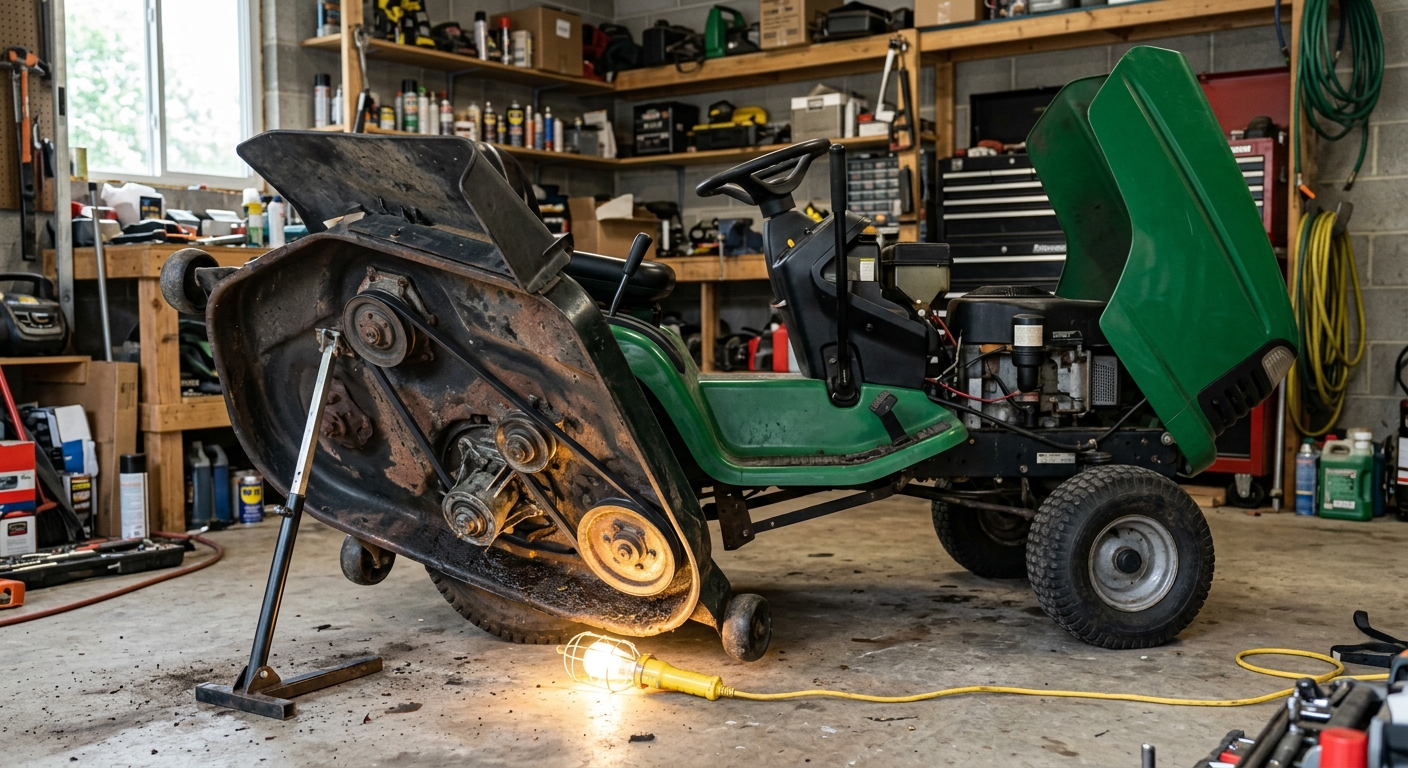

For a deck belt, lowering the deck to its lowest cutting height and removing the belt guards gives you the best access. Many home mechanics raise the front of the mower with a floor jack and support it with jack stands so they can reach the underside comfortably. For a drive belt, you often work from above by removing the engine screen and fender deck, and you may also need to access pulleys from below, so supporting the mower safely is equally important.
Step-by-Step Guide to Installing a Deck Belt
This is the belt replacement you will perform most often, so mastery of this process pays off. The steps below describe the general procedure used across the majority of riding mowers. Because every brand is slightly different, verify each step against your owner’s manual. Readers comparing setup options can review our technical analysis on dyson v8 cyclone vs bissell featherweight stick.
Step 1: Take a Photo and Note the Routing
Before removing anything, take a close-up photo of the old belt as it wraps around every pulley. This photograph is your personal routing diagram and will save you from guesswork later. If the belt is already broken or lying loose, look for a diagram sticker on top of the deck or inside the belt guard. Many manufacturers include one, and the owner’s manual will have a full-page diagram as well.
Step 2: Remove the Belt Covers and Obstructions
Using your socket set and screwdrivers, remove the belt guard or covers that shield the pulleys. On many mowers, you will also need to remove the mower deck itself to access the belt system comfortably. If your deck has an electric clutch, disconnect its wires only after noting their routing, and remove the deck by following the manufacturer’s procedure for lowering, disconnecting, and sliding it out. For complementary field maintenance guidelines, examine our breakdown of bissell crosswave hydrosteam vs shark stainforce.
Step 3: Release Tension and Remove the Old Belt
Locate the idler pulley, which is the pulley not connected to a blade spindle. The idler applies tension to the belt and is mounted on a pivoting arm loaded by a spring. Use a socket wrench on the idler pulley bolt to rotate the arm and relieve tension, then slip the belt off the idler. With tension released, the old belt can be lifted off the remaining pulleys one by one. Work the belt off the spindle pulleys last, and keep track of where each pulley sits in the routing sequence.
Step 4: Compare the New Belt with the Old One
Before installation, check the new belt’s width, length, and the belt type printed on its side (such as a 1/2-inch or 5/8-inch width designation). Lay the new belt next to the old one to compare lengths. If the lengths differ by more than a fraction of an inch, stop and verify that you received the correct part number for your mower model.
Step 5: Route the New Belt Around the Pulleys
Using your photo or the diagram, route the new belt around the spindle pulleys and any stationary idlers first, then loop it around the idler arm pulley. Do not force the belt; if it will not sit into a pulley groove, check that you have the routing correct and that no debris is wedged in the groove. Ensure the V-side of the belt (the tapered inner surface) is seated fully into each pulley groove and is not flipping upside down. A belt that flips will vibrate badly and quickly self-destruct.
Step 6: Restore Tension
Once the belt is on every pulley it can reach, use the socket wrench to rotate the idler arm again, slip the belt over the idler pulley, and slowly release the arm. The spring should automatically apply the correct tension. Do not attempt to tighten a deck belt manually beyond what the spring provides, because most deck belts are designed to run at a specific spring tension and over-tightening will damage the spindles or the electric clutch.
Step 7: Reinstall Covers and Test
Reinstall the belt guards and covers, return any wiring to its original position, and raise the deck to its normal cutting height. Reconnect the spark plug wire, start the engine, and engage the blades while the mower is stationary. Listen for a steady hum without squealing or flapping. Then lower the blades and complete a short test mow.
Step-by-Step Guide to Installing a Drive or Transmission Belt
Drive belt replacement is less common but more involved, because the belt links the engine to the transmission and may sit deep within the mower’s frame. Plan for an hour or two and keep the routing diagram close at hand.
Step 1: Access the Drive Belt Area
On most riding mowers, you will remove the engine screen and open the area around the engine pulley. Many models also require removing the fender deck or seat to reach the rear part of the belt. If the belt travels underneath the mower, raise the rear with jack stands and work from below. Disconnect the spark plug and battery first as outlined in the safety section.
Step 2: Release the Drive Belt Tension
Drive belts use either a spring-loaded idler pulley or a manual tension-release system. Press the forward pedal while a helper watches the idler arm, or locate the tension release lever if your model has one. Rotate the idler arm with a wrench to relieve tension, and slip the belt off the engine pulley first. Then work the belt off the transmission pulley and any stationary idlers below the frame.
Step 3: Route the New Drive Belt
Starting at the engine crankshaft pulley, route the new belt according to the diagram in the manual, threading it around intermediate pulleys and finally over the transmission input pulley. Take your time; drive belts frequently follow a folded or complex path around several idlers, and a single missed pulley will cause poor movement or belt damage on the first ride. Keep the belt free of oil or grease, and ensure the flat or V-surface matches the pulley design.
Step 4: Seat and Tension the Belt
With the belt on every pulley, rotate the tensioner into place so the spring engages. Check that the belt sits evenly in the engine pulley groove and does not ride on the top edge. Apply the forward and reverse pedals by hand (with the engine off) to confirm the belt tracks correctly around the pulleys before you reassemble covers.
Step 5: Reassemble and Test Drive
Reinstall all guards, the engine screen, and the fender deck. Reconnect the spark plug and battery, start the engine, and test forward and reverse movement in an open area. The mower should move smoothly in both directions without squealing, and the belt should remain quiet and stable at full rpm.
Final Checks and When to Seek Professional Help
The last few minutes of a belt job determine whether you did it right. A quick verification routine prevents repeat failures and keeps you safe.
Post-Installation Checklist
- Verify belt routing twice. Compare the installed belt against the manual diagram or your pre-removal photo.
- Check belt seating. Confirm the belt is fully inside every pulley groove, not riding on the outer lip.
- Inspect for debris. Remove grass clippings, twigs, or stones that could throw the belt or cause it to slip.
- Test blade and drive engagement at low throttle first, then at full throttle.
- Listen for unusual noise. Squealing, chirping, or flapping means the belt is misrouted or not properly seated.
- Re-check after 15 to 20 minutes of use. New belts can stretch slightly, so revisit tension and seating after the first short session.
Common Mistakes to Avoid
- Installing the belt with the ribs or V-side facing the wrong direction
- Missing an idler pulley in the routing, causing the belt to be too loose
- Over-tightening or prying the belt onto pulleys, which stretches or nicks it
- Reusing a belt that shows cracking or fraying alongside a new one
- Skipping safety steps such as disconnecting the spark plug
When to Call a Professional
If your mower’s belt system uses a hydrostatic transmission that must stay sealed, or if you lack the correct routing diagram and cannot identify every pulley, a small engine shop will complete the job quickly and correctly. Likewise, if the belt keeps throwing off after replacement, the problem may be a bent spindle, worn pulley, or damaged tensioner spring, which are best diagnosed by an experienced technician. If you are uncomfortable lifting the mower or disconnecting electrical components, professional help is a reasonable investment.
Frequently Asked Questions About How To Put A Belt On A Riding Lawn Mower
How often should I replace the belts on my riding lawn mower?
Most manufacturers recommend inspecting both belts at the beginning of every mowing season and replacing them every two to three seasons, depending on how many hours you mow. High hours, dry storage conditions, and heavy grass loads accelerate belt wear, so replace a belt at the first sign of cracking, fraying, or glazing rather than waiting for a complete failure.
Can I put a new belt on without removing the mower deck?
On many mowers, yes, especially if you lower the deck to its lowest setting and raise the front of the machine with a jack. However, some models conceal the deck belt routing so thoroughly that removing the deck is faster and less frustrating. If you have never removed your deck, a photo of the belt routing before disassembly makes reinstallation straightforward.
What should I do if the new belt is too loose or too tight?
A correctly installed belt should sit snugly against the pulleys with only slight give when you press it midway between pulleys, typically about a quarter- to a half-inch of deflection. If it is overly loose, check that you routed it around every idler and that the tensioner spring is engaged. If it is too tight, recheck the routing to see if you skipped a pulley. When in doubt, compare the new belt to the old one and verify you ordered the correct part number for your model.
Why does my new belt keep coming off the pulleys?
Repeated belt throwing usually points to a misrouting, a weak or broken tensioner spring, or a worn pulley sheave with a rounded groove. It can also indicate a bent spindle on the mower deck. Reconfirm the routing against the diagram, inspect the idler arm and spring, and look for wobble in each pulley as it spins. If everything appears normal and the belt still comes off, have a professional inspect the spindles and pulleys.
Wrap-Up: Which Model Delivers True Value?
Putting a belt on a riding lawn mower is a satisfying do-it-yourself repair that saves both time and money. The key is preparation: identify the correct belt type, gather the tools, prioritize safety by disconnecting the spark plug, and follow the routing diagram precisely. Whether you are installing a deck belt or a drive belt, patience and attention to detail almost always deliver a smooth-running mower ready for the season.
