How to Put a Lawn Mower Belt On? (Step-by-Step Guide for Riding and Push Mowers)

Quick Answer: How to Put a Lawn Mower Belt On

Turn off the engine, remove the ignition key, and disconnect the spark plug wire before touching any belt or pulley. Locate the belt routing diagram on your deck or in the owner’s manual, then route the new belt around the spindle pulleys and engine drive pulley in the exact path shown. Re-engage the idler pulley or tensioner spring last, confirm the belt sits fully inside every pulley groove, and run the mower at low speed to verify alignment.

Safety Precautions and Preparation

Skipping safety steps when replacing a deck belt is the leading cause of hand and finger injuries during mower maintenance. The blade can rotate unexpectedly even with the engine off if the spark plug remains connected and the engine is accidentally turned over.

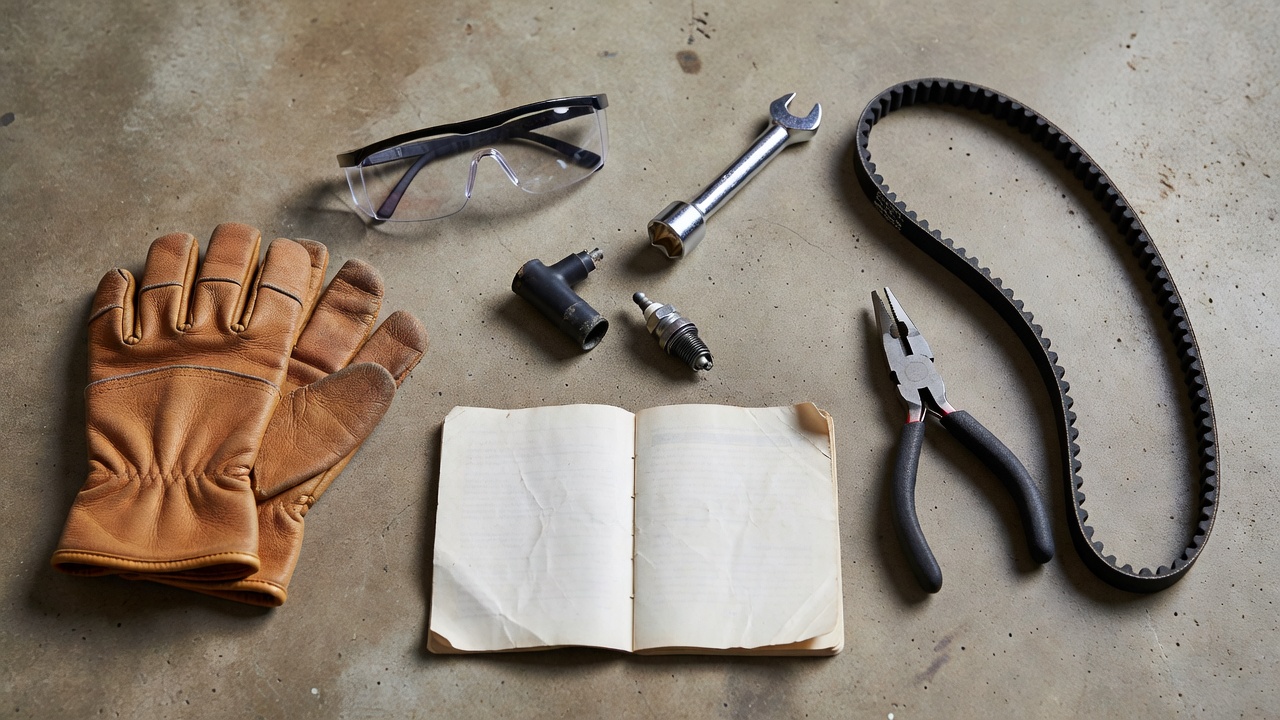

Essential Safety Steps Before You Start

• Disconnect the spark plug wire. Pull the rubber boot off the spark plug tip and tuck it away from the plug. This prevents accidental engine starts throughout the entire job.
• Remove the ignition key. On riding mowers, take the key out of the ignition as a secondary lockout measure.
• Allow the engine to cool completely. Exhaust components and the engine block stay hot for 20–30 minutes after shutdown. Burns from contact with hot metal are common when working in the deck area.
• Park on a flat, level surface. Engage the parking brake on riding mowers. Chock the wheels on push mowers if the surface has any incline.
• Wear cut-resistant gloves. Deck edges and blade tips are sharp. Heavy leather or cut-resistant work gloves protect hands when reaching under the deck.
• Wear safety glasses. Debris, rust flakes, and spring fragments can dislodge when releasing tensioner springs.

Tools and Parts to Gather

• Correct replacement belt (match the OEM part number from your owner’s manual or the label on the old belt)
• Flathead screwdriver or pry bar (for releasing idler pulley tension)
• Socket wrench set (3/8-inch drive is common for deck bolts)
• Needle-nose pliers (for tensioner springs)
• Block of wood (to prop the deck or hold blades stationary)
• Owner’s manual or printed belt routing diagram
• Penetrating oil (WD-40 or equivalent, for rusted pulley bolts)

Confirm the replacement belt matches the original in length, width, and cross-section profile (most deck belts are V-belts or cogged V-belts). An incorrect belt length causes either chronic slippage or inability to engage the tensioner.

Understanding Belt Routing Diagrams

The belt routing diagram is the single most important reference during installation. Routing the belt incorrectly — even by one pulley — causes immediate belt failure, blade disengagement, or pulley damage.

Where to Find the Belt Routing Diagram

• On the deck itself. Most manufacturers affix a routing sticker to the top of the mower deck, near the belt guards or between the spindle housings. Clean the area with a rag if the sticker is obscured by grass buildup.
• In the owner’s manual. The manual includes a labeled illustration showing every pulley, the idler pulley position, and the belt path with directional arrows.
• Manufacturer websites. Enter your model number on the brand’s parts lookup page (e.g., John Deere Parts, Craftsman Parts Direct, Toro’s parts portal) to download a parts diagram with the correct belt routing.
• The old belt as a guide. Before removing the worn belt, photograph it from above with your phone. The photo shows the exact routing path and which side of each pulley the belt contacts.

How to Read a Belt Routing Diagram

Routing diagrams use a continuous line to represent the belt path. Key symbols to recognize:

• Circles with an X or shaded center — spindle pulleys that drive the blades. The belt wraps around the outside groove of these pulleys.
• Small circle with a spring symbol — the idler pulley. This is the tensioner component you move last during installation.
• Arrows on the belt line — indicate the direction of belt travel when the engine is running. Use these to confirm the belt is not twisted.
• Dashed lines or shaded areas — belt guards or brackets the belt must pass beneath or through.

Note whether the diagram shows the belt running over the top or wrapping under the bottom of each individual pulley. This distinction controls blade rotation direction and is critical for correct cutting performance.

Step-by-Step: Installing a Belt on a Riding Mower

Riding mowers use a deck drive belt (connecting the engine drive pulley to the deck spindle pulleys) and sometimes a separate transmission or ground drive belt. This guide covers the deck drive belt, which is the most frequently replaced belt and the one responsible for spinning the cutting blades.

Step 1: Lower the Deck to the Lowest Cutting Position

Move the deck height adjustment lever to the lowest setting. This creates maximum slack in the belt and gives the easiest access to pulleys and belt guards.

Step 2: Remove the Deck (If Required by Your Model)

Many riding mowers allow belt replacement without full deck removal, but some require it. Consult your owner’s manual. If removal is needed:

• Disconnect the deck lift linkages on both sides.
• Slide the deck out from under the mower chassis to the side.
• Work on the deck on a flat surface at a comfortable height.

Step 3: Remove the Belt Guards

Plastic or metal belt guards cover the pulleys to prevent debris ingestion. Remove the bolts (typically 3/8-inch or 7/16-inch hex) securing each guard. Set guards and hardware aside in a container so nothing is lost.

Step 4: Release the Tensioner Spring and Remove the Old Belt

The idler pulley is held against the belt by a tensioner spring, keeping the belt tight during operation. To remove the old belt:

• Use needle-nose pliers or a flathead screwdriver to push or pry the idler pulley bracket against spring tension, creating slack in the belt.
• Slip the belt off the idler pulley first — this is always the first pulley to release when removing and the last to engage when installing.
• With the tensioner released, the belt has enough slack to slide off the spindle pulleys and the engine drive pulley one by one.
• Note: On some Craftsman and Husqvarna models, the idler spring hooks onto a fixed bracket. Use pliers to unhook the spring rather than compressing the arm.

Step 5: Clean the Pulley Grooves

Before installing the new belt, inspect each pulley. Remove packed grass, debris, and belt rubber residue from the grooves using a wire brush or flathead screwdriver. A dirty groove causes premature wear and slippage on the new belt. Spin each pulley by hand and listen for bearing noise — a grinding or rough pulley bearing must be replaced before installing a new belt.

Step 6: Route the New Belt According to the Diagram

Follow the belt routing diagram precisely. A reliable sequence for most riding mower configurations:

• Start at the engine drive pulley (the pulley on the engine crankshaft or PTO shaft beneath the engine). Loop the belt around this pulley first.
• Route toward the outer spindle pulley on one side of the deck, following the path shown in the diagram.
• Continue to the center spindle pulley (on three-blade decks) and then the opposite spindle pulley.
• Thread the belt through any guides, brackets, or keepers shown in the diagram. These plastic or metal tabs hold the belt in position relative to the pulleys and must not be bypassed.
• Leave the idler pulley for last. At this stage, the belt should be slack and loose across the pulleys.

Step 7: Engage the Idler Pulley and Tensioner Spring

With the belt routed around all other pulleys:

• Push the idler pulley arm against spring tension using a screwdriver or pry bar.
• Slip the belt into the idler pulley groove while holding tension.
• Release the arm slowly so the tensioner spring loads the belt naturally.
• Verify the spring is fully seated in its retaining hooks on both ends. A partially hooked spring collapses under load and immediately disengages the belt.

Step 8: Reinstall Belt Guards and Deck

Reattach all belt guards with their original hardware. Reconnect deck lift linkages if the deck was removed. Move the deck height adjuster through its full range of motion to confirm no binding or cable interference.

Step-by-Step: Installing a Belt on a Walk-Behind Push Mower

Walk-behind self-propelled push mowers use a smaller, simpler belt system compared to riding mowers. The belt typically connects the engine crankshaft pulley to the rear wheel drive pulley or blade drive pulley. The deck usually does not need to be removed for belt replacement.

Step 1: Tip the Mower (Carburetor Side Up)

For most push mowers, belt access requires tilting the mower onto its side. Always tilt with the carburetor and air filter facing upward. Tilting carburetor-side down causes oil to flood the air filter, creating a hard-start or no-start condition after reassembly.

Step 2: Locate the Belt and Pulleys

On the underside of the deck, identify the engine drive pulley (attached to the crankshaft directly above the blade) and the transmission or wheel drive pulley at the rear. The belt connects these two points, usually running through a simple fixed guide rather than a spring-loaded idler arm.

Step 3: Remove Deck Guards or Cover Plates

Unscrew any plastic side panels or cover plates blocking belt access. On Honda, Toro, and Troy-Bilt walk-behind models, the rear wheel drive belt is typically accessible after removing one rear cover panel held by two to four bolts.

Step 4: Remove the Old Belt

Walk-behind mower belts often have no tensioner spring — the belt simply stretches around the fixed pulleys. To remove:

• Slip the belt off the smaller engine crankshaft pulley first. This pulley has the smallest diameter and is the easiest to slide the belt over.
• Slide the old belt down and off the larger wheel drive pulley.
• Note the exact path the belt runs through any deck guides or retaining clips.

Step 5: Ensure the Belt Seats in Pulley Grooves During Installation

Push mower belts require careful seating because there is no tensioner arm to hold the belt in place during startup:

• Loop the new belt around the larger rear drive pulley first. The belt’s full circumference should drop into the pulley’s V-groove cleanly.
• Work the belt up toward the engine crankshaft pulley. The belt will feel tight — this is normal for a correctly sized belt.
• Use a flathead screwdriver to ease the final section of belt over the rim of the crankshaft pulley, rotating the pulley by hand simultaneously to walk the belt into the groove evenly.
• Confirm the belt sits fully inside the groove at both pulleys — not riding on the pulley lip — before closing covers.

Step 6: Thread Belt Through Guides and Replace Covers

Pass the belt through any fixed retaining guides exactly as the old belt was routed (refer to your photo from Step 1 of removal). Replace cover plates and tighten bolts. Return the mower to its upright position.

Verifying Installation and Troubleshooting

Reconnect the spark plug wire only after all guards and covers are fully reinstalled. Test the mower before considering the job complete.

Post-Installation Test Procedure

• Start the engine and let it idle for 60 seconds without engaging the blades or drive. Listen for unusual noises from the deck area.
• Engage the blade or drive at low throttle on an open, flat surface. Observe belt behavior for the first 30 seconds.
• Check for vibration or wobble from the deck. Excessive vibration indicates a belt that is riding over a pulley edge rather than sitting in the groove.

Signs the Belt Is Routed Incorrectly

• Blade does not spin when PTO is engaged — belt is not contacting the spindle pulleys or the tensioner is not properly loaded.
• Belt squeals immediately on engagement — belt is misrouted or the idler pulley is not applying sufficient tension. Also check that the new belt matches the correct width; a narrower belt slips in the pulley groove.
• Belt comes off within minutes of operation — the belt is not threaded through all retaining guides or clips shown in the routing diagram.
• Deck cuts unevenly on one side — one spindle pulley is not engaged by the belt, indicating a missed routing step on multi-blade decks.
• Burning rubber smell — belt is slipping against a pulley under load. Stop immediately, disconnect the spark plug, and re-examine pulley seating and tensioner engagement.

Belt Slipping or Squealing After Installation

Frequently Asked Questions

Do I need to remove the deck to replace a lawn mower belt on a riding mower?

Not always. Many riding mower models — including popular Craftsman, Husqvarna, and Cub Cadet designs — allow deck belt replacement with the deck lowered to its minimum height but still attached to the mower. However, some John Deere models and older designs with complex belt routing require full deck removal for safe access to all pulleys and guides. Check your owner’s manual for the manufacturer’s recommended procedure for your specific model number before starting.

How do I know which replacement belt to buy?

The most reliable method is using your mower’s model and serial number to look up the OEM belt part number in the owner’s manual or on the manufacturer’s parts website. The belt specification label — if still legible — on the old belt also shows the belt’s length, width, and profile code (e.g., 5L, AV, or a manufacturer-specific number). Buying the exact OEM specification prevents fit and slippage problems caused by aftermarket belts that are slightly shorter, longer, or a different cross-section than required.

Why does my new lawn mower belt keep coming off?

A new belt that repeatedly throws off is almost always caused by one of three issues: the belt is not threaded through all retaining guides or keepers shown in the routing diagram; the idler pulley tensioner spring is not fully seated at both hook points, causing it to lose tension under load; or a pulley bearing has seized and is not spinning freely, dragging the belt off-track. Inspect all three before assuming the replacement belt is defective.

How long does a lawn mower belt typically last?

A deck drive belt on a residential riding mower typically lasts 3 to 5 years or approximately 100 to 150 operating hours under normal use. Belt life shortens significantly when the mower cuts wet grass frequently, when the deck is operated in heavy debris conditions, or when the mower is stored without releasing belt tension for extended periods. Inspecting the belt each season for cracking, fraying, glazing, or uneven wear allows early replacement before an in-field failure.
