Quick Answer: To put a riding lawn mower belt on, disengage the PTO (power take-off), remove the mower deck or engine shroud, thread the new belt around the blade spindle pulleys and idler pulley following your model’s routing diagram, engage the tensioner pulley, reinstall the deck, and test at low throttle to verify smooth operation without slipping or squealing.

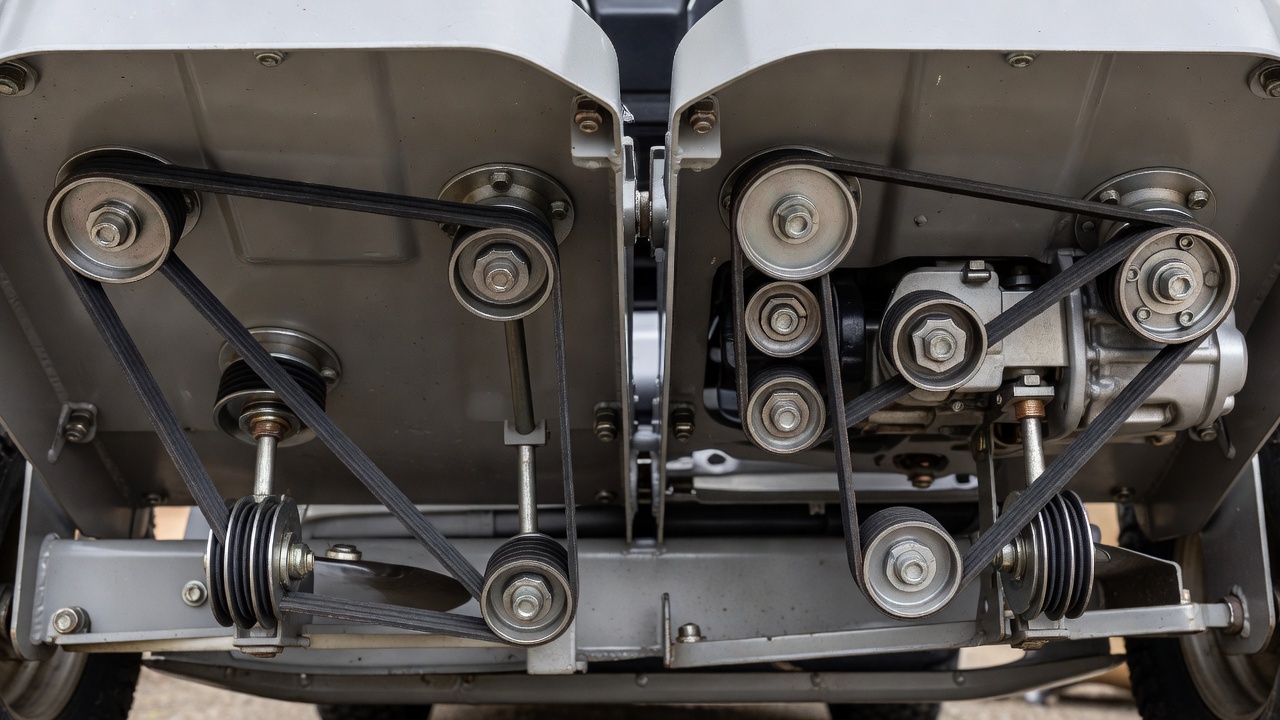

Deck Belt vs. Drive Belt: Which One Are You Replacing?
Riding lawn mowers typically have two separate belt systems, and they require different removal and installation approaches. Identifying which belt you’re working with prevents wasted effort and ensures you follow the right steps.
Deck Belt (Blade Belt): This belt connects the engine to the blade spindle pulleys beneath the mower deck. It engages when you activate the blade engagement lever or button (often labeled as PTO). A worn or broken deck belt results in blades that won’t spin, uneven cutting, or visible fraying around the pulleys. This is the belt most homeowners replace themselves because the deck is accessible and the routing is relatively straightforward.
Drive Belt (Ground-Drive Belt): This belt connects the engine to the transmission pulley and drives the mower forward and backward. A slipping or broken drive belt leaves the mower unable to move under its own power, though the engine still runs. Drive belt replacement varies significantly by transmission type (belt-driven hydrostatic transmissions may require professional service), so consult your manual before attempting this repair. Users looking for related component recommendations can explore our jbl partybox club 120 vs sony srs xv500 breakdown.
Most DIY replacements involve the deck belt. If you’re unsure which belt failed, look under the deck while the engine is off—the blade spindle pulleys are directly beneath the mowing blades. Check your owner’s manual or the routing diagram sticker (usually mounted inside the deck or on the engine shroud) to confirm which system you’re servicing.
Tools, Parts, and Safety Checklist Before You Start
Preparing your workspace and gathering supplies prevents mid-task stops and keeps you safe while working around pulleys and spinning components. Users looking for related component recommendations can explore our jbl partybox club 120 vs sony srs xv500 breakdown.
Pros
- Powerful 80V brushless motor delivers 32HP gas-equivalent performance with quiet fume-free operation and no engine maintenance.
- Complete kit includes four 6.0Ah batteries and 600W charger for substantial runtime up to 1.5 acres.
- SmartCut technology and 42-inch heavy-duty steel deck ensure consistent cuts without bogging in tough conditions.
- Versatile towing up to 350 lbs and optional cargo hauling plus comfort features like high-back seat and LED lights.
- Strong 4-year limited warranty and full compatibility with the Greenworks 80V tool ecosystem.
Cons
- Rear utility cargo bed for 200 lb hauling is sold separately and not included in the kit.
- Runtime of up to 1.5 acres varies with conditions and may require recharging or battery swaps on larger properties.
- As a fully cordless model continuous operation depends on battery levels unlike gas engines with unlimited runtime.
The Greenworks 80V 42" CrossoverT Cordless Riding Lawn Tractor is a ready-to-mow zero-emission tractor designed for homeowners managing medium to large lawns. It features a reinforced 42-inch stamped steel deck of 12-gauge construction along with premium comfort elements such as a high-back padded seat with foldable armrests. The overall build emphasizes durability and user convenience right out of the box with the included battery and charger set.
Performance centers on the 80V TruBrushless motor that provides 32HP gas-equivalent power with instant torque and quiet fume-free operation. SmartCut technology senses grass conditions and automatically adjusts power to maintain a consistent cut even in tall thick or wet areas. The four 6.0Ah batteries support runtime for up to 1.5 acres depending on conditions while dual LED headlights and a 7-position deck height range from 1.5" to 4.5" add practicality. Front and rear attachments further allow towing up to 350 lbs for added yard utility.
Key considerations include that the rear utility storage bin capable of hauling 200 lbs is sold separately so full cargo functionality requires an extra purchase. Runtime remains condition-dependent and may fall short for properties significantly larger than 1.5 acres without using the 600W charger or swapping batteries. The cordless design prioritizes ease and low maintenance but trades off the continuous runtime of traditional gas models.
This tractor delivers strong value for eco-conscious owners of residential properties who want gas-like power without the emissions noise or upkeep. It suits those who already use or plan to expand into the Greenworks 80V family of tools and who appreciate the 4-year limited warranty. Users with exceptionally large or commercial-scale lawns should evaluate battery logistics carefully before purchase.
Pros
- Delivers strong 21 horsepower equivalent power comparable to gas riding mowers.
- Provides up to 1.5 acres of runtime on a full charge with the six included batteries.
- Features low-maintenance dual brushless motors without belts for greater durability.
- Offers versatile 12-position cutting height adjustment from 1.5 to 4.5 inches.
- Includes digital controls for blade settings, drive speeds, and cruise control.
Cons
- Limited to 1.5 acres of cutting per charge without purchasing additional batteries for bigger lawns.
- Requires recharging time for the six 56V batteries after each use session.
- Relies solely on battery power with no hybrid or gas backup option for extended operation.
The EGO Power+ TR4204 is a cordless electric riding lawn mower built as a modern tractor alternative for residential use. It features a robust 42-inch stamped steel deck and arrives ready to go with six 56V 6.0Ah batteries plus a charger, creating an immediate impression of convenience and solid construction free from gas engine complexity.
Performance shines through its equivalent 21 horsepower output and top speed of 6 MPH, allowing efficient coverage of up to 1.5 acres on a single charge. Dual brushless cutting motors operate without belts for added durability and less upkeep, while the digital display lets users select three blade settings, three drive speeds, and cruise control. The 12 adjustable heights ranging from 1.5 to 4.5 inches combined with anti-scalp wheels deliver precise results across varied terrain.
Drawbacks center on battery dependency, as larger properties beyond 1.5 acres require extra batteries and recharging intervals can interrupt workflow. The fully electric design eliminates fuel storage needs but demands access to power sources between sessions.
This mower suits homeowners with medium to large yards who value quiet, emission-free operation and reduced maintenance. Those seeking expandable battery capacity for bigger areas will find the EGO Power+ TR4204 a strong long-term investment in cordless lawn care.
Pros
- High-efficiency brushless motors maximize power output and durability over traditional motors
- Up to 2 acres runtime with three included 10.0 Ah batteries supports substantial mowing sessions
- Zero-emission operation with gas-equivalent 20 HP power for quieter environmentally friendly use
- Six-port auto-switchover battery system provides flexible extended runtime options
- Durable 42-inch steel deck plus included mulch and towing kits add immediate functionality
Cons
- Runtime is limited to approximately 70 minutes or 2 acres which may require recharging for larger properties
- Fully battery-dependent design means performance relies on charge levels and spare battery availability
- 42-inch deck size may require more passes on expansive lawns compared to wider commercial models
The PRORUN PZT60V42 is a fully electric 60V zero-turn riding lawn mower built for residential and light commercial use. Its primary design centers on a robust 42-inch 14-gauge stamped steel twin blade deck powered by direct-drive brushless motors, giving an immediate impression of solid construction and modern battery-focused engineering. The mower arrives complete with three 10.0 Ah batteries, a charger, mulch kit, and towing kit for ready-to-work versatility.
In performance terms, four high-efficiency brushless motors deliver power equivalent to a 20 HP gas engine while producing zero emissions. The system supports up to 2.0 acres or 70 minutes of runtime, and six battery ports with auto switchover intelligently manage all PRORUN 60V battery sizes for continuous operation. A washout port on the steel deck further simplifies post-mow maintenance during real-world sessions.
Potential drawbacks include the finite 70-minute runtime window which can limit coverage on larger properties without spare batteries or recharge breaks. As a fully electric model, it also depends entirely on battery charge levels rather than continuous fuel refills, and the 42-inch deck width may demand extra passes compared with wider traditional options.
Overall the PRORUN PZT60V42 offers strong value for homeowners and small-property managers who want gas-like cutting power without emissions or noise. Those with medium-sized lawns seeking quiet efficient zero-turn performance and included accessories will benefit most from this electric mower.
Pros
- Strong 24HP FR730 engine power for demanding cutting conditions
- Wide 54-inch FAB deck reduces total mowing time
- Zero turn design delivers excellent maneuverability
- Fabricated deck supports durable everyday operation
Cons
- Sparse details beyond engine and deck leave other features unspecified
- Gas-powered FR730 engine needs regular fuel and maintenance
- Large 54-inch deck size may feel oversized on compact properties
The Husqvarna Z254F is a zero turn mower from the established Husqvarna brand in the riding lawn mowers category. It centers on a solid build that pairs a 24HP 726cc FR730 engine with a 54-inch FAB deck for straightforward residential grass care.
Performance stems directly from the listed specifications. The FR730 engine delivers the horsepower needed for steady operation across typical lawns while the wide FAB deck completes passes efficiently. Zero turn handling improves control in real yard layouts based on the model design.
Considerations arise from the limited data available. Secondary elements such as comfort features fuel capacity or extras receive no mention and the gas engine format involves routine upkeep. The large deck suits open areas better than confined spaces.
The Husqvarna Z254F provides the most value for owners of medium or large properties who want reliable engine power and a broad cutting width. Users with smaller lots or those seeking extensive accessory options should weigh the core specs carefully before purchase.
Essential Tools:
- Socket set or wrenches (size depends on your mower model)
- Screwdrivers (Phillips and flathead)
- Pliers or a pulley puller (for some belt-tensioning systems)
- Jack or deck blocks (to safely lift the deck if needed)
- Belt routing diagram (from your manual or manufacturer website)
Replacement Parts: Before finalizing equipment decisions, refer to our comprehensive z890 vs x870e motherboard comparison.
- New belt (obtain the correct part number from your model’s documentation; belts are sized by width and length)
- Replacement tensioner spring or idler pulley (if either shows cracks, excessive wear, or rust)
Safety Protocol:
- Park the mower on flat, level ground and engage the parking brake
- Turn off the engine and allow it to cool for at least 5 minutes
- Disconnect the spark plug wire to prevent accidental starting
- If lifting the deck, use jack stands or blocks—never rely on a jack alone
- Wear work gloves to protect your hands from sharp pulley edges
- Keep long hair and loose clothing away from moving parts during the test run
Before removing the old belt, take a photo of its routing path or make a sketch. This reference prevents confusion if the routing diagram is unclear or hard to read. For broader ecosystem context, read through our operational guide on marshall stanmore iii vs harman kardon onyx studio 8.
How to Put a Riding Lawn Mower Deck Belt On (Blade Belt)
The deck belt is the most commonly replaced belt on a riding mower and is accessible to most homeowners. This section covers the typical routing sequence for a standard three-spindle deck.
Step 1: Remove the Mower Deck For troubleshooting and reliability insights, consult our in-depth dyson v8 cyclone vs bissell featherweight stick report.
Access varies by brand, but most mowers use one of these methods:
- Hitch Pin System: Remove hitch pins from both sides and slide the deck forward away from the mower frame
- Bolt-Down System: Remove bolts or fasteners securing the deck to the frame, then carefully lift or slide the deck away
- Suspended Deck: Some mowers have the deck suspended beneath the frame; lower the deck by adjusting suspension bolts or springs according to your manual
If the deck is heavy or awkwardly positioned, use a helper or gently lift one corner at a time with a jack. Never rush this step—a dropped deck can crack or cause injury. Readers comparing setup options can review our technical analysis on bissell crosswave hydrosteam vs shark stainforce.
Step 2: Locate and Photograph the Old Belt Routing
Once the deck is accessible or removed, trace the path of the existing belt. It typically begins at the engine pulley (near the crankshaft), passes around the idler pulley or tensioner, and then loops through pulleys under each of the three blade spindles. If the belt is intact and readable, photograph it from multiple angles. If it’s broken, compare the pieces to your routing diagram to confirm the correct path.
Step 3: Remove the Old Belt
Loosen the tensioner pulley bolt or spring mechanism to release tension on the belt. The exact method depends on your mower’s design:
- Spring-Loaded Tensioner: Pry the tensioner arm away from the belt using a flathead screwdriver or pulley puller
- Bolt-Adjustable Tensioner: Loosen the bolt holding the tensioner in place, then slide it away from the belt
Once tension is released, slip the old belt off the pulleys and set it aside. Inspect the pulleys for cracks, rust, or debris. Wipe them clean with a dry cloth.
Step 4: Thread the New Belt Around the Pulleys
Start at the engine pulley and follow your routing diagram carefully. Most three-spindle decks follow this sequence:
- Wrap the belt around the engine pulley (the largest pulley, connected to the engine)
- Route the belt under the idler pulley (which adds slack to the system)
- Loop the belt over or under the first blade spindle pulley (typically the right spindle)
- Route the belt across to the center spindle pulley
- Continue to the left spindle pulley
- Return the belt under the tensioner pulley and back toward the engine
The exact routing depends on your mower’s deck design. Consult your model’s diagram—routing the belt incorrectly can cause the blades to turn in reverse or slip off during operation. Take your time with this step; it determines whether the belt will function properly.
Step 5: Engage the Tensioner
Once the belt is threaded, re-engage the tensioner to apply even pressure:
- Spring-Loaded: Allow the spring arm to return to its resting position, pressing the tensioner pulley against the belt
- Bolt-Adjustable: Slide the tensioner toward the belt until snug, then tighten the bolt. The belt should deflect about 1/2 inch when you press on it midway between pulleys
Do not over-tighten; excessive tension wears out the belt and strains pulleys. The belt should be snug enough to prevent slipping but loose enough to flex slightly under finger pressure.
Step 6: Reinstall the Mower Deck
Align the deck with the mower frame and secure it using the same method you used to remove it (hitch pins, bolts, or suspension adjustments). Ensure the deck is level and sits firmly against the frame. Spin the blade spindles by hand to confirm the belt turns smoothly without binding or dragging.
How to Put a Riding Lawn Mower Drive Belt On (Ground-Drive Belt)
The drive belt is more complex than the deck belt because it connects the engine to the transmission. Many riding mowers with hydrostatic transmissions require professional service for drive belt replacement due to the precision needed to align the belt and protect transmission seals. If your mower has a belt-driven mechanical transmission, you can attempt this repair, but consult your manual first.
General Access Steps:
- Remove the engine shroud or cover panels to access the pulleys
- Locate the engine pulley and transmission pulley
- Loosen the engine or transmission pulley bolt slightly (do not remove it completely)
- Release tension by adjusting the engine mounting bolts or transmission idler pulley, depending on your mower’s design
- Slip off the old belt and inspect both pulleys for damage
- Thread the new belt around both pulleys following your manual’s diagram
- Re-tighten the engine and transmission mounts to restore proper belt tension
- Spin the pulleys by hand to ensure the belt tracks straight and does not rub
Drive belt tension is critical—too loose and the belt will slip and overheat; too tight and it strains the engine and transmission bearings. Most manufacturers specify deflection (how far the belt bends when pressed) rather than tension force. If your manual does not specify deflection, aim for 1/2 to 3/4 inch of deflection at the midpoint between pulleys.
If you’re uncomfortable with this repair or your mower has a hydrostatic transmission, contact a qualified mower technician. An incorrectly installed drive belt can cause transmission damage, which is expensive to repair.
Belt Routing by Brand: Finding Your Model’s Diagram
Belt routing varies significantly between manufacturers. Always consult your specific model’s documentation before installation.
Where to Find Routing Diagrams:
- Owner’s Manual: Check the maintenance or parts section for a labeled belt routing illustration
- Routing Sticker: Many mowers have a laminated diagram mounted inside the deck shroud or on the engine cover
- Manufacturer Website: Search for your model number on Husqvarna, John Deere, Craftsman, or your mower’s brand website to download or view the manual
- Parts Diagrams: Online parts retailers often display exploded diagrams showing belt routing for popular models
Model-Specific Considerations:
Husqvarna Mowers: Husqvarna decks typically feature a three-spindle routing with the belt entering from the right side. The tensioner is usually spring-loaded and located beneath the deck. Reference the model’s parts diagram on Husqvarna’s support site for exact pulley positions.
John Deere Mowers: John Deere models often use a slightly different pulley arrangement depending on the deck size. Check the model’s operator manual—John Deere usually includes color-coded routing diagrams. The tensioner may be bolt-adjustable rather than spring-loaded.
Craftsman Mowers: Craftsman mowers come in various configurations. Locate the model and serial number on the engine shroud or deck, then search for the manual on Sears Parts Direct or Craftsman’s support portal. Some older Craftsman models have unique pulley layouts, so a diagram is essential.
If you cannot locate your model’s diagram, contact the manufacturer’s customer service with your model and serial number. They can email or mail you the correct diagram—this small effort prevents costly mistakes.
Test Run and Troubleshooting After Installing the Belt
After installation, verify the belt is working correctly before resuming normal mowing. A brief test run catches problems while you’re still at the machine.
Pre-Test Inspection:
- Visually confirm the belt is not twisted or misaligned on any pulley
- Spin the blade spindles or drive wheels by hand to ensure smooth rotation without binding
- Check that all fasteners (deck bolts, engine mounts) are tight
- Verify the tensioner spring or bolt is properly engaged
Test Procedure:
- Reconnect the spark plug wire
- Start the engine and let it run at idle for 30 seconds
- For a deck belt: Slowly engage the blade PTO and observe the blades. They should spin evenly without hesitation
- For a drive belt: Carefully shift into forward and reverse at low speed, checking that the mower moves smoothly
- Listen for squealing, grinding, or unusual noises
- Shut off the engine and let it cool; inspect the belt for dust, fraying, or slipping
Common Problems and What They Mean:
Belt Squealing: Usually indicates insufficient tension. The belt is slipping against the pulleys due to friction. Tighten the tensioner slightly and retest. If squealing persists after proper tightening, the pulleys may be misaligned or the belt may be glazed (shiny, hardened surface). Replace the belt if it shows visible glazing.
Belt Slipping or Not Gripping: The belt lacks enough tension to transmit power, or it’s routed incorrectly. Verify the routing against your diagram and re-tighten the tensioner. Check that the tensioner pulley is clean and not worn smooth. If the new belt still slips, inspect the engine and blade spindle pulleys for damage or grease buildup.
Blades or Wheels Not Turning: The belt may be routed backward, installed upside down, or misaligned on a pulley. Stop the engine immediately and recheck the routing. Verify that the belt’s grooved side faces the pulley grooves (V-belts have a V-shaped cross-section that must match the pulley profile).
Vibration or Rattling: A misaligned deck, loose fasteners, or a damaged pulley can cause vibration. Tighten all visible bolts and retest. If vibration continues, a pulley may be bent or have a flat spot. Replacement pulleys are available from the manufacturer or aftermarket suppliers.
Belt Comes Off During Operation: This indicates misalignment or incorrect tension. Stop the mower, allow the engine to cool, and inspect the pulleys. Ensure the deck is level and centered. If the belt is new and still comes off, the pulleys may be worn or damaged beyond safe limits. Consult a technician if you suspect pulley damage.
If the belt operates smoothly at idle and under light load without noise or slipping, the installation is successful. Run the mower normally, and monitor the belt during your first few mowing sessions. A new belt may require a brief break-in period of 30 minutes to an hour, during which it seats fully against the pulley grooves.
