Direct Answer: Installing a Lawn Mower Tire Tube
To install an inner tube in a lawn mower tire, you must first remove the wheel, break the tire’s bead seal from the rim, and then carefully insert the partially inflated tube. The key steps are: (1) remove the wheel, (2) deflate and break the bead, (3) remove the tire, (4) inspect for damage, (5) partially inflate the new tube, (6) place it inside with the valve stem through the rim hole, (7) remount the tire without pinching the tube, (8) seat the bead and align the valve stem, and (9) inflate to the recommended PSI.
Does Your Lawn Mower Tire Even Need a Tube?

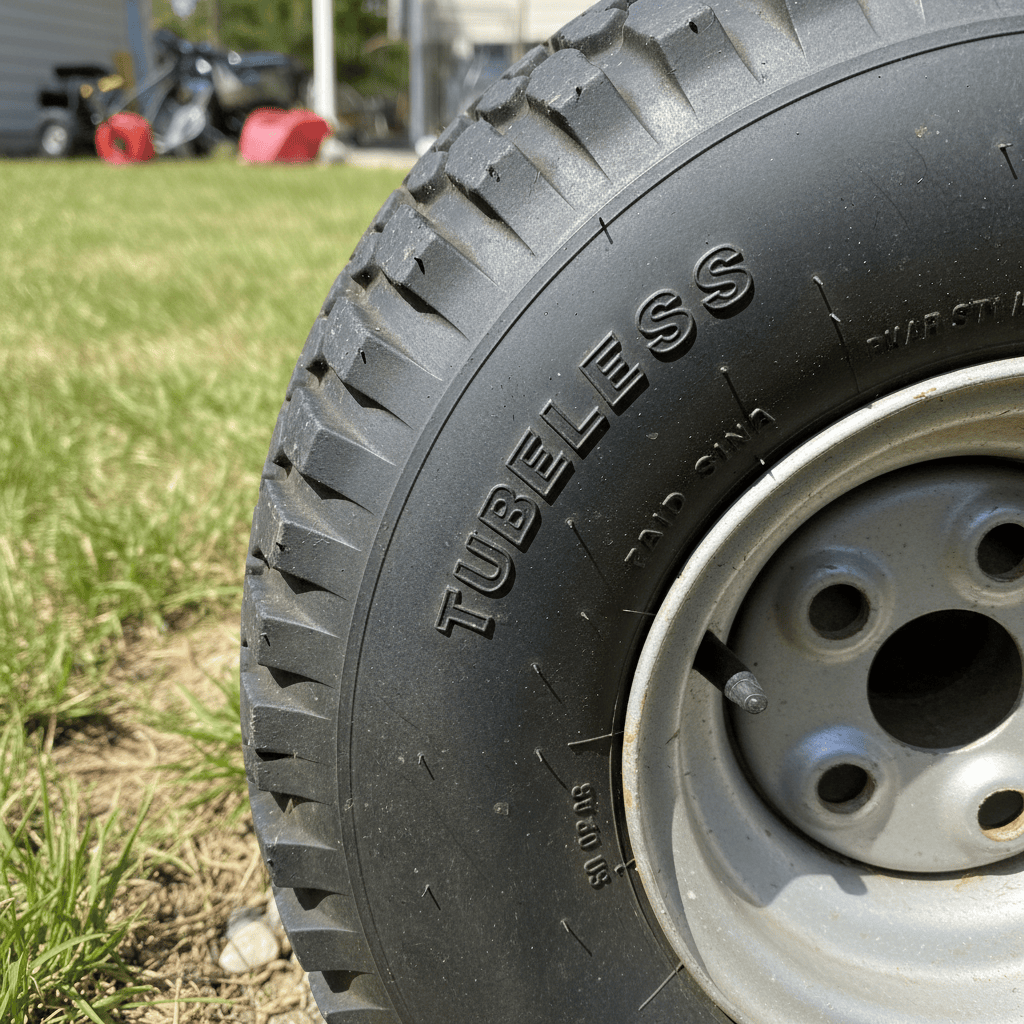

Before starting, determine if your tire is tubeless or tube-type. Many modern lawn mower tires, especially on riding mowers, are tubeless. Look for the word “TUBELESS” molded into the tire sidewall. If it says “TUBE TYPE,” it requires an inner tube. Adding a tube to a tubeless tire is sometimes done to repair a sidewall puncture that a plug cannot fix, but it’s not standard practice.
Tools and Materials You’ll Need
- Tire irons or levers (at least two)
- Bead breaker (a dedicated tool or a large C-clamp)
- Soapy water (for lubricating the bead)
- Air pump or compressor with a pressure gauge
- Correctly sized inner tube for your tire
- Wrench or socket set to remove the wheel
- Gloves and safety glasses
Choosing the Right Inner Tube Size
Matching the tube to your tire is critical. Use the numbers on the tire sidewall (e.g., 15×6.00-6 or 4.10/3.50-4) to select a tube with the same overall diameter and width range. The valve stem type (straight, angled, TR-4, TR-13) must also fit your rim’s valve hole. Walk-behind mowers typically use smaller, straight-stem tubes, while riding mowers may require larger tubes with angled stems.
Step-by-Step: Installing the Inner Tube
1. Remove the Wheel from the Mower
Disconnect the spark plug wire for safety. Use a wrench to remove the lug nuts or bolts securing the wheel to the axle. Slide the wheel off.
2. Deflate the Tire and Break the Bead Seal
Press the valve core to release all air. Use a bead breaker tool or a C-clamp to press the tire sidewall inward, breaking the airtight seal between the tire bead and the rim. Work your way around the entire circumference.
3. Remove the Tire from the Rim
Lubricate the bead with soapy water. Insert tire irons between the tire bead and rim, and carefully pry the tire up and over the rim edge. Work in small sections around the wheel until one side of the tire is free. Repeat for the other side if needed to fully remove the tire.
4. Inspect the Rim and Tire
Check the rim for rust, sharp edges, or debris that could puncture the new tube. Inspect the tire interior for nails, glass, or thorns. Clean and smooth any rough spots on the rim.
5. Partially Inflate the New Inner Tube
Add just enough air to the new tube so it holds its shape but remains soft. This prevents it from folding or twisting during installation.
6. Place the Tube Inside the Tire
Insert the valve stem through the valve hole in the rim first. Then, carefully tuck the rest of the tube into the tire cavity, ensuring it lies flat without any twists or kinks.
7. Remount the Tire onto the Rim
Lubricate the tire bead again. Starting opposite the valve stem, use tire irons to lever the tire bead back onto the rim. Work slowly and methodically around the wheel. Crucially, keep the tube pushed away from the bead area to avoid pinching it between the tire and rim.
8. Seat the Bead and Check Valve Stem Alignment
Once the tire is fully on the rim, ensure the valve stem is straight and not crooked. Inflate the tire in short bursts. You should hear or see the bead “pop” into place against the rim flange on both sides.
9. Inflate to the Recommended PSI
Check the tire sidewall for the recommended pressure (often 10-14 PSI for walk-behind mowers, 12-18 PSI for riding mowers). Inflate to this pressure, checking with a gauge. Do not exceed the maximum pressure listed on the tire.
Troubleshooting Common Problems
- Pinched Tube: If the tire won’t hold air or you hear hissing, you likely pinched the tube. Deflate, remove the tire, and inspect the tube for a small hole or tear near the bead area. Replace if damaged.
- Crooked Valve Stem: If the valve stem is angled after inflation, deflate the tire and push the tube to realign it before re-seating the bead.
- Bead Won’t Seat: Ensure the bead and rim are well-lubricated with soapy water. You may need a burst of higher pressure from a compressor to seat it, but never exceed the tire’s max PSI.
Final Inflation and Safety Tips
Inflate the tire to the PSI specified on the sidewall. Over-inflation can cause the tube to burst or the tire to blow off the rim. Always wear safety glasses when working with compressed air and tire irons. Never exceed the maximum pressure rating of the tire or rim.
Frequently Asked Questions
Can I put a tube in a tubeless lawn mower tire?
Yes, but it’s typically only done to repair a sidewall puncture that cannot be plugged. The tube must be the correct size for the tire and rim. This is not a standard maintenance procedure for undamaged tubeless tires.
How do I know what size inner tube to buy?
Match the tube to the tire size printed on the sidewall (e.g., 15×6.00-6). The tube package will list the tire sizes it fits. Also, ensure the valve stem type and length match your rim.
Why is soapy water used when installing a tire?
Soapy water acts as a lubricant, allowing the tire bead to slide over the rim more easily during installation and removal. It helps prevent damage to the tire bead and makes seating the bead during inflation much smoother.
What PSI should I inflate my lawn mower tire to?
Check the tire sidewall for the recommended pressure, which is typically between 10-14 PSI for walk-behind mowers and 12-18 PSI for riding mowers. Never exceed the maximum pressure listed on the tire.
