Quick Answer: How To Put Belt On Lawn Mower?
To put a belt on a lawn mower, first ensure complete safety by disconnecting the spark plug and letting the engine cool. Locate your model’s specific belt routing diagram—typically on the deck or in the owner’s manual—then release tension from the idler pulley or tensioner spring, route the new belt exactly as shown, and reassemble all guards before testing.
Pros
- Powerful 80V brushless motor delivers 32HP gas-equivalent performance with quiet fume-free operation and no engine maintenance.
- Complete kit includes four 6.0Ah batteries and 600W charger for substantial runtime up to 1.5 acres.
- SmartCut technology and 42-inch heavy-duty steel deck ensure consistent cuts without bogging in tough conditions.
- Versatile towing up to 350 lbs and optional cargo hauling plus comfort features like high-back seat and LED lights.
- Strong 4-year limited warranty and full compatibility with the Greenworks 80V tool ecosystem.
Cons
- Rear utility cargo bed for 200 lb hauling is sold separately and not included in the kit.
- Runtime of up to 1.5 acres varies with conditions and may require recharging or battery swaps on larger properties.
- As a fully cordless model continuous operation depends on battery levels unlike gas engines with unlimited runtime.
The Greenworks 80V 42" CrossoverT Cordless Riding Lawn Tractor is a ready-to-mow zero-emission tractor designed for homeowners managing medium to large lawns. It features a reinforced 42-inch stamped steel deck of 12-gauge construction along with premium comfort elements such as a high-back padded seat with foldable armrests. The overall build emphasizes durability and user convenience right out of the box with the included battery and charger set.
Performance centers on the 80V TruBrushless motor that provides 32HP gas-equivalent power with instant torque and quiet fume-free operation. SmartCut technology senses grass conditions and automatically adjusts power to maintain a consistent cut even in tall thick or wet areas. The four 6.0Ah batteries support runtime for up to 1.5 acres depending on conditions while dual LED headlights and a 7-position deck height range from 1.5" to 4.5" add practicality. Front and rear attachments further allow towing up to 350 lbs for added yard utility.
Key considerations include that the rear utility storage bin capable of hauling 200 lbs is sold separately so full cargo functionality requires an extra purchase. Runtime remains condition-dependent and may fall short for properties significantly larger than 1.5 acres without using the 600W charger or swapping batteries. The cordless design prioritizes ease and low maintenance but trades off the continuous runtime of traditional gas models.
This tractor delivers strong value for eco-conscious owners of residential properties who want gas-like power without the emissions noise or upkeep. It suits those who already use or plan to expand into the Greenworks 80V family of tools and who appreciate the 4-year limited warranty. Users with exceptionally large or commercial-scale lawns should evaluate battery logistics carefully before purchase.
Pros
- Delivers strong 21 horsepower equivalent power comparable to gas riding mowers.
- Provides up to 1.5 acres of runtime on a full charge with the six included batteries.
- Features low-maintenance dual brushless motors without belts for greater durability.
- Offers versatile 12-position cutting height adjustment from 1.5 to 4.5 inches.
- Includes digital controls for blade settings, drive speeds, and cruise control.
Cons
- Limited to 1.5 acres of cutting per charge without purchasing additional batteries for bigger lawns.
- Requires recharging time for the six 56V batteries after each use session.
- Relies solely on battery power with no hybrid or gas backup option for extended operation.
The EGO Power+ TR4204 is a cordless electric riding lawn mower built as a modern tractor alternative for residential use. It features a robust 42-inch stamped steel deck and arrives ready to go with six 56V 6.0Ah batteries plus a charger, creating an immediate impression of convenience and solid construction free from gas engine complexity.
Performance shines through its equivalent 21 horsepower output and top speed of 6 MPH, allowing efficient coverage of up to 1.5 acres on a single charge. Dual brushless cutting motors operate without belts for added durability and less upkeep, while the digital display lets users select three blade settings, three drive speeds, and cruise control. The 12 adjustable heights ranging from 1.5 to 4.5 inches combined with anti-scalp wheels deliver precise results across varied terrain.
Drawbacks center on battery dependency, as larger properties beyond 1.5 acres require extra batteries and recharging intervals can interrupt workflow. The fully electric design eliminates fuel storage needs but demands access to power sources between sessions.
This mower suits homeowners with medium to large yards who value quiet, emission-free operation and reduced maintenance. Those seeking expandable battery capacity for bigger areas will find the EGO Power+ TR4204 a strong long-term investment in cordless lawn care.
Pros
- High-efficiency brushless motors maximize power output and durability over traditional motors
- Up to 2 acres runtime with three included 10.0 Ah batteries supports substantial mowing sessions
- Zero-emission operation with gas-equivalent 20 HP power for quieter environmentally friendly use
- Six-port auto-switchover battery system provides flexible extended runtime options
- Durable 42-inch steel deck plus included mulch and towing kits add immediate functionality
Cons
- Runtime is limited to approximately 70 minutes or 2 acres which may require recharging for larger properties
- Fully battery-dependent design means performance relies on charge levels and spare battery availability
- 42-inch deck size may require more passes on expansive lawns compared to wider commercial models
The PRORUN PZT60V42 is a fully electric 60V zero-turn riding lawn mower built for residential and light commercial use. Its primary design centers on a robust 42-inch 14-gauge stamped steel twin blade deck powered by direct-drive brushless motors, giving an immediate impression of solid construction and modern battery-focused engineering. The mower arrives complete with three 10.0 Ah batteries, a charger, mulch kit, and towing kit for ready-to-work versatility.
In performance terms, four high-efficiency brushless motors deliver power equivalent to a 20 HP gas engine while producing zero emissions. The system supports up to 2.0 acres or 70 minutes of runtime, and six battery ports with auto switchover intelligently manage all PRORUN 60V battery sizes for continuous operation. A washout port on the steel deck further simplifies post-mow maintenance during real-world sessions.
Potential drawbacks include the finite 70-minute runtime window which can limit coverage on larger properties without spare batteries or recharge breaks. As a fully electric model, it also depends entirely on battery charge levels rather than continuous fuel refills, and the 42-inch deck width may demand extra passes compared with wider traditional options.
Overall the PRORUN PZT60V42 offers strong value for homeowners and small-property managers who want gas-like cutting power without emissions or noise. Those with medium-sized lawns seeking quiet efficient zero-turn performance and included accessories will benefit most from this electric mower.
Pros
- Strong 24HP FR730 engine power for demanding cutting conditions
- Wide 54-inch FAB deck reduces total mowing time
- Zero turn design delivers excellent maneuverability
- Fabricated deck supports durable everyday operation
Cons
- Sparse details beyond engine and deck leave other features unspecified
- Gas-powered FR730 engine needs regular fuel and maintenance
- Large 54-inch deck size may feel oversized on compact properties
The Husqvarna Z254F is a zero turn mower from the established Husqvarna brand in the riding lawn mowers category. It centers on a solid build that pairs a 24HP 726cc FR730 engine with a 54-inch FAB deck for straightforward residential grass care.
Performance stems directly from the listed specifications. The FR730 engine delivers the horsepower needed for steady operation across typical lawns while the wide FAB deck completes passes efficiently. Zero turn handling improves control in real yard layouts based on the model design.
Considerations arise from the limited data available. Secondary elements such as comfort features fuel capacity or extras receive no mention and the gas engine format involves routine upkeep. The large deck suits open areas better than confined spaces.
The Husqvarna Z254F provides the most value for owners of medium or large properties who want reliable engine power and a broad cutting width. Users with smaller lots or those seeking extensive accessory options should weigh the core specs carefully before purchase.

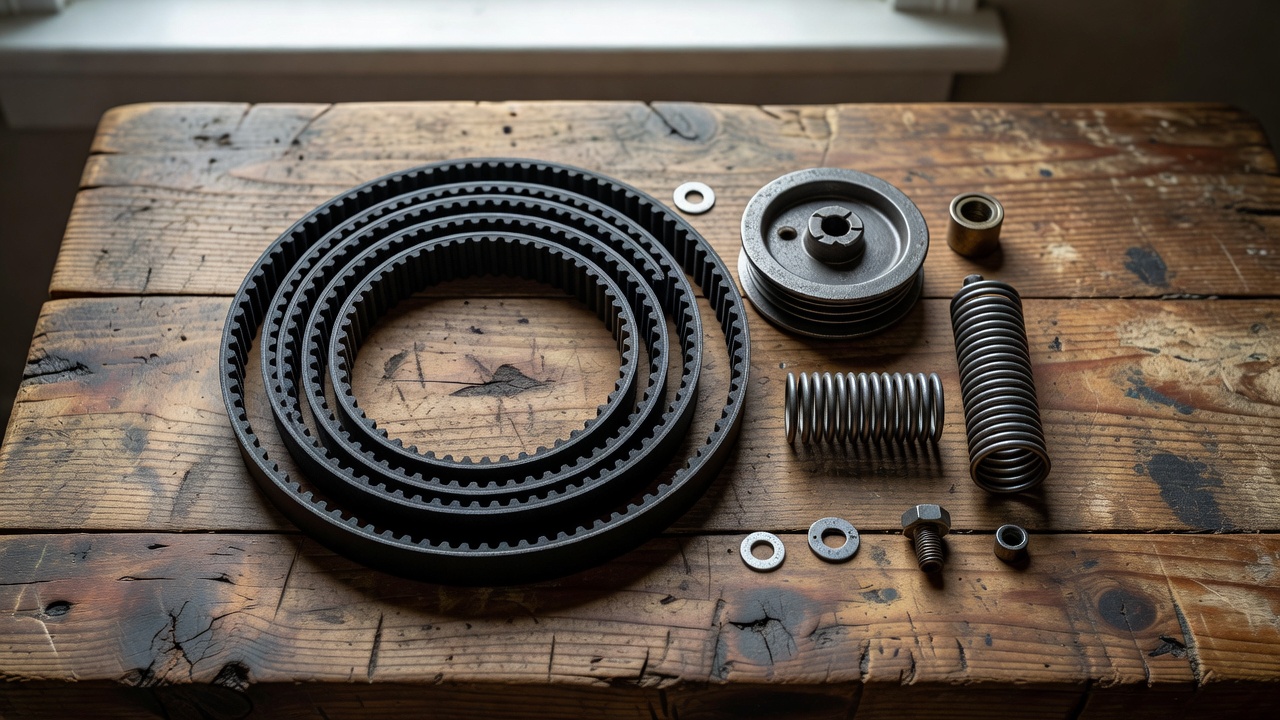

Understanding Lawn Mower Drive Belts and Their Function
A lawn mower drive belt is a critical component that transfers power from the engine to the cutting deck and, in riding mowers, to the wheels. Over time, these belts experience wear, heat exposure, and mechanical stress that can cause cracking, fraying, or complete failure. Understanding how to properly install a replacement belt is essential for maintaining your equipment’s performance and extending its lifespan.
The belt routing diagram serves as your primary guide throughout this process. This diagram illustrates exactly how the belt should wrap around each pulley and the tensioner spring for your specific model. Without following this diagram precisely, you risk improper alignment, premature wear, or damage to other components. For troubleshooting and reliability insights, consult our in-depth jbl partybox club 120 vs sony srs xv500 report. For complementary hardware performance, examine our breakdown on riding lawn mower.
Safety Precautions and Preparation
Before beginning any maintenance work on your lawn mower, safety must be your absolute priority. Working with machinery involves inherent risks that can be eliminated through proper precautions. For troubleshooting and reliability insights, consult our in-depth jbl partybox club 120 vs sony srs xv500 report.
Essential Safety Steps
- Disconnect the spark plug wire: This prevents accidental engine startup while you’re working near moving parts. Pull the wire off the spark plug and tuck it away where it cannot accidentally reconnect.
- Allow the engine to cool completely: Working on a hot engine can result in burns and may damage sensitive components.
- Work on a flat, stable surface: Whether you’re dealing with a walk-behind/push mower or a riding mower, ensure the equipment is on level ground and, if necessary, use jack stands for additional stability.
- Wear appropriate protective gear: Safety glasses protect your eyes from debris, while work gloves shield your hands from sharp edges.
- Consult your owner’s manual: Specific safety warnings and procedures vary by manufacturer and model.
Tools You’ll Need
Having the right tools ready before starting will make the process smoother and safer: Readers comparing setup options can review our technical analysis on z890 vs x870e motherboard. For complementary hardware performance, examine our breakdown on weed eater.
- Socket wrench set (typically metric sizes between 8mm-19mm)
- Screwdrivers (both Phillips and flat-head)
- Pliers (needle-nose pliers are especially useful for spring tensioners)
- Belt keeper or bungee cord (for holding tensioner in released position)
- Owner’s manual or printed belt routing diagram
- Work light or flashlight for visibility
Locating the Belt Routing Diagram
The belt routing diagram is arguably the most critical piece of information for successful belt installation. This diagram shows the exact path the belt must follow around every pulley, idler, and tensioner in your mower’s system.
Where to Find the Routing Diagram
The location varies depending on your mower type: For complementary field maintenance guidelines, examine our breakdown of marshall stanmore iii vs harman kardon onyx studio 8.
- Walk-behind mowers: Typically found on a sticker affixed to the top or underside of the cutting deck, or printed on a plate near the belt area.
- Riding mowers: Usually located on the underside of the foot platform, inside the fender well, or on a protective shield near the deck.
- Owner’s manual: If the sticker is missing, faded, or damaged, your manual contains the complete diagram in the maintenance or troubleshooting section.
If the Diagram Is Missing
If you cannot locate the routing diagram, you have several options: Readers comparing setup options can review our technical analysis on z890 vs x870e motherboard.
- Search for your specific model number online—most manufacturers provide digital copies of owner’s manuals.
- Contact the manufacturer’s customer service with your model and serial number.
- Take a photograph of the old belt’s current routing before removal as a reference.
- Purchase a service manual specific to your mower model.
Never guess at belt routing. Incorrect installation can cause the belt to jump off pulleys, wear prematurely, or fail catastrophically during operation.
Removing the Old Belt
With safety precautions in place and the routing diagram located, you can now access the belt system and remove the old belt. For complementary field maintenance guidelines, examine our breakdown of marshall stanmore iii vs harman kardon onyx studio 8.
Accessing the Mower Deck
For walk-behind mowers, belt access typically requires removing:
- The cutting blade (secured by a large center bolt, typically requiring a 15mm-22mm socket)
- The blade adapter or housing cover
- Any belt guards or shields protecting the pulleys
For riding mowers, you may need to: To evaluate matched hardware tolerances, consult our detailed overview of dyson v8 cyclone vs bissell featherweight stick.
- Raise the cutting deck to its highest position
- Remove the deck engagement lever or disconnect the deck lift mechanism
- Take off the belt guards, floor pan sections, or fender panels as needed
Releasing Belt Tension
The idler pulley and tensioner spring maintain belt tension during operation. To remove the belt, you must release this tension:
- Locate the tensioner assembly—usually a pulley mounted on a pivoting arm connected to a spring.
- Use needle-nose pliers or a belt keeper tool to pull the tensioner arm away from the belt path.
- Secure the tensioner in the released position using a bungee cord, belt keeper, or by wedging a sturdy object in place.
- Once tension is released, the belt should slide off the pulleys easily.
Removing the Belt
With the tension released, simply slide the old belt off of each pulley in sequence. Note the direction the belt was installed (some belts have a top and bottom side), as this may matter for newer replacement belts. If the belt is broken, remove all fragments carefully, ensuring none fell into the deck or pulley housing. When planning workspace deployment, consider the engineering criteria outlined in our bissell crosswave hydrosteam vs shark stainforce guide.
Installing the New Drive Belt
Now comes the most critical phase—installing the new belt correctly according to your routing diagram.
Preparing the New Belt
Before installation, inspect your new belt:
- Verify it matches the original part number or is a compatible replacement for your specific model.
- Check that the belt length is correct—belts that are too long or too short will not install properly.
- Ensure the belt is free from manufacturing defects, cracks, or damage.
Routing the Belt Correctly
Referring constantly to your diagram, route the new belt following these guidelines:
- Start at the engine pulley (the largest pulley connected directly to the engine crankshaft). Slide the belt onto this pulley first.
- Follow the diagram sequentially, wrapping the belt around each intermediate pulley, idler, and tensioner in the exact order shown.
- Ensure the belt sits properly in each pulley groove—the belt’s ridges should nest snugly into the pulley grooves. A belt sitting too high or too low on a pulley will cause erratic operation and rapid wear.
- Route the belt through any guides or keepers that keep it aligned and prevent it from walking off the pulleys during operation.
- End at the last pulley as indicated by your diagram, typically the blade spindle pulley or deck pulley.
Re-engaging the Tensioner
Once the belt is correctly positioned on all pulleys:
- Carefully release the belt keeper or bungee cord holding the tensioner in the released position.
- Allow the tensioner spring to pull the idler pulley against the belt, restoring proper tension.
- Verify that the belt is centered in all pulley grooves and that the tensioner arm moves freely without binding.
- Spin any free pulleys by hand to confirm the belt rotates smoothly without hesitation.
Reassembly and Testing
With the new belt installed, you must carefully reassemble all components before testing.
Reassembling Guards and Covers
Replace all removed components in the reverse order of removal:
- Reattach any belt guards or shields that protect the belt and pulleys.
- Reinstall blade adapters, blades, and cutting deck components.
- Secure all bolts, nuts, and fasteners. Note: Specific torque specifications vary by manufacturer and should be checked in your owner’s manual. Generally, blade bolts should be tightened firmly but not over-tightened.
- Reconnect any electrical connectors or linkage that was disconnected.
Pre-Start Inspection
Before reconnecting the spark plug and starting the engine:
- Visually inspect the entire belt path one final time.
- Verify the belt has not crossed any pulley flanges or jumped grooves.
- Ensure all tools and materials have been removed from the work area.
- Confirm all guards and covers are securely fastened.
- Reconnect the spark plug wire firmly.
Testing the Installation
Start the engine and observe the belt operation:
- Listen for any unusual sounds such as squealing, chattering, or grinding.
- Watch the belt to ensure it tracks centered on all pulleys without wandering.
- Engage the cutting deck (if applicable) and verify smooth power transfer.
- On riding mowers, test forward and reverse motion to confirm the transmission belt (if separate) operates correctly.
- Allow the mower to run for several minutes, then inspect the belt for signs of overheating or misalignment.
Troubleshooting Common Issues
If problems arise after installation:
- Belt squealing: Usually indicates improper tension, misalignment, or the belt is not seated correctly in pulley grooves. Recheck routing and adjust tensioner if possible.
- Belt slipping: May indicate a weak tensioner spring, oil or debris on the belt surface, or an incorrectly sized replacement belt.
- Belt walking off pulleys: Typically caused by misrouting, damaged pulley flanges, or the belt being twisted during installation.
- Excessive vibration: Could indicate an imbalanced blade, loose hardware, or the belt is not properly aligned.
Maintenance Tips for Lawn Mower Belts
Proper maintenance extends belt life and prevents unexpected failures:
- Inspect belts regularly for cracks, fraying, glazing (shiny surfaces from slippage), and proper tension.
- Keep belts clean and free from grass clippings, oil, and debris.
- Store replacement belts in a cool, dry location away from direct sunlight.
- Replace belts at the first sign of significant wear rather than waiting for complete failure.
- Seasonally inspect belt tension, especially after periods of heavy use.
Everything You Need to Know: How To Put Belt On Lawn Mower FAQ
Why is it important to disconnect the spark plug before working on a lawn mower belt?
Disconnecting the spark plug prevents accidental engine startup while your hands are near the belt system and cutting blades. This simple step eliminates the risk of serious injury from unexpected blade rotation or engine start. Even with the engine off, the flywheel can still generate enough spark to fire the engine briefly if the key is left in the ignition or the plug wires are touched to a hot surface.
Do I need to remove the entire mower deck to change the belt?
It depends on your mower type and accessibility. On many walk-behind mowers, you can change the belt by removing the blade and a few guards without fully detaching the deck. However, on some models and most riding mowers, partially removing or lowering the deck provides better access. Consult your owner’s manual for model-specific instructions on minimum deck removal requirements.
What if the belt routing diagram is missing from my mower?
If the diagram is missing, first try locating a digital copy through the manufacturer’s website using your model and serial number. You can also contact the manufacturer’s customer support directly. As a temporary measure, photograph the old belt’s routing before complete removal, or search for your specific model online in forums and repair databases where users often share diagrams. Never attempt to route a belt by guessing, as incorrect routing will cause poor performance and potential damage.
How do I know if my lawn mower belt tension is correct?
Proper belt tension allows the belt to deflect approximately 1/4 to 1/2 inch when pressed firmly at the center of the longest span between pulleys. If the belt deflects too much, it will slip and squeal. If there’s no deflection, the tension is excessive and may strain the bearings and reduce belt life. Some tensioners automatically maintain correct tension, while others require manual adjustment through spring position or idler pulley location. Consult your manual for model-specific tension specifications and adjustment procedures.
Conclusion
Installing a drive belt on a lawn mower requires careful attention to safety, precise routing according to your specific model’s diagram, and thorough testing before regular use. While the process varies somewhat between walk-behind and riding mowers, the fundamental principles remain the same: prioritize safety, follow the routing diagram exactly, ensure proper tension, and verify everything works correctly before putting the mower back into service. With patience and attention to detail, most homeowners can successfully replace a lawn mower belt without professional assistance, saving both time and money while maintaining their equipment in optimal working condition.
