Quick Answer: How to Replace the Belt on a Riding Lawn Mower
To replace the deck belt (the belt that spins the blades): park the mower on a flat surface, disengage the blades, set the parking brake, and disconnect the spark plug wire. Remove the mower deck by releasing the attachment pins and lift links, slip the old belt off the spindle and idler pulleys, then thread the new belt along the same routing path — most decks have a belt routing diagram stamped on the deck housing or printed in the owner’s manual. Reinstall the deck, reconnect the spark plug wire, and test blade engagement at low throttle.
The drive belt (ground drive or transmission belt) follows the same safety prep but is a different job: it routes from the engine pulley to the transmission pulley under the frame, so you access it through the undercarriage rather than by removing the deck.

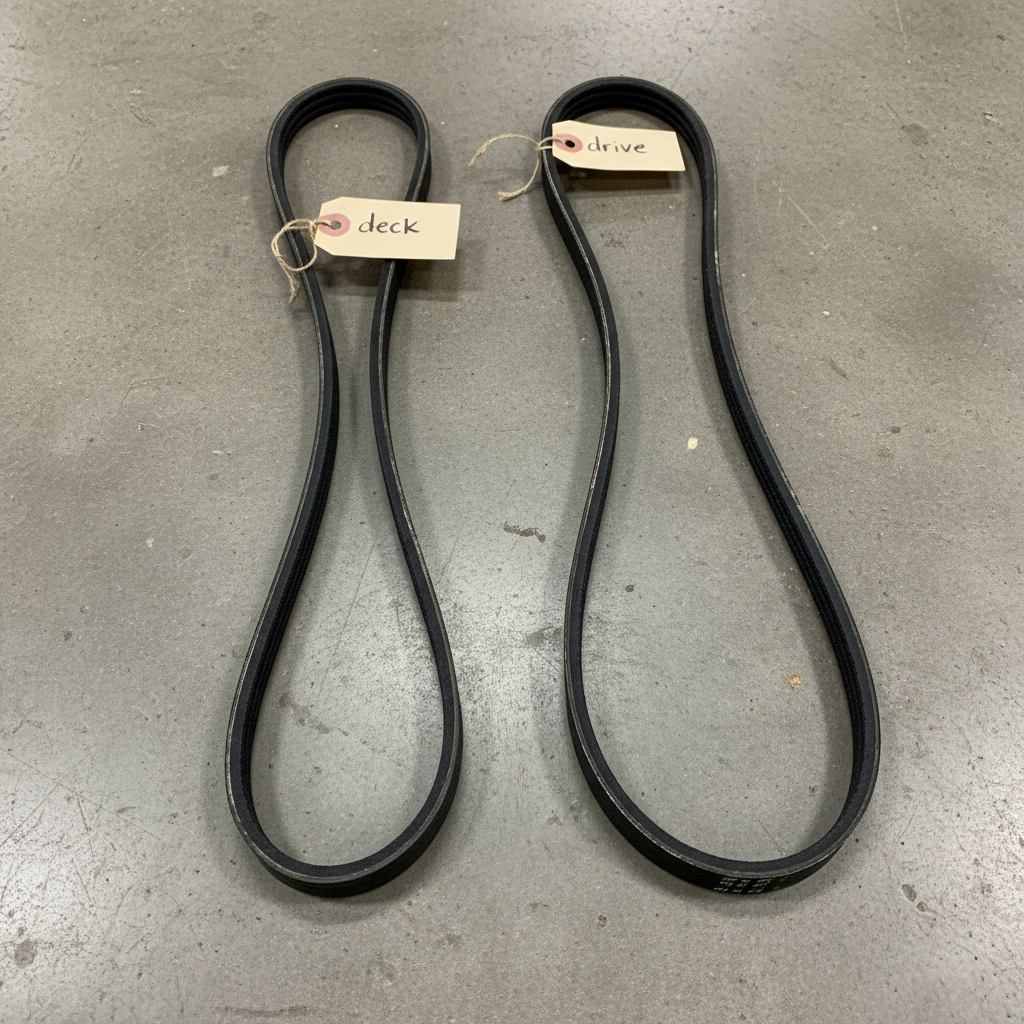

Which Belt Actually Needs Replacing? (Deck Belt vs. Drive Belt)
Before you order parts or touch a wrench, identify which belt failed. Riding mowers use two separate belts, and confusing them is the most common DIY mistake.
What is the difference between a deck belt and a drive belt?
- Deck belt (also called the blade drive belt): runs from the engine or PTO clutch down to the spindle pulleys on the mower deck. It makes the blades spin. If it breaks, the mower still drives fine but cuts nothing.
- Drive belt (ground drive or transmission belt): runs from the engine pulley to the transmission pulley under the frame. It propels the mower. If it breaks, the blades may still spin but the mower won’t move.
How do I know which one failed?
| Symptom | Likely Failed Belt |
|---|---|
| Mower drives but grass isn’t cut | Deck belt |
| Blades spin but mower won’t move forward or back | Drive belt |
| Blades won’t engage when you pull the engagement lever | Deck belt or PTO clutch |
| Loud squeal under the frame when you release the brake | Drive belt |
| Squeal only when blades are engaged | Deck belt |
How do I know if my belt is broken or just slipping?
Look at the belt. A broken belt is obvious — it’s snapped or hanging off the pulleys. A slipping belt is usually still intact but shows glazing (a shiny, hardened surface), cracks across the ribs, or frayed edges. A glazed belt can squeal and slip under load even though it looks whole. Slipping can also come from a worn idler pulley or weak tension spring, so inspect those before assuming the belt alone is at fault.
Signs Your Riding Mower Belt Needs Replacing
- Visible cracking: small cracks across the belt’s V-face or ribs indicate the rubber is drying out.
- Glazing: a polished, shiny surface means the belt has been slipping and heating up. A glazed belt can’t grip the pulleys properly even if it looks structurally sound.
- Fraying or missing chunks: separated cords or chunks missing from the belt sides mean replacement is overdue.
- Squealing: a high-pitched squeal when you engage the blades or release the brake usually means the belt is slipping on a pulley.
- Blade engagement failure: if the engine revs but the blades spin weakly or not at all, the belt may be stretched, glazed, or off its pulleys.
Why does my mower belt keep falling off?
Repeated belt throw-off is rarely just a bad belt. Check for: a bent or damaged deck housing, a seized or wobbling spindle pulley, a worn idler pulley with play in its bearing, a weak or broken tension spring, or incorrect routing after a previous replacement. Replace the cause, not only the belt, or the new belt will come off too.
How long does a riding mower deck belt last?
Lifespan varies by mowing conditions, but many manufacturers’ maintenance schedules treat the deck belt as an inspection item each season and a common wear item within a few seasons of regular use. Sandy soil, tall wet grass, and frequent blade engagement all shorten belt life. Inspect the belt at the start of every mowing season regardless of hours.
Can a cracked mower belt still work?
It can spin the blades for a while, but cracks are a failure warning, not a cosmetic issue. A cracked belt can snap mid-mow and leave you stranded. Replace it as soon as you see cracks, fraying, or glazing.
Tools and Parts You Need Before You Start
- Correct replacement belt: match the belt part number from your owner’s manual or the old belt itself. OEM belts are sized exactly for your pulley layout; generic belts that are “close enough” slip, glaze, and throw off.
- Socket and wrench set for deck attachment pins, pulley bolts, and belt covers.
- Safety glasses and work gloves.
- Camera or phone: photograph the old belt’s routing before you remove it. This is the single most useful step in the whole job.
- Owner’s manual: contains the belt routing diagram and part numbers specific to your model.
- Wood blocks or jack stands if you need extra clearance under the frame (drive belt job).
What size belt does my riding lawn mower use?
There is no universal belt. Belt length, width, and profile vary by brand, deck size, and even deck configuration within the same model line. Find the part number in one of three places: the owner’s manual, the parts lookup on the manufacturer’s website using your model and serial number, or the numbers printed on the old belt’s sleeve. The model and serial number plate is usually under the seat or on the frame near the engine.
Do I need special tools?
No. A standard socket set, a wrench set, and basic hand tools cover the deck belt job on most brands. Some drive belt jobs go faster with a helper to hold the belt tensioner or a bungee cord to hold linkage out of the way, but nothing specialized is required.
Safety Steps to Complete Before Any Belt Replacement
Working near mower blades and engine pulleys is serious. Complete every step below before you touch the belt.
- Park on a flat, level surface — concrete or pavement, not grass — so the mower can’t roll and the deck sits level.
- Disengage the blades (blade engagement lever or PTO switch to OFF).
- Set the parking brake and, on manual models, put the transmission in neutral.
- Shut off the engine and remove the key.
- Let the engine and muffler cool completely.
- Disconnect the spark plug wire and move it away from the plug so the engine cannot crank accidentally while your hands are near the blades or pulleys.
- Wear gloves: deck edges and belt debris are sharp.
Is it safe to work under a riding lawn mower?
Only with the engine off, key removed, spark plug wire disconnected, and the mower on solid level ground. For drive belt work that needs more clearance, never rely on a single jack. Use rated jack stands and wheel chocks. If you can do the job from the side or with the deck removed rather than crawling underneath, do that instead.
How to Replace the Deck Belt on a Riding Lawn Mower (Step-by-Step)
This is the primary procedure for most readers. Allow 30–60 minutes for a first attempt.
- Complete the safety steps above, including the spark plug wire disconnect.
- Set the deck to its lowest cutting height. This slackens the belt path and makes removal easier.
- Photograph the existing belt routing from several angles. Note which side of each idler pulley the belt rides on.
- Release the deck from the mower. Typical attachments include: deck attachment pins or retaining clips at the hangar arms, lift links connecting the deck to the lift assembly, the belt tension rod or anchor, and the PTO cable or engagement linkage. Pull the pins, unhook the lift links, and release the belt from the engine/PTO pulley.
- Slide the deck out from under the mower and flip it over or prop it on blocks to access the underside.
- Slip the old belt off the spindle pulleys and idler pulleys. If the belt is already broken, remove all pieces — a fragment left in a pulley groove will ruin the new belt.
- Clean the pulley grooves with a wire brush and rag. Spin each spindle and idler pulley by hand: they should turn freely without wobble or grinding. Replace any pulley or bearing that’s suspect now.
- Thread the new belt along the routing diagram stamped on the deck housing or shown in your owner’s manual. Start at one spindle pulley, work around the idler pulleys in order, and finish at the deck-side pulley that connects to the engine. The flat side of the belt rides against idler pulleys; the V-side seats in the spindle pulley grooves.
- Confirm the belt sits fully seated in every groove — no twist, no edge riding, belt fully centered on each pulley.
- Slide the deck back under the mower and reattach in reverse order: lift links, attachment pins, tension rod, PTO cable or engagement linkage.
- Reconnect the spark plug wire, start the engine, and engage the blades at low throttle (see Testing section below).
How do I get the belt around the idler pulley?
Route everything else first, and leave the spring-loaded idler pulley for last. With the deck at its lowest height setting, the tension arm has enough slack to lever the idler pulley back with a wrench on its bolt while you walk the belt over the pulley. Never pry a belt on with a screwdriver — you’ll damage the belt cords before it ever turns a blade.
How tight should a riding mower deck belt be?
The spring-loaded idler sets tension automatically on modern decks, so there’s usually no manual adjustment. As a rule of thumb, the belt should deflect roughly half an inch to an inch with moderate finger pressure at the longest span — but the exact deflection spec comes from your brand’s service manual, and it varies. A belt that’s drum-tight overloads the spindle bearings; one that’s loose slips and glazes. If your deck has an adjustable idler, follow the manual’s spec after installing the belt.
How do I know if my new mower belt is installed correctly?
Three checks: (1) the routing matches the diagram stamped on the deck or in the manual, (2) the belt is fully seated and centered in every pulley groove with no twists, and (3) when you engage the blades, the idler arm moves to take up slack and the belt runs straight on every pulley. If a brand-new belt squeals or walks off a pulley within minutes, the routing is wrong.
How to Replace the Drive Belt (Ground Drive / Transmission Belt)
The drive belt is the more involved of the two jobs because it lives under the frame, between the engine pulley and the transmission pulley. Expect 1–2 hours on a first attempt.
Where is the drive belt on a riding lawn mower?
It runs from the engine pulley (above the frame, under the mower body) back to the transmission input pulley near the rear axle. On most mowers you reach it from underneath or through a belt access cover under the footrest or floor pan.
Step-by-step drive belt replacement
- Complete all safety steps — engine off, key out, spark plug wire disconnected, parking brake set.
- Remove the mower deck first following the deck belt procedure above. This opens up access to the drive belt path on most models.
- Gain undercarriage access: remove any belt covers or floor pan covers. If you need extra clearance, raise the front of the mower with a rated jack and support it on jack stands — never work under a mower held only by a jack.
- Release belt tension: the variable-speed or transmission tensioner is usually spring-loaded; on manual transmissions, the idler releases when the clutch pedal is depressed. Photograph the routing before removal.
- Remove the old belt from the engine pulley and transmission pulley and pull it free.
- Route the new drive belt per the owner’s manual diagram — around the engine pulley, any idler or motion pulleys, and onto the transmission pulley. Watch belt twist: the drive belt path is longer, and a half-twist is easy to miss.
- Reinstall covers, remount the deck, reconnect the spark plug wire.
- Test: engine on, brake released, ease forward and reverse slowly and check for smooth engagement.
Is replacing a drive belt harder than a deck belt?
Yes, moderately. The access is worse, the routing path is longer, and on some models you must remove linkages or the battery tray for clearance. The technique is the same: photograph the old routing, follow the diagram, seat the belt fully in every groove.
What happens if the drive belt breaks on a riding mower?
The engine keeps running and the blades may keep spinning, but the mower won’t move under its own power. You can usually push it in neutral to get it onto a trailer or into the garage. Driving over the broken belt’s remnants isn’t dangerous to the transmission, but replace the belt before resuming use.
Belt Routing Diagrams by Brand
Belt routing, deck removal details, and part numbers vary significantly by brand and series. The notes below cover where to find the routing reference for the five most common brands. For model-specific steps, use our brand-specific guides linked below.
Husqvarna
Most Husqvarna decks have the routing diagram on a decal on the top of the deck housing; the owner’s manual also includes it. Routing typically loops the belt around two or three spindle pulleys with the idler on the slack side. See our Husqvarna riding mower belt replacement guide for model-specific steps.
Craftsman
Craftsman decks (built on the same platform as many Husqvarna and AYP models) commonly route the belt with a spring-loaded idler arm released via the tension rod anchored to the deck bracket. The manual includes the routing diagram; older decks may have a stamped diagram on the deck shell. See our Craftsman riding mower belt guide.
John Deere
John Deere decks on the 100-series typically use an electric PTO clutch, so the belt runs from the clutch pulley under the frame to the deck. Deck removal uses hangar pins and a draft rod; the routing diagram appears in the manual and on a decal on many deck models. See our John Deere riding mower belt guide.
Cub Cadet
Cub Cadet decks often use a single belt around two or three spindle pulleys with a fixed and a spring idler; the tensioner releases with the engagement lever or a lock-out rod. Check the manual for routing and the deck decal where present. See our Cub Cadet riding mower belt guide.
Troy-Bilt
Troy-Bilt decks typically use hangar pins, a lift link per side, and a manual engagement cable; the belt routing diagram is printed in the manual and often on a deck decal. See our Troy-Bilt riding mower belt guide.
Important: not every deck from every brand carries a stamped or decal diagram. Where none is present, the owner’s manual is the authoritative routing source — or the photos you took of the old belt before removal.
Testing and Troubleshooting After Belt Replacement
- Reconnect the spark plug wire and start the engine.
- Engage the blades at low throttle first, then raise to full throttle. Listen for squealing and watch (from a safe distance) for belt wobble.
- Mow a short test strip in thick grass and confirm even cutting — uneven cut can mean a deck reinstalled at the wrong height links.
- Recheck the belt after the first mow: new belts seat in during the first hours and can loosen slightly; confirm it’s still fully seated in all pulley grooves.
Why is my new mower belt slipping off?
Ninety percent of the time it’s a routing error — the belt is on the wrong side of an idler pulley or missing a pulley entirely. Compare your installation against the diagram and your photos. Other causes: belt not fully seated in a groove, wrong belt part number, worn idler pulley bearing letting the belt walk, or a bent deck component.
Why are my blades still not engaging after replacing the belt?
Check: (1) the belt is routed through the engagement idler, not bypassing it; (2) the PTO cable or engagement linkage was reconnected when you remounted the deck; (3) the deck is fully seated on all attachment points so the belt reaches the engine pulley; (4) on electric PTO models, the clutch itself or its fuse/switch has failed. A belt can be perfect and the blades still won’t engage if the clutch isn’t pulling power.
My mower belt is squealing after replacement — what’s wrong?
Most likely the belt is glazed from slipping during the first engagement (wrong routing or not seated), or the tension spring/idler isn’t applying enough tension. Squealing plus a burning-rubber smell means stop immediately and recheck routing. A brief squeal on the very first engagement that disappears is normal seating.
Do I need to break in a new riding mower belt?
Not formally, but expect the first couple of mows to be the bedding-in period. Recheck seating and tension after the first use, since new V-belts stretch slightly as their cords settle.
How Much Does It Cost to Replace a Riding Mower Belt?
- DIY parts cost: deck belts are inexpensive wear items — typically in the low tens of dollars, with OEM belts usually costing more than aftermarket equivalents. Always match the part number rather than shopping on price.
- Shop repair cost: a small-engine shop charges labor on top of the part, and total bills vary widely by region and shop rates — often a multiple of the DIY cost for a deck belt, and more for a drive belt because of the extra labor time. Call local shops for quotes on your model.
- Is it worth doing yourself? For a deck belt, almost always yes: the part is cheap, the tools are basic, and the procedure takes under an hour once you know the steps. Drive belts are a closer call — if you’re not comfortable working under the frame with jack stands, a shop is reasonable.
How often should I replace my riding mower deck belt?
Replace on condition, not a fixed schedule. Inspect every season and after any incident where the belt came off, and replace at the first sign of cracks, fraying, or glazing. Most owners get multiple seasons from a belt in normal conditions; sandy or dusty conditions wear belts faster.
Frequently Asked Questions
Do I need to disconnect the spark plug before changing a mower belt?
Yes, always. Disconnecting the spark plug wire and moving it away from the plug prevents the engine from cranking or starting while your hands are near the blades, spindles, and pulleys. It’s a two-second step that removes the single biggest hazard of the job.
Can I replace a riding mower belt without removing the deck?
On some models with access covers above the deck, you can work the belt off the engine pulley without full deck removal — but you’ll still need clearance under the deck to route the new belt around the spindles. Full deck removal is cleaner, faster overall, and lets you inspect the pulleys and spindle bearings while you’re in there.
Why does my riding mower belt keep coming off after I replaced it?
Recurring belt throw-off points to a mechanical cause rather than the belt: incorrect routing, a worn or wobbling idler pulley, a weak tension spring, a bent spindle or deck component, or debris packed into a pulley groove. Fix the root cause or every replacement belt will fail the same way.
Is there a universal belt for riding lawn mowers?
No. Belt length, width, angle, and cord construction are matched to each deck’s pulley spacing and load. A “close” belt either slips and glazes or over-tensions the spindles. Buy the exact part number listed for your mower’s model and serial number — OEM or a quality aftermarket belt made to that spec.
