Quick Answer: How to Start a Cub Cadet Lawn Mower
To start a Cub Cadet lawn mower, confirm the fuel tank is filled, the safety bar is held down, and the blade engagement is disengaged. Walk-behind models use either a pull-start cord or an electric start button; riding models require sitting in the seat, turning the ignition key, and engaging the choke if the engine is cold. The exact sequence varies by model, the sections below cover both types in full detail.
Pros
- Reliable 350 CCA rating for consistent cold starts on lawn and garden machinery
- Maintenance-free AGM design resists vibration and works well in outdoor conditions
- Precise Group U1 sizing and terminal layout simplify installation in compatible equipment
- Clear left-positive polarity markings reduce connection errors during setup
Cons
- At 21.45 lbs the battery is relatively heavy for manual handling and installation
- Amazon does not process battery returns so any issues require direct seller contact
- Only a 1-year warranty is provided which is shorter than some premium alternatives
The WEIZE Lawn Garden AGM Battery is a 12V SLA starting unit built to BCI Group U1 specifications. It measures 7.68 inches long, 5.12 inches wide and 6.22 inches high with a total height of 7.09 inches, weighing 21.45 lbs. Square-hole nut-and-bolt terminals place the positive post on the left side for correct polarity matching on most lawn tractors and mowers.
With a 350 CCA rating this AGM battery delivers strong cranking power for light-duty garden tractors and utility vehicles. Its sealed construction supports year-round use while remaining compatible with popular brands such as John Deere, Toro, Cub Cadet and Craftsman. High reserve capacity helps maintain steady voltage during seasonal operation.
Users should note the 21.45 lb weight can make lifting and positioning less convenient. Battery returns are handled only by the seller rather than Amazon, and the included warranty lasts one year. Terminal orientation is fixed, so equipment must match the left-positive layout.
This battery suits homeowners and landscapers who need a straightforward Group U1 replacement for their riding mowers or garden tractors. Those prioritizing easy installation, brand compatibility and reliable starting power will find solid everyday value in the WEIZE unit.
Pros
- Premium ABS and copper wire build delivers strong conductivity and heat resistance
- Broad cross-brand compatibility covers Cub Cadet MTD Troy Bilt and Craftsman zero turns
- 1/4 inch terminal stud design simplifies connection on standard 12V systems
- Enhanced coil performance promotes longer lifespan and fewer maintenance cycles
- Lightweight single-solenoid package ideal for straightforward DIY swaps
Cons
- Package contains only the solenoid with no mounting hardware or installation guide included
- Fitment restricted to specifically listed models and 12V 4-pole applications
- No detailed physical dimensions available for advanced pre-purchase verification
The Tecreddy 725-06153A starter solenoid is a dedicated 12V replacement component engineered for Cub Cadet XT1 XT2 Enduro RZT LT1 ZT1 ZT2 and compatible MTD Troy Bilt Yard Man Husky Yard Machines Craftsman zero turn riding lawn mowers. Constructed from high-performance ABS and QA-1/155 copper wire, it presents a compact, rugged design that prioritizes safety and conductivity right out of the package. Immediate impression is of a straightforward OEM-style part ready for direct installation.
In real-world use the copper wire coil improves electricity transfer and heat resistance, translating to more consistent engine starts and reduced thermal stress during prolonged operation. The 1/4 inch terminal stud and 4-pole layout support versatile applications across lawn and garden tractors, matching original part numbers such as 725-06153A 725-06153 762-1261-211-50 and 762-1261-211-51 for reliable performance without complex modifications.
Potential drawbacks include the minimal package contents limited to a single solenoid, absence of mounting hardware or instructions, and strict compatibility only with the listed models and 12V systems. Buyers should verify exact fitment against their equipment before purchase since no additional dimensions or accessories are supplied.
Overall this solenoid offers solid value for owners of Cub Cadet XT series and similar zero turn mowers who need a durable, high-conductivity starter relay. It is best suited for DIY maintenance enthusiasts seeking an affordable, long-lasting replacement that restores reliable starting power with minimal hassle.
Pros
- Wide multi-brand fitment for John Deere, Toro, Exmark, MTD, Cub Cadet and many others
- Five durable keys plus keychain provide practical spares and organization
- Made from high-grade materials for reliable ignition operation
- Matches numerous OEM part numbers for straightforward replacement
- Compact kit design ideal for home and professional lawn equipment maintenance
Cons
- Compatibility list is extensive but may still require model-specific verification before use
- No detailed physical dimensions or material composition beyond high-grade description provided
- Basic replacement set lacks any advanced security or unique coding features
The Mizoneparts 5 X Lawn Mower Ignition Key Kit is a practical multi-pack of starter keys built for owners of residential and commercial lawn tractors. Constructed from high-grade materials, the set delivers a solid first impression of durability and readiness for everyday outdoor conditions while including a simple keychain for organization.
In real-world use the keys serve as direct replacements for numerous OEM numbers across brands such as John Deere, Toro, Exmark, MTD, Cub Cadet, Troy-Bilt, Husqvarna, Craftsman, Ariens, Gravely and more. This broad coverage supports quick ignition on popular zero-turn and garden tractor series including TimeCutter, Z-Master, Lazer Z, GT1054, Pro-Turn and similar models, giving users reliable starts without searching for single keys.
Potential drawbacks include the need to double-check exact model fitment despite the long compatibility list, and the absence of extra details such as precise dimensions or specialized coatings. As a basic replacement kit it also omits any premium locking or coded features some higher-end systems may offer.
Overall this kit is best suited for homeowners and landscapers who maintain multiple mower brands and want an affordable stock of spare ignition keys. Those seeking a convenient, organized multi-brand solution will find clear value in the five-piece design and included keychain.
Pros
- Extensive compatibility list covers major riding-mower brands and dozens of specific model numbers
- Premium copper and plastic build provides strong resistance to dust, water, rust and corrosion
- High cranking power improves starting reliability while protecting the ignition switch
- Simple two-terminal design and free installation video make DIY replacement straightforward
- Direct OEM replacement eliminates guesswork for common part numbers like 725-06153A
Cons
- Compatibility is limited to the listed model ranges so owners must double-check fitment before purchase
- Basic electrical familiarity is still needed to safely test and install the solenoid
- No extra wiring harnesses or mounting hardware are included beyond the solenoid unit itself
The LordandLand 725-06153A starter solenoid relay is a direct-replacement component engineered for a wide range of riding lawn mowers and zero-turn tractors. Constructed from tough plastic with durable copper contacts, it immediately impresses with its solid, weather-ready build that promises protection against dust, water jets, rust and corrosion.
In real-world use the solenoid delivers high cranking power that lowers the electrical load on the ignition switch, resulting in quicker and more consistent engine starts. Its extensive cross-reference list covers popular MTD, Troy Bilt, Cub Cadet, Craftsman, John Deere and Ariens models, making it a versatile solution when the original 725-06153, 532192507 or similar part fails. Installation is straightforward: turn the key to On, bridge the large terminals with a screwdriver to test, then swap the unit using the included video guide.
Potential drawbacks include the need to carefully verify exact model compatibility, as the unit is designed only for the specified series, and a basic understanding of mower electrical systems is still required for safe testing and wiring. No additional harnesses or fasteners are supplied, so owners may need existing hardware or simple tools.
Overall the LordandLand 725-06153A offers excellent value for DIY mower owners and small repair shops seeking a reliable, OEM-matched starter solenoid that restores dependable starting performance across many popular riding machines.

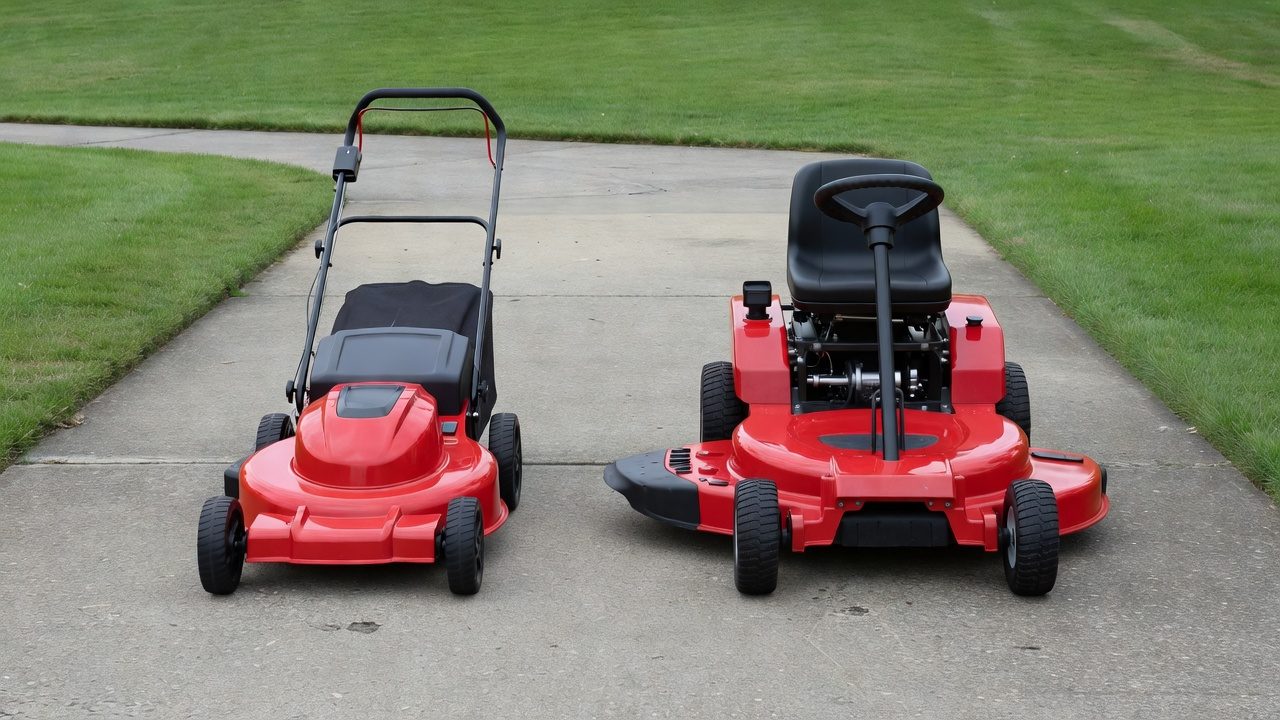

Understanding Your Cub Cadet Mower Type
Before following any starting procedure, identify which category your Cub Cadet mower falls into. The starting mechanisms are distinct, and using the wrong sequence can flood the engine or trigger a safety lockout.
Walk-Behind Mowers
Cub Cadet walk-behind mowers are push or self-propelled units where the operator walks behind the machine. These models are typically powered by a single-cylinder overhead-valve (OHV) engine. Starting options include:
- Manual pull-start (recoil start): A rope-and-pulley mechanism that spins the engine flywheel manually.
- Electric start: A battery-powered starter motor activated by a push button or turn key, found on higher-end walk-behind models such as the Cub Cadet SC 300 series.
Riding Mowers and Zero-Turn Mowers
Cub Cadet riding mowers, including the XT1, XT2, and Ultima ZT series, use a larger multi-cylinder or single-cylinder engine with an ignition key. All riding models use electric start by default. Zero-turn riders follow a nearly identical starting procedure but use lap bars instead of a steering wheel for directional control.
How to Identify Your Model
The model number is printed on a label located on the rear of the deck (walk-behind) or beneath the seat (riding). Cross-reference this number at cubcadet.com or check the operator’s manual included with the unit to confirm engine type and start mechanism.
Essential Safety and Preparation Steps
Skipping the pre-start checklist is the leading cause of failed starts and engine damage. Complete every item below before cranking the engine. To compare alternative configurations, check our hands-on review of z890 vs x870e motherboard.
1. Check Fuel Level
Cub Cadet engines require fresh, clean gasoline. Use fuel with no more than 10% ethanol (E10). Ethanol blends above 10%, including E15 or E85, can degrade fuel system components and void the warranty. If the mower has sat unused for 30 or more days, drain and replace the fuel, as stale gasoline is a primary cause of hard starting.
2. Check the Engine Oil
Pull the dipstick, wipe it clean, reinsert it fully, and pull it again. The oil level should fall between the MIN and MAX marks. Running the engine below the minimum oil level triggers the low-oil shutdown sensor on most Cub Cadet models, preventing the engine from starting or causing it to cut out immediately after ignition. Users looking for related component recommendations can explore our marshall stanmore iii vs harman kardon onyx studio 8 breakdown.
3. Inspect the Spark Plug
A fouled or worn spark plug produces a weak spark and makes the engine hard to start. If the mower has not been serviced in the current season, inspect the plug. A black, sooty, or cracked plug should be replaced before attempting to start. Cub Cadet recommends replacing the spark plug every 100 hours of operation or annually.
4. Clear the Cutting Area
Remove rocks, sticks, toys, or debris from the mowing area before starting. Object strikes at blade speed are a safety hazard and can damage the deck. Before finalizing equipment decisions, refer to our comprehensive dyson v8 cyclone vs bissell featherweight stick comparison.
5. Understand the Safety Bar (Operator Presence Control)
The safety bar, also called the operator presence control bar or bail lever, is the metal handle on walk-behind mowers that must be held against the top handle to allow the engine to run. Releasing it stops the engine immediately. This is a federally mandated safety feature on all walk-behind power mowers sold in the United States. Riding mowers use a seat sensor that shuts the engine off if the operator leaves the seat while the blades are engaged.
How to Start a Cub Cadet Walk-Behind Mower
Follow this sequence in order. Skipping steps , particularly engaging the safety bar before pulling the cord , will prevent the engine from starting. For broader ecosystem context, read through our operational guide on bissell crosswave hydrosteam vs shark stainforce.
Starting a Cold Engine (First Start of the Day or After Extended Storage)
- Add fresh fuel. Fill the tank to just below the neck to allow for expansion. Replace the fuel cap securely.
- Set the choke. Locate the choke lever on the engine body, typically marked with a closed circle (choke on) and an open circle (choke off). Move it to the full choke (closed) position for a cold start. The choke restricts airflow to enrich the fuel mixture, which is necessary when the engine is cold.
- Set the throttle. Move the throttle control lever to the FAST or HIGH position. On Cub Cadet walk-behind models, this is usually a lever on the top handle panel marked with a rabbit (fast) and turtle (slow) icon.
- Engage the safety bar. Grip the safety bar firmly against the top handle and hold it throughout the starting process. The engine will not start, and cannot start, unless this bar is depressed.
- Prime the engine (if equipped). If the mower has a primer bulb (a small rubber dome near the air filter), press it firmly three times to inject fuel directly into the carburetor. Do not over-prime, more than three presses can flood the engine.
- Pull the starter cord. Grip the starter handle firmly. Pull the cord briskly and completely outward in one smooth, rapid motion. Do not jerk it or allow it to snap back, guide it back slowly. Repeat up to five times if needed.
- Open the choke after ignition. Once the engine fires and runs for 20 to 30 seconds, gradually move the choke lever back to the open (run) position. Moving it too fast can stall a cold engine.
Starting a Warm Engine (Restarting During Use)
- Set the choke to the open (off) position, a warm engine does not need a rich mixture.
- Set the throttle to FAST.
- Engage the safety bar.
- Pull the starter cord once or twice. A warm engine typically starts on the first pull.
Starting a Walk-Behind Mower with Electric Start
- Confirm the battery is charged. Electric start walk-behind models use a small onboard battery. If the mower has not been used recently, charge the battery using the included charging adapter before attempting to start.
- Set the choke and throttle as described in the cold-start steps above.
- Engage the safety bar.
- Press and hold the electric start button (located on the handle panel) for up to five seconds. Release the button as soon as the engine fires.
- Open the choke gradually once the engine is running.
How to Start a Cub Cadet Riding Lawn Mower
Riding mower starting sequences include several additional safety interlocks. All conditions must be met simultaneously for the engine to crank.
Pre-Start Safety Interlock Checklist
Cub Cadet riding mowers will not start unless all of the following conditions are met:
- The operator is seated in the seat (seat sensor engaged).
- The blade engagement lever or PTO switch is in the OFF/disengaged position.
- The parking brake is set.
- On manual transmission models (XT1 series), the hydrostatic transmission must be in the neutral position.
- On zero-turn models, both lap bars must be pushed outward to the neutral/park position.
Step-by-Step Starting Sequence for Cub Cadet Riding Mowers
- Sit fully in the operator seat. The seat sensor will not register partial weight. Sit back completely before proceeding.
- Set the parking brake. Engage the parking brake lever or pedal, this is both a safety requirement and an interlock condition.
- Disengage the blades. Confirm the blade engagement lever (manual models) or PTO switch (electric PTO models) is in the OFF position. The engine will not crank if blades are engaged.
- Set the throttle to the FAST position. The throttle lever is located on the left fender panel or dash, depending on the model series.
- Set the choke for a cold start. Move the choke lever to the CHOKE or FULL CHOKE position if the engine is cold. On some XT2 and Enduro series models, the choke is automatic and does not require manual adjustment, check your operator’s manual to confirm.
- Turn the ignition key. Insert the key and turn it clockwise to the START position. Hold it there for a maximum of five seconds. Release the key as soon as the engine starts, holding it longer damages the starter motor.
- Allow the engine to warm up. After ignition, let the engine idle for 60 to 90 seconds before moving or engaging the blades. This allows oil to circulate and the engine to reach operating temperature.
- Open the choke gradually. Move the choke lever to the RUN or OPEN position after the engine has run for 30 to 60 seconds and is idling smoothly.
- Release the parking brake and begin mowing. Once the engine is warm and running smoothly, release the parking brake, engage the blades, and begin operation.
If the Engine Does Not Start After Three Attempts
Wait two minutes between starting attempts to prevent starter motor overheating. If the engine still does not start after three full attempts, troubleshoot before trying again:
- Engine is flooded: Move the choke to the open position, set the throttle to FAST, and pull the cord or crank the key without using the choke. This clears excess fuel from the cylinder.
- No fuel reaching the engine: Check that the fuel shutoff valve (if equipped) is open. Inspect the fuel filter for blockage.
- Weak or dead battery (riding/electric start models): Charge or jump-start the battery. Use a 12V automotive jump starter, connect positive to positive, negative to a bare metal ground on the mower frame.
- Safety interlock fault: Check that all interlock conditions above are fully met. A single unsatisfied interlock prevents cranking entirely.
Common Starting Problems and Solutions
| Symptom | Likely Cause | Fix |
|---|---|---|
| Engine cranks but won’t fire | No fuel, fouled spark plug, or clogged carburetor | Check fuel, replace spark plug, clean or rebuild carburetor |
| Engine starts then dies immediately | Choke opened too fast, stale fuel, or low oil shutdown | Warm engine slowly, drain and replace fuel, check oil level |
| Pull cord won’t retract | Recoil spring broken or rope tangled | Replace recoil starter assembly |
| No response when key is turned (riding mower) | Dead battery or safety interlock not satisfied | Charge battery, confirm all interlocks are met |
| Engine runs rough after starting | Dirty air filter or water in fuel | Replace air filter, drain and replace fuel |
| Starter cord is very hard to pull | Hydrostatic fluid compression or engine seizure risk | Change engine oil; if cord remains immovable, stop and seek service |
Seasonal Starting Tips for Cub Cadet Mowers
First Start of Spring (After Winter Storage)
Winter storage can leave fuel varnish deposits in the carburetor and allow oil to settle. Before the first spring start:
- Drain old fuel completely and add fresh E10 gasoline.
- Check and change the engine oil if it appears dark or milky.
- Inspect and replace the air filter if it is visibly dirty or clogged.
- Charge the battery fully on electric-start models before attempting ignition.
- Check the spark plug and replace it if it has not been changed in the past season.
Hot Weather Starting
In high ambient temperatures, engines reach operating temperature faster. Do not use the choke on a hot engine that has been running within the past 30 minutes, doing so floods the cylinder and makes starting harder. Set the choke to open and crank normally.
Using Fuel Stabilizer
If the mower will sit unused for more than 30 days, add a fuel stabilizer such as STA-BIL to the fuel tank and run the engine for five minutes to distribute the stabilizer through the fuel system. This prevents carburetor varnish and hard starting on the next use.
Common Questions on How To Start A Cub Cadet Lawn Mower Answered
Why won’t my Cub Cadet riding mower start when I turn the key?
The most common cause is an unsatisfied safety interlock. Confirm the following before turning the key: you are fully seated, the parking brake is engaged, the blade engagement switch is OFF, and, on zero-turn models, both lap bars are pushed outward to the park position. If all interlocks are satisfied and the engine still does not crank, test the battery voltage with a multimeter. A fully charged 12V battery should read 12.6 volts or higher. Below 12V, the battery needs charging or replacement.
Should I use the choke every time I start my Cub Cadet?
Use the choke only when starting a cold engine, meaning the engine has not run for at least several hours or is starting for the first time that day. The choke restricts air intake to create a richer fuel-to-air mixture, which a cold engine needs to ignite. On a warm engine, using the choke delivers excess fuel, floods the cylinder, and makes starting more difficult. Always move the choke to the open position within 30 to 60 seconds of the engine running.
How many times should I pull the cord before giving up?
Attempt the pull-start cord up to five times before stopping to diagnose. Pulling more than five times without the engine firing typically indicates an underlying issue, flooded engine, failed spark plug, no fuel, or a disengaged safety bar, rather than inadequate pulling force. If the engine is flooded, wait five minutes, set the choke to open, and try again without priming. Continuing to pull aggressively beyond this point can fatigue the recoil mechanism and cause the rope to break.
Can I jump-start a Cub Cadet riding mower with my car battery?
Yes, Cub Cadet riding mowers use a standard 12V battery and can be jump-started from a car battery or a portable 12V jump starter. Connect the red (positive) cable to the mower’s positive battery terminal first, then connect the black (negative) cable to a bare metal ground point on the mower frame, not to the negative battery terminal, to reduce spark risk near the battery. Start the mower, then disconnect the cables in reverse order (negative first, then positive). Do not run the donor vehicle’s engine at high RPM during the jump, the mower’s charging system is not designed to handle a surge from a large alternator.
Technical Standards and Compliance
Mechanical safety standards, operational tolerances, and protective gear guidelines align with benchmark specifications established by the American National Standards Institute (ANSI).
