Quick Answer: How to Test a Lawn Mower Solenoid
To test a riding lawn mower starter solenoid, use a multimeter set to Ohms and probe the two small coil terminals — a healthy solenoid reads 0.4 Ω to 10 Ω; infinite resistance means the coil is open and the solenoid is dead. If the multimeter result is ambiguous, perform a bypass test: bridge the two large terminals with an insulated jumper wire — if the engine cranks, the solenoid is faulty; if nothing happens, the fault is the starter motor or battery, not the solenoid.
Pros
- Powerful 80V brushless motor delivers 32HP gas-equivalent performance with quiet fume-free operation and no engine maintenance.
- Complete kit includes four 6.0Ah batteries and 600W charger for substantial runtime up to 1.5 acres.
- SmartCut technology and 42-inch heavy-duty steel deck ensure consistent cuts without bogging in tough conditions.
- Versatile towing up to 350 lbs and optional cargo hauling plus comfort features like high-back seat and LED lights.
- Strong 4-year limited warranty and full compatibility with the Greenworks 80V tool ecosystem.
Cons
- Rear utility cargo bed for 200 lb hauling is sold separately and not included in the kit.
- Runtime of up to 1.5 acres varies with conditions and may require recharging or battery swaps on larger properties.
- As a fully cordless model continuous operation depends on battery levels unlike gas engines with unlimited runtime.
The Greenworks 80V 42" CrossoverT Cordless Riding Lawn Tractor is a ready-to-mow zero-emission tractor designed for homeowners managing medium to large lawns. It features a reinforced 42-inch stamped steel deck of 12-gauge construction along with premium comfort elements such as a high-back padded seat with foldable armrests. The overall build emphasizes durability and user convenience right out of the box with the included battery and charger set.
Performance centers on the 80V TruBrushless motor that provides 32HP gas-equivalent power with instant torque and quiet fume-free operation. SmartCut technology senses grass conditions and automatically adjusts power to maintain a consistent cut even in tall thick or wet areas. The four 6.0Ah batteries support runtime for up to 1.5 acres depending on conditions while dual LED headlights and a 7-position deck height range from 1.5" to 4.5" add practicality. Front and rear attachments further allow towing up to 350 lbs for added yard utility.
Key considerations include that the rear utility storage bin capable of hauling 200 lbs is sold separately so full cargo functionality requires an extra purchase. Runtime remains condition-dependent and may fall short for properties significantly larger than 1.5 acres without using the 600W charger or swapping batteries. The cordless design prioritizes ease and low maintenance but trades off the continuous runtime of traditional gas models.
This tractor delivers strong value for eco-conscious owners of residential properties who want gas-like power without the emissions noise or upkeep. It suits those who already use or plan to expand into the Greenworks 80V family of tools and who appreciate the 4-year limited warranty. Users with exceptionally large or commercial-scale lawns should evaluate battery logistics carefully before purchase.
Pros
- Delivers strong 21 horsepower equivalent power comparable to gas riding mowers.
- Provides up to 1.5 acres of runtime on a full charge with the six included batteries.
- Features low-maintenance dual brushless motors without belts for greater durability.
- Offers versatile 12-position cutting height adjustment from 1.5 to 4.5 inches.
- Includes digital controls for blade settings, drive speeds, and cruise control.
Cons
- Limited to 1.5 acres of cutting per charge without purchasing additional batteries for bigger lawns.
- Requires recharging time for the six 56V batteries after each use session.
- Relies solely on battery power with no hybrid or gas backup option for extended operation.
The EGO Power+ TR4204 is a cordless electric riding lawn mower built as a modern tractor alternative for residential use. It features a robust 42-inch stamped steel deck and arrives ready to go with six 56V 6.0Ah batteries plus a charger, creating an immediate impression of convenience and solid construction free from gas engine complexity.
Performance shines through its equivalent 21 horsepower output and top speed of 6 MPH, allowing efficient coverage of up to 1.5 acres on a single charge. Dual brushless cutting motors operate without belts for added durability and less upkeep, while the digital display lets users select three blade settings, three drive speeds, and cruise control. The 12 adjustable heights ranging from 1.5 to 4.5 inches combined with anti-scalp wheels deliver precise results across varied terrain.
Drawbacks center on battery dependency, as larger properties beyond 1.5 acres require extra batteries and recharging intervals can interrupt workflow. The fully electric design eliminates fuel storage needs but demands access to power sources between sessions.
This mower suits homeowners with medium to large yards who value quiet, emission-free operation and reduced maintenance. Those seeking expandable battery capacity for bigger areas will find the EGO Power+ TR4204 a strong long-term investment in cordless lawn care.
Pros
- High-efficiency brushless motors maximize power output and durability over traditional motors
- Up to 2 acres runtime with three included 10.0 Ah batteries supports substantial mowing sessions
- Zero-emission operation with gas-equivalent 20 HP power for quieter environmentally friendly use
- Six-port auto-switchover battery system provides flexible extended runtime options
- Durable 42-inch steel deck plus included mulch and towing kits add immediate functionality
Cons
- Runtime is limited to approximately 70 minutes or 2 acres which may require recharging for larger properties
- Fully battery-dependent design means performance relies on charge levels and spare battery availability
- 42-inch deck size may require more passes on expansive lawns compared to wider commercial models
The PRORUN PZT60V42 is a fully electric 60V zero-turn riding lawn mower built for residential and light commercial use. Its primary design centers on a robust 42-inch 14-gauge stamped steel twin blade deck powered by direct-drive brushless motors, giving an immediate impression of solid construction and modern battery-focused engineering. The mower arrives complete with three 10.0 Ah batteries, a charger, mulch kit, and towing kit for ready-to-work versatility.
In performance terms, four high-efficiency brushless motors deliver power equivalent to a 20 HP gas engine while producing zero emissions. The system supports up to 2.0 acres or 70 minutes of runtime, and six battery ports with auto switchover intelligently manage all PRORUN 60V battery sizes for continuous operation. A washout port on the steel deck further simplifies post-mow maintenance during real-world sessions.
Potential drawbacks include the finite 70-minute runtime window which can limit coverage on larger properties without spare batteries or recharge breaks. As a fully electric model, it also depends entirely on battery charge levels rather than continuous fuel refills, and the 42-inch deck width may demand extra passes compared with wider traditional options.
Overall the PRORUN PZT60V42 offers strong value for homeowners and small-property managers who want gas-like cutting power without emissions or noise. Those with medium-sized lawns seeking quiet efficient zero-turn performance and included accessories will benefit most from this electric mower.
Pros
- Strong 24HP FR730 engine power for demanding cutting conditions
- Wide 54-inch FAB deck reduces total mowing time
- Zero turn design delivers excellent maneuverability
- Fabricated deck supports durable everyday operation
Cons
- Sparse details beyond engine and deck leave other features unspecified
- Gas-powered FR730 engine needs regular fuel and maintenance
- Large 54-inch deck size may feel oversized on compact properties
The Husqvarna Z254F is a zero turn mower from the established Husqvarna brand in the riding lawn mowers category. It centers on a solid build that pairs a 24HP 726cc FR730 engine with a 54-inch FAB deck for straightforward residential grass care.
Performance stems directly from the listed specifications. The FR730 engine delivers the horsepower needed for steady operation across typical lawns while the wide FAB deck completes passes efficiently. Zero turn handling improves control in real yard layouts based on the model design.
Considerations arise from the limited data available. Secondary elements such as comfort features fuel capacity or extras receive no mention and the gas engine format involves routine upkeep. The large deck suits open areas better than confined spaces.
The Husqvarna Z254F provides the most value for owners of medium or large properties who want reliable engine power and a broad cutting width. Users with smaller lots or those seeking extensive accessory options should weigh the core specs carefully before purchase.
What Does a Lawn Mower Solenoid Do — and Which Type Are You Testing?
A starter solenoid is an electromagnetic switch wired between the battery and the starter motor. When you turn the ignition key, 12 V energizes the solenoid coil, which pulls a metal plunger inward and closes a high-current contact between the battery and starter motor. The starter motor then spins the engine over. Without a functioning solenoid, the starter motor never receives current, regardless of how good the battery is.

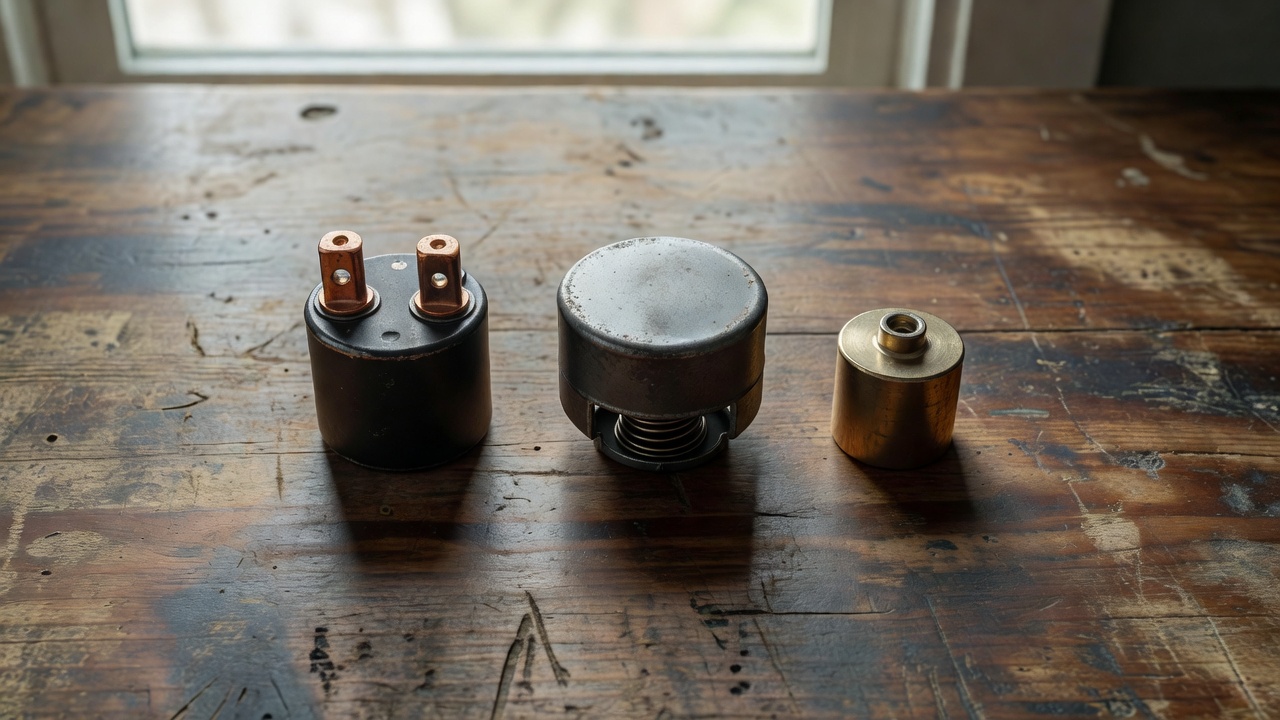

Before touching a tool, confirm which solenoid you are diagnosing. Riding mowers commonly carry three distinct solenoid types, and testing the wrong one wastes time: Users looking for related component recommendations can explore our jbl partybox club 120 vs sony srs xv500 breakdown. For complementary hardware performance, examine our breakdown on our comprehensive riding lawn mower guide.
- Starter solenoid — mounted near the battery or on the starter motor; controls engine cranking. This is the component covered in this guide and the most common failure point.
- PTO solenoid (blade engagement solenoid) — mounted under the deck or on the PTO clutch assembly; controls blade engagement. A failed PTO solenoid causes the blades to stop engaging, not a no-crank condition.
- Fuel shut-off solenoid — mounted on the carburetor; opens the fuel circuit when the key is on and closes it when the key is off to prevent diesel run-on. A failed fuel solenoid causes a no-start or sudden stall, but the engine still cranks normally.
Callout — Walk-behind mowers: Standard walk-behind push mowers do not have starter solenoids. Their electric-start systems connect the battery directly to the starter motor through a key switch without a relay solenoid in the circuit. If you own a walk-behind and suspect an electrical no-start, test the battery voltage and the key switch first. Users looking for related component recommendations can explore our jbl partybox club 120 vs sony srs xv500 breakdown.
Solenoid location on a riding mower: The starter solenoid is typically a small cylindrical or rectangular component mounted on the firewall near the battery, on the frame near the starter motor, or directly on top of the starter motor itself. It has two large-gauge wire terminals (battery and starter connections) and two smaller terminals (coil/ignition circuit).
3 Symptoms That Point to a Bad Starter Solenoid
Confirm at least one of these symptoms before testing. Each maps to a specific failure mode inside the solenoid. Before finalizing equipment decisions, refer to our comprehensive z890 vs x870e motherboard comparison.
- Single loud click when you turn the key, engine does not crank. The coil is energizing and pulling the plunger, but the internal contacts are burned or pitted and fail to pass current to the starter motor. This is the most common solenoid failure signature.
- No sound at all when you turn the key. Either the coil winding is open (broken internally), the ignition circuit feeding the small terminals is broken, or the safety interlock (seat switch, brake switch) is preventing activation. Test the battery and interlock system first, then move to the solenoid coil test.
- Intermittent starting — works sometimes, fails other times without pattern. Internal contacts are degraded but not fully failed. The solenoid may pass a static multimeter test and still fail under the load of actual cranking current. A bypass test is more diagnostic than a multimeter for intermittent faults of this type.
Rule out the battery first: A weak battery produces identical symptoms to a bad solenoid. Before testing the solenoid, measure battery voltage with a multimeter — a fully charged 12 V lawn mower battery reads 12.6 V or higher at rest. A reading below 12.0 V indicates a discharged or failing battery that must be addressed before any solenoid diagnosis is meaningful.
Tools and Safety Precautions Before You Start
Tools required
- Digital multimeter (continuity mode and Ohms/resistance mode)
- Insulated jumper wire or heavy-gauge insulated screwdriver (for bypass test)
- Safety glasses
- Wrench or socket set to access solenoid terminals if needed
- Wire brush or fine sandpaper (to clean corroded terminals before testing)
Non-negotiable safety steps
- Park on a flat surface. Engage the parking brake fully.
- Set the mower to neutral. The safety interlock system on most riding mowers prevents the starter from operating unless the blade engagement is off and the operator is seated — confirm PTO/blades are disengaged.
- Disconnect the spark plug wire(s) before performing the bypass test. This prevents the engine from accidentally firing while you are working near the solenoid terminals. For the multimeter test with the battery disconnected, this step is still recommended as best practice.
- Do not bypass the solenoid with the mower in gear. Unexpected engine cranking with a drive gear engaged can cause the mower to lurch.
- Wear safety glasses. A faulty solenoid can arc when shorted; terminal connections carry enough current to cause a flash.
Method 1: How to Test a Lawn Mower Solenoid with a Multimeter
The multimeter test has two distinct parts: testing the solenoid coil (small terminals) and testing the solenoid contacts (large terminals). Both must pass for the solenoid to be fully functional.
Part A — Test the solenoid coil winding (small terminals)
The coil is the electromagnet that pulls the plunger. A broken coil means the solenoid can never engage, regardless of battery condition. For broader ecosystem context, read through our operational guide on marshall stanmore iii vs harman kardon onyx studio 8.
- Disconnect the negative (black) battery cable to make the circuit dead before probing.
- Locate the two small terminals on the solenoid. One connects to the ignition switch output; the other connects to ground or the safety interlock circuit. Disconnect both wires from these terminals.
- Set the multimeter to Ohms (Ω) / resistance mode.
- Touch one probe to each small terminal.
- Read the result:
- Pass: 0.4 Ω to 10 Ω. The coil winding is intact. The exact value varies by solenoid model and manufacturer specification, but most small-engine starter solenoids fall within this range.
- Fail — OL / infinite / open circuit: The coil winding is broken internally. Replace the solenoid.
- Fail — 0 Ω or near-zero: A shorted coil. Replace the solenoid.
Part B — Test the solenoid contacts (large terminals, de-energized state)
The large terminals carry the full cranking current from the battery to the starter motor. At rest (de-energized), they must show an open circuit. Before finalizing equipment decisions, refer to our comprehensive z890 vs x870e motherboard comparison.
- Keep the battery disconnected. Leave the large battery and starter wires connected to the solenoid, or remove them — either works for this static test.
- Set the multimeter to continuity mode (or resistance mode).
- Probe the two large terminals.
- Read the result:
- Pass (de-energized): Open circuit / OL / infinite resistance. The contacts are correctly open when the solenoid is not activated.
- Fail: Continuity or low resistance when de-energized means the contacts are welded closed internally — the solenoid is stuck on and must be replaced.
Part C — Test the solenoid contacts (large terminals, energized state)
This confirms the contacts actually close when the coil is activated. This step requires reconnecting the battery carefully.
- Reconnect the battery. Keep spark plug wires disconnected.
- Set the multimeter to continuity or DC voltage mode.
- Have a helper turn the ignition key to the start position (or momentarily apply 12 V directly to the small coil terminals using a jumper wire from the battery positive, with ground connected to the solenoid body).
- While the solenoid is energized, probe the two large terminals.
- Pass: Near-zero resistance / continuity confirmed. The contacts close correctly when the coil is energized.
- Fail: Still open circuit when energized. The plunger or internal contacts are mechanically or electrically failed. Replace the solenoid.
| Test | Terminals | State | Pass Reading | Fail Reading |
|---|---|---|---|---|
| Coil winding resistance | Small terminals | De-energized, battery off | 0.4 – 10 Ω | OL (open) or 0 Ω (shorted) |
| Contact continuity — at rest | Large terminals | De-energized | Open circuit / OL | Continuity / low resistance |
| Contact continuity — activated | Large terminals | Energized (key in start) | Near 0 Ω / continuity | Open circuit / OL |
Method 2: How to Bypass a Lawn Mower Solenoid (Jump Test)
The bypass test is the most definitive field test for a solenoid. It eliminates the solenoid from the circuit entirely and tells you in one step whether the problem is the solenoid or something downstream (starter motor) or upstream (battery, ignition switch, safety interlock). For broader ecosystem context, read through our operational guide on marshall stanmore iii vs harman kardon onyx studio 8.
Use this method when: the multimeter result is ambiguous, you do not have a multimeter, or the solenoid is suspected of failing only under load (intermittent fault).
Step-by-step bypass procedure
- Confirm safety conditions: Parking brake engaged, PTO disengaged, mower in neutral, spark plug wire disconnected, safety glasses on.
- Locate the two large terminals on the solenoid. One connects via heavy-gauge wire to the battery positive; the other connects to the starter motor.
- Using a heavy-gauge insulated jumper wire (or the blade of a large insulated-handle screwdriver), momentarily bridge the two large terminals — touch both posts simultaneously for one to two seconds. Do not hold contact for longer than necessary.
- Read the result:
- Engine cranks: Current flows through the jumper directly to the starter motor and the engine turns over. The starter motor and battery are functional. The solenoid is the failed component — replace it.
- Nothing happens / no crank: The solenoid is not the problem. The fault lies with the starter motor (seized or burned), the battery (insufficient voltage or current under load), or the wiring between the solenoid and starter. Test the starter motor and battery next.
- Sparks but no crank: Current is reaching the starter terminal but the starter motor is not turning — internal starter motor failure. The solenoid is likely fine.
Important: Bypassing the solenoid completely removes all safety interlock protection. Perform this test only in a controlled environment with no bystanders near the mower. The engine can crank and potentially start during this test if the spark plug wire is not disconnected. For troubleshooting and reliability insights, consult our in-depth dyson v8 cyclone vs bissell featherweight stick report.
Reading Your Results: Replace the Solenoid or Look Elsewhere?
Use the decision matrix below to map your test results to a clear next action.
| Multimeter Result | Bypass Test Result | Verdict | Next Action |
|---|---|---|---|
| Coil open (OL) or shorted (0 Ω) | Any | Solenoid failed | Replace starter solenoid |
| Contacts don’t close when energized | Engine cranks on bypass | Solenoid failed (contact fault) | Replace starter solenoid |
| All tests pass | Engine cranks on bypass | Solenoid failed under load (intermittent) | Replace starter solenoid |
| All tests pass | No crank on bypass | Solenoid is good — fault elsewhere | Test starter motor, battery load capacity, and wiring |
| Contacts welded closed (continuity at rest) | N/A | Solenoid failed (stuck closed) | Replace starter solenoid — do not operate mower |
When the solenoid tests good but the mower still won’t start
If the solenoid passes all tests and the bypass produces no crank, investigate these components in order: Readers comparing setup options can review our technical analysis on bissell crosswave hydrosteam vs shark stainforce.
- Battery: A battery can read 12.6 V at rest and still fail under the cranking load of 150–300 A. Load-test the battery with a dedicated battery load tester or have it tested at an auto parts store.
- Safety interlock system: The seat switch, brake pedal switch, and PTO switch form a series circuit that must all be closed for the starter circuit to complete. A failed seat switch is a frequent no-start cause that mimics a solenoid fault on the initial diagnosis.
- Ignition switch: Test voltage at the small solenoid terminal with the key in the start position. You should read battery voltage (12 V). No voltage at the small terminal means the ignition switch or interlock circuit is open.
- Starter motor: If the bypass delivers current and nothing happens, the starter motor is the fault — either seized, brushes worn, or armature burned.
Solenoid replacement cost
A replacement riding mower starter solenoid typically costs $8 to $30 for the part alone, depending on the mower brand and whether you purchase an OEM or aftermarket unit. Labor at a small-engine repair shop adds $30–$75 per hour, though solenoid replacement is a 15–30 minute job most owners handle themselves. Confirm the replacement part number against your mower’s model and engine spec before purchasing.
Buyer FAQs: How To Test A Solenoid On A Lawn Mower Solved
Can a solenoid pass the multimeter test but still be faulty?
Yes. A solenoid can show correct coil resistance and correct contact behavior under the low-current conditions of a multimeter test, then fail when subjected to the full 150–300 A cranking load. This is called an intermittent or load-dependent failure. If the multimeter test passes but the mower still won’t crank, always perform the bypass test as a secondary confirmation, since it applies actual operating current through the starter motor circuit.
What is the difference between one click and no sound when I turn the key?
One loud click indicates the solenoid coil is energizing and pulling the plunger, but the internal contacts are burned or corroded and failing to pass cranking current to the starter motor. No sound at all indicates the coil is not energizing — either the coil winding is open, the ignition switch is not delivering voltage to the small terminal, or a safety interlock switch (seat, brake, PTO) is open and blocking the circuit. These two symptoms point to different failure locations and should be diagnosed separately.
Do walk-behind lawn mowers have a starter solenoid?
Standard walk-behind mowers with electric start do not use a starter solenoid. Their ignition key or start button connects the battery directly to the starter motor through the switch contacts. If a walk-behind won’t crank, test the battery voltage, the key switch for continuity, and the starter motor directly. No solenoid test applies to these machines.
How do I tell the starter solenoid apart from the PTO solenoid on my riding mower?
The starter solenoid is located near the battery or starter motor, connected by heavy-gauge battery cable on its large terminals, and activates only when the ignition key is turned to the start position. The PTO solenoid is located at the blade clutch assembly under the mower deck or on the PTO shaft, connected by lighter-gauge wires, and activates when you engage the blade lever or switch. A failed starter solenoid causes a no-crank condition. A failed PTO solenoid causes blades to fail to engage while the engine runs normally.
