How to Test a Lawn Mower Battery: A Direct Answer
To test a lawn mower battery, start with a visual inspection for damage or corrosion. Then, use a digital multimeter to measure its resting voltage. A fully charged 12-volt battery should read about 12.6 volts or higher. For a more accurate health assessment, perform a load test by monitoring the voltage while cranking the engine; a drop below roughly 10 volts indicates a weak battery. Always wear safety gear and disconnect the negative terminal first.
Understanding Your Lawn Mower Battery & Why Testing Matters

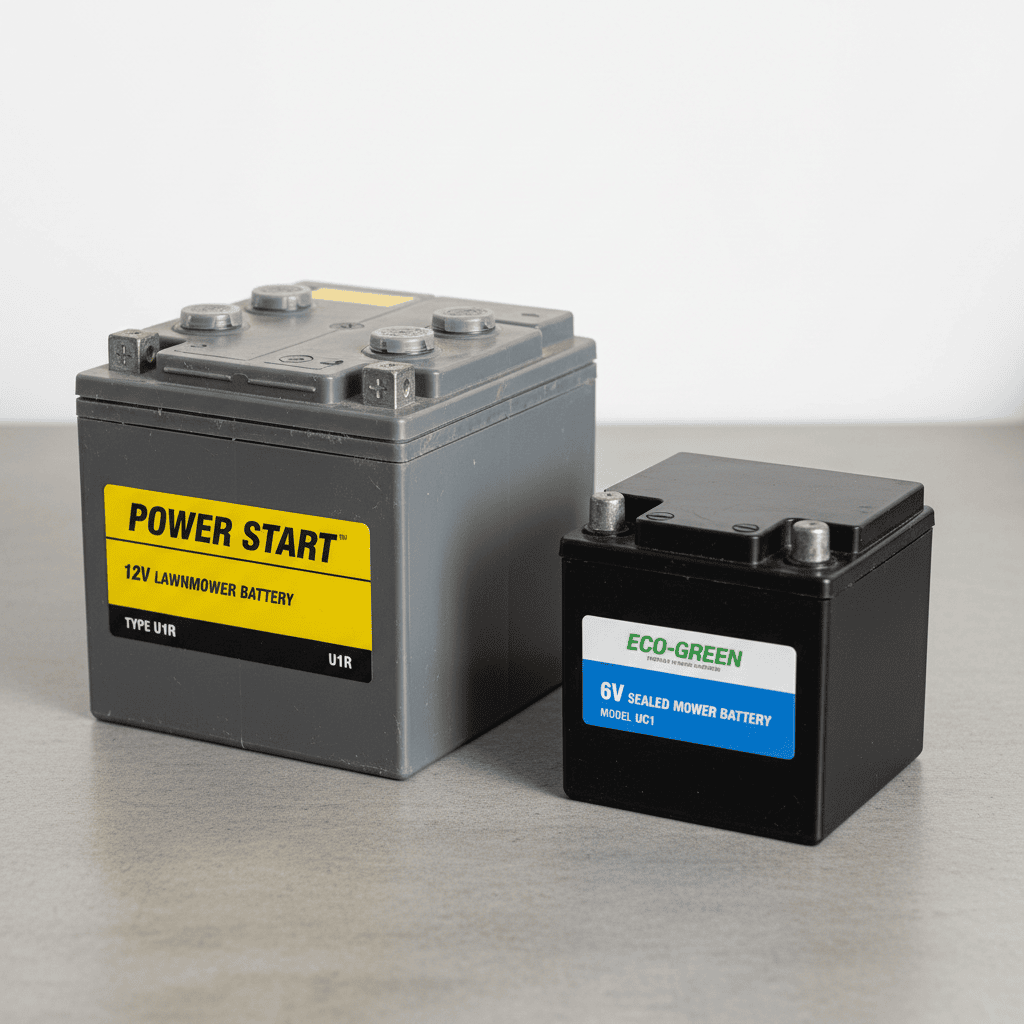

Before you grab your tools, it’s crucial to understand what type of battery you have and what the tests will tell you. Most modern riding mowers and zero-turns use a standard 12-volt lead-acid battery, while some older or smaller push mowers may use a 6-volt battery. Batteries are also categorized as flooded (serviceable), which have removable caps, or maintenance-free (sealed).
Testing serves two primary purposes: checking the charge level (how much energy is stored) and assessing the overall health (the battery’s ability to hold and deliver power). A simple voltage reading checks the charge, but a load test reveals the battery’s true condition and its ability to perform under the strain of starting the engine.
Tools & Safety Precautions Before You Test
Gather the right equipment and prioritize safety to avoid injury from acid, sparks, or electrical shorts.
Required Tools
- Digital Multimeter or Voltmeter: The essential tool for measuring voltage.
- Battery Terminal Cleaner or Wire Brush: To remove corrosion for accurate readings.
- Adjustable Wrench or Socket Set: To disconnect and reconnect battery terminals.
- Optional: Dedicated Battery Load Tester or Hydrometer: For more advanced testing on flooded batteries.
Critical Safety Precautions
- Wear Protective Gear: Always use safety glasses and gloves to protect against acid splashes.
- Work in a Ventilated Area: Charging and testing batteries can release explosive hydrogen gas. Never test near open flames or sparks.
- Disconnect Correctly: Always disconnect the negative (-) terminal first to prevent short circuits. Reconnect it last.
- Handle with Care: Lead-acid batteries contain corrosive sulfuric acid. If it contacts skin, flush with plenty of water immediately.
Step-by-Step: Testing the Battery with a Multimeter
This is the most common and quickest test to determine if a battery is charged.
- Prepare the Battery: Ensure the mower is off and all accessories (lights, PTO) are disengaged. For the most accurate “resting voltage,” the battery should sit unused for at least 30 minutes to a few hours.
- Set Your Multimeter: Turn the dial to measure DC Voltage (often marked with a V and straight lines). Select the 20V range for a 12V battery or the 10V range for a 6V battery.
- Connect the Probes: Touch the red (positive) probe to the battery’s positive (+) terminal and the black (negative) probe to the negative (-) terminal. Ensure a firm connection.
- Read the Voltage: The multimeter will display the battery’s open-circuit voltage.
Interpreting the Voltage Reading
| Battery Voltage (12V System) | Approximate Charge Level | Recommended Action |
|---|---|---|
| 12.6V or higher | 100% (Fully Charged) | Battery is charged. Proceed to a load test for health check. |
| 12.4V | ~75% | Needs a charge. Use a compatible charger. |
| 12.0V or lower | Significantly Discharged (0-50%) | Requires immediate charging. May indicate a problem if it won’t hold a charge. |
For a 6-volt battery, a fully charged reading is approximately 6.3 volts. If the voltage is low, fully charge the battery with a compatible charger, wait a few hours, and retest.
How to Perform a Load Test on a Lawn Mower Battery
A load test simulates the heavy demand of starting the engine and is the best way to determine if a battery is truly healthy.
Method 1: Using a Multimeter While Cranking
- Set up your multimeter to read DC voltage as described above.
- Have a helper turn the key to the “start” position to crank the engine (but not start it), or do it yourself while watching the meter.
- Observe the voltage drop. A healthy 12V battery should not drop below 9.6 to 10 volts during cranking.
- If the voltage collapses below 10V, the battery is weak and likely needs replacement.
Method 2: Using a Dedicated Load Tester
A battery load tester applies a controlled load and gives a direct “pass/fail” or “good/weak/recharge” indication. Follow the specific instructions for your device, but the principle is the same: it measures the battery’s ability to maintain voltage under load.
Additional Checks: Electrolyte, Corrosion & Terminal Condition
Physical inspection can reveal issues that affect performance and test results.
- Clean Terminals: Corrosion (white, blue, or green powder) creates resistance. Clean terminals and cable ends with a wire brush or terminal cleaner until shiny.
- Check for Damage: Look for cracks, bulges, or leaks in the battery case. Any physical damage means the battery should be replaced.
- Electrolyte Level (Flooded Batteries Only): If the battery has removable caps, carefully remove them. The electrolyte (water and acid mixture) should cover the internal plates. If low, add only distilled water. Never add acid.
- Specific Gravity Test (Flooded Batteries Only): A hydrometer measures the density of the electrolyte, which indicates charge level in each cell. A fully charged cell reads about 1.265-1.285. Significant variation between cells indicates a failing battery.
Interpreting Results: When to Charge, Replace, or Get a Pro
Combine your test results to make a decision.
- Needs Charging: If the resting voltage is low (e.g., 12.0V-12.4V) but the battery passes a load test after charging, it was simply discharged. Use a smart charger to fully recharge it.
- Needs Replacement: If the battery fails the load test (voltage drops below ~10V under load), cannot hold a charge after being fully charged, shows physical damage, or has a very low specific gravity in one or more cells, it should be replaced.
- Consider Professional Help: If you’re unsure about the results, suspect a problem with the mower’s charging system (alternator/stator), or if the battery is new and failing prematurely, consult a professional mechanic or battery specialist.
Frequently Asked Questions
How often should I test my lawn mower battery?
It’s good practice to test the battery at the beginning of the mowing season and again before winter storage. Regular testing helps you catch a failing battery before it leaves you stranded.
Can I test a lawn mower battery without a multimeter?
While a multimeter is the most accurate tool, you can perform a basic visual check for corrosion and damage. However, without measuring voltage or performing a load test, you cannot reliably determine the battery’s charge or health.
What does it mean if my lawn mower battery reads 12 volts but the engine won’t crank?
A reading of 12.0V indicates a deeply discharged battery. However, if the battery reads 12.4V or higher and still won’t crank, the issue might be a bad connection (clean the terminals), a faulty starter motor, solenoid, or ignition switch, not necessarily the battery itself.
Is it safe to test a battery that looks swollen or cracked?
No. Do not attempt to charge, test, or handle a battery with a cracked, bulging, or leaking case. It is a severe safety hazard and must be replaced immediately. Take it to a recycling center or auto parts store for proper disposal.
