Quick Answer: What Does A Carburetor Look Like On A Lawn Mower?
A lawn mower carburetor is a small, typically metal or plastic component that sits between your mower’s air filter and engine block. It resembles a compact cylinder or rectangular box, usually measuring 1-3 inches in diameter or width. The carburetor has a distinctive appearance with fuel inlet and outlet hoses connected to its sides, an air intake port on top…
Pros
- Large-size design named in product title
- Sharpening and balancing functions listed
- Listed as a new upgraded version
Pros
- Adjustable 15-to-45-degree range in title
- Sharpening and balancing functions listed
Pros
- Sharpener and balancer functions in title
- 15-to-45-degree adjustable setting listed
- Built for lawn mower blade maintenance
Pros
- Includes replacement gaskets and a 98079-55846 spark plug
- Matches Honda HRR216 and HRS216 lawn mower models
- Designed around the 16100-Z8B-901 carburetor specification
Cons
- Restricted to select Honda GCV160 mower applications
- Installation requires basic mechanical tools and skills
Key External Components and Their Appearance
Understanding what you’re looking at helps with maintenance and troubleshooting. Here are the main visible parts of a lawn mower carburetor:
- Carburetor Body: The main housing, typically made of aluminum alloy or plastic, forming the core structure. It’s usually cylindrical or boxy with a metallic sheen.
- Fuel Inlet: A small port where the fuel line connects, usually on the side of the carburetor. It’s roughly the diameter of a pencil.
- Air Intake: The opening where the air filter attaches, typically the largest opening on the carburetor, often at the top.
- Adjustment Screws: Small brass or steel screws protruding from the carburetor body, usually 2-3 visible screws used to fine-tune the fuel-air mixture. These have slot heads for a flathead screwdriver.
- Float Bowl: A small chamber at the bottom of the carburetor (often visible as a bulge or protrusion), which stores fuel and maintains a consistent level for the engine.
- Throttle Lever: A lever or linkage attached to the carburetor’s side, connected to your mower’s throttle cable or control bar.
- Choke Lever: Another control lever, typically positioned near the throttle, used for cold starts.
How to Locate Your Lawn Mower’s Carburetor
Finding the carburetor on your specific mower is straightforward if you know where to look. For troubleshooting and reliability insights, consult our in-depth jbl partybox club 120 vs sony srs xv500 report. For complementary hardware performance, examine our breakdown on riding lawn mower.
On Most Gas-Powered Residential Mowers
- Position: The carburetor sits on top of or to the side of the engine, directly beneath or adjacent to the air filter housing.
- Access Point: You can typically access it by removing the air filter cover (usually held by a wing nut or clips), which reveals the carburetor underneath.
- Fuel Line: Follow the fuel line from your mower’s gas tank—it leads directly to the carburetor’s fuel inlet port.
- Visual Landmark: If you can see the engine block, the carburetor is the smaller component with hoses attached, positioned where the air intake meets the engine.
Steps to Safely Access Your Carburetor
- Turn off the engine and let it cool completely.
- Disconnect the spark plug wire to prevent accidental starting.
- Remove the air filter cover or shroud (usually 1-2 bolts or a wing nut).
- The carburetor should now be visible, often with the air filter element removed.
- Note the fuel line and throttle cable positions before attempting any work.
What a Dirty or Problematic Carburetor Looks Like
Visual inspection can reveal carburetor issues. Here’s what to look for: For troubleshooting and reliability insights, consult our in-depth jbl partybox club 120 vs sony srs xv500 report.
Signs of Carburetor Problems
- Varnish Buildup: A brown, sticky, or crusty residue on the carburetor body or inside visible ports. This indicates old fuel has hardened inside the carburetor.
- Fuel Leaks: Visible fuel dripping from the float bowl drain screw or leaking from hose connections. Fresh fuel may be wet or oily on the carburetor surface.
- Discoloration: Dark or black staining on the carburetor body, especially around the adjustment screws, suggesting carbon buildup or rust.
- Corrosion: Green or white oxidation on aluminum components, or orange/brown rust on steel parts.
- Clogged Jets: You won’t see these directly, but if cleaning doesn’t help, internal blockages are likely present.
- Damaged Gaskets: Visible cracks, gaps, or deterioration where the carburetor connects to the engine or fuel lines.
Carburetor Variations by Mower Type
Different lawn mower designs feature slightly different carburetor appearances: Readers comparing setup options can review our technical analysis on z890 vs x870e motherboard.

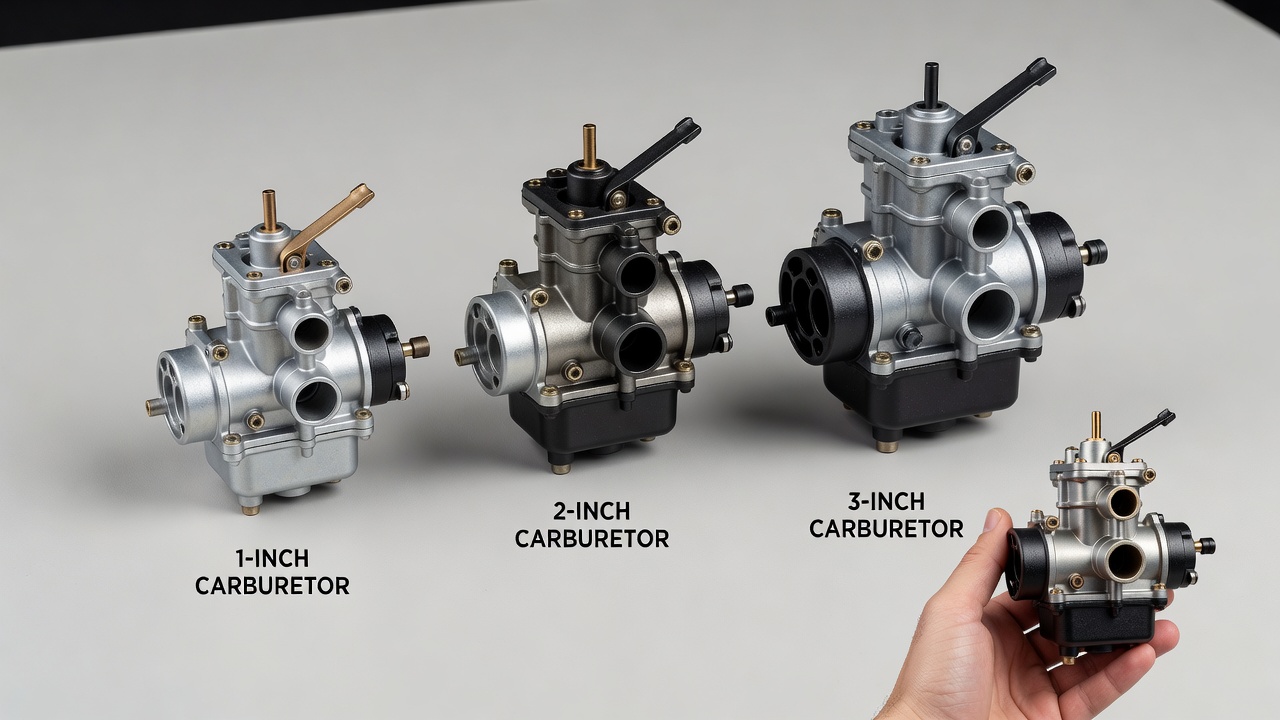

| Mower Type | Carburetor Appearance | Typical Location |
|---|---|---|
| Push Mowers (Small Engines) | Compact, often 1-2 inches, simple design with minimal external components | Top of engine, directly below air filter |
| Riding Mowers | Slightly larger (2-3 inches), more complex linkage and control connections | Side of engine, under engine cover or shroud |
| Rotary Mowers | Standard carburetor similar to push mowers, compact design | Top-mounted on small engine block |
| Zero-Turn Mowers | Larger displacement carburetors (2-4 inches) with multiple adjustment points | Engine compartment, accessible from side or top |
Understanding Carburetor Size and Complexity
Small Push Mower Carburetors: These are the simplest and most compact. They typically feature a single adjustment screw for the fuel mixture and minimal external parts. The float bowl is often a small, barely noticeable protrusion.
Larger Engine Carburetors: Riding mowers and commercial-grade equipment use larger, more complex carburetors with multiple adjustment screws, more substantial fuel bowls, and additional control linkages for better performance tuning. For complementary field maintenance guidelines, examine our breakdown of marshall stanmore iii vs harman kardon onyx studio 8.
Materials and Durability
Lawn mower carburetors are constructed from durable materials designed to withstand heat and fuel exposure: Readers comparing setup options can review our technical analysis on z890 vs x870e motherboard.
- Aluminum Alloy: Most carburetors use aluminum for the main body, offering lightweight construction and corrosion resistance. Aluminum carburetors typically have a silver or light gray appearance.
- Plastic Components: Modern carburetors often feature plastic floats and some housing parts to reduce weight and cost. These appear as lighter-colored or translucent sections.
- Brass and Steel: Adjustment screws and internal components are brass or stainless steel for durability and fuel resistance.
- Rubber and Gaskets: Black rubber gaskets seal connections between the carburetor and engine or fuel lines.
Common Maintenance and Inspection Points
When inspecting your carburetor, focus on these visual checkpoints:
- Fuel Line Connections: Check where the fuel line attaches to the inlet. Look for cracks, brittleness, or leaks.
- Adjustment Screws: Ensure they’re not corroded or stuck. If they’re difficult to turn, don’t force them.
- Float Bowl Drain: This small screw at the bottom collects sediment. If the float bowl is damaged or leaking, replacement is often necessary.
- Air Intake Seal: Inspect where the air filter connects. A loose seal can cause air leaks affecting engine performance.
- Visible Deposits: Any white, green, or brown crusty buildup indicates carburetor cleaning or replacement is needed.
When to Consider Carburetor Replacement vs. Cleaning
Cleaning is appropriate when: The carburetor appears visually intact with only minor varnish buildup or fuel residue. Simple cleaning with carburetor cleaner and a soft brush restores function. For complementary field maintenance guidelines, examine our breakdown of marshall stanmore iii vs harman kardon onyx studio 8.
Replacement is necessary when: You observe cracks in the body, severe corrosion, a damaged float bowl, or hardened varnish that won’t dissolve with standard cleaning. Modern replacement carburetors for small lawn mowers cost $30-$150, making replacement often more practical than deep restoration.
Frequently Asked Questions About What Does A Carburetor Look Like On A Lawn Mower
Q: How do I know if my lawn mower carburetor is bad without opening it up?
A: Look for external signs like fuel leaks from the float bowl, visible varnish or brown crusty deposits, corrosion or discoloration, or fuel line cracks. If the engine won’t start, runs rough, or stalls frequently after sitting, carburetor issues are likely. You can also check if the adjustment screws respond to small turns—stuck or corroded screws indicate internal problems.
Q: What’s the difference between a metal and plastic carburetor on a lawn mower?
A: Metal (aluminum) carburetors are more common on traditional and commercial-grade mowers, offering durability and longevity. Plastic carburetors appear on newer budget-friendly mowers, reducing weight and cost. Both function identically, though plastic versions may be slightly less durable in extreme heat. Visually, plastic carburetors appear lighter in color and may have visible seams or molding marks. To evaluate matched hardware tolerances, consult our detailed overview of dyson v8 cyclone vs bissell featherweight stick.
Q: Can I clean my lawn mower carburetor myself, or do I need a professional?
A: Simple external cleaning with carburetor cleaner and a brush is a DIY task. However, if you need to disassemble the carburetor for internal cleaning, professional service is recommended unless you’re mechanically experienced. Reassembly requires careful attention to tiny jets and gaskets. For most homeowners, a replacement carburetor ($50-$150 installed) is more cost-effective than professional cleaning ($100-$200).
Q: Why does my carburetor look wet or oily, and is that normal?
A: Light moisture or oil film on the carburetor is normal from fuel residue and engine operation. However, visible fuel dripping or pooling indicates a leak, often from the float bowl drain or fuel inlet. A small leak requires immediate attention to prevent fuel from entering the crankcase and diluting oil. Excessive wetness warrants inspection and likely replacement of gaskets or the entire carburetor. When planning workspace deployment, consider the engineering criteria outlined in our bissell crosswave hydrosteam vs shark stainforce guide.
Wrap-Up: Which Model Delivers True Value?
Understanding what your lawn mower’s carburetor looks like empowers you to perform basic maintenance, identify problems early, and communicate effectively with repair technicians. A healthy carburetor is compact, relatively clean, and free from leaks or visible corrosion. Regular seasonal maintenance, including fuel stabilizer use during off-season storage, prevents varnish buildup and extends carburetor life. When in doubt about internal issues, visual inspection combined with engine performance observation provides enough information to decide between cleaning and replacement.
