What Oil Does a Craftsman Lawn Mower Take? (By Engine, Model & Temperature)

Quick Answer: What Oil Does a Craftsman Lawn Mower Take?

Most Craftsman lawn mowers take SAE 30 motor oil for consistent warm-weather use (above 40°F / 4°C) or 10W-30 for variable or cooler temperatures. Use a high-quality detergent oil with an API service rating of SF or higher. Full-synthetic 5W-30 is acceptable in most modern Craftsman engines and improves cold-start performance without harming internal components.

Craftsman is a brand, not an engine manufacturer. The oil specification is set by whoever made the engine inside your mower — most commonly Briggs & Stratton, Kohler, or Honda. Check your engine’s model label or owner’s manual before adding oil.

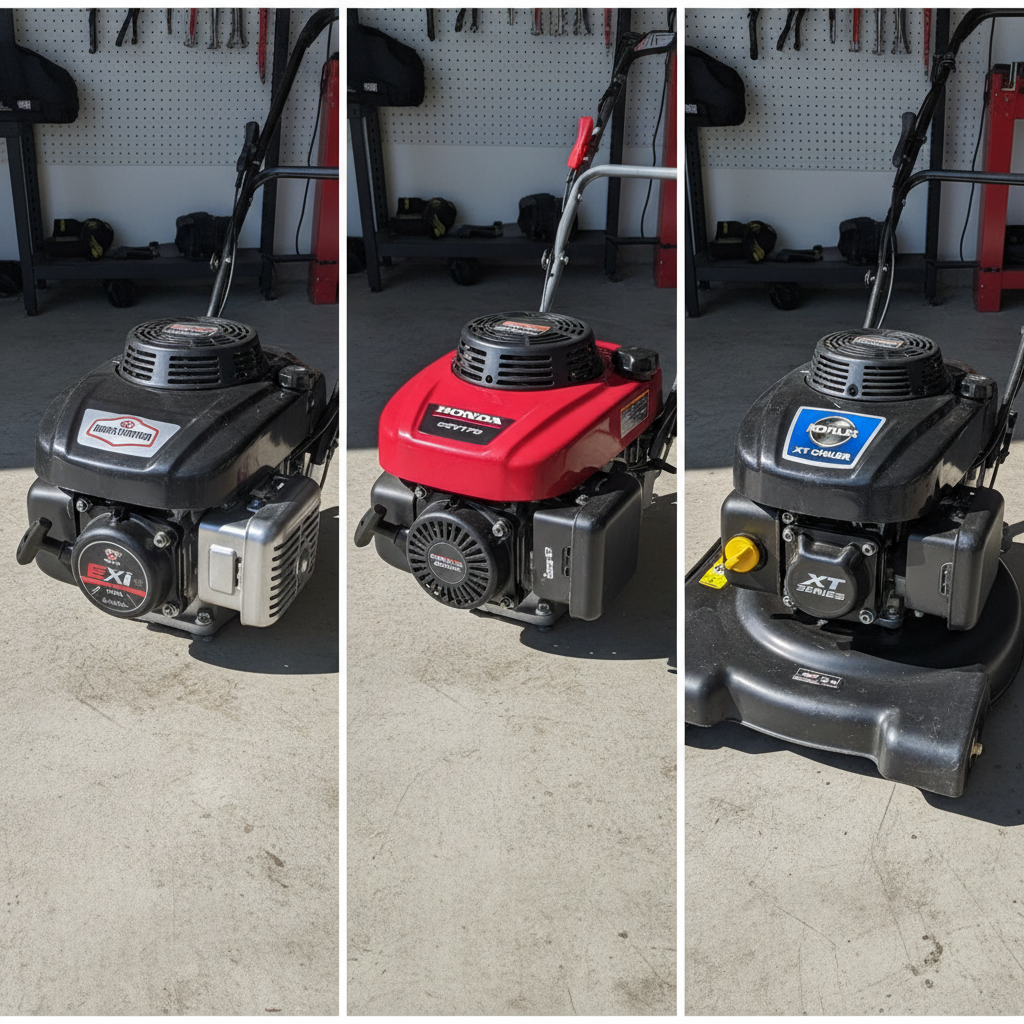

Oil Type by Engine Manufacturer (Briggs & Stratton, Kohler, Honda)

Because Craftsman does not manufacture its own engines, the authoritative oil recommendation comes from the OEM engine brand. Here is what each manufacturer publishes:

Briggs & Stratton Engines

Briggs & Stratton is the most common engine supplier for Craftsman mowers. Their published oil specifications are:

• SAE 30 — recommended for temperatures consistently above 40°F (4°C)
• 10W-30 — recommended for varying temperatures, especially 0°F to 100°F (-18°C to 38°C)
• Synthetic 5W-30 — accepted in all temperatures; Briggs & Stratton explicitly approves full-synthetic in modern engines
• SAE 5W-30 — suitable for temperatures below 40°F (4°C)
• API service classification: SJ or higher

Briggs & Stratton publishes its own branded small-engine oil, but any API-rated detergent oil meeting these grades is acceptable.

Kohler Engines

Kohler engines appear in many Craftsman riding mowers. Kohler’s published oil recommendations:

• SAE 10W-30 — the primary all-season recommendation for most Kohler Command and Courage series engines
• SAE 30 — acceptable for sustained operation above 32°F (0°C)
• Synthetic 5W-30 — approved for all Kohler engine families; Kohler confirms full-synthetic does not void warranty
• API service classification: SH or higher

Honda Engines

Some Craftsman walk-behind mowers have used Honda GCV-series engines. Honda’s published recommendation:

• SAE 10W-30 — Honda’s primary recommendation for GCV160 and GCV190 small engines across most temperature ranges
• SAE 30 — acceptable above 50°F (10°C)
• Synthetic 5W-30 — acceptable; Honda approves synthetic use in GCV engines after initial break-in
• API service classification: SJ or higher

How to Identify Your Engine Brand

Look for a metal or plastic label on the engine shroud (the housing around the top of the engine). It will display the brand name, model number, and type number. Record these before purchasing oil — the model number also unlocks the full owner’s manual PDF from the manufacturer’s website.

Oil Viscosity by Operating Temperature

Viscosity grade is the single most temperature-sensitive variable. Using SAE 30 in freezing conditions can starve the engine of oil on startup; using thin-grade oil in extreme heat accelerates wear. Use this reference chart:

Practical takeaway: If you mow in a climate with significant temperature swings between spring and summer, 10W-30 or synthetic 5W-30 eliminates guesswork. SAE 30 is ideal only if your mowing season is consistently warm.

Push Mower vs. Riding Mower: Oil Type and Capacity

The oil type rules above apply to both mower categories, but capacity and access points differ significantly.

Craftsman Push Mower (Walk-Behind)

• Typical oil capacity: 15 to 18 oz (approximately 0.47 to 0.53 quarts)
• Oil fill port is located on the top or side of the engine, usually marked with an oil-can icon
• A dipstick is integrated into the fill cap — wipe, reinsert without threading, then read the level
• Most push mower engines are single-cylinder with no oil filter; oil is changed by draining through the fill neck or a low-mounted drain plug

Craftsman Riding Mower and Zero-Turn

• Typical oil capacity: 48 to 64 oz (1.5 to 2 quarts) for single-cylinder riding engines; up to 2 quarts for twin-cylinder V-twin Kohler or Briggs engines
• Riding mowers generally include an oil filter — replace the filter at every oil change
• The drain plug is accessible from beneath the engine deck; use a drain pan with at least 2-quart capacity
• Zero-turn models with V-twin engines typically require 2 quarts of 10W-30 or synthetic 5W-30

Always verify capacity for your specific model. The owner’s manual (downloadable by entering your model number at Craftsman.com or the OEM engine manufacturer’s site) lists the exact fill quantity. Overfilling by even a few ounces causes foaming and oil blowback through the breather tube.

Conventional vs. Synthetic Oil: What Craftsman Engines Accept

Full-Synthetic Compatibility

Briggs & Stratton, Kohler, and Honda all confirm that full-synthetic motor oil is acceptable in their modern small engines, including those used in current Craftsman mowers. Synthetic does not void the warranty when the correct viscosity grade is used.

Advantages of Synthetic in Small Engines

• Better cold-start protection — oil reaches critical components faster at low temperatures
• Greater thermal stability — resists breakdown in sustained high-load mowing (hills, thick grass)
• Extended oil change intervals — some manufacturers allow up to 100 hours between changes with synthetic vs. 50 hours for conventional

When Conventional Oil Is Sufficient

• Older Craftsman engines (pre-2000) that were designed before synthetic was mainstream — check the manual for any restriction
• Engines already past their expected service life — synthetic will not reverse existing wear
• Budget-sensitive maintenance on low-use mowers where a 50-hour change interval is never reached in a season anyway

Do Not Mix Viscosity Grades

Mixing SAE 30 with 10W-30 mid-season is not harmful if you are topping off temporarily, but running a mixed blend long-term introduces unpredictable viscosity behavior. Drain and refill with one consistent grade at each oil change.

Two-Stroke vs. Four-Stroke Craftsman Engines: How to Tell the Difference

The vast majority of Craftsman lawn mowers sold since the mid-1990s use four-stroke (4-cycle) engines that take straight motor oil in a separate reservoir. However, some older Craftsman walk-behind models and specialty handheld equipment use two-stroke (2-cycle) engines that require oil pre-mixed into the gasoline.

How to Identify Your Engine Type

• 4-stroke: Has a separate oil fill cap and dipstick; you add straight gasoline to the fuel tank and straight oil to the oil port — they never mix
• 2-stroke: Has only one fuel port; there is no separate oil reservoir; the engine label or owner’s manual will specify a gas-to-oil mix ratio
• If you see text like “50:1” or “32:1” on the engine label or equipment body, it is a 2-stroke

Two-Stroke Mix Ratio

If your Craftsman mower is a 2-stroke (rare for walk-behind mowers, more common in older string trimmers bundled with Craftsman kits), the typical mix ratio is 50:1 (2.6 oz of 2-stroke oil per 1 gallon of gasoline) unless the engine label specifies otherwise. Use only oil labeled for 2-stroke / 2-cycle air-cooled engines.

Critical warning: Putting straight gasoline — with no oil mixed in — into a 2-stroke engine will seize the engine within minutes. Putting 2-stroke pre-mix into a 4-stroke engine’s fuel tank will foul the engine and produce excessive smoke. Confirm your engine type before fueling.

How to Check and Change the Oil in a Craftsman Lawn Mower

Checking the Oil Level

1. Park the mower on a level surface and let the engine cool for at least 5 minutes after use
2. Locate the oil fill cap — on push mowers it is typically on the engine top or side; on riding mowers it is near the engine front
3. Remove the cap and wipe the dipstick clean with a lint-free cloth
4. Reinsert the dipstick fully without threading it
5. Remove it again and read the oil level — it should fall between the MIN and MAX (or ADD and FULL) marks
6. If below MIN, add the correct oil in small increments, re-checking after each addition

Changing the Oil

1. Run the engine for 2 to 3 minutes to warm the oil — warm oil flows and drains faster than cold oil
2. Disconnect the spark plug wire for safety
3. Place a drain pan beneath the engine
4. Remove the drain plug (push mowers) or open the drain valve (riding mowers) and allow oil to drain fully — typically 3 to 5 minutes
5. On riding mowers: remove and discard the old oil filter; apply a thin film of fresh oil to the new filter’s gasket before threading it on
6. Reinstall and torque the drain plug (typically 14 ft-lbs for most small engines — confirm in your manual)
7. Refill to the correct capacity with fresh oil of the appropriate grade
8. Check the dipstick, reconnect the spark plug wire, and run the engine for 30 seconds; recheck for leaks

Oil Change Interval

• New engines: Change after the first 5 hours of operation to flush break-in metal particles
• Conventional oil: Every 50 hours of operation or once per mowing season, whichever comes first
• Synthetic oil: Every 100 hours or once per season — confirm with your OEM manual, as some manufacturers still recommend annual changes regardless of hours

Common Oil Mistakes That Damage a Craftsman Mower Engine

Overfilling the Oil

Filling beyond the MAX dipstick mark forces oil into the crankcase breather system. Symptoms include white or blue smoke from the exhaust, oil leaking from the air filter, and rough running. If you overfill, drain the excess before starting the engine.

Using Car Motor Oil with Heavy Additives

High-mileage car oils and some European-specification oils contain friction modifiers and viscosity improvers formulated for automotive engines running at much higher sustained RPMs. These additive packages can cause clutch slip in engines with wet clutches and deposit buildup in small air-cooled engines. Use oil specifically rated for small engines (API SF–SJ or higher) or a general-purpose motor oil without high-mileage additive packages.

Skipping Oil Changes

Small air-cooled engines run hotter than automotive engines and contaminate oil faster. Oil that has turned black and gritty accelerates bearing and cylinder wall wear. A single skipped season of oil changes is enough to shorten engine life significantly in a frequently used mower.

Running the Engine Low on Oil

Many Craftsman push mower engines lack a low-oil shutdown sensor — the engine will run until bearings seize. Check the dipstick at the start of each mowing session. Riding mowers from roughly 2010 onward typically include a low-oil warning or auto-shutoff, but do not rely on it as a substitute for routine checks.

Adding 2-Stroke Oil to a 4-Stroke Engine (or Vice Versa)

2-stroke oil is formulated to burn with gasoline. Put in a 4-stroke crankcase, it does not provide the same film strength as 4-stroke motor oil and burns off unevenly. The result is inadequate lubrication and excessive deposits. Always confirm your engine type before adding any oil.

Frequently Asked Questions

Can I use 10W-30 instead of SAE 30 in my Craftsman mower?

Yes. Briggs & Stratton, Kohler, and Honda all approve 10W-30 as a direct substitute for SAE 30 in warm conditions and as the preferred grade for variable-temperature climates. 10W-30 provides slightly better cold-start protection without sacrificing high-temperature performance.

How much oil does a Craftsman lawn mower take?

Walk-behind push mowers typically take 15 to 18 oz (about 0.5 quarts). Riding mowers with single-cylinder engines typically take 48 oz (1.5 quarts); V-twin riding and zero-turn models typically take 64 oz (2 quarts). Always confirm the exact capacity in your model’s owner’s manual — overfilling by even a few ounces causes engine damage.

Can I use synthetic oil in a Craftsman lawn mower?

Yes. Full-synthetic 5W-30 or 10W-30 is approved by Briggs & Stratton, Kohler, and Honda for use in modern Craftsman mower engines. Synthetic improves cold-start protection and thermal stability. It does not void the warranty when the correct viscosity is used. Older engines (pre-2000) should be verified against the original owner’s manual.

How do I know if my Craftsman mower takes mixed gas or straight oil?

If the engine has a separate oil fill cap with a dipstick and a separate fuel tank, it is a 4-stroke engine — add straight gasoline to the fuel tank and straight motor oil to the oil port. If there is only one fill point and the engine label or manual lists a ratio like “50:1,” it is a 2-stroke engine that requires oil pre-mixed into the gasoline. Most Craftsman walk-behind lawn mowers produced after 1995 are 4-stroke.
