What Oil Does a Craftsman Lawn Mower Use? (Type, Viscosity & Capacity Guide)

Quick Answer: What Oil Does a Craftsman Lawn Mower Use?

Craftsman does not manufacture its own engines. Every Craftsman mower is powered by a Briggs & Stratton or Kohler engine, and each manufacturer publishes its own oil specifications. The sections below segment those specs by mower type, engine brand, operating temperature, and oil chemistry so you apply exactly the right oil to your engine.

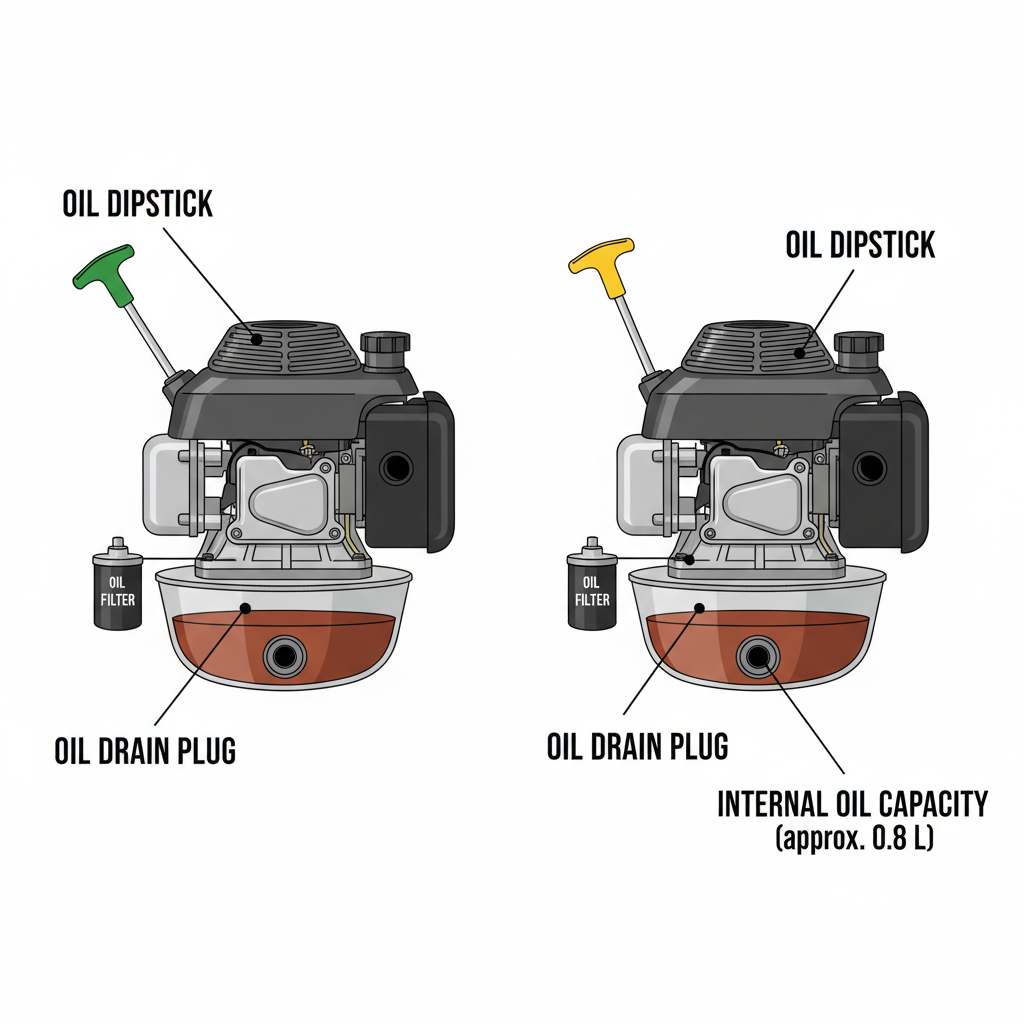

Walk-Behind vs. Riding Mower: Oil Differences That Matter

Mower category is the first variable to resolve because it determines both the oil capacity and, on larger engines, the oil filtration system.

Craftsman Walk-Behind Mowers

• Oil type: SAE 30 (warm weather) or SAE 10W-30 (all-season)
• Oil capacity: 15–18 oz (0.47–0.53 L) — varies by engine displacement (140cc vs. 163cc vs. 190cc)
• Oil filter: Not present on most walk-behind engines; oil is drained and replaced entirely each service interval
• API classification: SJ or higher (look for the API service donut on the bottle)

Walk-behind Craftsman mowers typically run a single-cylinder overhead-valve (OHV) engine in the 140cc–190cc range. These small-displacement engines have tight internal tolerances calibrated for non-detergent or low-detergent small-engine oil. SAE 30 remains the OEM default at ambient temperatures above 40°F because its viscosity provides adequate film strength at normal operating temperatures without thinning the cold-start cranking too severely in typical warm-season use.

Craftsman Riding Mowers

• Oil type: SAE 30 or SAE 10W-30; larger Kohler Command Pro engines may specify 10W-30 or 10W-40
• Oil capacity: 48–64 oz (1.4–1.9 L) — single-cylinder riding engines average ~48 oz; V-twin engines average 56–64 oz
• Oil filter: Present on most riding mower engines; replace the filter at every oil change
• API classification: SJ or higher

Riding Craftsman mowers typically use larger single-cylinder or V-twin engines (344cc–724cc) from Briggs & Stratton’s Professional Series or Kohler’s Courage/Command line. The larger displacement means more oil capacity and, critically, an oil filter that must be replaced — not just the oil. Skipping filter replacement on a riding mower leaves degraded oil residue that contaminates fresh oil immediately.

Briggs & Stratton vs. Kohler Engines: Oil Specs by Engine Brand

Because Craftsman sources engines from two manufacturers, the OEM oil specifications can differ. Identify your engine brand from the stamped label on the engine shroud before purchasing oil.

How to Identify Your Engine Brand

Look for a metal or plastic tag on the top or side of the engine housing. Briggs & Stratton labels display a model number beginning with a series like 09P000, 21R000, or 44Q000. Kohler labels show model designations like XT6, XT7, Courage SV, or Command CH. If the label is worn, enter your mower’s model number (found on the deck or frame) at Craftsman’s parts lookup or the respective engine manufacturer’s website.

Briggs & Stratton Engine Oil Specifications

Briggs & Stratton officially recommends its own branded SAE 30 Small Engine Oil or 10W-30 Small Engine Oil for standard OHV single-cylinder engines. The company also approves full synthetic SAE 5W-30 for cold-weather starting below 40°F, and permits synthetic 10W-30 after the initial break-in period (typically the first 5 hours of operation on a new engine).

Kohler Engine Oil Specifications

Kohler’s owner manuals for Courage and Command engines specify SAE 10W-30 as the primary recommendation across a wide operating range, with SAE 30 as an acceptable alternative above 32°F (0°C). Kohler also approves full synthetic oil in its Command Pro commercial engines after break-in and explicitly notes that SJ-or-higher API classification is required.

Oil Viscosity by Temperature: Choosing the Right Grade for Your Climate

Viscosity grade determines how the oil flows at cold start and how it maintains film thickness at operating temperature. Using a grade outside the recommended range causes either poor cold-start lubrication (too thick) or inadequate film strength at peak temperatures (too thin).

Key takeaway: SAE 10W-30 covers the widest usable temperature range for most homeowners in North America. SAE 30 is the optimal choice only when ambient temperatures reliably stay above 40°F for the entire mowing session, including at startup. If you store your mower in an unheated garage and do early spring mowing, SAE 10W-30 or SAE 5W-30 synthetic is safer at cold start.

Synthetic vs. Conventional Oil: What Craftsman and Engine Makers Recommend

Both Briggs & Stratton and Kohler permit full synthetic oil in their engines, but with one condition: do not use full synthetic during the break-in period (the first 5 operating hours on a new or rebuilt engine). During break-in, the piston rings need to seat against the cylinder walls. The slightly higher friction of conventional oil during this period aids proper seating. Full synthetic’s superior lubricity can interfere with that process.

After Break-In: Synthetic Is Acceptable

• Briggs & Stratton approves Briggs & Stratton Synthetic 5W-30 for use in all its OHV single-cylinder and V-twin engines after break-in
• Kohler approves synthetic 10W-30 meeting API SJ or higher in Courage and Command engines after the initial service interval
• Full synthetic does not extend the oil change interval on small engines — maintain the same 50-hour or annual service schedule regardless of oil type
• You can switch from conventional to synthetic after break-in without a flush; simply drain the conventional oil at the normal service interval and refill with synthetic

What to Avoid

• Automotive motor oil with friction modifiers: Some car oils marketed for fuel economy contain molybdenum-based friction modifiers that can accelerate wear in small air-cooled engines not designed for those additives
• High-mileage automotive oil: Formulated with seal-swell agents for worn car engines; not appropriate for small engine chemistry
• API classifications below SJ: Older oil standards (SF, SE) lack the oxidation and deposit-control properties needed in high-heat air-cooled engines

Standard automotive SAE 30 or 10W-30 without special additive packages (friction modifiers, seal conditioners) is generally acceptable for Craftsman mowers if it carries an API SJ or higher rating, but small-engine-specific oil is the lowest-risk choice.

How to Check and Change the Oil on a Craftsman Lawn Mower (Step-by-Step)

How to Check the Oil Level

1. Park the mower on level ground and let the engine cool for at least 5 minutes after use.
2. Locate the dipstick — on walk-behind mowers it is typically a yellow or black ring cap near the base of the engine; on riding mowers it is usually on the engine side accessible from the seat.
3. Remove the dipstick, wipe it clean with a lint-free cloth, reinsert it fully, then remove again.
4. Read the oil level: the film of oil should sit between the ADD and FULL marks. Below the ADD mark, top up. Above the FULL mark, drain excess — overfilling is harmful.
5. Reinstall the dipstick and tighten finger-tight.

How to Change the Oil — Walk-Behind Mower

1. Warm the engine: Run the mower for 2–3 minutes. Warm oil drains faster and carries more contaminants out with it. Shut the engine off and disconnect the spark plug wire.
2. Position a drain pan: Tilt the mower onto its side (air filter and carburetor facing up — never down, or fuel and oil will enter the air filter). Position a drain pan under the oil fill opening.
3. Drain the oil: Remove the dipstick/oil fill cap and allow oil to drain fully (2–3 minutes).
4. Alternatively, use a drain plug: Some Briggs & Stratton and Kohler walk-behind engines have a drain plug at the base of the crankcase. Use a 3/8-inch socket or the OEM drain plug tool to remove it, drain oil into the pan, then reinstall the plug to 75–95 in-lb torque.
5. Refill: Set the mower upright, insert a small funnel into the oil fill port, and add the correct volume of the correct grade. Add oil slowly — pour half the total capacity, check the dipstick, then add the remainder and check again.
6. Reinstall the dipstick, reconnect the spark plug wire, start the engine, and run for 30 seconds. Check for leaks at the drain plug or gasket area. Shut down and recheck the dipstick level.

How to Change the Oil — Craftsman Riding Mower

1. Warm the engine for 2–3 minutes, then shut off and set the parking brake.
2. Locate the drain plug on the underside of the engine crankcase. Position a drain pan beneath it.
3. Remove the drain plug with the appropriate socket (commonly 3/8-inch or 5/8-inch). Allow full drainage.
4. Remove and replace the oil filter: Spin the old filter off counterclockwise. Lightly coat the new filter’s rubber gasket with fresh oil. Spin the new filter on hand-tight, then an additional 3/4 turn.
5. Reinstall the drain plug. Refill with the correct oil volume through the dipstick tube — use a long-neck funnel for access.
6. Start the engine, let it run 1 minute, shut off, wait 2 minutes, and verify dipstick level. Top up if necessary.

Oil Change Interval

Both Briggs & Stratton and Kohler specify an oil change interval of every 50 operating hours or once per mowing season, whichever comes first. New engines require a first oil change after the initial 5 hours of break-in operation. Mowing in dusty, dirty, or high-heat conditions warrants more frequent changes — some manufacturers recommend every 25 hours under severe conditions.

Common Oil Mistakes Craftsman Mower Owners Make (And How to Avoid Them)

1. Overfilling the Engine

Adding oil above the FULL mark on the dipstick forces excess oil into the crankcase breather system, which routes it into the air intake. The engine will smoke heavily, run rough, and can hydro-lock. If you overfill, drain to the correct level before starting the engine.

2. Running the Wrong Viscosity for the Temperature

Using SAE 30 in cold-start conditions (below 40°F) causes the oil to resist flow during the critical first seconds of startup when most engine wear occurs. Using SAE 5W-30 in extreme heat can reduce film thickness at operating temperature below the engine’s design tolerance. Match viscosity to your climate using the chart above.

3. Skipping the Oil Filter on Riding Mowers

Replacing oil without replacing the filter on a riding mower leaves approximately 30–40% of the old, degraded oil in the system inside the filter element. That old oil immediately mixes with the fresh charge. Replace the filter at every oil change — filters for common Craftsman riding mower engines cost $5–$10.

4. Using Full Synthetic During Engine Break-In

As noted above, synthetic oil’s low friction can prevent piston rings from seating correctly in a new engine, resulting in permanent oil consumption and compression loss. Use conventional oil for the first 5 operating hours, perform the break-in oil change, then switch to synthetic if preferred.

5. Mixing Oil Grades Between Top-Ups

Mixing SAE 30 and SAE 10W-30 within the same fill is not harmful — both are compatible — but mixing in a significantly different grade (e.g., topping a SAE 30 fill with SAE 5W-20) dilutes the viscosity unpredictably. Top up with the same grade already in the engine, or do a full drain and refill if you are changing grades.

6. Ignoring the API Service Classification

Purchasing oil solely by viscosity grade without checking the API service donut on the label risks running an oil that lacks modern oxidation inhibitors or thermal stability. Craftsman’s engine partners (Briggs & Stratton and Kohler) both require API SJ or higher — current API standards (SP as of 2020) exceed this requirement, so any current-production oil meets it by default, but verify on older or surplus stock.

Frequently Asked Questions

Can I use 10W-40 in a Craftsman lawn mower?

SAE 10W-40 is not listed in Briggs & Stratton OHV single-cylinder specifications and is generally not recommended for walk-behind Craftsman mowers. Kohler Command Pro V-twin engines do list 10W-40 as an acceptable alternative for high-temperature operation. For most Craftsman homeowner mowers, stick to SAE 30 or SAE 10W-30 to stay within OEM tolerances.

How much oil does a Craftsman 190cc lawn mower take?

Craftsman mowers with a 190cc Briggs & Stratton engine (series 675ex, 725ex, or similar) hold approximately 18 oz (0.53 L) of oil. Add oil incrementally and verify with the dipstick — the capacity printed in the manual assumes a completely dry crankcase after full drainage.

How often should I change the oil in my Craftsman riding mower?

Change the oil every 50 operating hours or once per mowing season, whichever comes first. On a new or rebuilt engine, perform the first oil change after 5 hours. Replace the oil filter at every oil change. Mowing in dusty conditions warrants changes every 25 hours.

What happens if I run a Craftsman mower without enough oil?

Operating a small engine with insufficient oil causes metal-to-metal contact at the piston, crankshaft, and camshaft bearings. Within minutes, temperatures spike and the engine seizes. Most Craftsman mowers with Briggs & Stratton or Kohler engines do not include a low-oil shutdown sensor on base models — the engine will not automatically cut off. Check the dipstick before every use to avoid irreversible engine damage.
